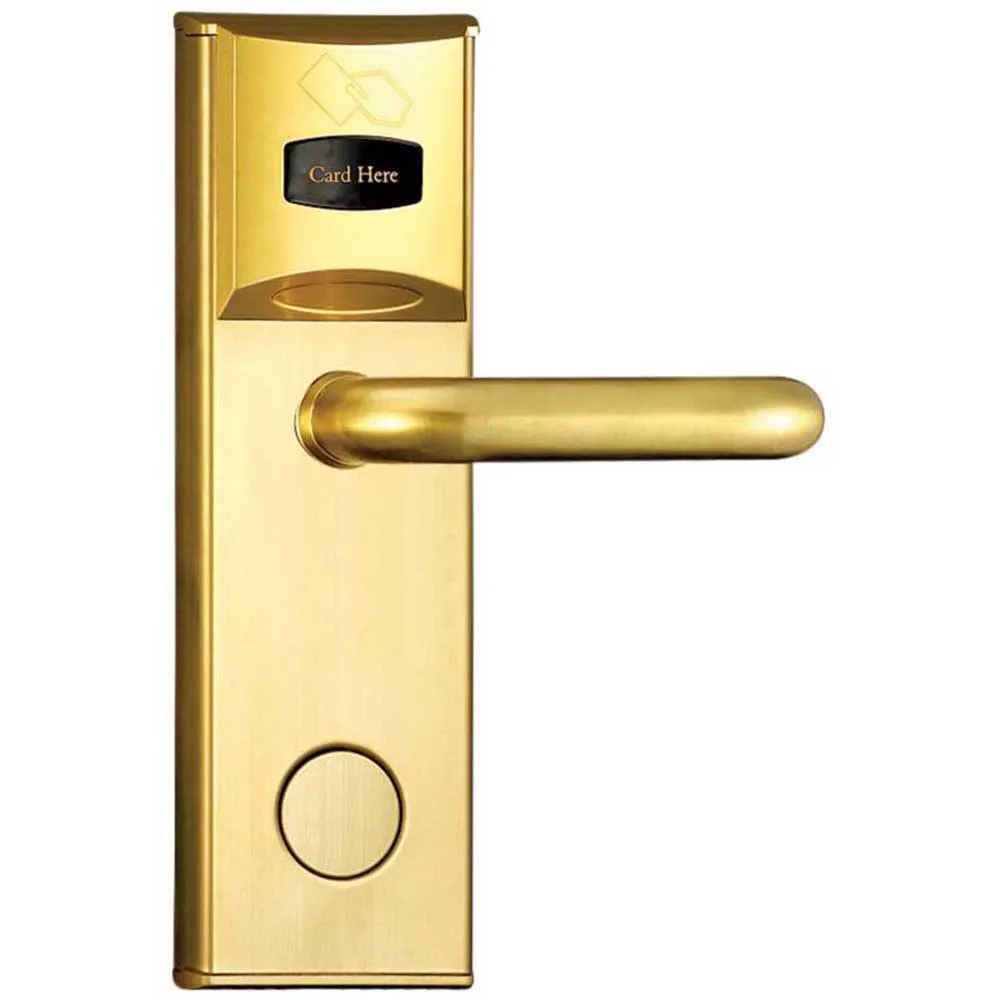

PNI CH2000R Smart Lock

Hotel access control:
- Yala PNI CH2000R offers a standalone solution for security needs and access monitoring that a hotel has, be it large, medium or small. The body of the shaft is of a galvanized alloy offering resistance to impact or strokes. The door you want to mount must have a grommet between 30 and 50 mm.

Electromagnetic card reader:
- PNI CH2000R offers the possibility of opening a door with the help of an electromagnetic card. It is also provided with a spare key, which can be used in emergency cases. Inside the yala has a manual opening mechanism. The CH2000R is compatible with PNI EMC-05 13.56 MHz proximity cards .

Open right:
The Yala PNI CH2000R can be used to open a door to the right from the outside of the room, as shown in the picture below.

Feeding:
- Yala PNI CH2000R is powered by 4 AA batteries. One set of batteries supports up to 10,000 openings. Yala warns when the voltage drops below 4.8V, a sign that the batteries need to be changed.

Monitoring software:
- The Yala PNI CH2000R can only be used in conjunction with the PNI FLH60 card programmer which also contains the monitoring software. Thus, you can configure a complex access control system.


Specifications:

- Feeding: 6V (4 x AA alkaline batteries)
- Maximum consumption: 200 mA
- Material: Others galvanized
- Anti-vandal: Yes
- Card reader: EM card 13.56MHz
- Mounting type: Apparent
- Size / weight: 244 x 77 x 26mm / 3.4 kg
- Operating temperature: -20 ~ 50 ° C
- Working humidity: ≤ 80%
- Yala opening type: Left Inside / Right outside
- Operating time: less than 1 second
- Thickness of use: 30 - 50mm
- Card drive distance: 0 - 5 cm from the sensor

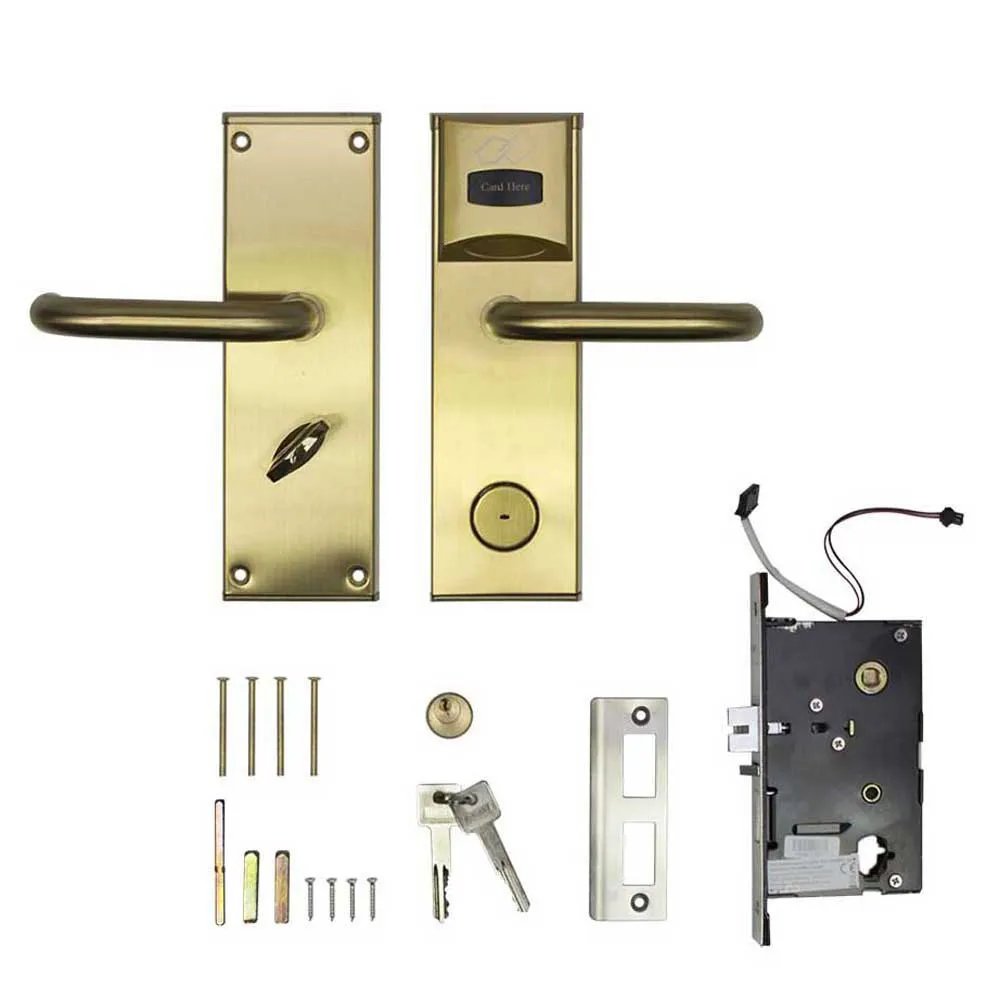

The package contains:
- Access control unit: Yes
- Installation and use manual: Yes
- Installation accessories: Yes
