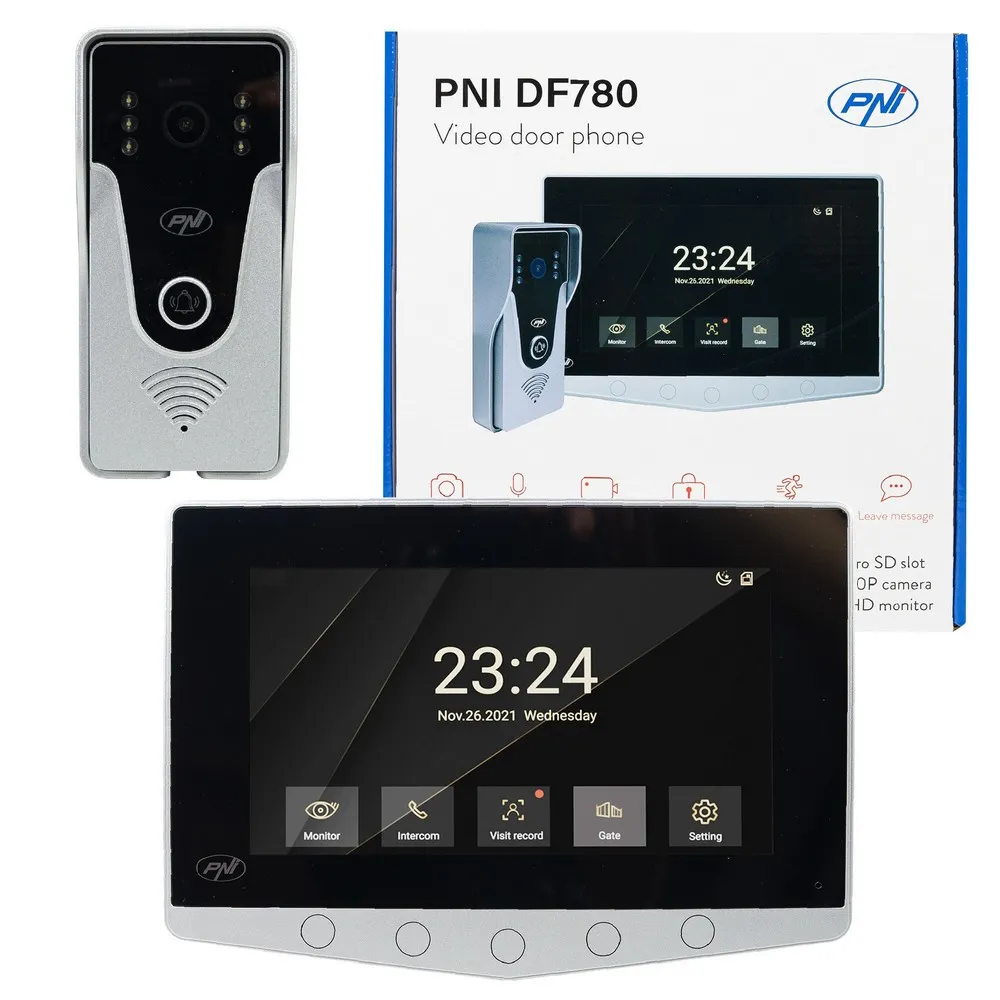

PNI DF780 video intercom

Features:

Bidirectional communication and HD image:
- The PNI DF780 video intercom offers a high-quality experience in communicating with guests and viewing them, offering video images of exceptional clarity thanks to the 2 MP Full HD camera with which the outdoor unit is equipped and the generous 7-inch screen. Thus, regardless of whether it is day or night, with the help of infrared LEDs, you can see the interlocutor in front of the gate/door with maximum clarity and thus enjoy increased security and safety.

Motion detection function Recording on micro SD card:
- From the moment of receiving a call from the outdoor unit, the system will automatically start recording video or taking images (depending on the settings: video or snapshot), which will be saved on the micro SD card (not included) inserted in the unit interior. The recording can also be started manually from the application by pressing the Record key. In this situation, the recordings will be saved in the phone´s memory. Activating the motion detection function, the system will automatically start recording or make captures, depending on the settings made.

Multiple connection and monitoring:
- The system supports the connection of a maximum of two outdoor units (at the gate/door), 4 indoor units (monitors) and 2 CCTV cameras. The outdoor units can in turn control the opening of a gate. Thus, you can have increased comfort in controlling your home if you have 2 access ways (small/large gates) with the possibility of allowing access from different locations in the house. Even in the absence of a visitor, you can view the images taken by one of the 4 cameras (2 outdoor units + 2 cameras) just by changing the video source by pressing the dedicated button on the master unit. This equipment: the second outdoor unit, the monitors and surveillance cameras are purchased separately.

Intercom function:
- Another useful communication function with which this intercom is equipped is that of Intercom. This allows audio-video communication between indoor units (purchased separately). Thus, if you have at least 2 intercom monitors installed in different rooms, on different floors or in different buildings, you can call one of the respective monitors from the other locations through the Intercom function to start the desired conversation.

Order for 2 gates:
- The PNI DF780 video intercom can command the opening of 2 gates: the small gate (with electromagnetic lock) and the large gate with a centralized closing/opening system, with the help of the 2 dedicated non-energized relay outputs: one located on the monitor unit and the second located on outdoor unit.

Specifications:

General features:
- LCD screen: Yes, 7´´
- Screen Resolution: 1024 x 600
- Electromagnetic yala actuation output: Yes, 2
- Intercom: Yes
- Outdoor monitoring: Yes
- Alarm: Yes, on motion detection
- Number of songs: 6 songs
- Photo storage: Yes
- Video Recording: Yes
- Browse Recordings: Yes
- Clock Memorization, Time: Yes

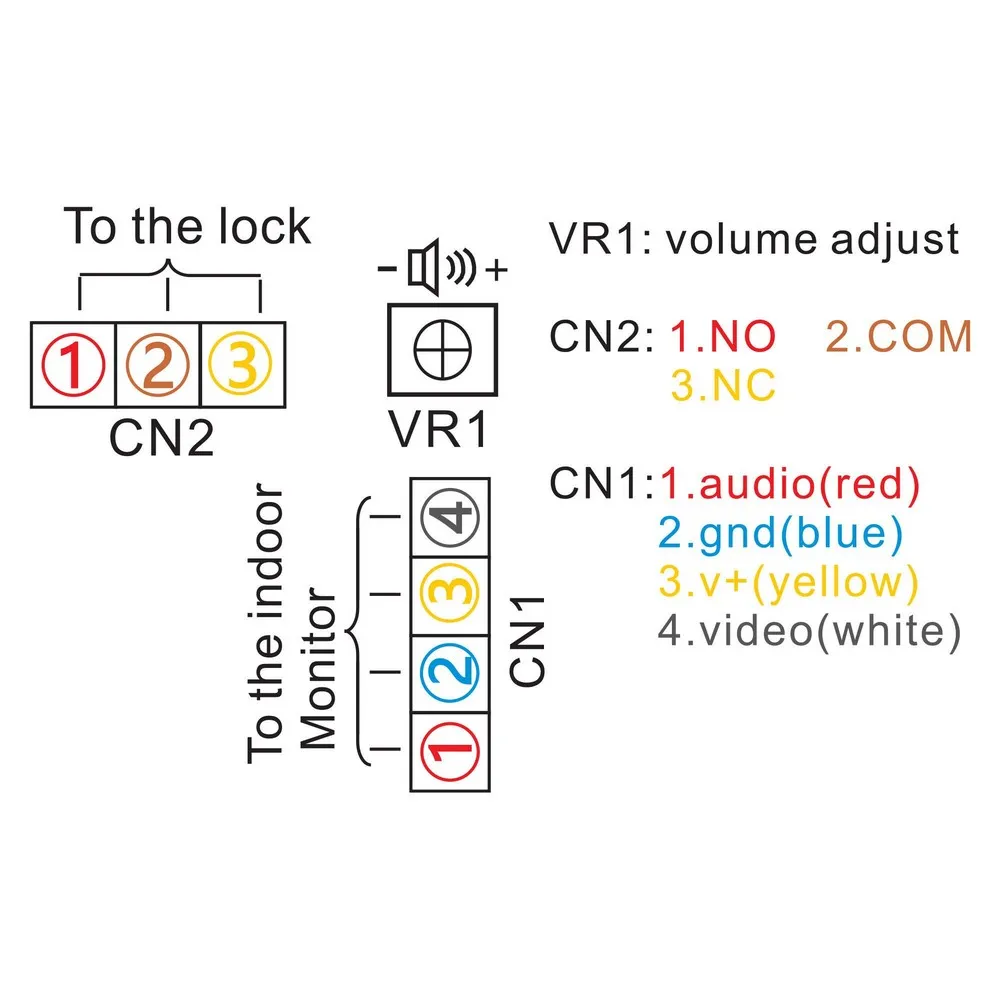

- Connection to the external unit: 4-wire cable
- Working temperature:
- Working distance: Up to 100m
- Camera sensor: 1/4 CMOS, 2MP 1080P
- IR LEDs: 6 bc
- Night Visibility: Up to 5m
- Dimensions/Weight: Chamber: 125 x 56 x 21 mm Monitor: 207 x 144 x 23 mm
- Power supply: Chamber: 12-15V DC Monitor: 12-15V DC
- External memory: microSD card, maximum 128GB (not included)

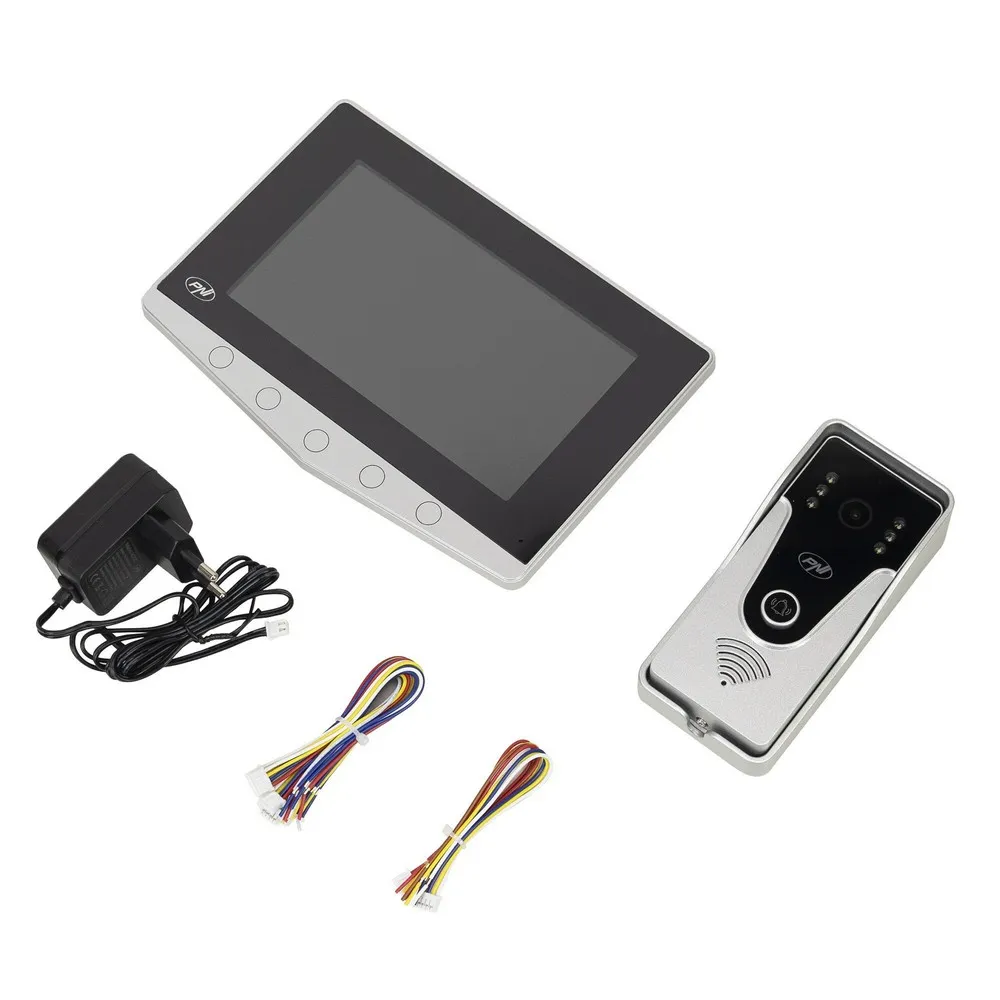

In the box:
- Outdoor unit: Yes
- Indoor unit (monitor): 1 monitor

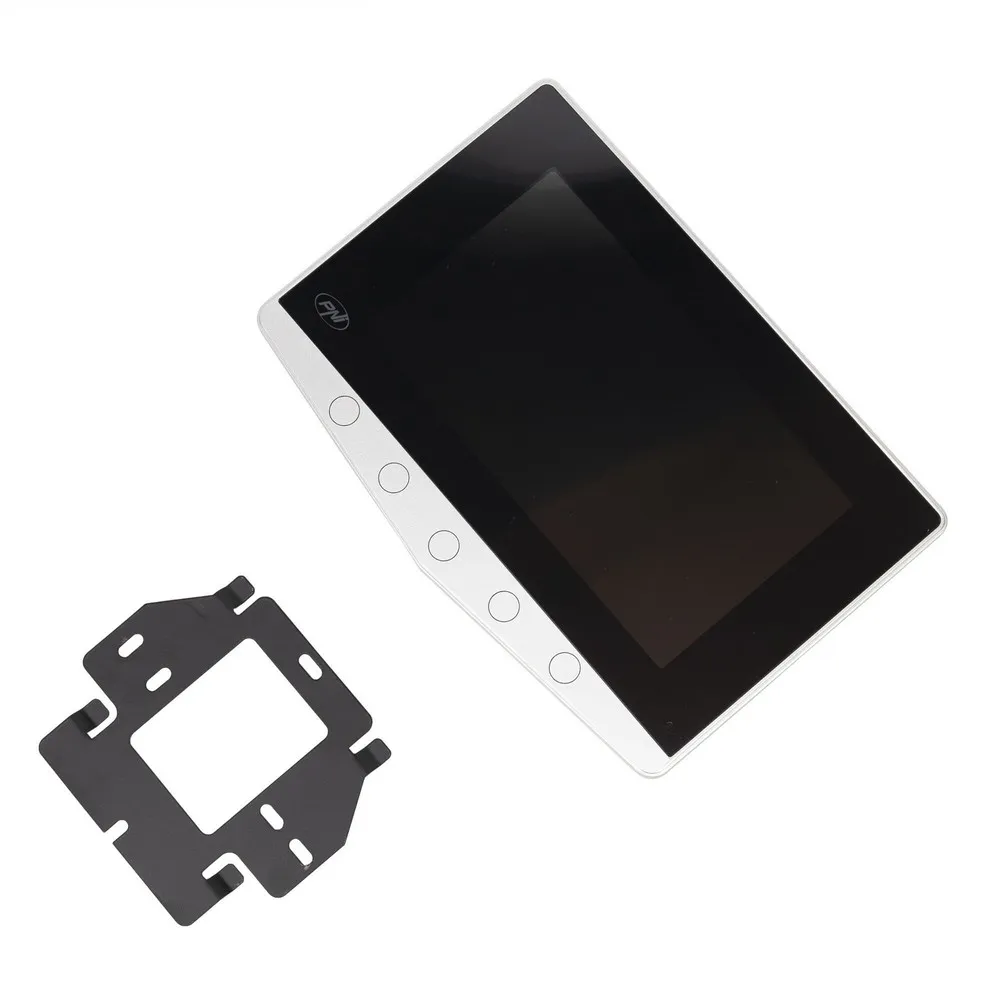

- Wall bracket for monitor: Yes
- Fixing accessories: Yes

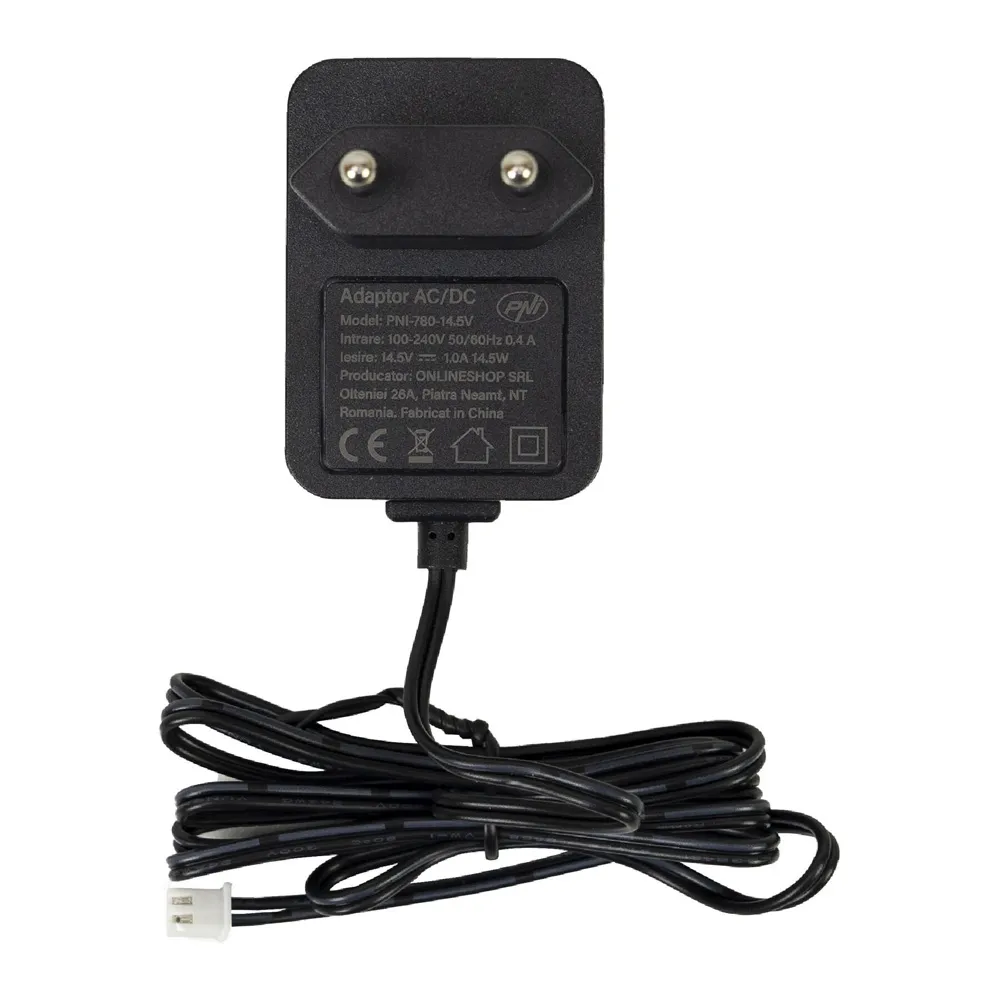

- Indoor monitor power supply: Yes
- User Manual: Yes
- Cable connections: Yes
