PNI Recessed access push button PB103

Features:

Contactless access switch:

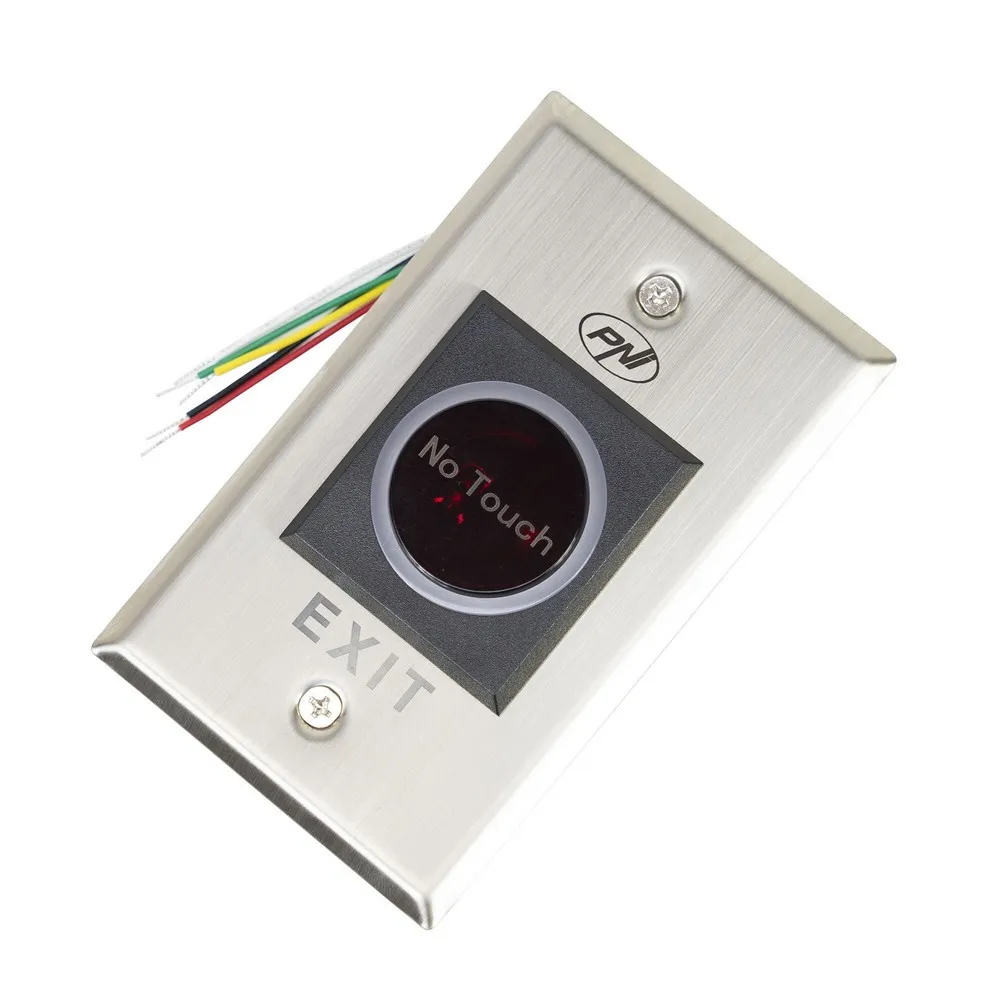

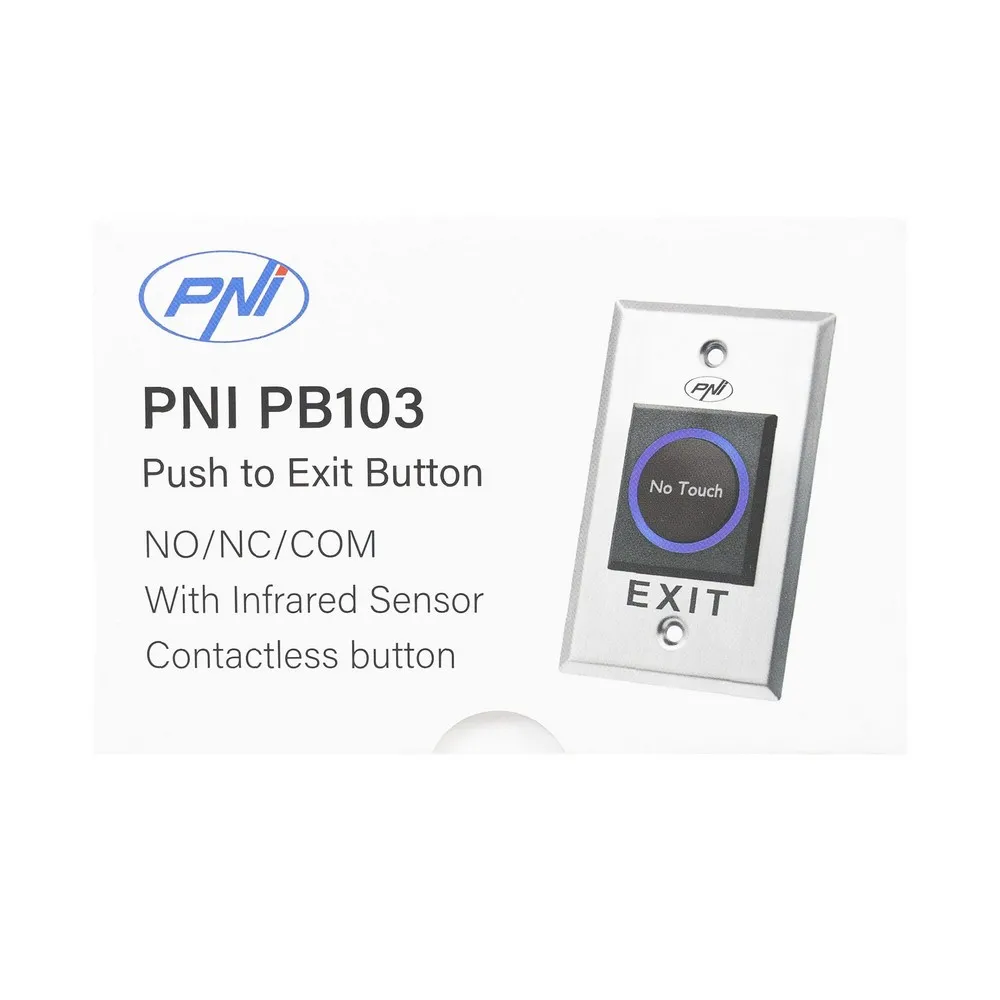

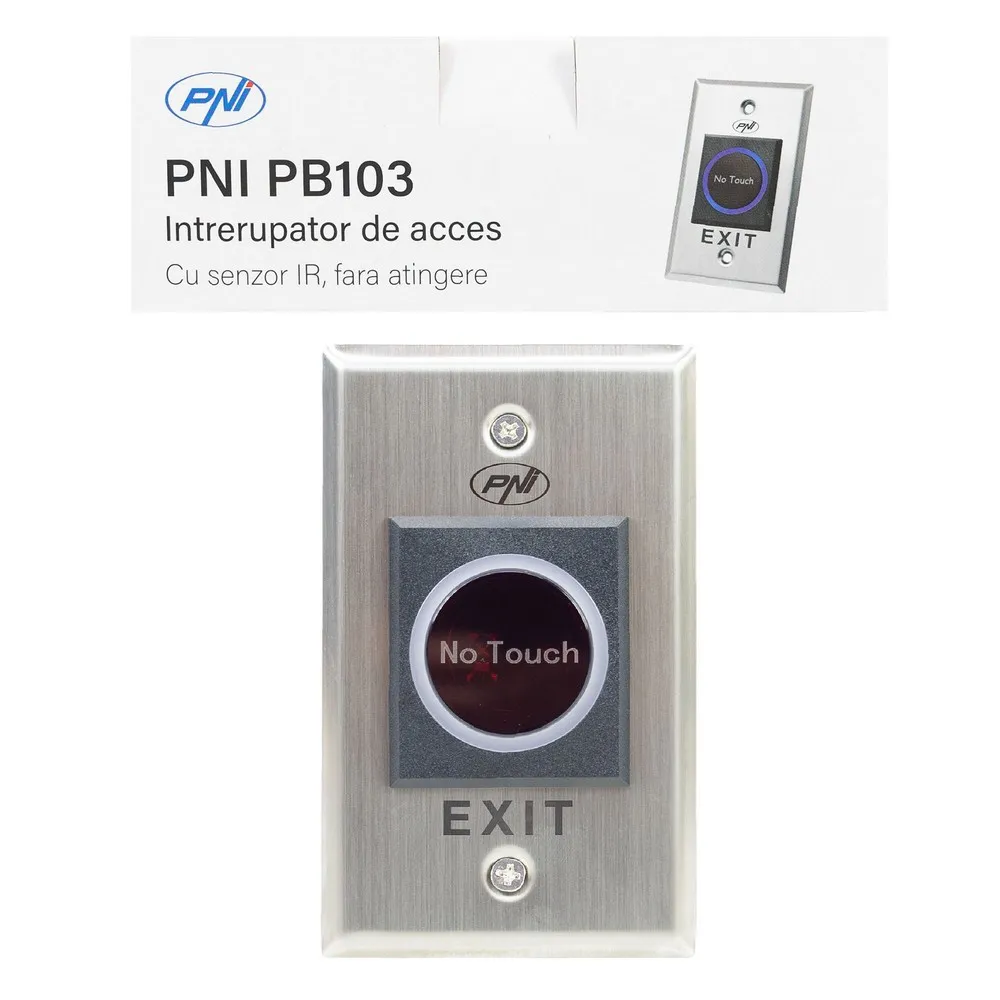

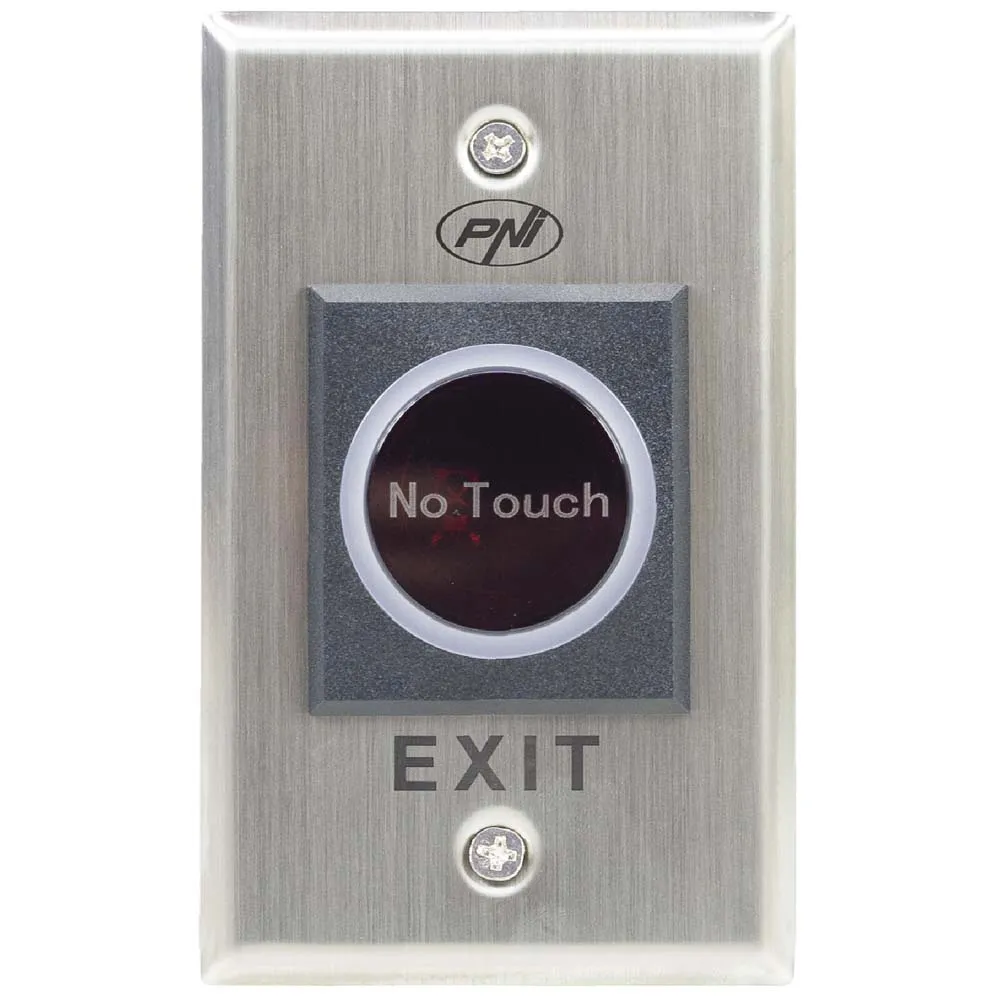

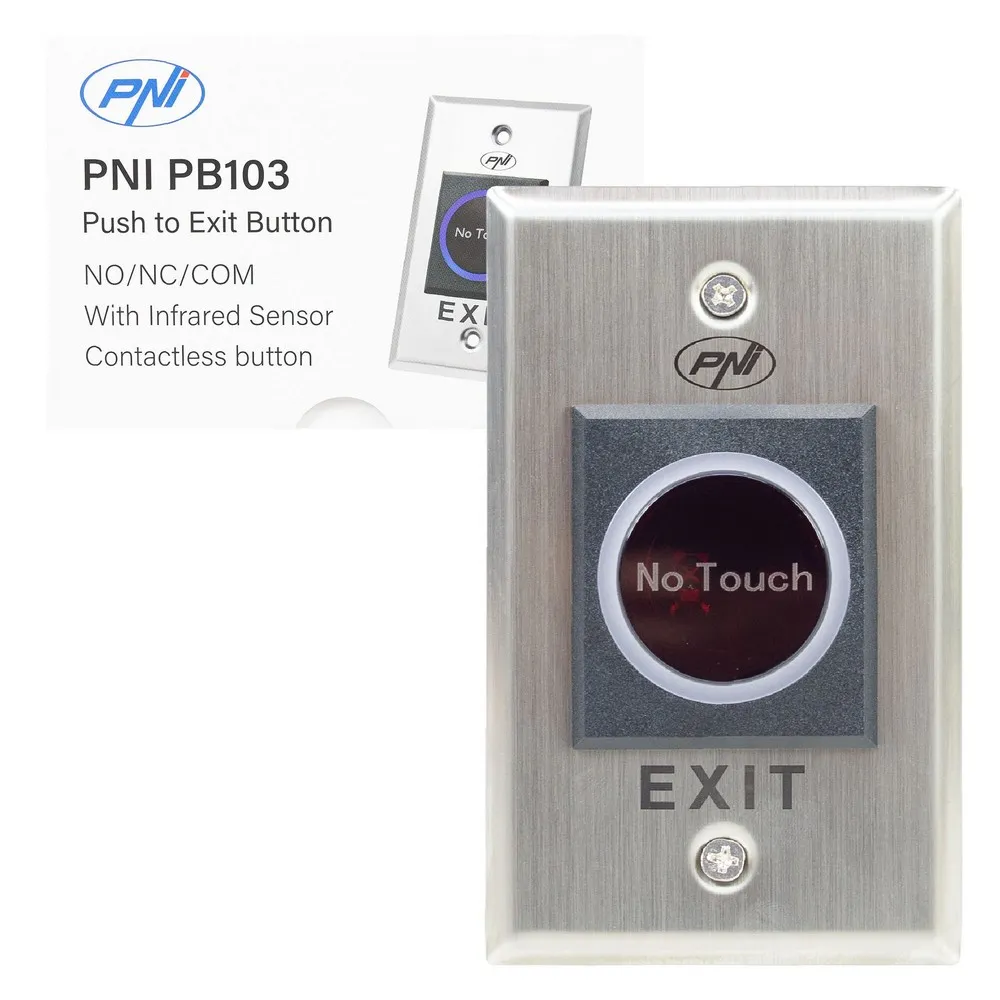

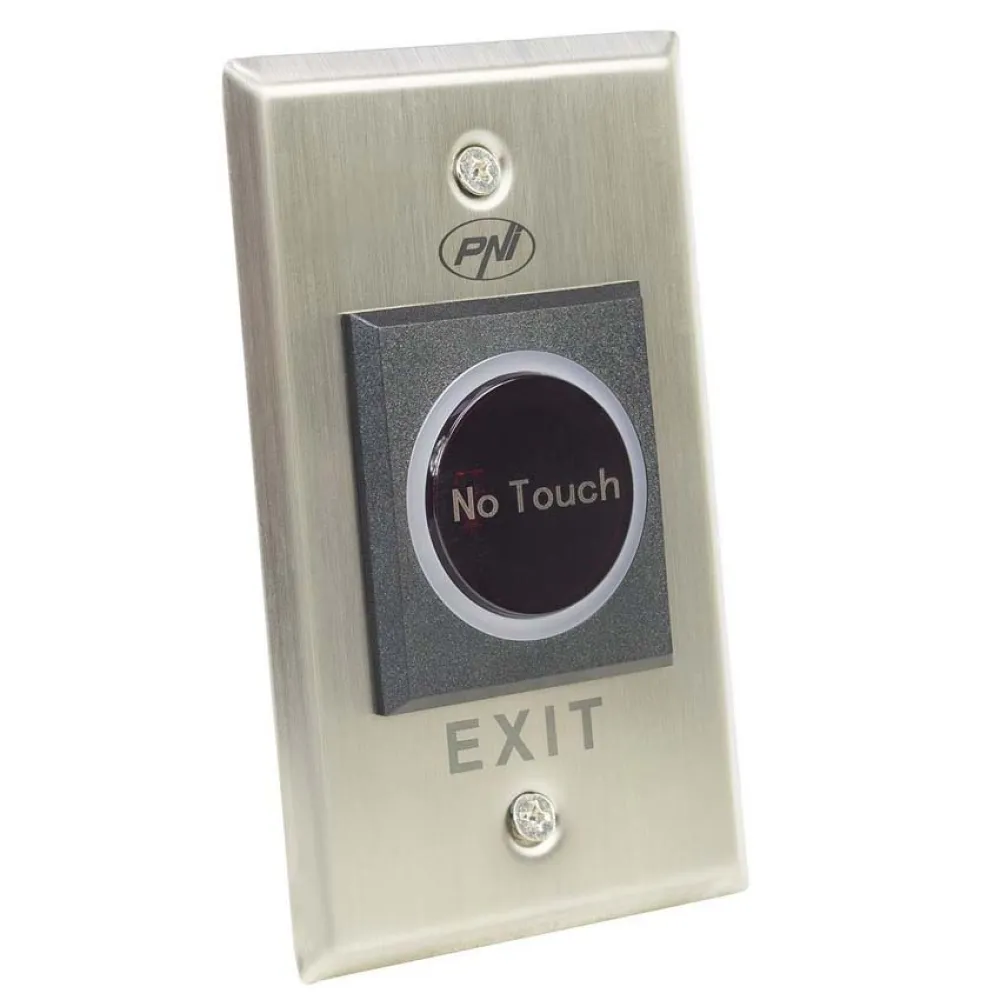

- The PNI PB103 recessed access switch is a contactless device designed to control access to various spaces. Thanks to its infrared sensor operation, it allows touch-free activation, making it ideal for use in spaces such as banks, warehouses and, in general, any space with restricted access.

12V/24V power supply:
- It operates on a 12V or 24V DC supply voltage and is equipped with a status LED that provides clear visual indications: blue indicates standby mode, and green signals IR sensor activation.

Compatible with access control systems:
- The voltage and current through are a maximum of 3A at 12V or 24V, making it suitable for access control systems or intercoms.

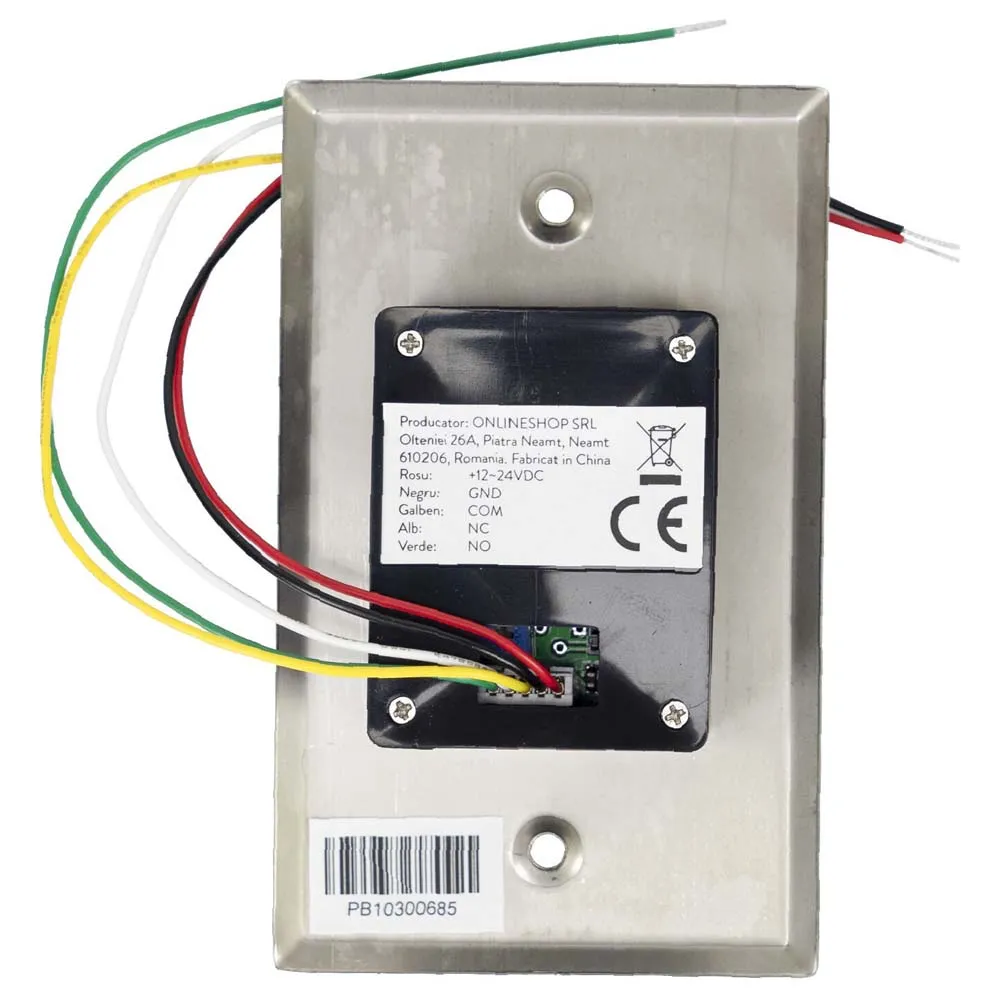

- The switch has NO (normally open), NC (normally closed) and COM contacts, being compatible with a wide range of equipment.

Specifications:

- Supply voltage: 12V/24V
- Contact type: NO/NC/COM
- Lifespan: 500,000 shareholders
- Current, maximum through voltage: max.3A, 12/24V
- Material: Metal
- Size: 115 X 70 X 24 mm
- Weight: 69 grams
- Operating temperature: -26°C ~ +80°C
