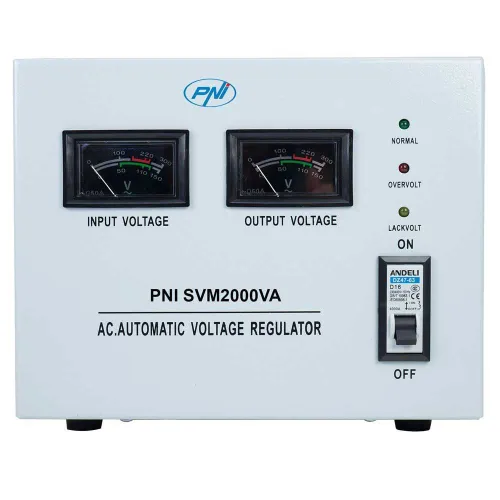

PNI SVM2000VA Voltage Stabilizer

EU PLUG.

Voltage stabilizer with servomotor, capacity 1600W 2KVA.

Easily solve the problem of unstable voltage in your home:

- The single-phase voltage stabilizer with PNI SVM2000VA servomotor has been designed to keep the output voltage as stable as possible.

When the mains voltage fluctuates, the stabilizer will automatically adjust the voltage as close as possible to the preset value.

- Servomotor voltage stabilizers have high capacity, high efficiency, no wave distortion, automatic voltage adjustment, long service life and performance.

- Servomotor voltage stabilizers have a wide range of applications.

Depending on their capacity, they can connect:

electromechanical equipment, industrial equipment, air conditioners, televisions, appliances, power tools, refrigerators and, in general, electronics that need stable voltage.

Principle of operation:

- When the unit measuring the input voltage detects a variation outside the preset range, it will send a signal to the control unit which will activate the servomotor.

The secondary voltage transformer will change the polarity and magnitude of the compensation voltage and will control the output voltage within the preset range.

- Copper Coil:

The coil is the basic component of the voltage stabilizer.

The single-phase voltage stabilizer with PNI SVM2000VA servomotor uses high quality pure copper.

Thus, the coil has a longer service life and a higher efficiency.

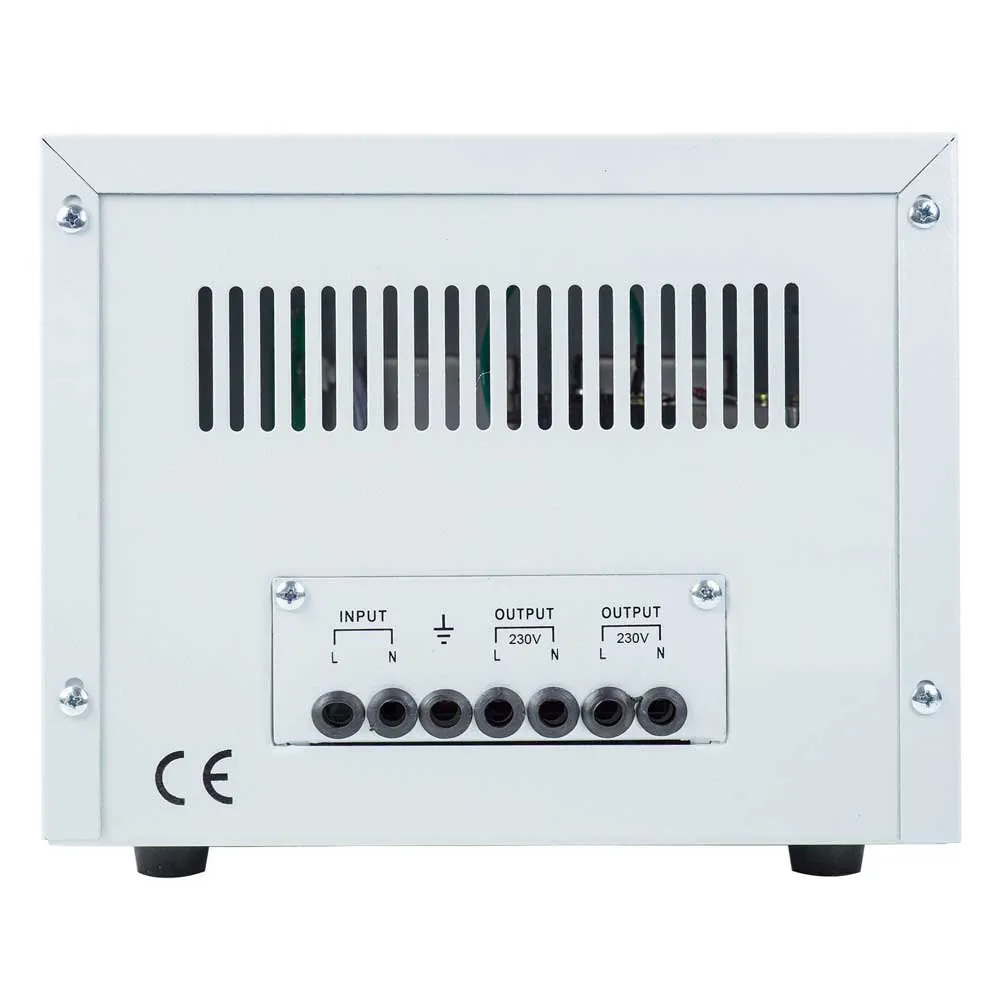

3 connections.

- 1 input.

- 2 output:

- The 3 strip connections divided into one input and two outputs on the rear panel have undergone several connection tests to ensure that your appliances can be used safely.

Protection functions:

- The vents on both sides effectively disperse the heat generated in the conversion process.

If there is an overload or short circuit, the built-in circuit breaker will cut off the power to protect your devices.

- Other protections:

start delay, mechanical error, overcurrent, short circuit, overtemperature.

Specifications:

- Output voltage:

230.

- Frequency of entry:

50/60 Hz.

- Rated input voltage:

160V ~ 255V AC.

- Overheating protection:

Yes.

- Short circuit protection:

Yes.

- Overload protection:

Yes.

- Working temperature:

-5 ° C ~ + 45 ° C.

- Moisture:

0% ~ 95% (no condensation).

- size:

235 X 260 X 180 mm.

- Ventilation fan:

Yes.

- Overvoltage protection:

Yes.

- Low voltage protection:

Yes.

- Phase:

phase.

- Waveform:

sine.
