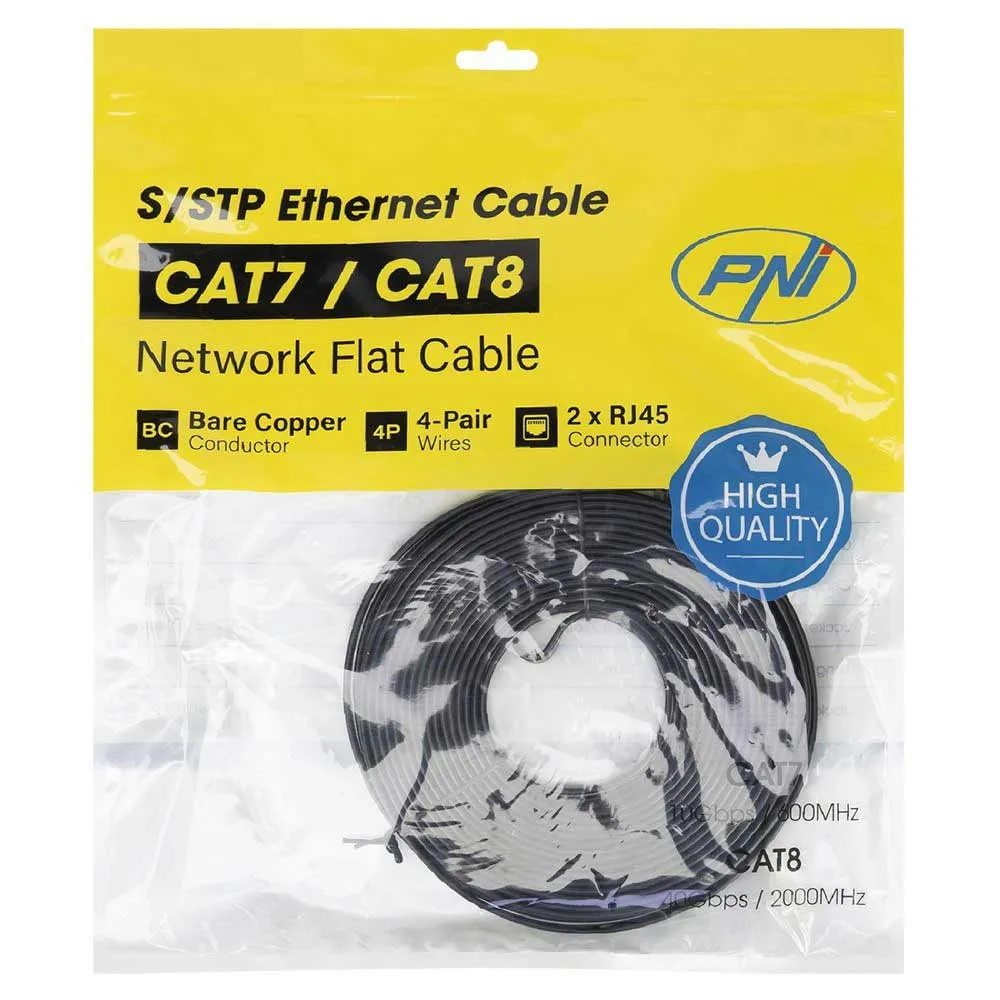

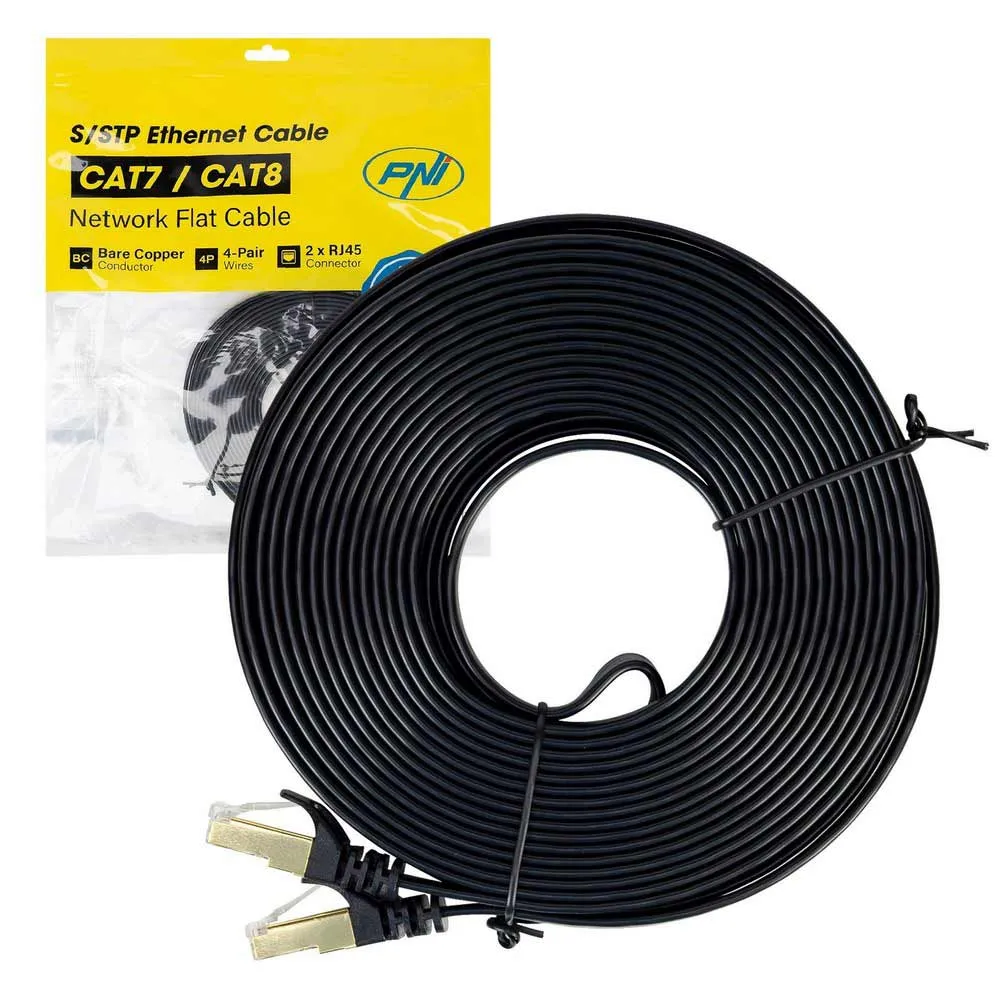

PNI U7100B 10 m CAT7 network cable

Flat network cable S/STP CAT7 PNI U7100B, 2 x RJ45, 4 pairs of wires, 32AWG, copper, 10 Gbps, 600 MHz, 10m.

Stable and fast connection up to 10 Gbps:
- The PNI U7100B S/STP CAT7 flat network cable is a quality product designed to improve your internet connection. It is ideal for use in homes, offices and other spaces where a fast and stable connection is required in tandem with a modern design.

The connection of up to 10 Gbps will make you forget about blockages or buffering and enjoy video streaming, gaming or data transfers at maximum quality.

Low interference, modern design:

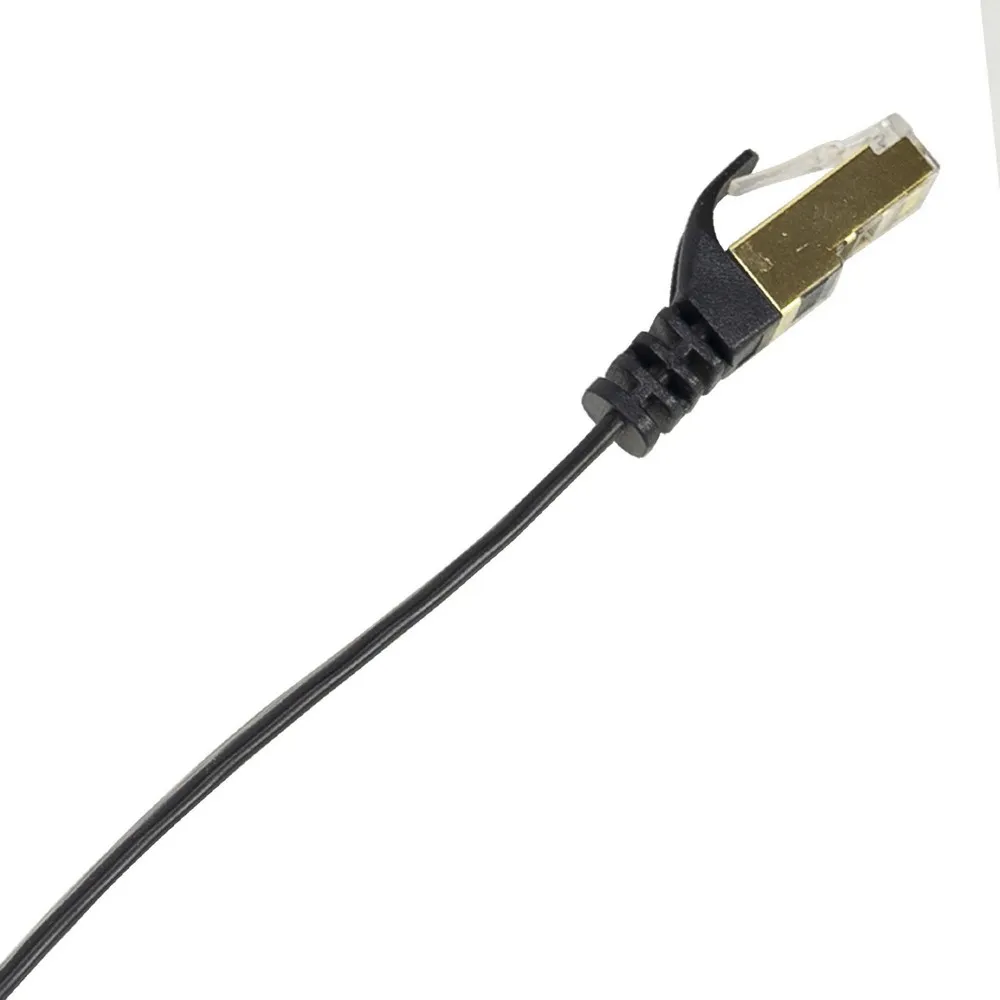

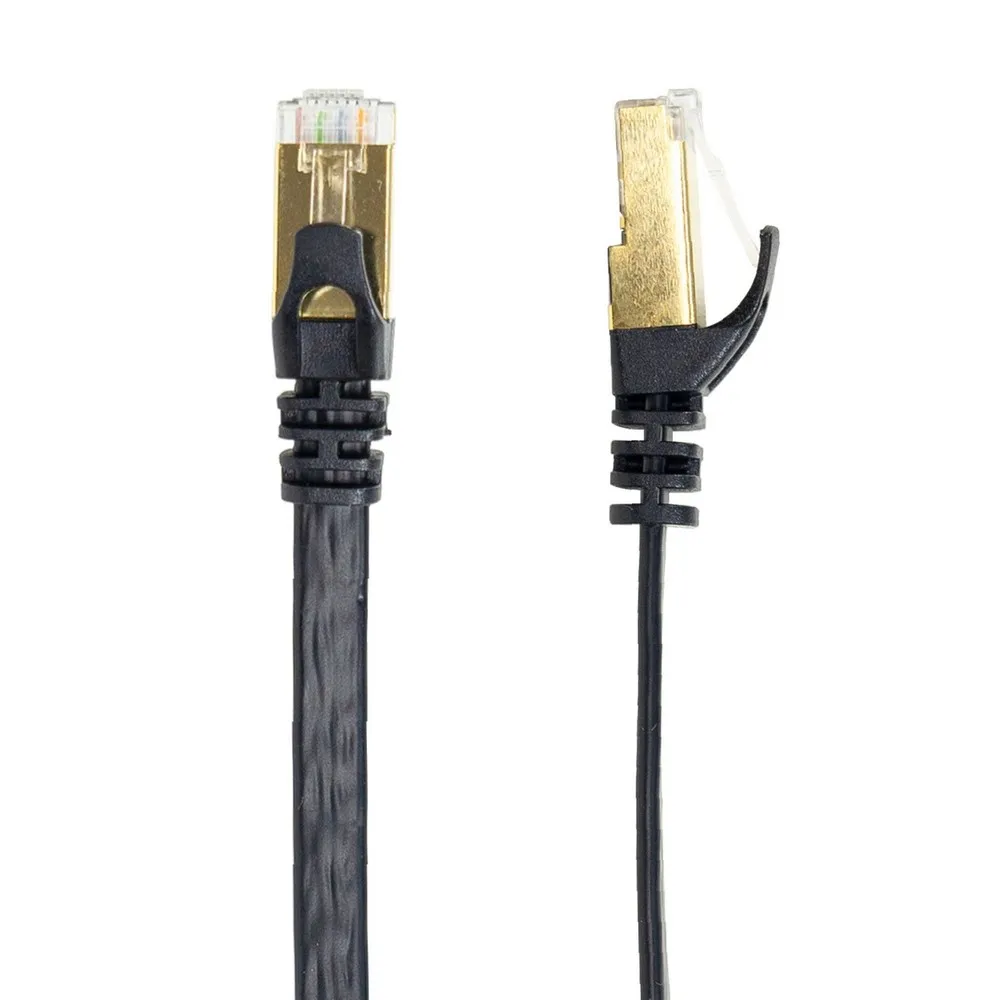

- It is equipped with 2 RJ45 jacks, 4 pairs of 32AWG copper wires and can transmit data at speeds of up to 10 Gbps at frequencies of up to 600 MHz.

Thanks to its construction , the PNI CAT7 flat network cable is resistant to interference and offers constant and linear performance and stability.

The black cable and flat shape ensure perfect integration into any decor.

The smart choice for the future:
- With the PNI U7100B CAT7 network cable, the speed and stability of your connection will never be a problem again. It is the perfect solution for all those who value quality and performance in their daily connectivity.

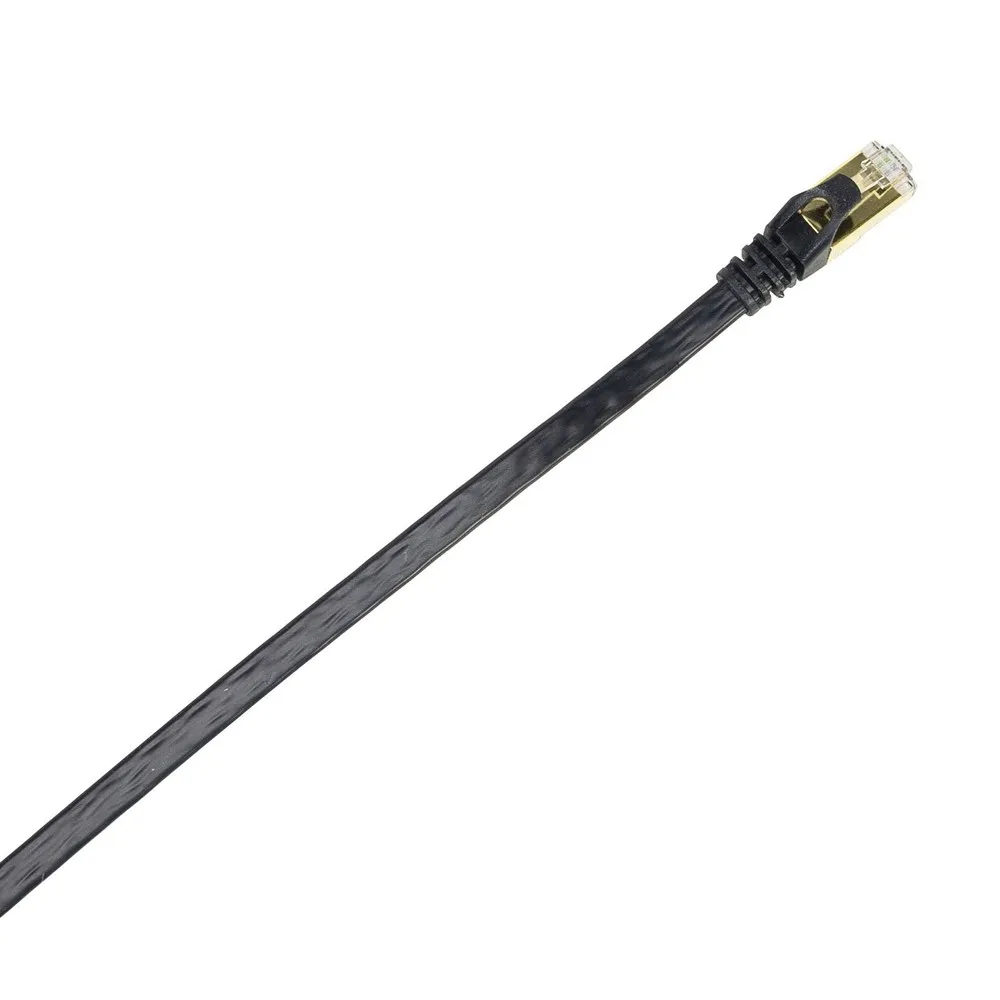

The flat and flexible design of the cable makes it suitable for any location, whether it´s your home office or your work office.

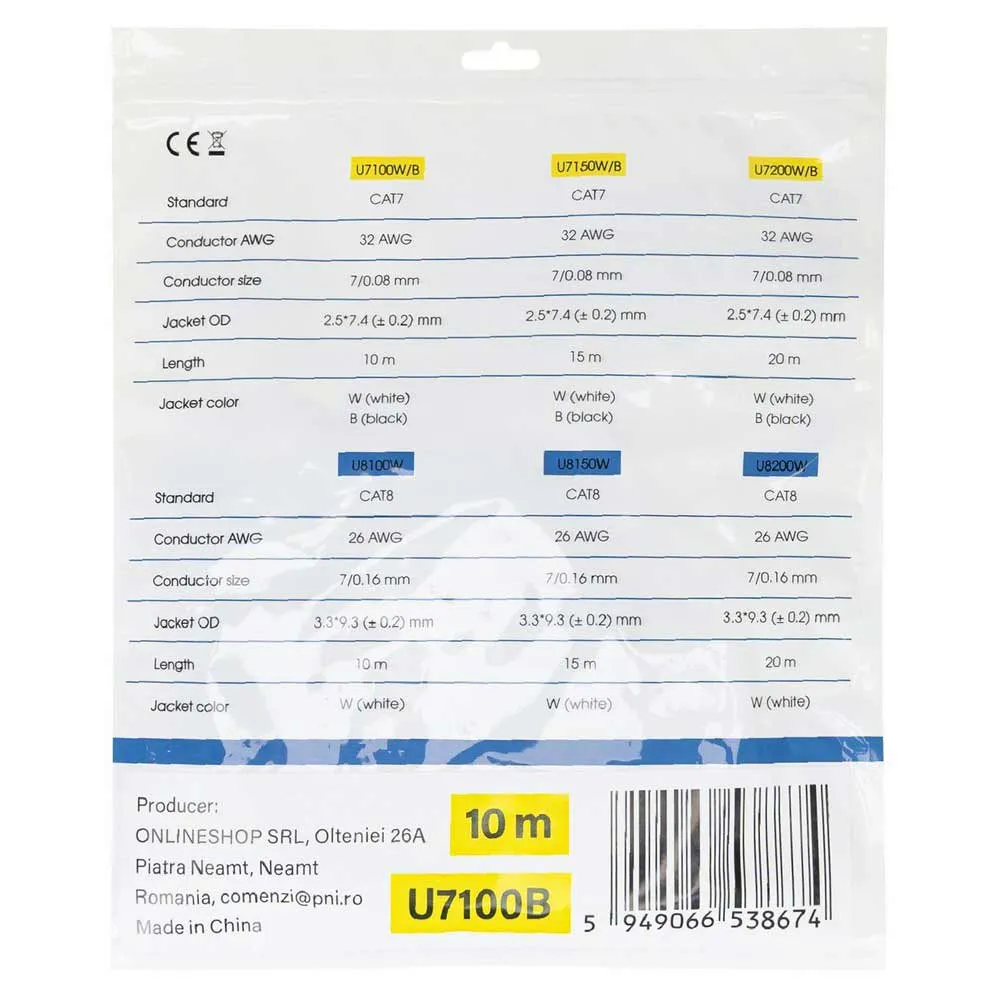

Specifications:

- Cable Type: S/STP CAT7
- Frequency band: 600 MHz
- Maximum speed: 10 Gbps
- Cable length: 10 meters
- Conductor: AWG: 32 AWG
- Material Copper Size: 7/0.08±0.008 mm
- Insulation Average thickness: 0.12 mm
- Material HD-PE Outer diameter: 0.78±0.08 mm
- Number of threads: 4 pairs
- Table wire (drainage): AWG: 32AWGx1C
- Size: 7/0.08±0.008 mm TC
- Shielding: Coverage: 100%
- Overlap: 25%
- Material: AL-Mylar
- Outer shell: Average thickness: 0.51 mm
- Material: PVC Outer
- Diameter: 2.5x7.4(±0.2)mm
- Input impedance: 100±15%Ω (@4~100Mhz) 100±22%Ω (@100~600Mhz)
- Nominal temperature: -26~80°C
- Propagation delay: 548ns/100m max
- Propagation discrepancy: 45ns/100m Max
- Unbalanced maximum capacitance: 330pF/100m
- Conductor resistance: 589Ω/km @20°C
- Minimal insulation resistant: 5000 MΩ.Km
- Minimum bending radius: 8 x cable outer diameter

In the box:
- Network cable: Yes
