Ram Mounts Key-Locking Power&Data Dock For Tab Active5 Pro&4 Pro

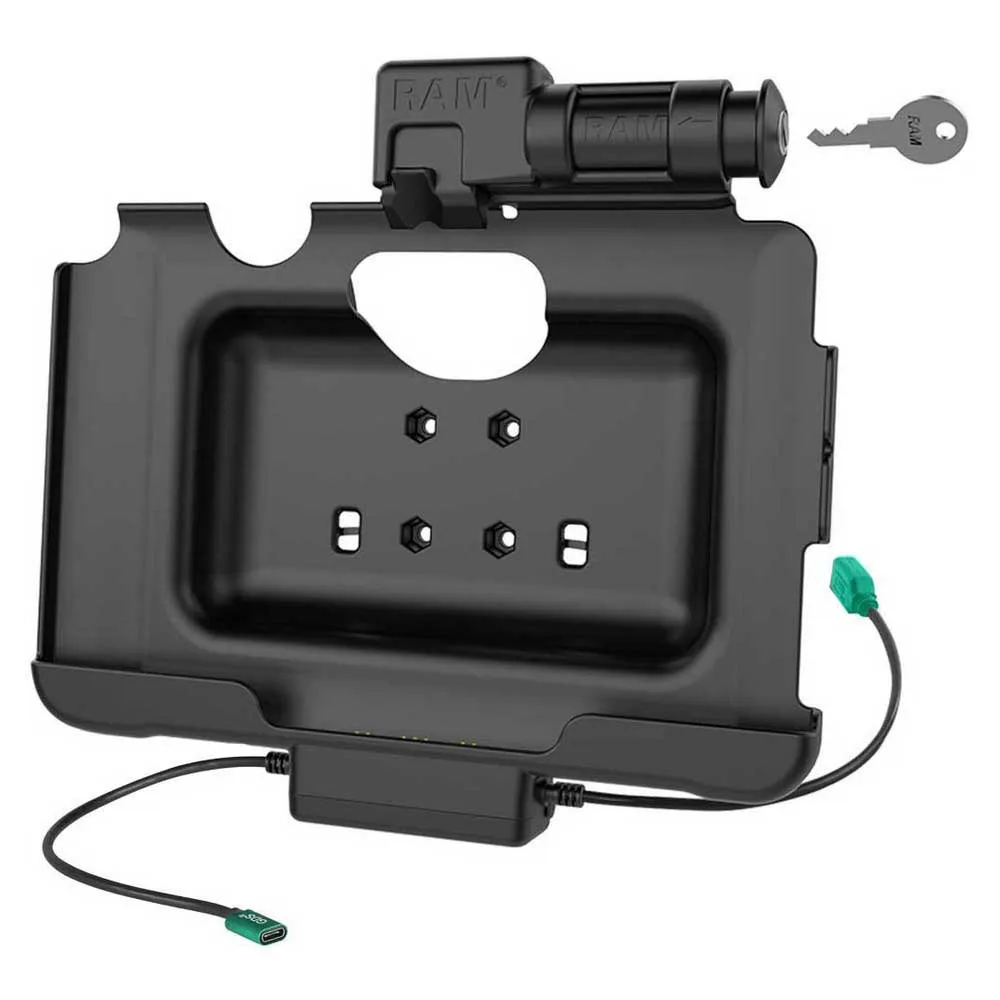

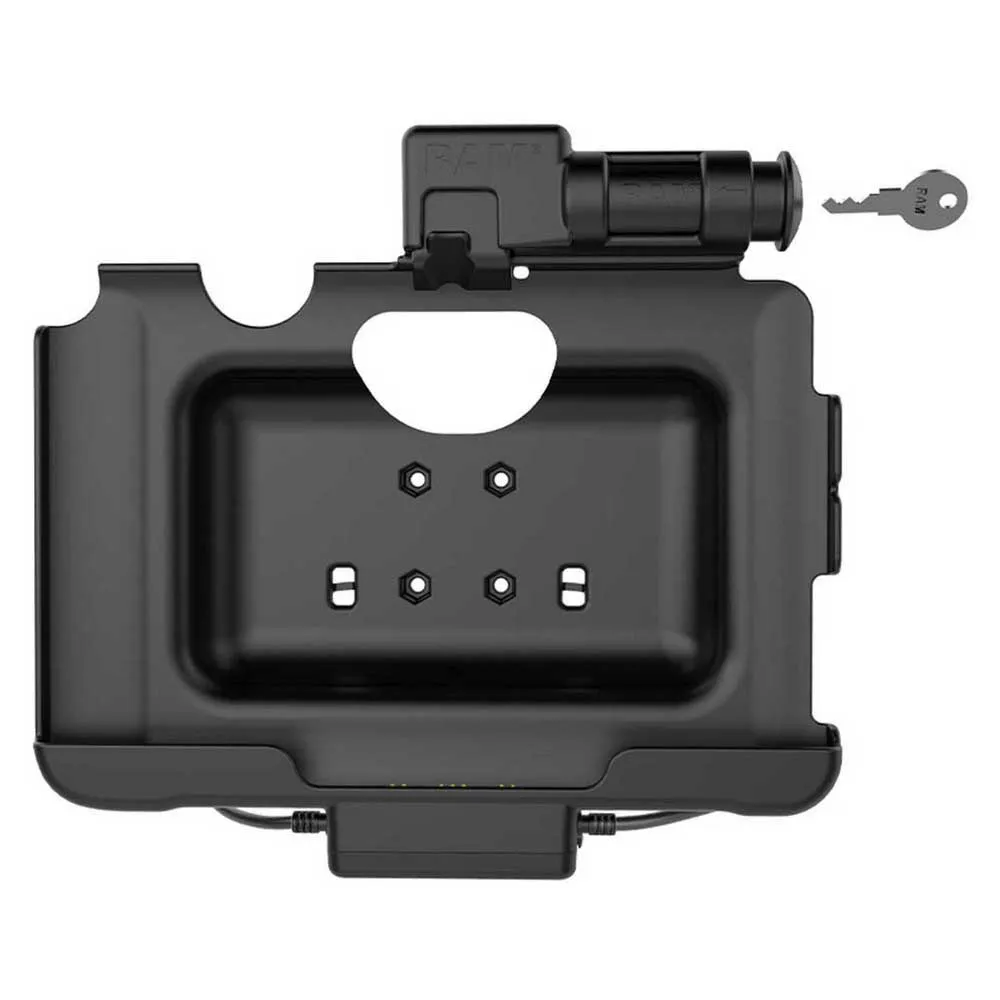

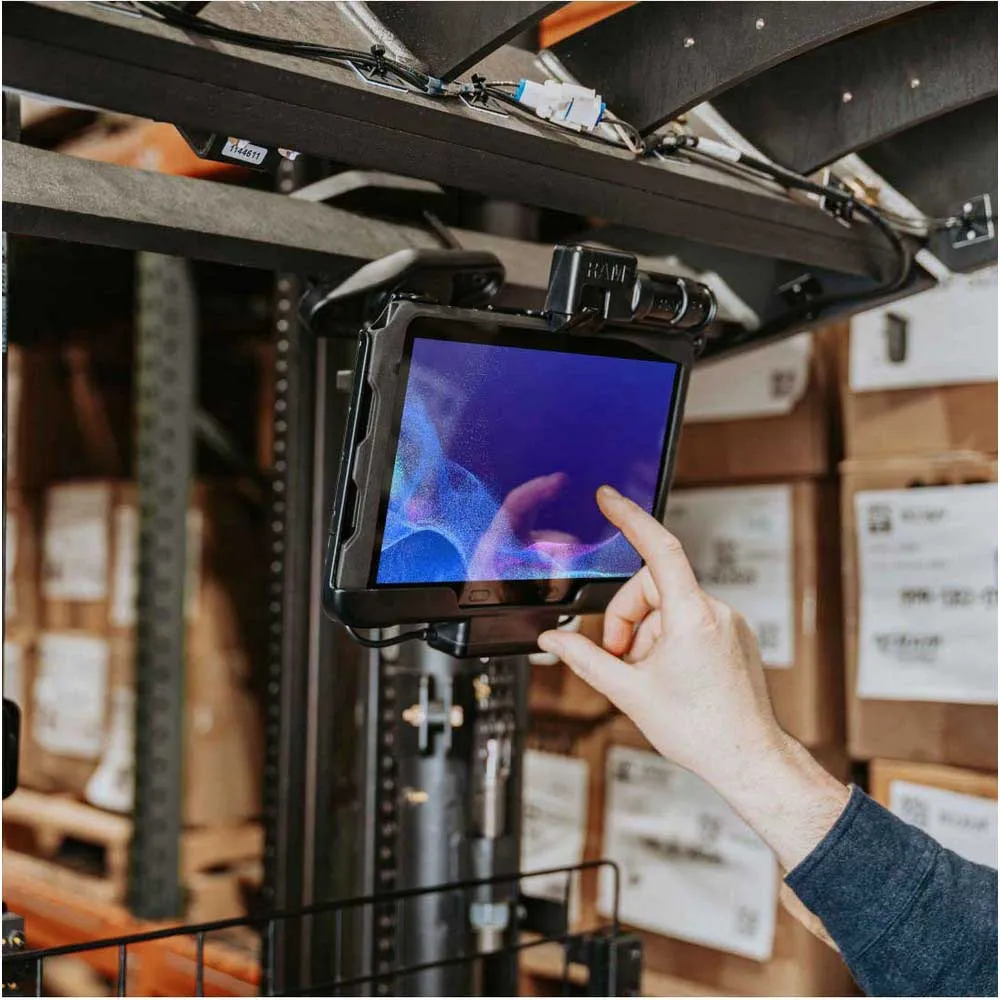

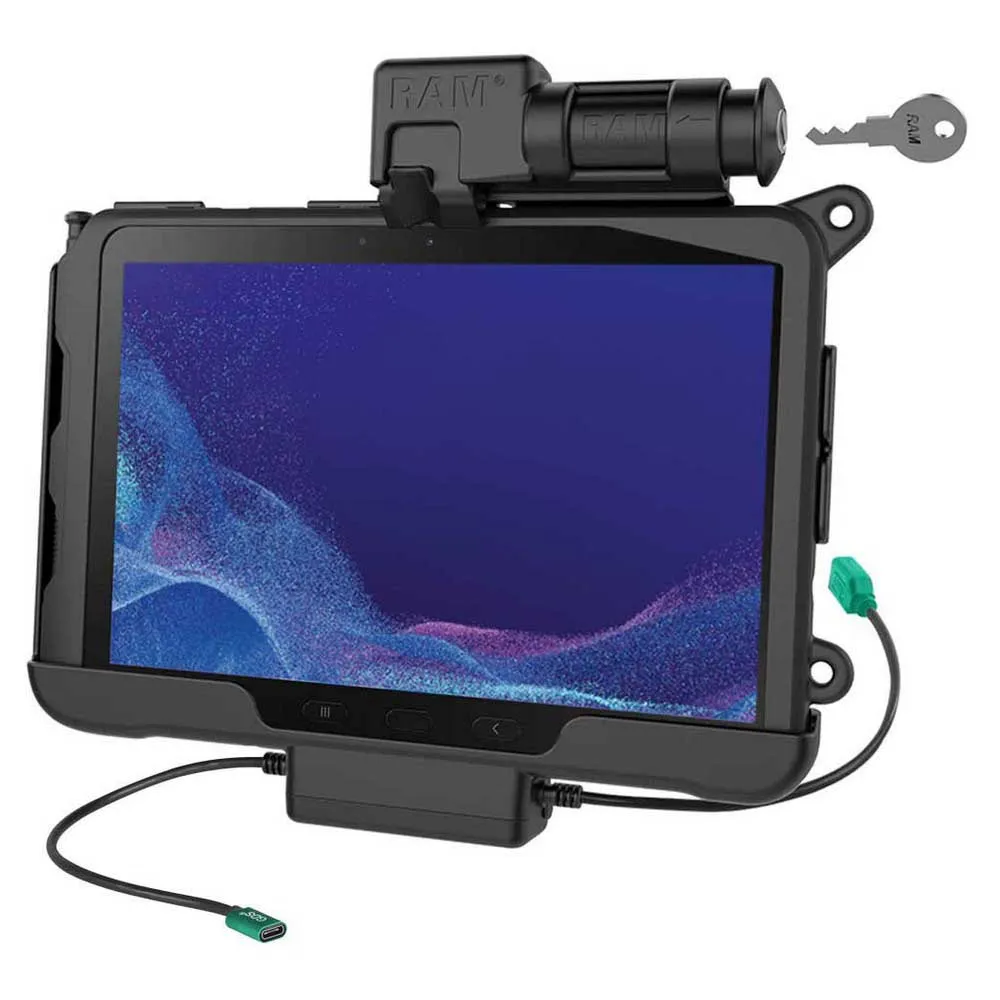

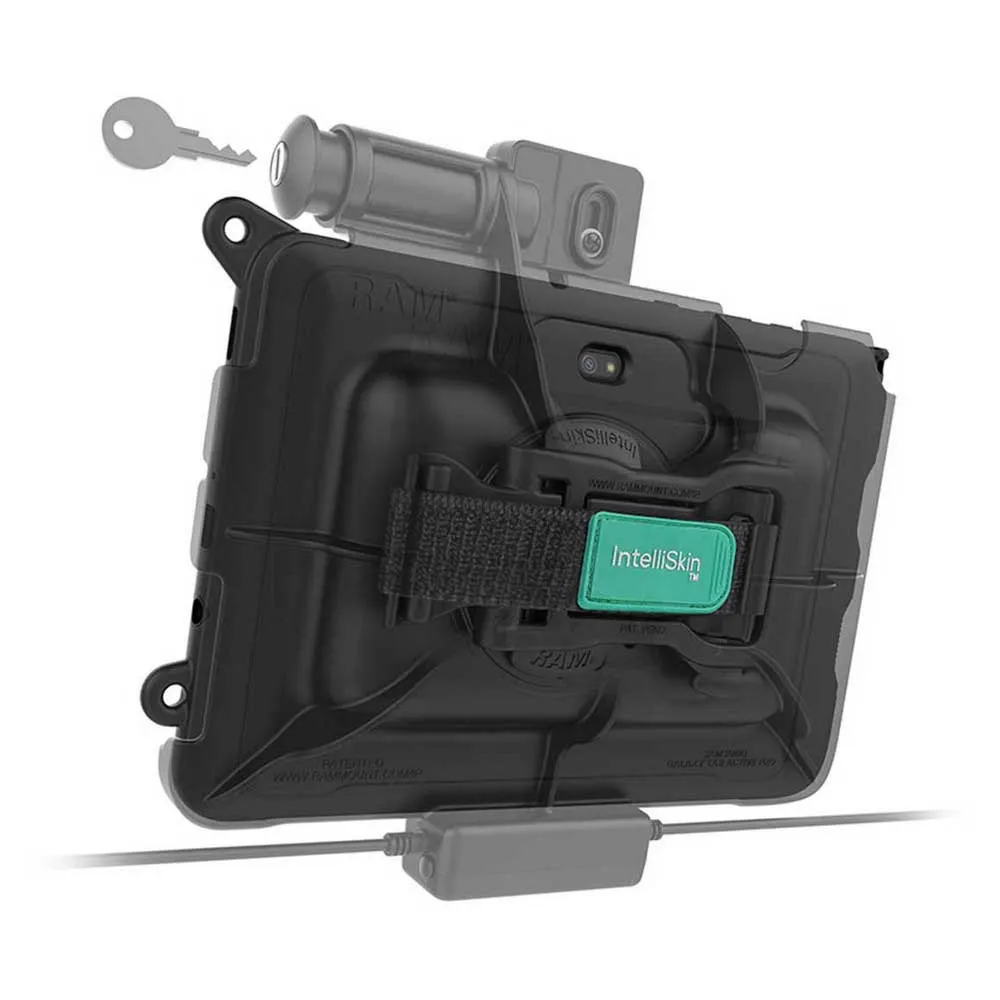

This power and data cradle for the Samsung Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. For security and theft deterrence, this powered cradle features a keyed lock that’s compatible with the RAM® Skin™ or factory device skin, as well as GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal AMPS hole pattern. Also included is the USB Type-A female pigtail, cable clamp, and zip ties.

Features:

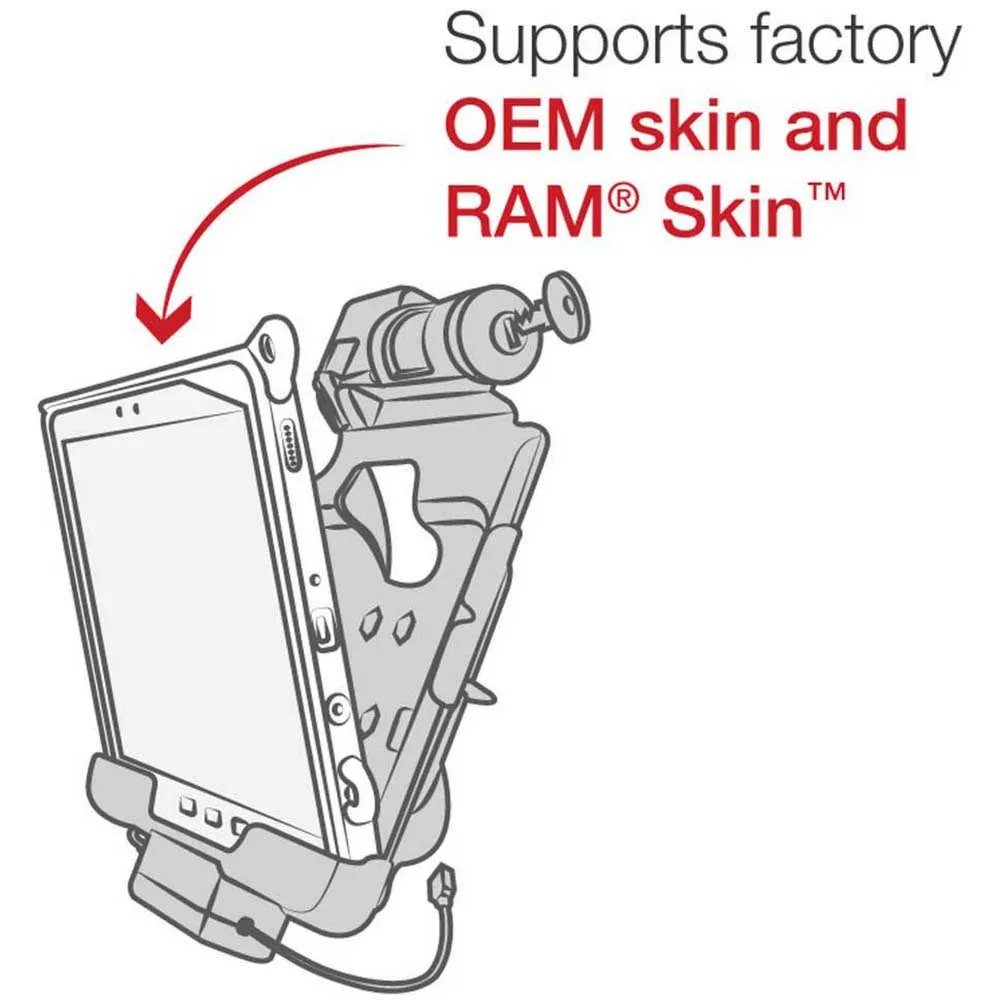

- Key locking powered dock supports the Samsung Galaxy Tab Active4 Pro and Tab Active Pro with factory Samsung case or with RAM® Skin™; powered through integrated pogo pin connector

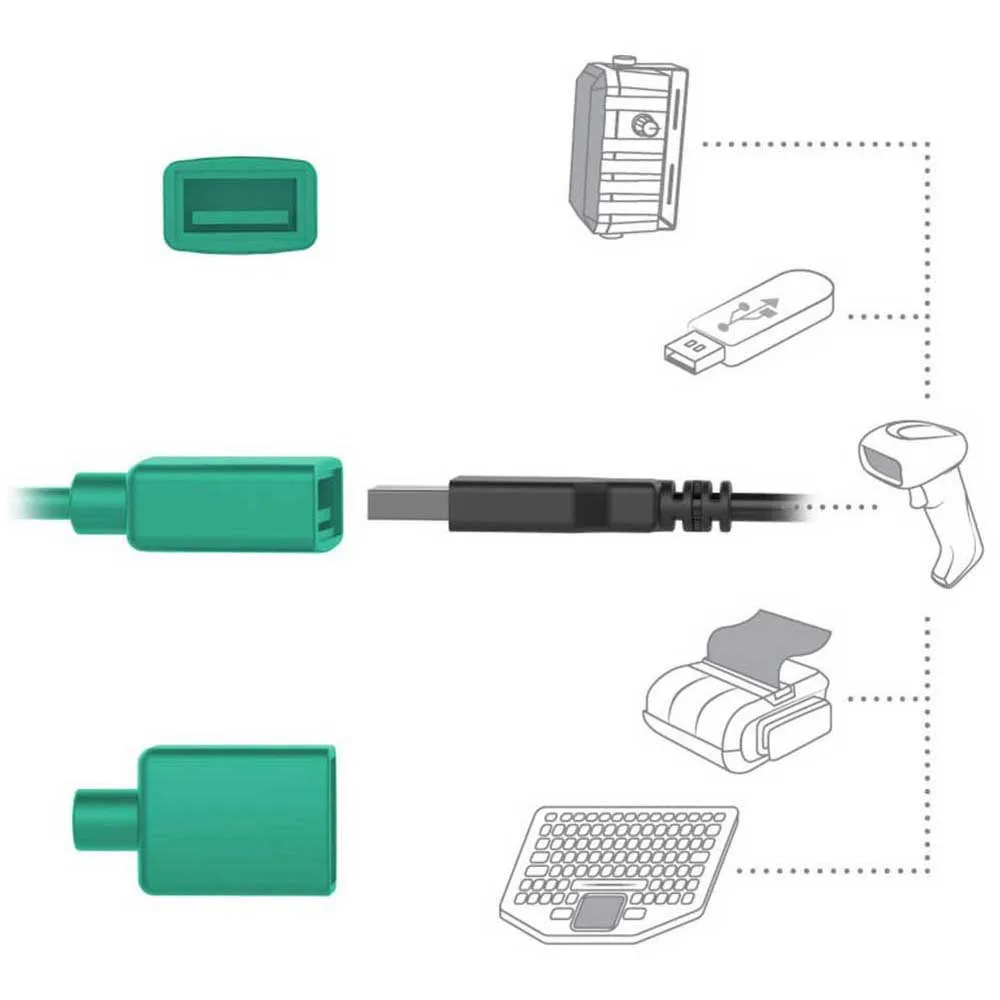

- Power delivered via USB-C connector; connect a single input device via USB-A connector

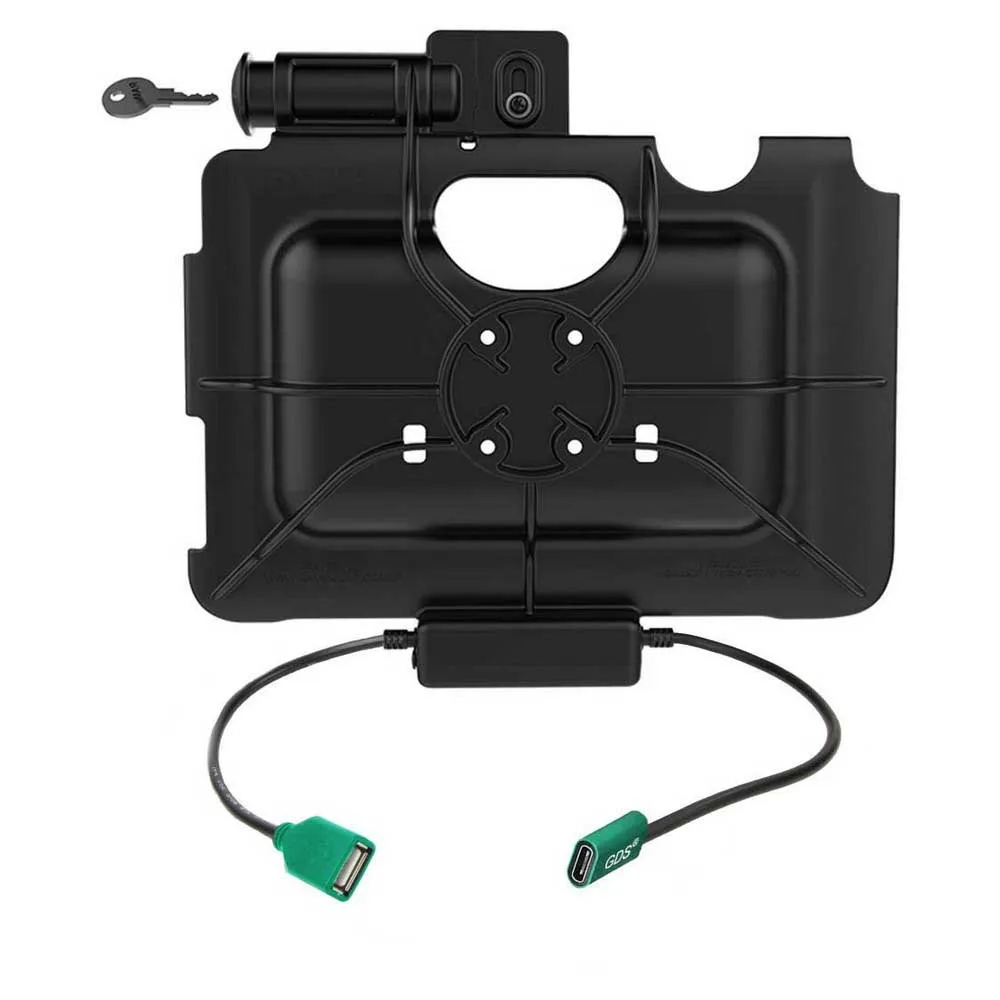

- RAM® Mounts Compatible™ with AMPS hole pattern components
- Made of high-strength composite materials for durability and reliability in the most demanding environments

Specifications:

- Hole pattern: 4-Hole AMPS: 1.181´´ x 1.496´´
- Materials: High strength composite
- Input voltage: 5.3-5.4VDC
- Output voltage: 5VDC
- Power output: 500mA
- Input connector: USB Type-C Female
- Input cable length: 250mm
- Output connector: USB 1.1 Type A
- Output cable length: 250mm
- Peripheral output: 500mAh
- Transfer speed: 12Mbps
- Weight: 0.591 kg

Compatibility:
- Tab Active Pro
- Tab Active4 Pro

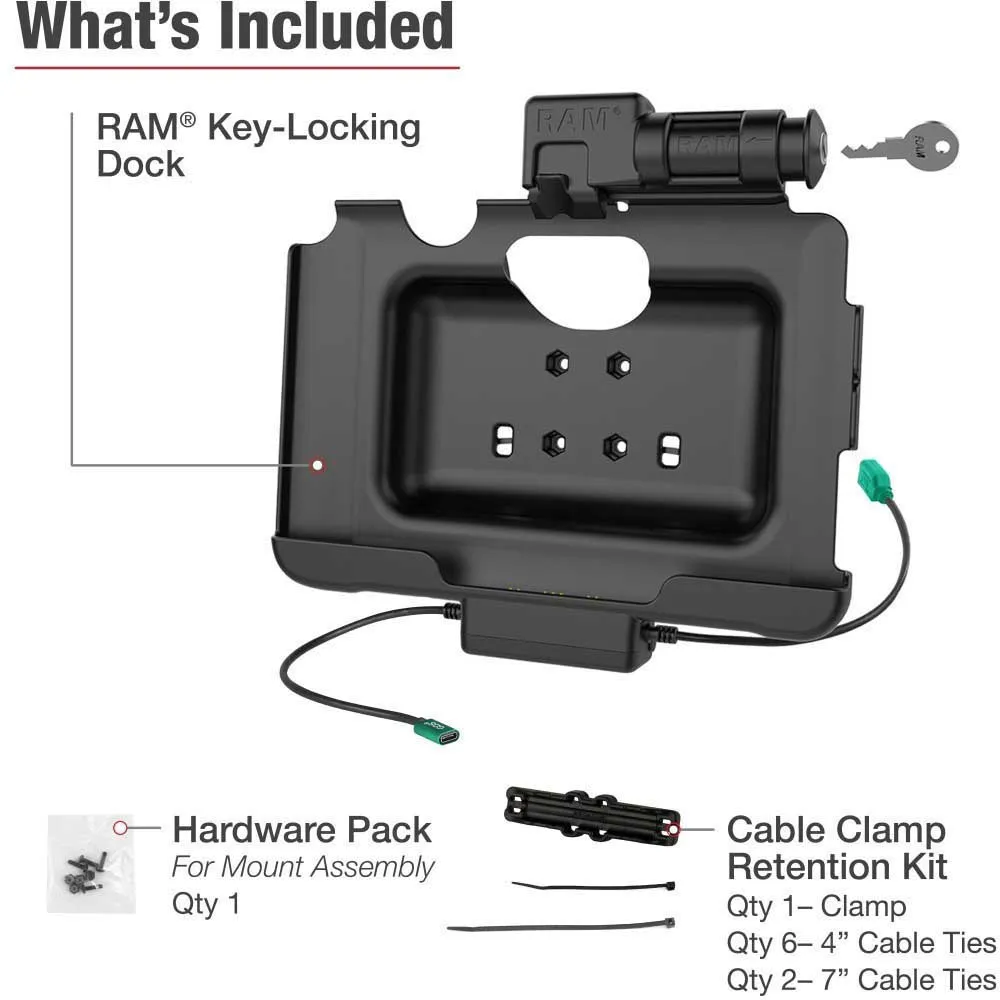

Hardware included:
- 8-32 x 5/8´´ Machine Screws
- 8-32 Nylock Nuts
- Optional Cable Clamp Housing
- Large Cable Ties
- Small Cable Ties
