Ram Mounts Powered Dock For Zebra ET6x

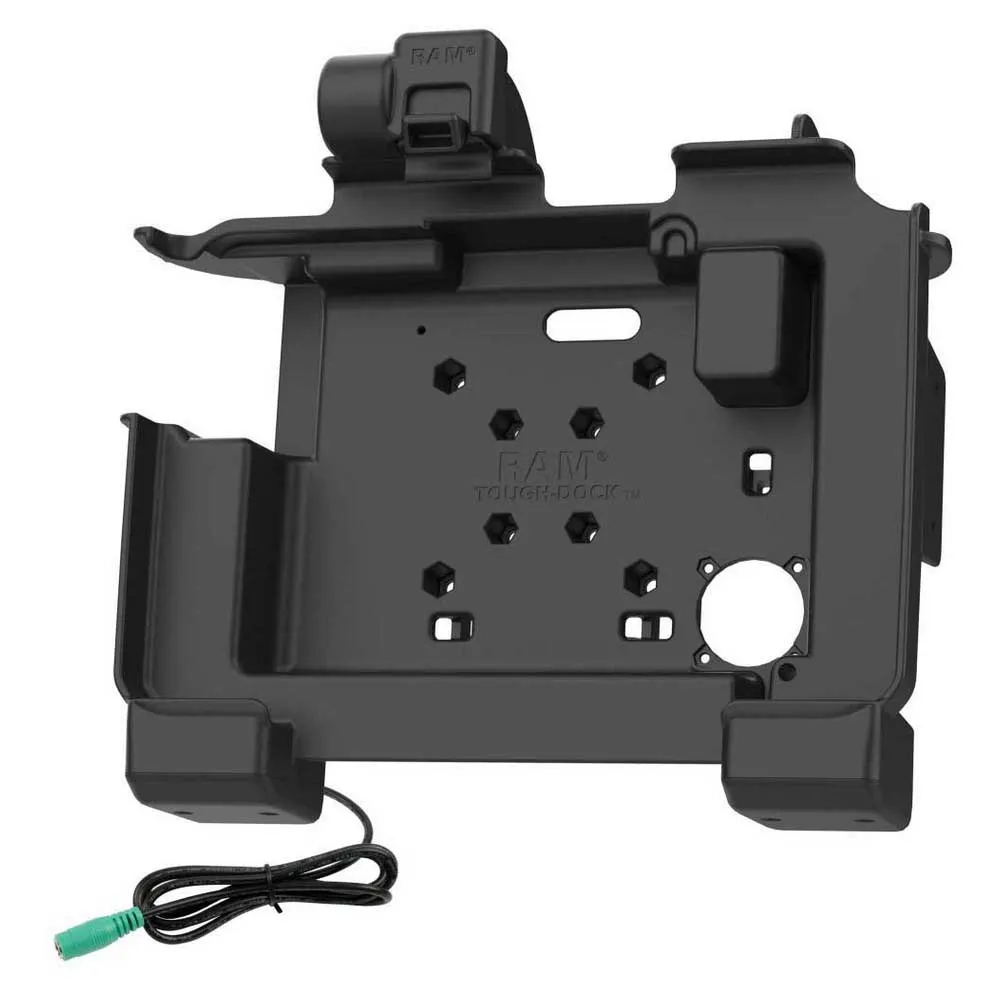

This powered RAM® Dock for Zebra ET60 & ET65 features our patented 3-D Float™ docking connector. Charging capabilities are provided by a 5.5mm DC barrel pigtail connector and built-in pogo pin docking contacts for a seamless charging experience. Special for this dock is a new self-aligning docking pad that surround the pogo pins and conform to the tablet when seated in the dock to provide optimal contact, and prevent damage to the pins. Made for versatility out in the field, this dock supports the device with or without the attachable Zebra keyboard and features a unique 2-in-1 latch that both secures the tablet, and allows the keyboard to open and close independently. Additionally this dock is accessory-ready, compatible with the RAM® Vent-Temp™, RAM® Temp-Right™, RAM® NFC Extender, as well as two small device mounting areas on both the left and right side of the dock. The cut out on the left side of the dock allows for easy access to the Zebra CAC reader with the ability to open and close the CAC reader door. Finish the solution by building your mount. These docks are RAM® Compatible™ equipped with 75mm VESA, or 4-hole AMPS patterns for adding a ball adapter. Take advantage of thousands of RAM® mounting components to configure the perfect ET60/ET65 solution. These thoughtfully designed features enable mobile workforces widely spread across industries including field/utility service, public safety, construction, and more.

Features:

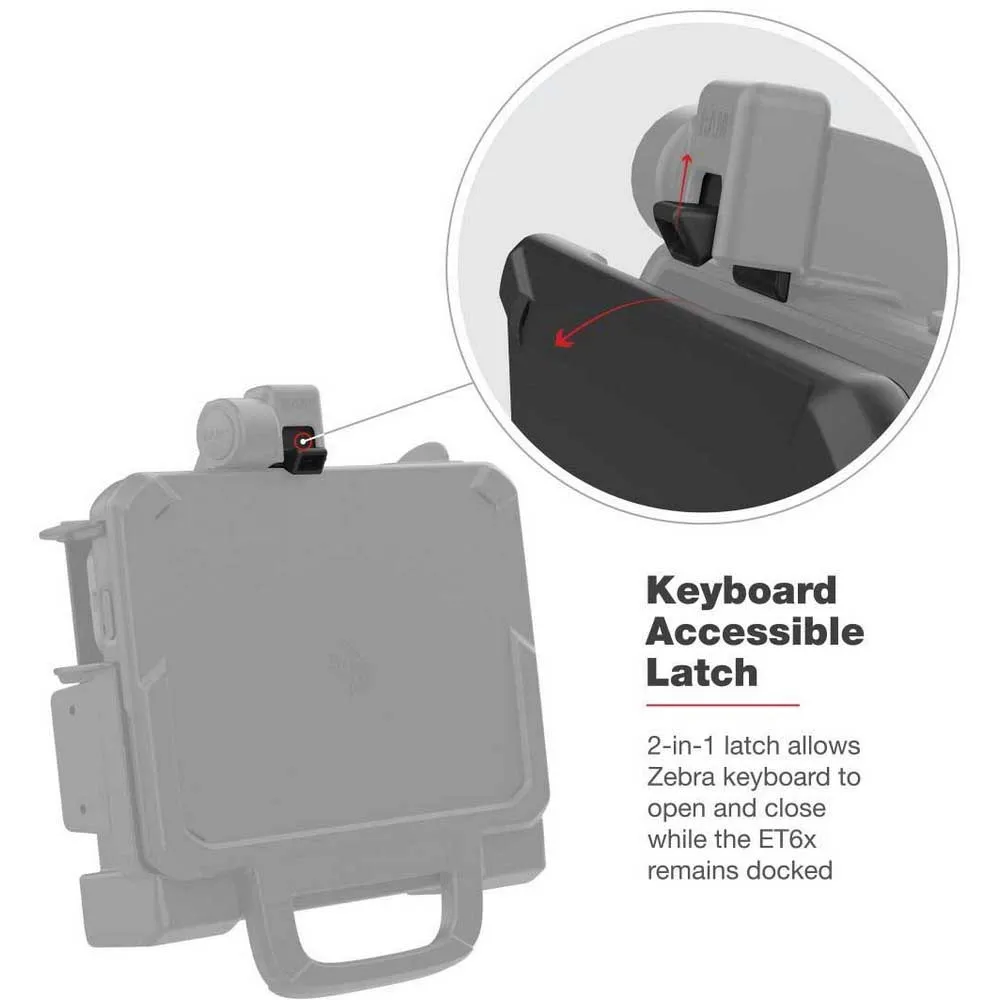

- Form-fit powered dock designed specifically for the Zebra ET60 & ET65 tablets; compatible with or without Zebra keyboard featuring unique 2-in-1 latch that secures the ET60/ET65 while allowing the keyboard to open and close freely
- Charging capabilities provided by 5.5mm DC barrel connector and built-in pogo pin docking contacts for a seamless charging experience; pogo pins feature self-aligning docking pads that conform to the seated device
- Add-on accessory compatible including RAM® Vent-Temp™, RAM® Temp-Right™, RAM® NFC Extender, as well as two small device mounting areas on both the left and right side of the dock
- Cut out on the side of the dock gives access to the Zebra CAC reader with the ability to open and close the CAC reader door

Specifications:

- Materials: High strength composite
- Input connector: 5.5mm DC Connector
- Weight: 0.975 kg
- Input cable length: 1 Meter
- Certifications: RoHS, WEEE, CE, UKCA

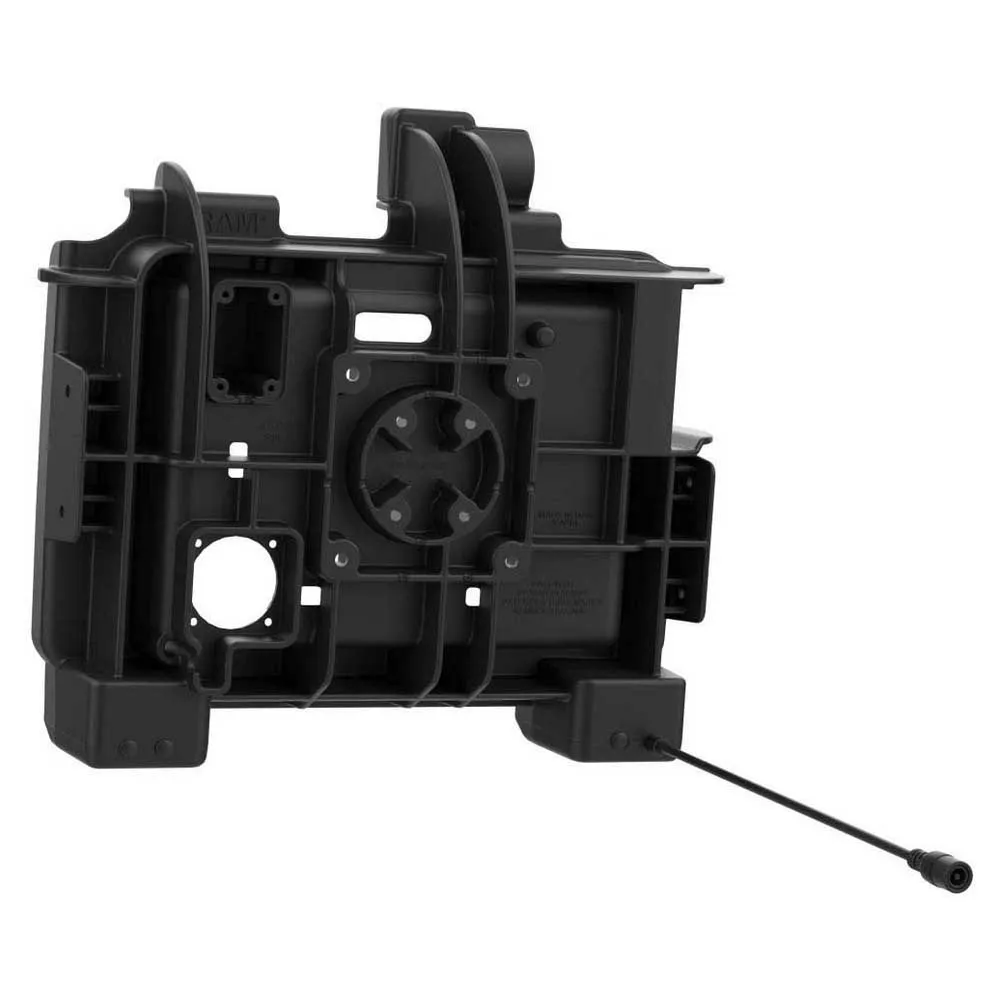

Hole pattern
- 75 x 75mm VESA
- 4-Hole AMPS: 1.181´´ x 1.496´´

Compatibility:
Zebra:
- ET60
- ET65

Hardware included:
- Side bracket for accessory mounting
- 8-32 x 5/8´´ Machine Screws
- 8-32 x 1/2´´ Machine Screws
- 8-32 Nylock Nuts
- 10-24 x 5/8´´ Machine Screws
- 10-24 Nylock Nuts
- 4´´ Zip Ties
- 7´´ Zip Ties
