Ram Mounts Universal Marine Electronic Mount

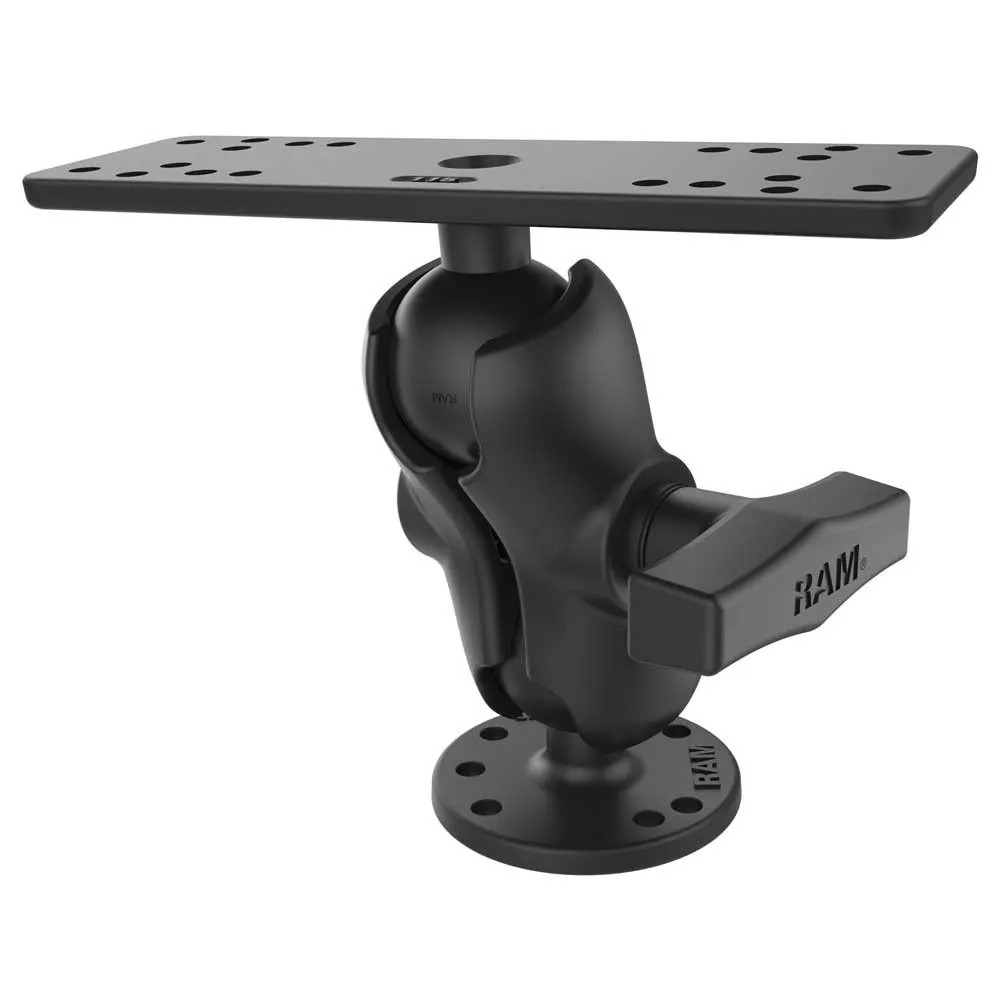

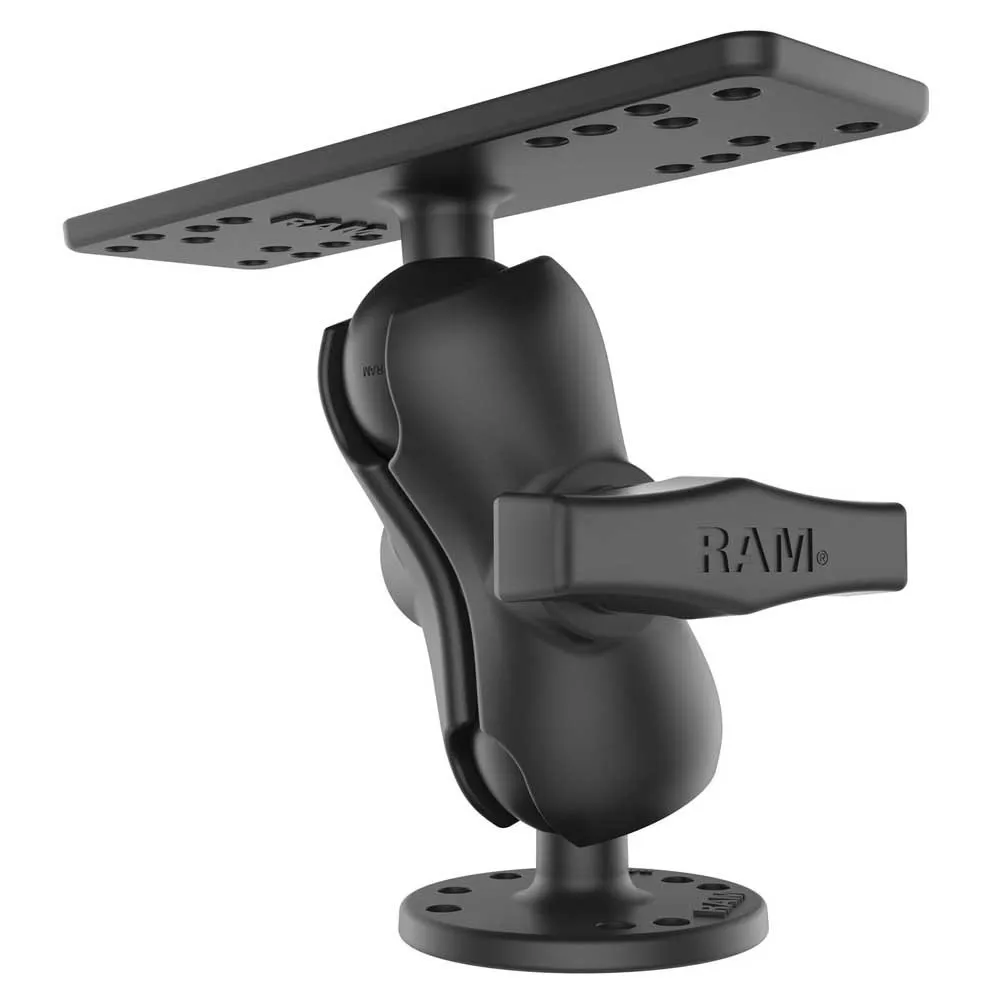

The RAM-111U-B consists of a short double socket arm, 2.5´´ diameter round base, and 6.25´´ x 2´´ rectangle base. The round base includes a 1.5´´ C size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 1.5´´ C size rubber ball and contains a variety of pre-drilled holes that are compatible with several marine electronic devices, including fishfinders and chartplotters.

Additional Information:
- The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.


Features:

- Complete flat surface, drill-down mounting solution with an overall height of 5.225´´

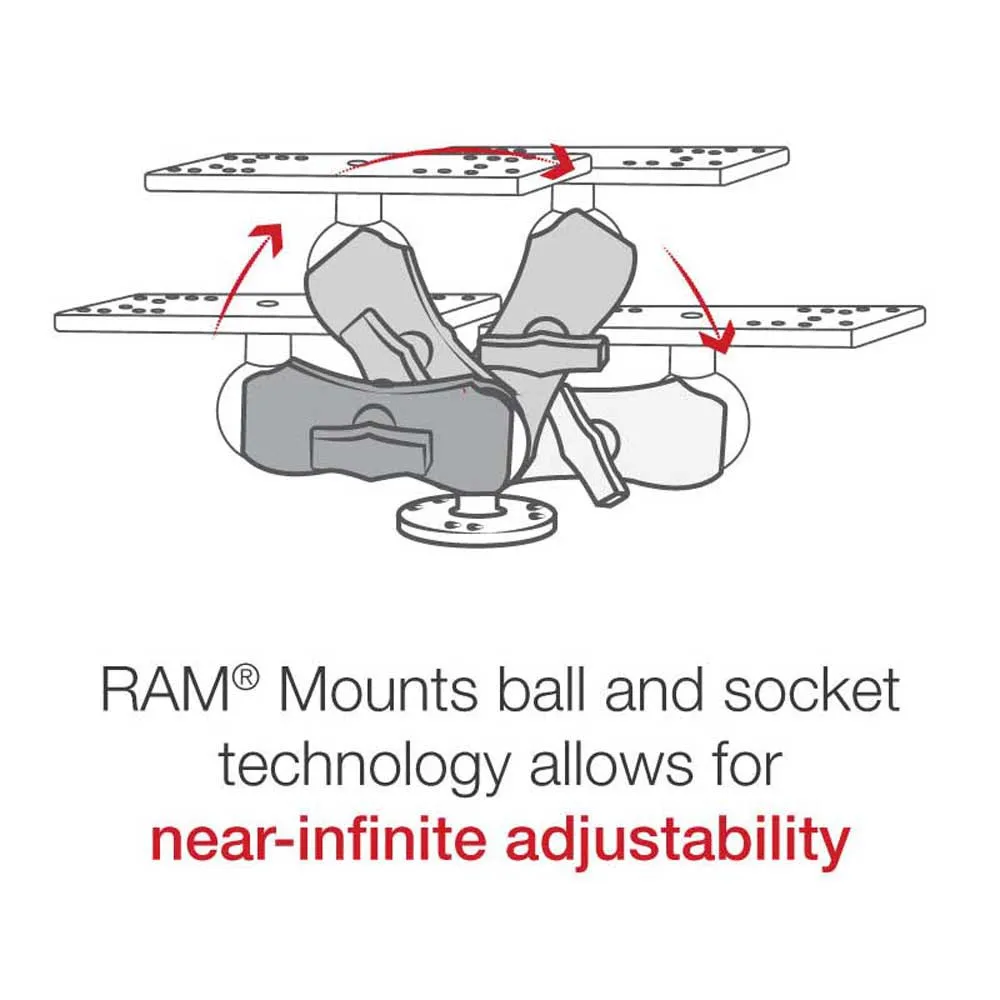

- RAM® Mounts ball and socket technology allows for near-infinite adjustability
- Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments


Specifications:

- Product Dimensions: Overall Height: 5.225
- Socket To Socket Length: 2.5
- Materials: Marine-Grade Aluminum
- Packaging Type: Poly Bag
- Weight: 1.08 Lb
- Ball Size: C Size (1.5)

Hole Pattern:
- 4-Hole AMPS: 1.181´´ x 1.496´´
- 3-Hole 120-Degree: 1.812´´ Diameter

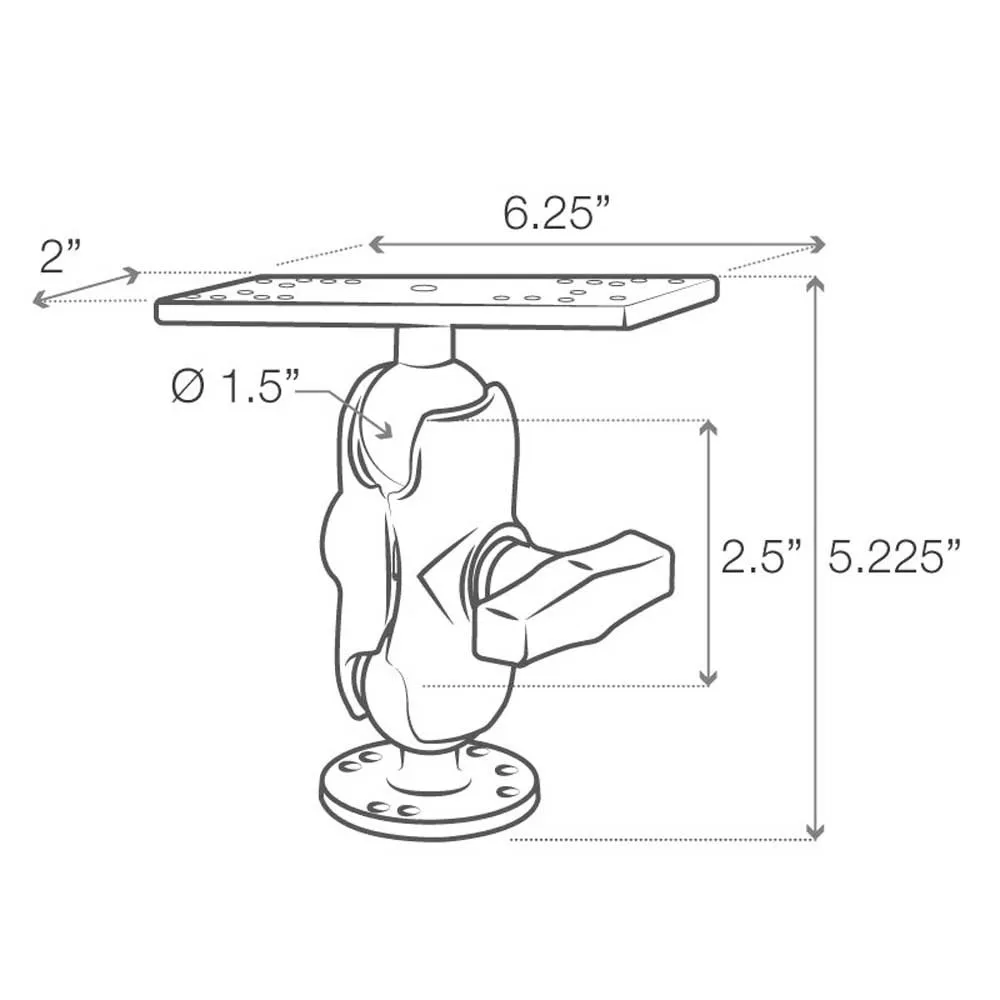

- See Drawing

Plate Size:
- Rectangular Plate: 6.25´´ x 2
- Round Plate: 2.5´´ Diameter

Weight Capacity:
- Standard Use: 4 lbs
- Heavy-Duty Use: 3 lbs

Compatible Devices:
Garmin:
- ECHOMAP Plus 72cv
- ECHOMAP Plus 73cv
- ECHOMAP Plus 74cv
- ECHOMAP Plus 75cv
- ECHOMAP Plus 77cv
- ECHOMAP UHD2 52cv
- ECHOMAP UHD2 72cv
- GPSMAP 722
- GPSMAP 722xs
- GPSMAP 723
- GPSMAP 723xsv
- GPSMAP 742
- GPSMAP 742xs
- GPSMAP 743
- GPSMAP 743xsv
- Striker Plus 5cv
- Striker Vivid 5cv
- Striker Plus 7cv
- Striker Plus 7sv
- Striker Vivid 5cv
- Striker Vivid 7cv
- Striker Vivid 7sv
- Fishfinders and GPS Chartplotters

Lowrance:
- Elite FS 7
- Elite FS 9
- HDS Carbon 7
- HDS LIVE 7
- Hook Reveal 7 Series
- Hook Reveal 9 Series
- Fishfinders and GPS Chartplotters

Humminbird:
- Fishfinders and GPS Chartplotters

Raymarine:
- Fishfinders and GPS Chartplotters
