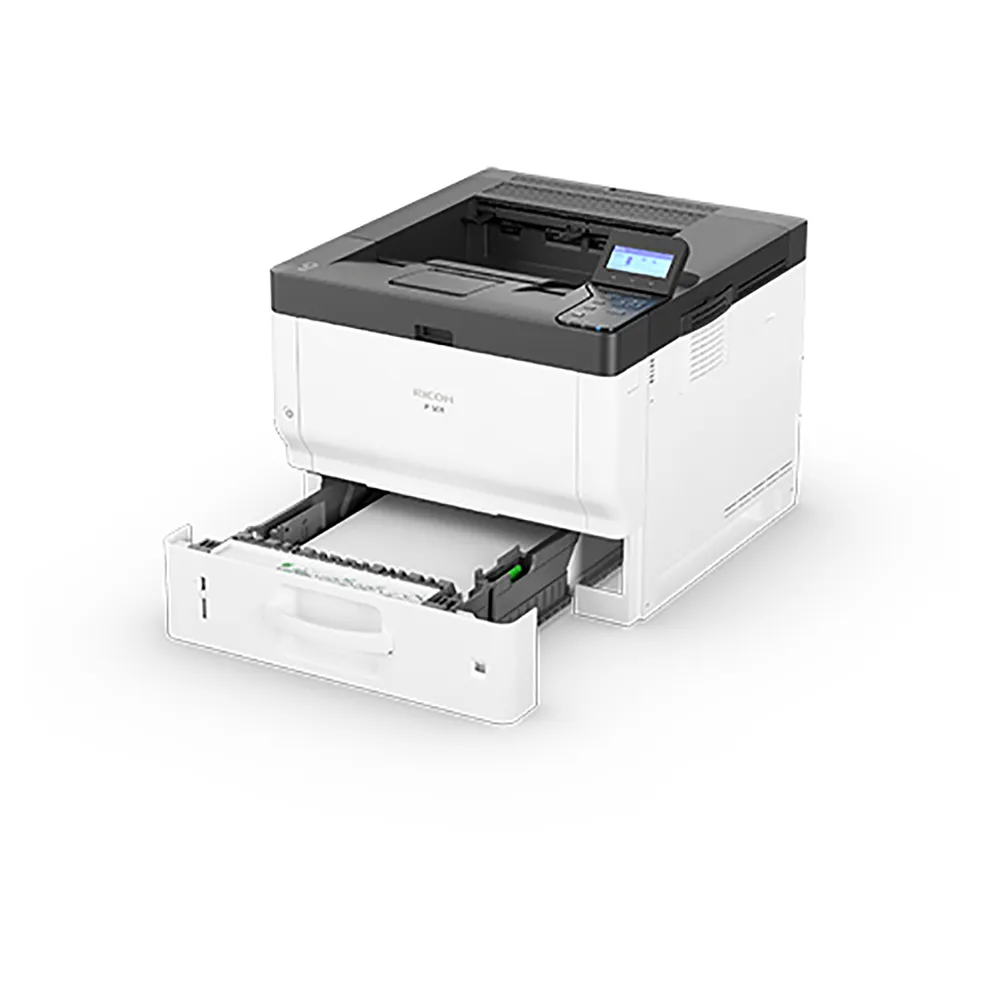

Ricoh Imaging P501 multifunction printer

EU PLUG.

Features:

Compact and Durable:

- Ricoh´s innovative LED technology delivers significant advances in speed, quality and reliability.

With its powerful Intel 1.1.

- 1.3 GHz processor, the Ricoh P 501 quickly processes even the most complex jobs, printing pitch-perfect 1,200 x 1,200 dpi black and white output at a productive 43 pages per minute.

And, with its high duty rating, it reliably meets peaks in demand.

Excellent performance.

- Maximum input capacity of 2,100 sheets with optional paper banks provide longer uninterrupted print runs.

High quality output.

- Maximum 1,200 x 1,200 dpi print resolution ensures sharp and crisp text every time.

Reliable and easy to use.

- Compact footprint enables devices to be installed in almost any location- from office desks to under retail shop counters.

Security in our DNA.

- DataOverwriteSecurity System (DOSS) keeps hard drive contents protected, making all confidential data unrecoverable by overwriting latent digital images after all print jobs.

Specifications:

Configuration:

- Functions:

Print.

- HDD:

320 GB- optional.

- Memory.

- standard:

2 GB.

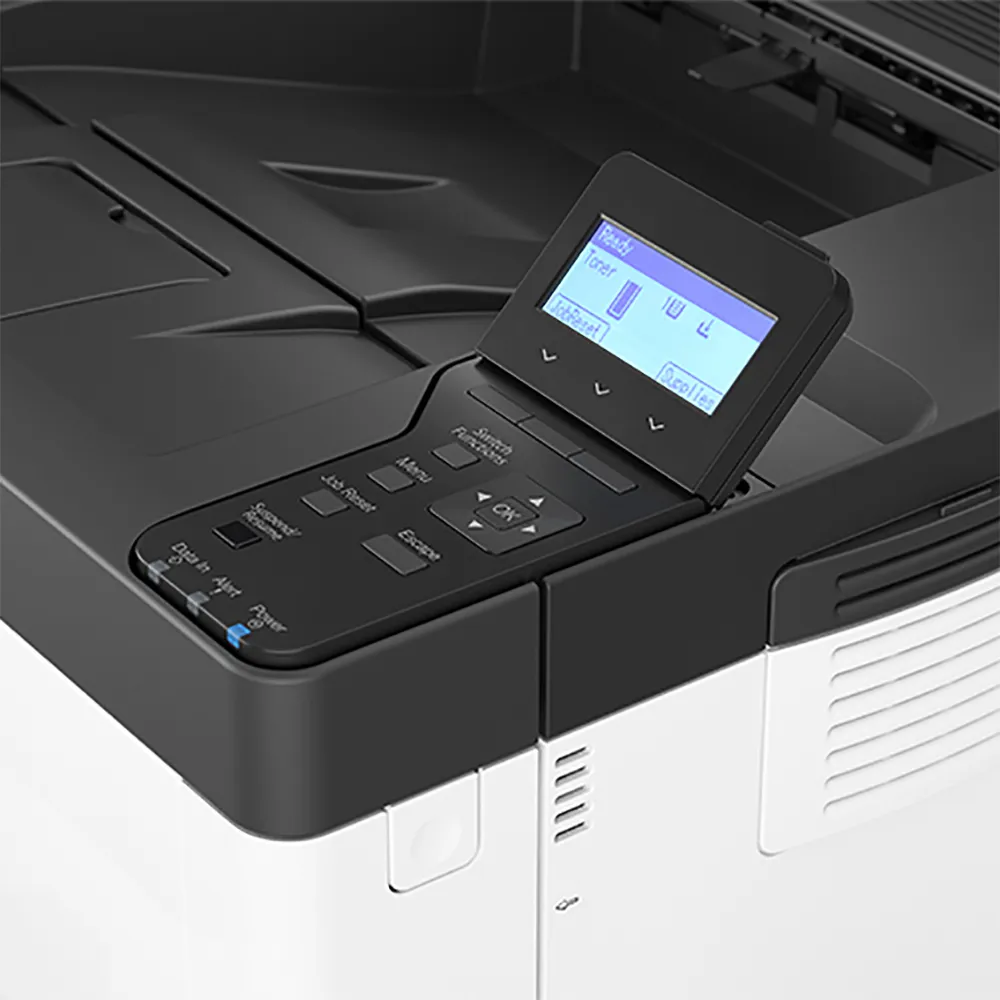

- Operation panel:

4-line LCD Physical dimensions:

- Physical dimensions (WxDxH)- mainframe:

375 x 412 x 311 mm.

- Weight- mainframe:

19.3 kg Media handling:

- Standard input capacity (sheets):

600.

- Maximum input capacity (sheets):

2,100.

- Standard output capacity (sheets):

250.

- Maximum output capacity (sheets):

250.

- Paper input configuration.

- standard:

500-sheet paper input tray, 100-sheet bypass tray, duplex unit.

- Paper output configuration.

- standard:

250-sheet face-down paper output tray.

- Supported media:

Plain paper (type not displayed), recycled paper, special paper 1-2, colour paper, letterhead, pre-printed paper, OHP, label paper, envelope.

- Maximum paper size:

A4.

- Media weight (g/m2):

52-256 Connectivity:

Interfaces.

- standard:

- 10Base-T/100Base-TX/1000Base-T (Gigabit Ethernet).

- USB 2.0.

- USB Host 2.0 Interfaces.

- optional:

- One of these can be installed:

- USB Device Server (additional Ethernet/Gigabit Ethernet port).

- IEEE 802.11a/b/g/n (Wireless LAN).

- IEEE 1284 Network protocols.

- standard:

- TCP/IP (IPv4, IPv6) Print Features:

Print speed black and white:

- 43 ppm- A4 LEF, simplex.

- 37 ppm- A4 LEF, duplex.

- First print time:

4.3 seconds or less.

- Print resolution:

1,200 x 1,200 dpi Page description languages (PDLs):

- Standard.

- PCL 5e, PCL 6, PostScript 3 emulation, PDF Direct emulation.

- Optional.

- Genuine Adobe PostScript 3, PDF Direct from Adobe, XPS Direct Print, IPDS.

- Note:

HDD option is required if the IPDS option is installed.

- Printer drivers:

PCL 5e, PCL 6, PostScript 3.

- Duplex printing:

Standard.

- Mobile printing:

Yes Security Features:

- Data Overwrite Security System (DOSS).

- Standard:

Yes- with optional HDD.

- Encryption:

HDD encryption- with optional HDD, Authentication password encryption Authentication:

- User authentication- Windows and LDAP via Kerberos, Basic, User Code.

- 802.1x wired authentication.

- Wireless LAN security (WEP, WPA2, 11i).

- IPv6.

- Quota setting.

- WiFi Protected Setup (WPS) support Supported operating environments:

Windows:

- Windows 7.

- Windows 8.1.

- Windows Server 2008.

- Windows Server 2008 R2.

- Windows Server 2012.

- Windows Server 2012 R2.

- Windows 10.

- Windows Server 2016.

- Macintosh:

OS X Native v10.10 or later- PostScript 3 only Unix:

- Sun Solaris- 10.

- HP-UX- 11.x, 11iv2, 11iv3.

- Red Hat Linux- Enterprise, v4, v5, v6.

- SCO OpenServer- 5.0.7, 6.0.

- IBM AIX- 6.1, 7.1, 7.2 SAP:

- Environment- R/3, S/4.

- Platforms- SAP R/3 (release versions 3.0 and above), SAP R/3 Enterprise, mySAP ERP (2004 and higher), SAP HANA.

- Page description language- PCL.

- Character sets- Latin-1, Latin-2, Unicode.

- Supported Features- Input/output bin, Duplex, Resolution, Collation, EconoMode/Toner saving, Page protect, Auto tray change/Opt tray select,User authentication.

- Barcode fonts- Code 128, Code 39, Code 93, Codabar, 2 of 5, MSI, USPS POSTNET, EAN/UPC.

- OCR fonts- OCR A, OCR B IBM:

- iSeries/AS/400- Using OS/400 Host Print Transform Software and solutions:

- Standard:

Remote Embedded, Web Image Monitor Optional:

- RICOH Streamline NX v2 and v3.

- Enhanced Locked Print NX v2 and FlexRelease Server v2.

- FlexRelease CX.

- Card Authentication Package v2 and Enterprise Server v2.

- Device Manager NX Lite and Accounting.

- Printer Driver Packager NX.

- Device Manager NX Pro and Enterprise.

- RICOH Remote Connector NX.

- Mobile apps:

Smart Device Connector Environmental Features:

- Power source:

220-240 V, 7 Amps, 50/60 Hz- Asia Pacific, 110 V, 12 Amps, 60 Hz- Taiwan Power consumption:

- 1,260 W or less- maximum power, guaranteed.

- 597 W- printing, nominal.

- 79.6 W- Ready Mode, nominal.

- 0.50 W- Energy Saver Mode (Sleep Mode), nominal.

- Typical Electricity Consumption (TEC):

1.7 kWh.

- Warm-up time:

13 seconds or less.

- Power saving mode:

1 minute.

default shift time- Energy Saver Mode (Sleep Mode).

- Recovery time:

10 seconds or less- Energy Saver Mode (Sleep Mode).

- Green labels:

Thai Green Label Scheme, Hong Kong Energy Efficiency Labelling Scheme, Blue Angel Mark (BAM).
