Smallrig 4826 CB75 Base battery

SMALLRIG CB75 Base Battery 4826: The Integrated Power and Mounting Solution

Revolutionize your camera rig with the SMALLRIG 4826 CB75 Base Battery, a groundbreaking power solution designed for the modern filmmaker and content creator. This innovative product transcends the traditional role of a battery by integrating a high-capacity power source directly into a functional camera baseplate. Say goodbye to cumbersome battery plates, extra cables, and unbalanced rigs. The CB75 creates a streamlined, compact, and incredibly efficient setup, allowing you to focus on capturing the perfect shot with uninterrupted power. Its unique form factor not only powers your entire ecosystem but also serves as the stable foundation for your camera, enhancing both portability and performance on set.

Experience the ultimate convenience with a power source that does more. The CB75 Base Battery is engineered to be the central hub of your rig, providing extended runtime and versatile mounting options in one sleek package. Whether you´re shooting a documentary, a corporate video, or your next viral hit, this battery ensures your gear is always ready and your workflow is faster than ever.

Key Benefits:

* Streamlined & Compact Rigging: By combining a 75Wh battery with a baseplate, you eliminate the need for separate components. This results in a lighter, more balanced, and less cluttered camera setup, perfect for run-and-gun shooting, gimbal work, and travel.

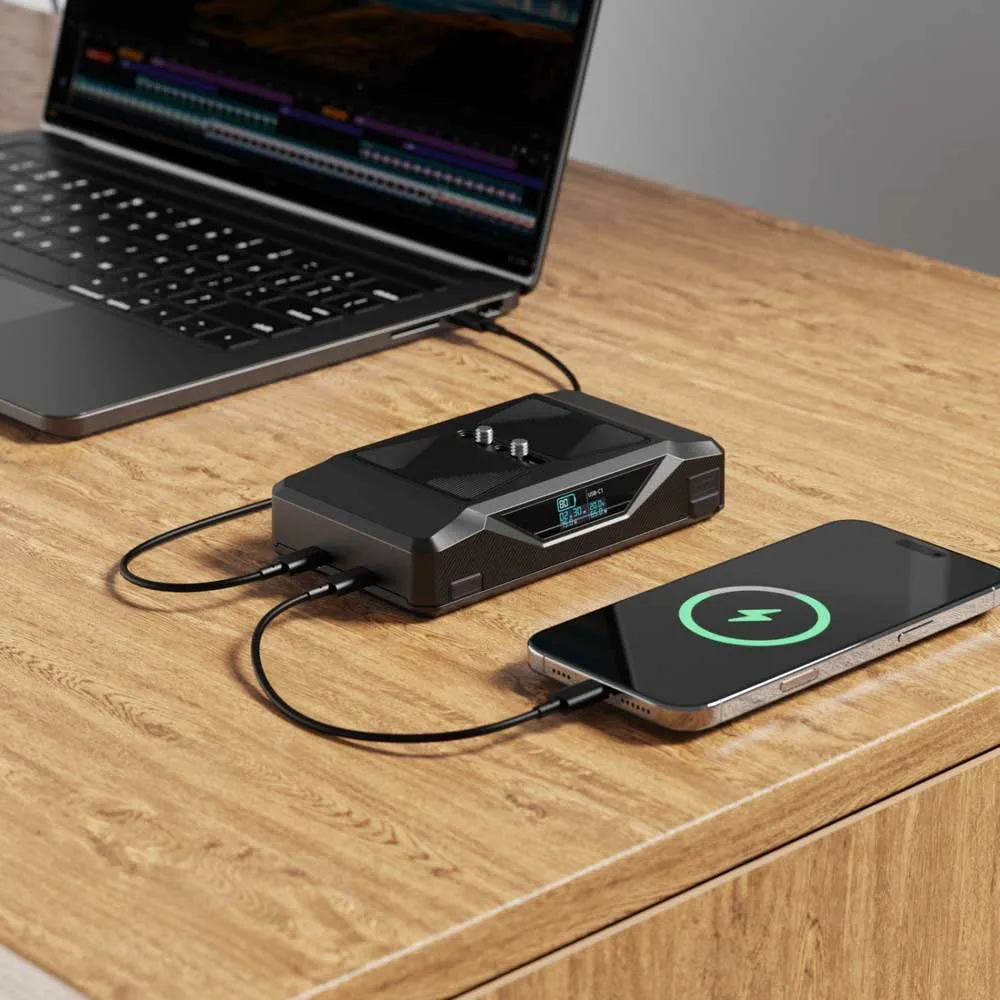

* Power Your Entire Ecosystem: Featuring a versatile array of ports including D-Tap, USB-A, and a bi-directional USB-C, the CB75 can simultaneously power your camera, on-camera monitor, wireless video transmitter, follow focus motor, and even charge your smartphone.
* Rapid Charging & Power Delivery: The powerful 65W USB-C PD port enables you to fast-charge the battery itself in a fraction of the time, or use it as an output to power demanding devices like modern mirrorless cameras and laptops directly.

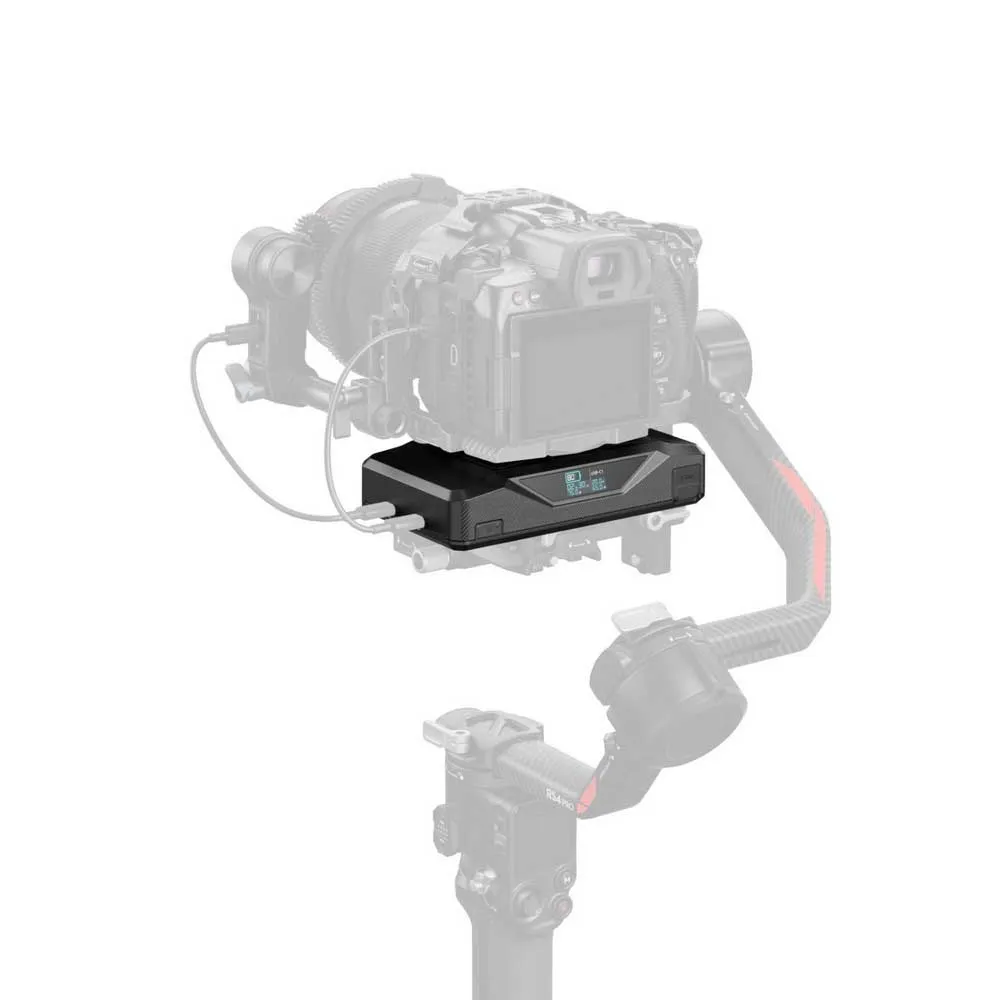

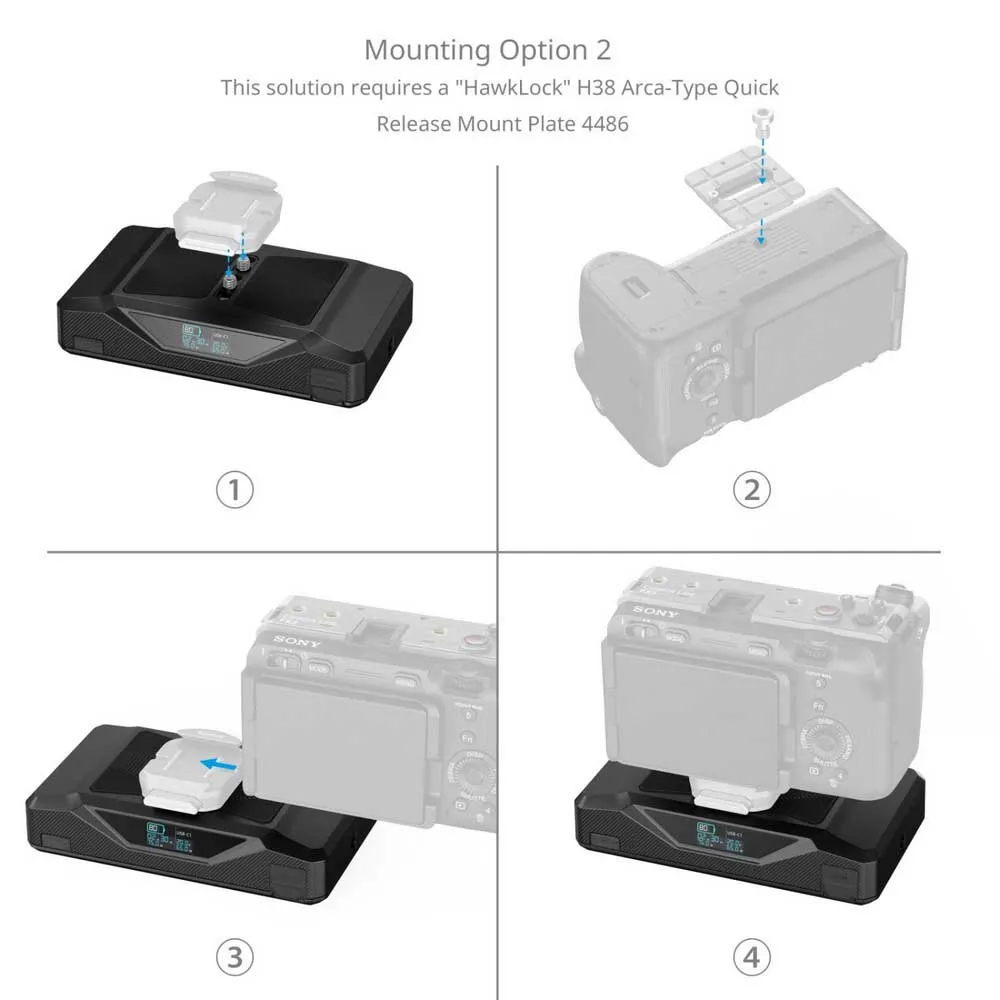

* Instant Quick-Release Workflow: The base is designed with an integrated Arca-Swiss quick-release plate, allowing you to mount and dismount your entire camera rig from compatible tripods and gimbals in seconds, dramatically speeding up your on-set transitions.
* Informed Power Management: A crystal-clear OLED screen provides real-time data on battery life, voltage, and output status, giving you complete confidence and control over your power situation so you never have to guess how much runtime is left.

Main Features:

* High-Capacity 75Wh Lithium-Ion Battery Core

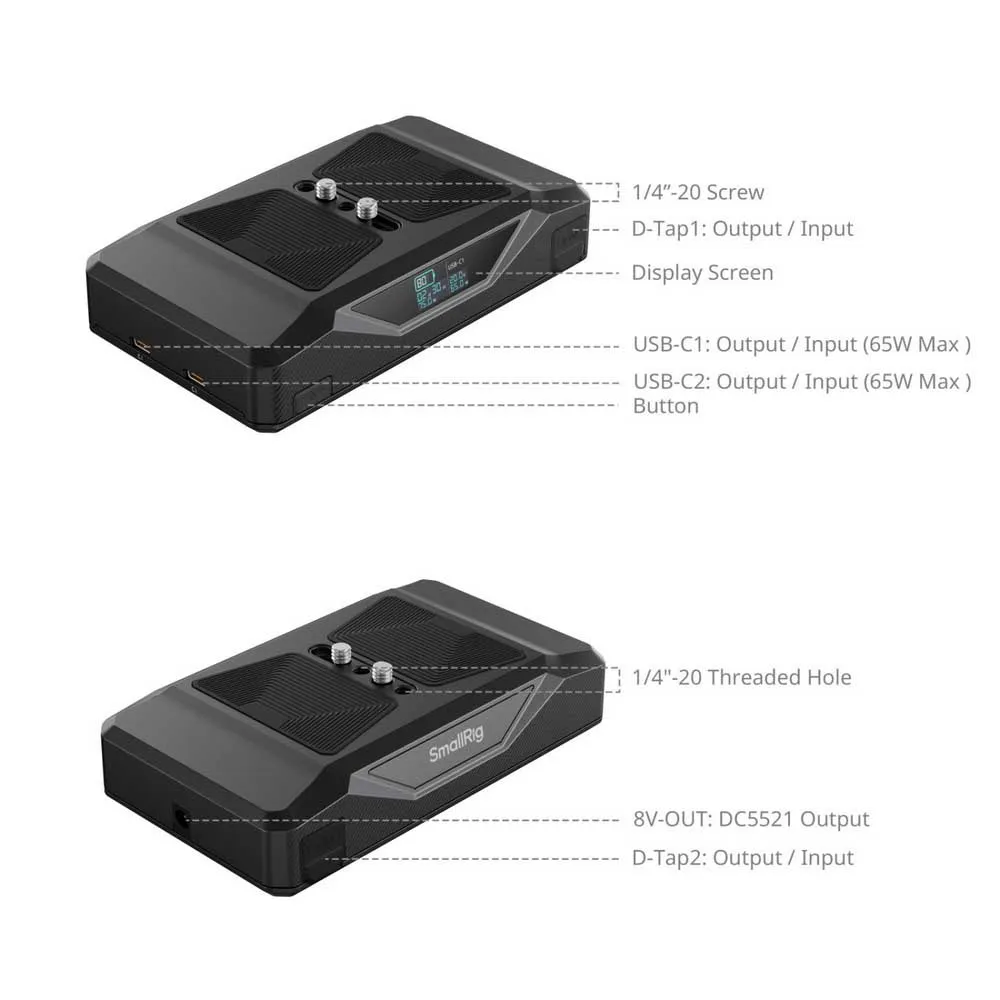

* Versatile Power Outputs: 1x D-Tap, 1x USB-A, 1x Bi-Directional USB-C
* High-Power 65W USB-C Power Delivery (PD) for Fast Charging Input and Output
* Integrated Arca-Swiss Compatible Quick-Release Baseplate

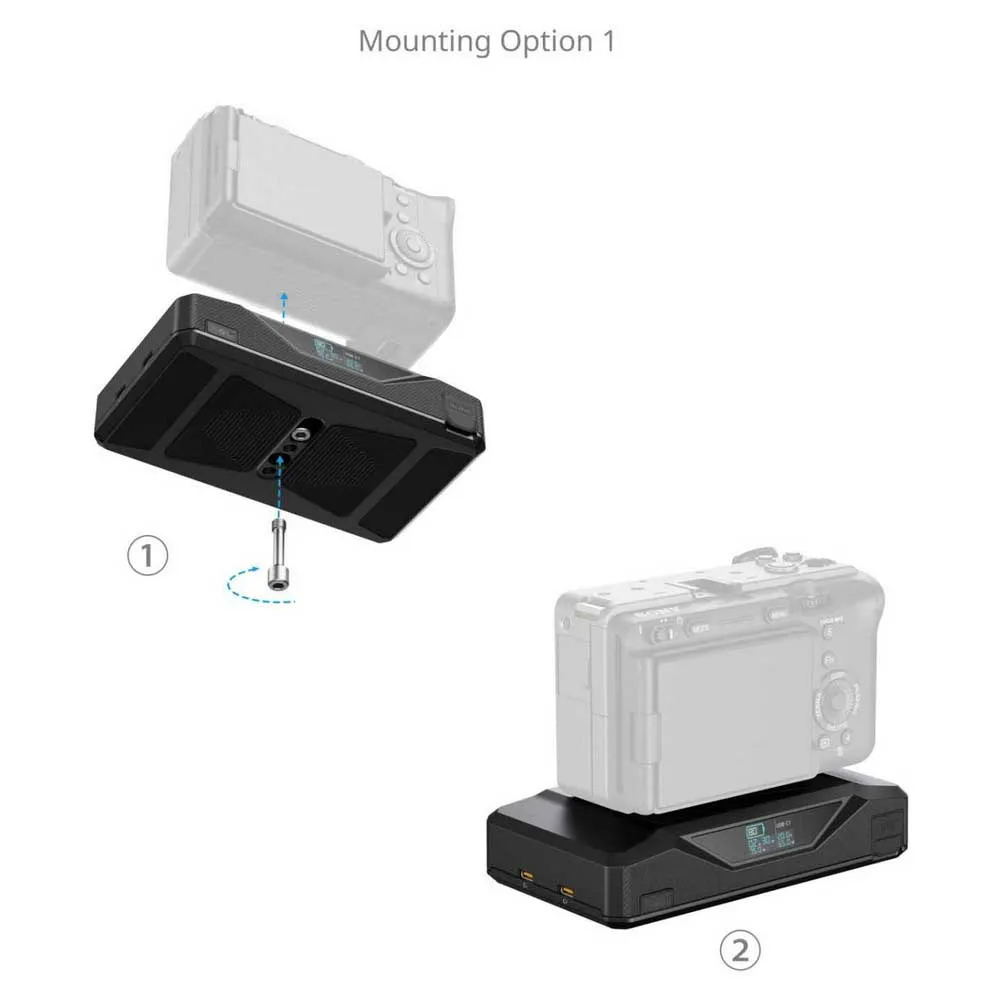

* Standard 1/4"-20 Top Screw for Universal Camera Mounting
* Multiple 1/4"-20 and 3/8"-16 Threaded Holes on the Bottom for Tripod and Accessory Mounting

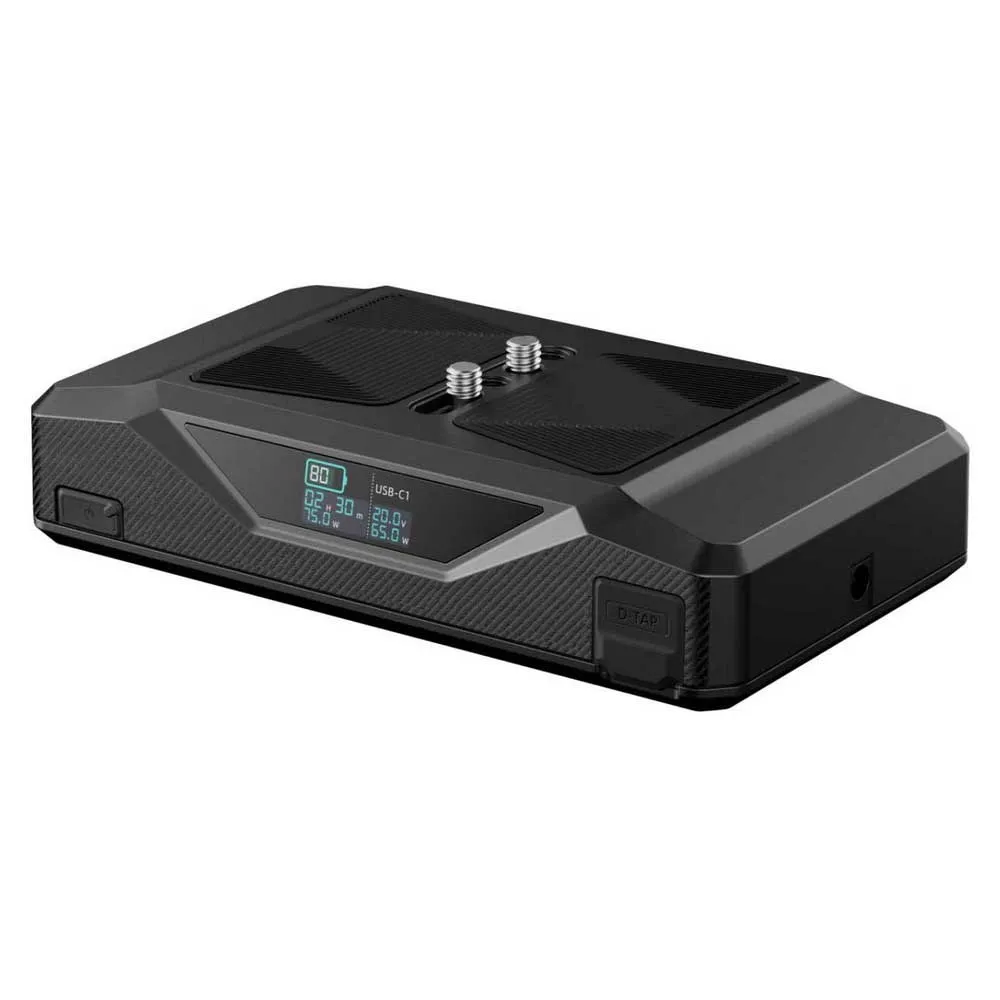

* Bright OLED Display for Real-Time Status Monitoring
* Intelligent Battery Management System (BMS) for Over-Current, Short-Circuit, Over-Temperature, and Over-Voltage Protection
* Durable and Lightweight Construction with Aluminum Alloy and Fireproof PC
---

Technical Specifications
* Product: SMALLRIG CB75 Base Battery
* Model: 4826
* Category: Photo-video
* Subcategory: Batteries
* Capacity: 75Wh (14.8V / 5000mAh)
* Rated Power: 75W
* D-Tap Input / Output: 14.8V / 10A (148W Max)
* USB-A Output: QC2.0/3.0, 5V/3A, 9V/2A, 12V/1.5A
* USB-C Input / Output: Bi-Directional, PD3.0, 65W (Max)
* Mounting Interface (Top): 1x 1/4"-20 Screw
* Mounting Interface (Bottom): Arca-Swiss Quick-Release Plate, 1/4"-20 Threaded Holes, 3/8"-16 Threaded Hole
* Material: Aluminum Alloy, Fireproof PC
* Dimensions: 106.8 × 80.8 × 40.9 mm
* Weight: 480g ± 10g
