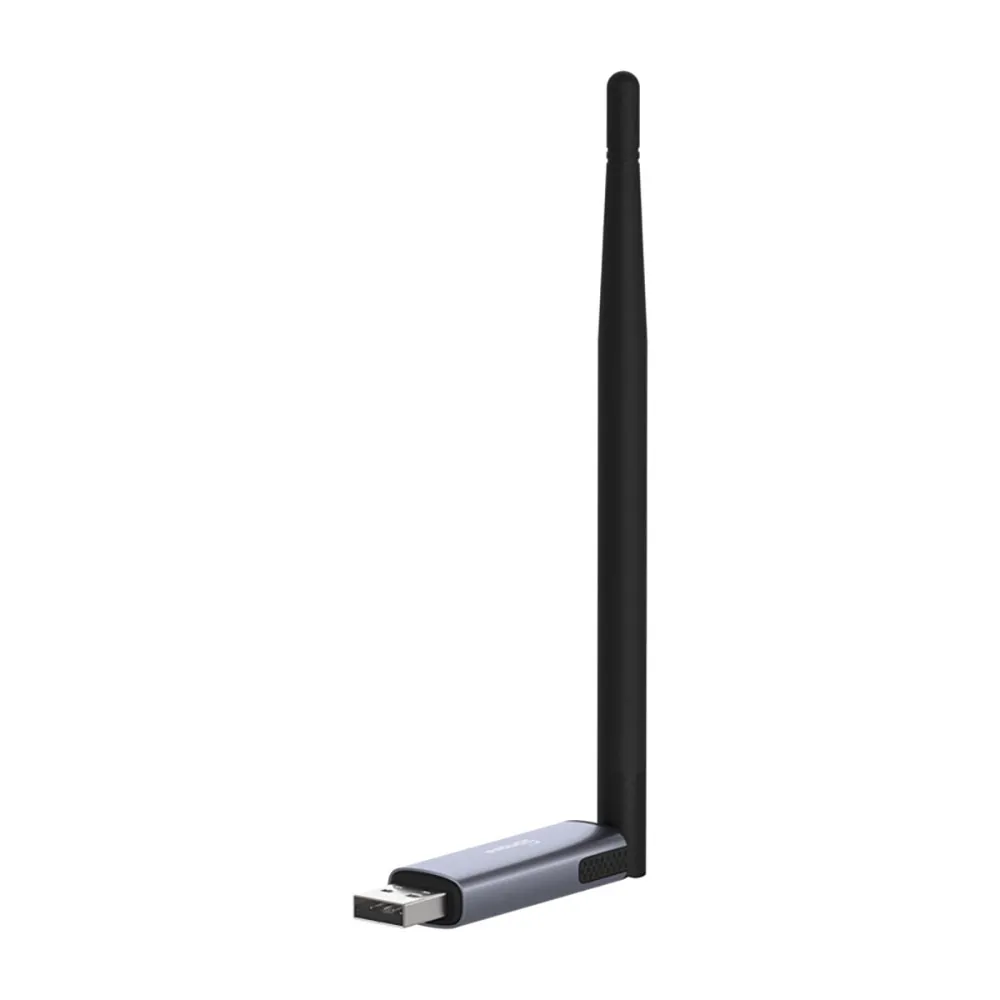

Sonoff Bramka ZigBee Dongle plus hub

SONOFF Dongle Plus MG24 is a versatile USB gateway that allows you to integrate ZigBee and Thread devices with popular open-source platforms. With it, you can easily expand your smart home system based on Home Assistant, Zigbee2MQTT, openHAB or ioBroker, gaining full control over home automation and compatibility with multiple ecosystems.

Features:

Fast and stable operation:
- The device is based on the powerful EFR32MG24 chip, which offers 1536 KB of Flash memory and 256 KB of RAM. In practice, this means faster command processing, stable communication and the ability to support more connected ZigBee devices.

Range of up to 200 meters:
- The Dongle Plus MG24 is equipped with a detachable antenna with a maximum gain of 4.5 dBi, which significantly increases the communication range. In an open space, the signal can reach up to 200 meters, making it easy to build an extensive ZigBee network throughout the home or office. In addition, the kit comes with a 1-meter USB extension cable to better position the gateway and reduce interference.

Flexible software:
- The SONOFF Dongle Plus MG24 supports several modes of operation - it can operate as a ZigBee coordinator, ZigBee router, Thread RCP or in MultiPAN mode, allowing simultaneous use of ZigBee and Thread. Uploading firmware is extremely easy thanks to the dedicated SONOFF Dongle Flasher tool, which allows online updates in about a minute.

Robust and durable design:
- The product´s casing is made of aluminum, which ensures durability and resistance to damage. The device has been tested under rigorous conditions - including temperature and corrosion resistance tests or more than 500 USB plug and unplug cycles. This guarantees reliability for everyday use.

Specifications:

- Input voltage: 5V / 500 mA
- Zigbee: IEEE 802.15.4
- Operating temperature: -10°C ~ 60°C
- Material: aluminum, PC, ABS
- Dimensions: 151.5 x 62.5 mm

Included:
- Gateway
- USB-A (male) to USB-A (female) cable
- User manual
