Sonoff ZBMINIL2-E Smart Switch

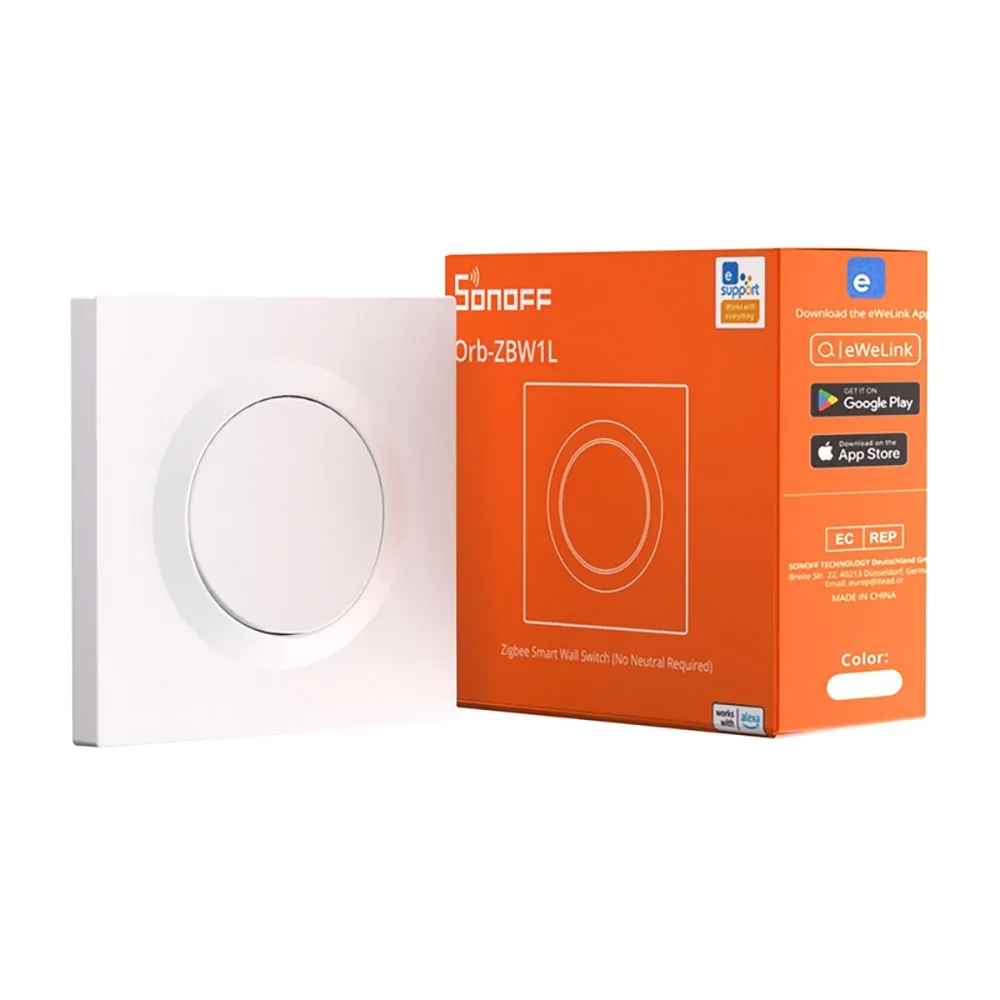

Orb-ZBW1L is a wall switch from the Fusion series that works with ZigBee technology and does not require a neutral wire. This is a great option for older installations. With compatibility with popular ZigBee hubs, you can easily automate the lighting in your home without having to replace the entire electrical system. Thanks to its compatibility with Fusion series frames, it can be easily mounted vertically or horizontally - either individually or next to other devices. Fits standard boxes: round (⌀60 mm) and square (Type 86).

Features:

No neutral wire:
- Thanks to ZigBee technology and internal power supply from a single phase, Orb-ZBW1L is ideal for apartments and houses where there is no neutral wire in the box. Installation is quick and clean, without forging walls or running additional wires.

Works with popular smart home platforms:
- The device works with ZigBee hubs such as SONOFF ZBBridge-P/U, NSPanel Pro, iHost, SmartThings, Zigbee2MQTT, as well as Amazon Echo devices with built-in ZigBee hub . This allows you to control the lights using Alexa, Google Home or the eWeLink app.

Smart scenes and group control:
- The switch can be easily integrated with wireless sensors and buttons. This allows you to create automations such as: the light turns on when a door is opened, when motion is detected in the hallway, or with one click before bedtime. In addition, the grouping function allows you to control multiple switches simultaneously from a single app.

Specifications:

- Series: Fusion
- Model: -E
- Microcontroller (MCU): EFR32MG22
- Power supply: 100-240V~, 50/60Hz, 6A
- LED load: Up to 150W at 100V / up to 300W at 240V
- Maximum load: 1440W
- Minimum load: 3W
- Wireless connectivity: Zigbee 3.0
- Weight: 80 g
- Dimensions: 86 × 86 × 35.8 mm
- Housing material: PC plastic (polycarbonate)
- Recommended wire diameter: 16AWG to 14AWG (copper, solid or stranded wire only)
- Application: For indoor use
- Operating temperature range: From -10°C to 40°C
- Operating humidity range: 5-95% RH, non-condensing
