Startech 102B-USBC-MULST docking station

USB-C Dock 2-Port USB 3.2 Gen 2 10Gbps Hub (1x USB-A, 1x USB-C) Dual 4K 60HZ HDMI 100W PD Pass through This USB-C Mini Dock / Multiport Adapter supports up to dual 4K 60Hz HDMI 2.0 converting your Dell XPS, MacBook or other USB-C laptop or tablet into a workstation, anywhere you go.

The USB Type-C™ Multiport Adapter features 2x HDMI video outputs, a 2-Port USB 3.2 Gen 2 (10 Gbps) Hub (1x USB-A with B.C 1.2 charging, and 1x USB-C), an SD card reader, and Gigabit Ethernet.

The adapter connects to your host computer´s USB-C, USB4, or Thunderbolt 3/4™ port.

Charge your host laptop and any attached USB peripherals by connecting the host laptop´s power supply to the dedicated USB Power Delivery (PD) 3.0 port.

The Multiport Adapter features an extra-long attached 12-inch (30 cm) host cable.

- for an extended reach, to offer more set up flexibility.

DisplayLink Certified Dual 4K 60Hz HDMI Video The Mini Docking Station is Display Link Certified and supports high-performance dual-monitor 4K 60Hz video resolution with an integrated Display Link DL-6950 Controller.

Multi-monitor performance makes this dock ideal for high-resolution applications such as video editing and graphic design.

The Multiport Adapter supports ultrawide 21:9 aspect ratios, and lower resolutions like 1920x1200/1080p.Connect Your Devices The USB-C to USB 3.2 Gen 2 hub features two downstream 10 Gbps USB ports, including 1x USB-C data port for connecting your USB-C peripherals, and 1x USB-A data + 7.5W BC 1.2 charging port for connecting and charging USB-A peripherals.

Multiple Use Cases A versatile dock solution for use at your office, home office, hotel, or in the boardroom, and is portable enough to be carried in your bag or backpack for mobile use.

This lightweight USB-C Adapter can operate with bus-power alone, or use the dedicated USB-C Power Delivery port to connect a USB-C power adapter (not included with Multiport Adapter) for laptop charging.

Built-In SD Card Readers Access your multimedia content with ease.

The Multiport Adapter provides direct access to your SD, SDHC™ and SDXC™ memory cards.

Charge Your Laptop With support for USB Power Delivery 3.0 pass through (up to 100W), the USB Type-C Multiport Adapter allows you to power and charge your laptop, when connected to a USB-C power source.

PD 3.0 features Fast Role Swap (FRS) to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power).

This allows you to charge the connected host device, as well as any devices connected to the USB-A BC 1.2 charging port.

Reliable Network Connectivity The Gigabit Ethernet port ensures reliable wired network access, with support for PXE Boot and WoL.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories.

The software suite includes:•Advanced Windows Layout Utility:

To setup and save custom windows layouts.• MAC Address Pass-Through Utility:

To improve network security.

•USB Event Monitoring Utility:

To track and log connected USB devices.• Wi-Fi Auto Switch Utility:

Enabling users to quickly access faster network speeds via wired LAN.For more information and to download the StarTech.com Connectivity Tools application, please visit:

www.startech.com/connectivity-toolsThis product is backed for 3-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.

The StarTech.com Advantage.

Features:

- 7-IN-1 MULTIPORT ADAPTER:

Compact USB Type-C dock w/Dual 4K 60Hz HDMI 2.0 video.

- 2-port USB 3.2 Gen 2 (10Gbps) hub with 1x USB-A Data + 7.5W BC 1.2 Fast Charge & 1x USB-C Data.

- SD 4.0 card reader (up to 160MB/s).

- GbE.

- 100W PD.

- UNIVERSAL COMPATIBILITY:

Compatible with Windows, macOS, ChromeOS & Ubuntu, enabling extended dual displays on USB-C & Thunderbolt 3 and 4 laptops including Apple M1 / M2 MacBooks which are not natively capable of driving more than one external display.

- DISPLAYLINK CERTIFIED DUAL 4K 60Hz VIDEO:

This portable travel docking station supports high-performance dual HDMI 2.0 video up to dual 4K 60Hz via the integrated DisplayLink Controller (DL-6950).

- RELIABLE.

Performance:

USB bus powered or via external USB-C power adapter, 100W Power Delivery 3.0 pass through w/20W reserved for adapter to avoid video flickering, device dropouts or overdrawing power common in other hubs, up to 80W for laptop charging.

- EASY SETUP:

Attached 14´´/35cm cable provides longer reach & reduces port strain.

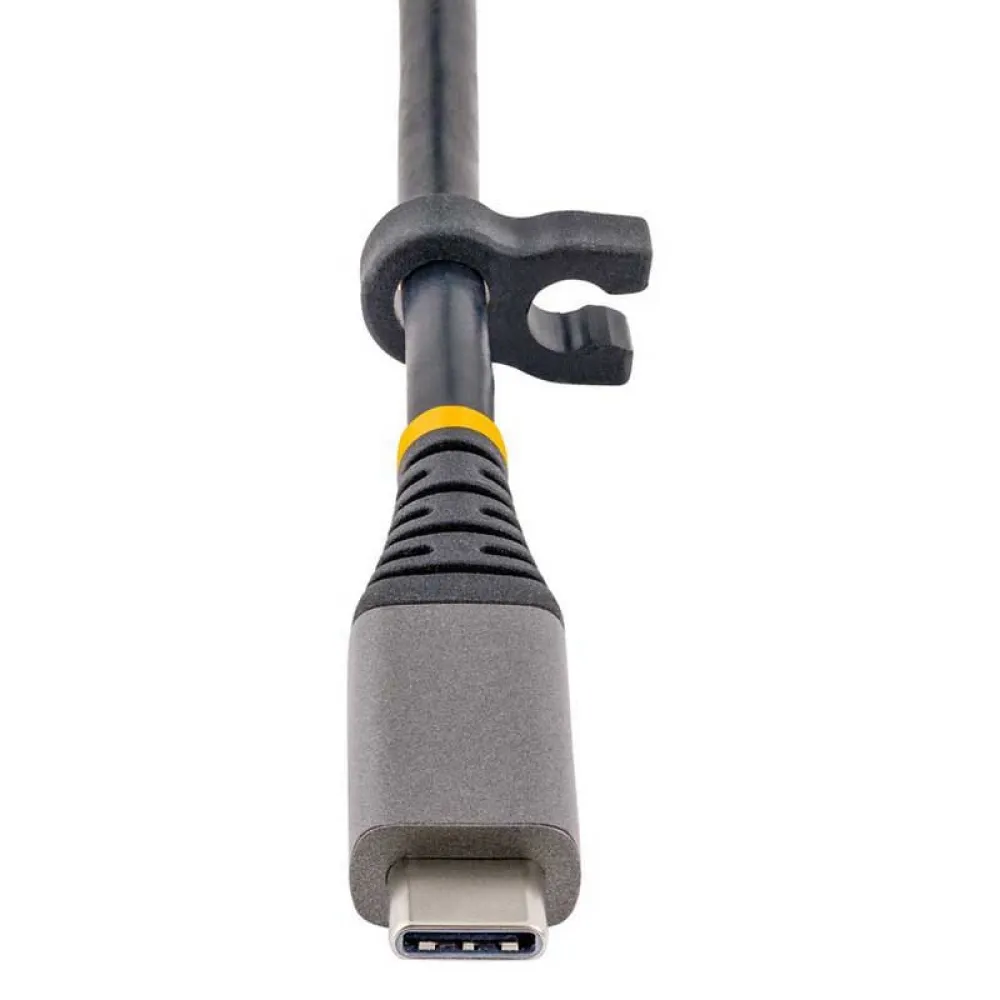

- Cable management clip.

- Mini port replicator incl.

- Connectivity Tools App w/MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switching utilities.

Specifications:

Ports & interfaces:

- Connectivity.

Technology:

Wired.

- Host interface:

USB 3.2 Gen 2 (3.1 Gen 2):

Type-C.

- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

1.

- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

2.

- USB Power Delivery:

Yes.

- USB Power Delivery revision:

3.0.

- USB Power Delivery up to:

100 W.

- HDMI ports quantity:

2.

- HDMI version:

2.0 Network:

- Ethernet LAN:

Yes.

- Ethernet LAN (RJ-45) ports:

1.

- Ethernet LAN data rates:

10,100,1000 Mbit/s.

- Full duplex:

Yes.

Performance:

- Card reader integrated:

Yes.

- Compatible memory cards:

MMC, SD.

- Data transfer rate:

10 Gbit/s.

- Maximum digital resolution:

4096 x 2160 pixels.

- Number of displays supported:

2.

- Maximum refresh rate:

60 Hz.

- UASP support:

Yes.

- Housing material:

Plastic Power:

- Power source type:

USB Software:

- Windows operating systems supported:

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 Software:

- Mac operating systems supported:

Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey.

- Linux operating systems supported:

Ubuntu 18.04 LTS, Ubuntu 20.04 LTS.

- Mobile operating systems supported:

Android.

- Other operating systems supported:

ChromeOS Operational conditions:

- Operating temperature (T-T):

0.

- 35 °C.

- Storage temperature (T-T):

-25.

- 65 °C.

- Operating relative humidity (H-H):

0.

- 95% Sustainability:

- Sustainability compliance:

Yes.

- Sustainability certificates:

CE, RoHS Weight & dimensions:

- Width:

95 mm.

- Depth:

95 mm.

- Height:

17 mm.

- Weight:

250 g Packaging data:

- Package width:

145 mm.

- Package depth:

145 mm.

- Package height:

42 mm.

- Package weight:

400 g.
