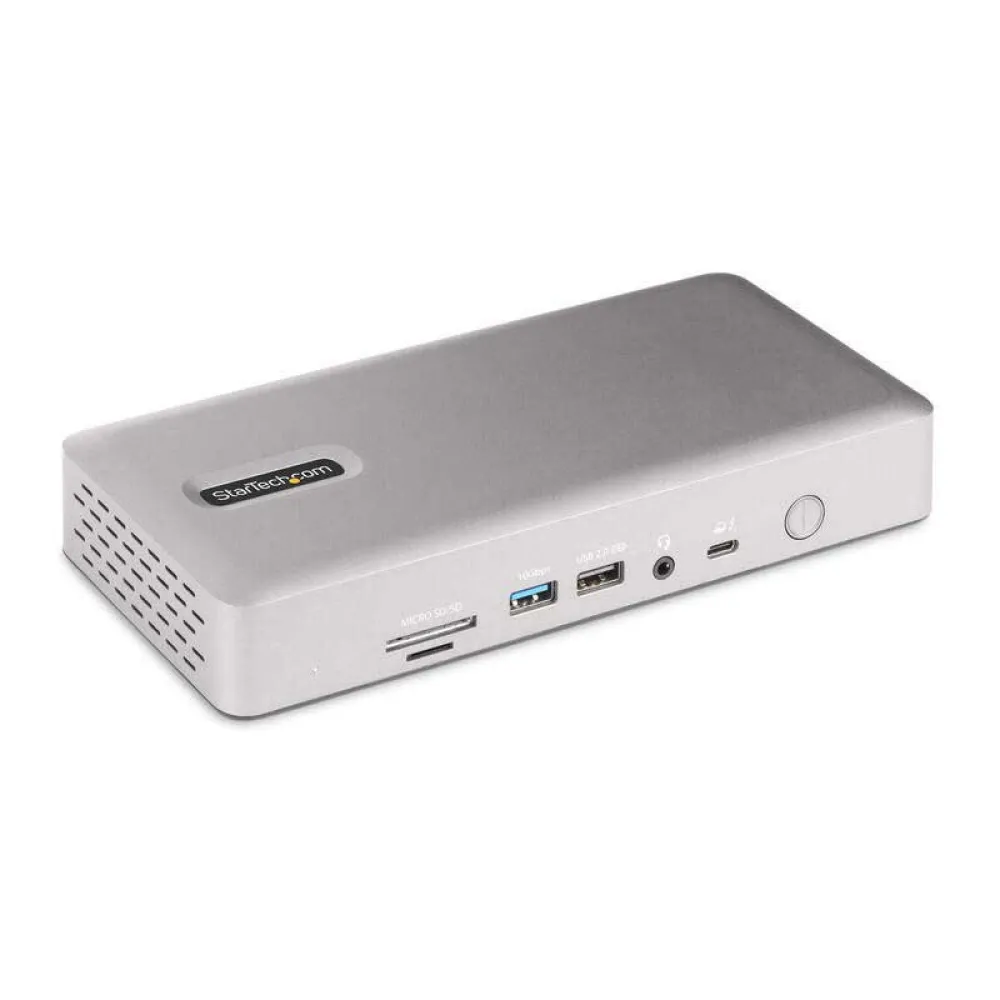

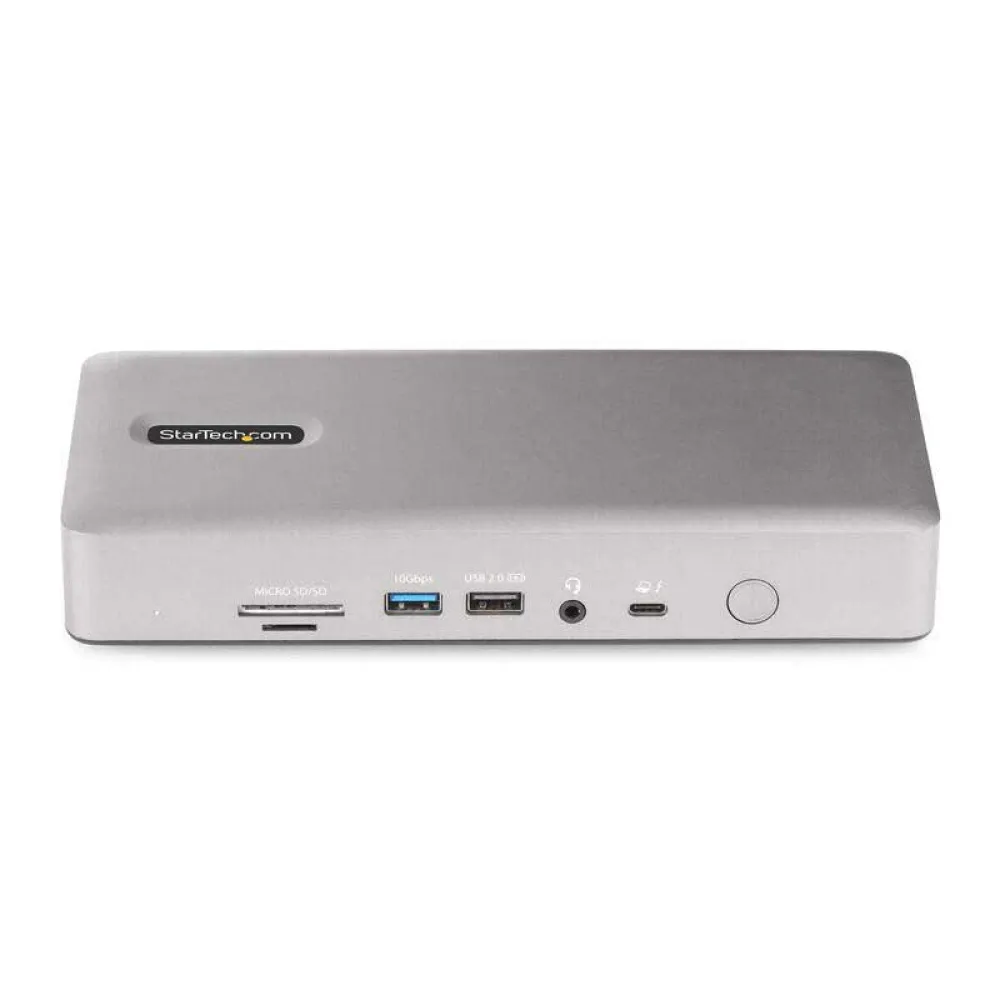

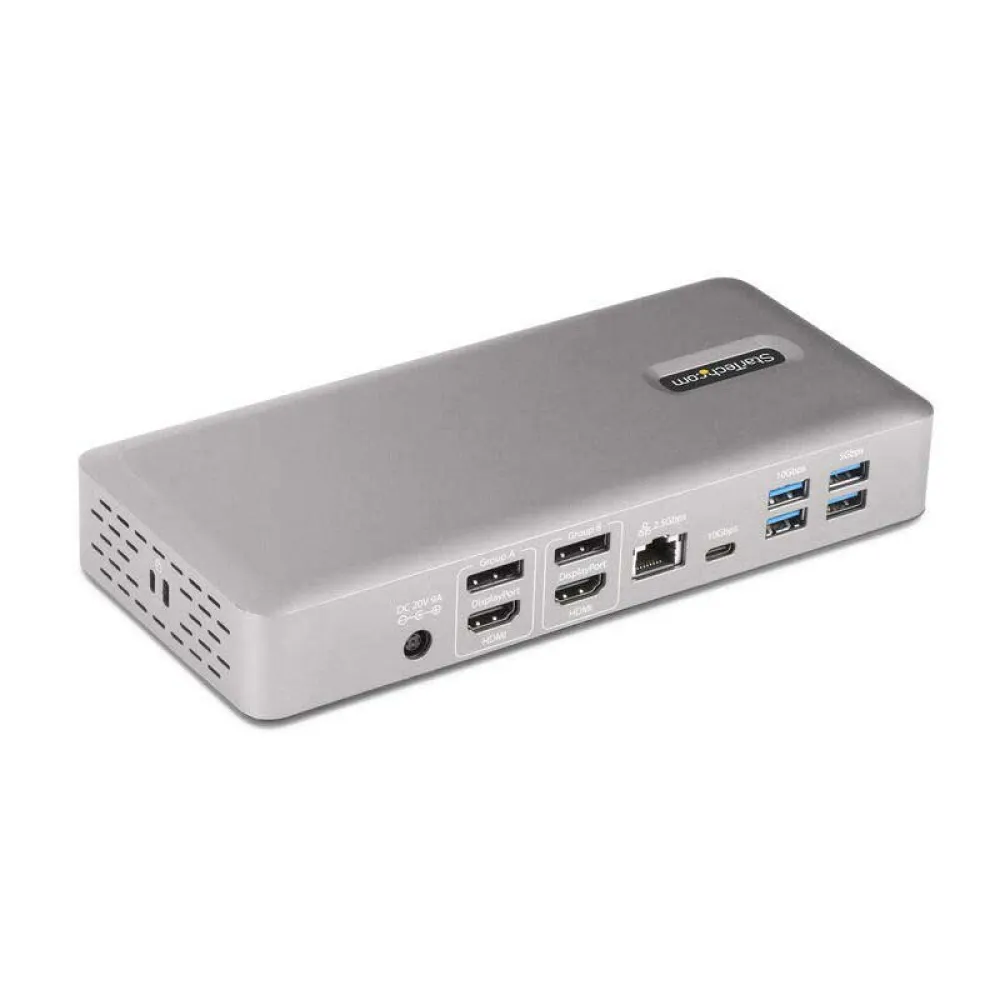

Startech 132UE-TB4USB4DOCK docking station

Features:

- High Performance Thunderbolt 4 Dock:

Driver-free setup.

- 2x DisplayPort.

- 2x HDMI.

- 7-port USB hub.

- SD and mSD card readers.

- GbE 2.5Gb.

- - Locking slots (K-slots).

- 3.5mm headphone jack.

- Multi-Monitor Flexibility:

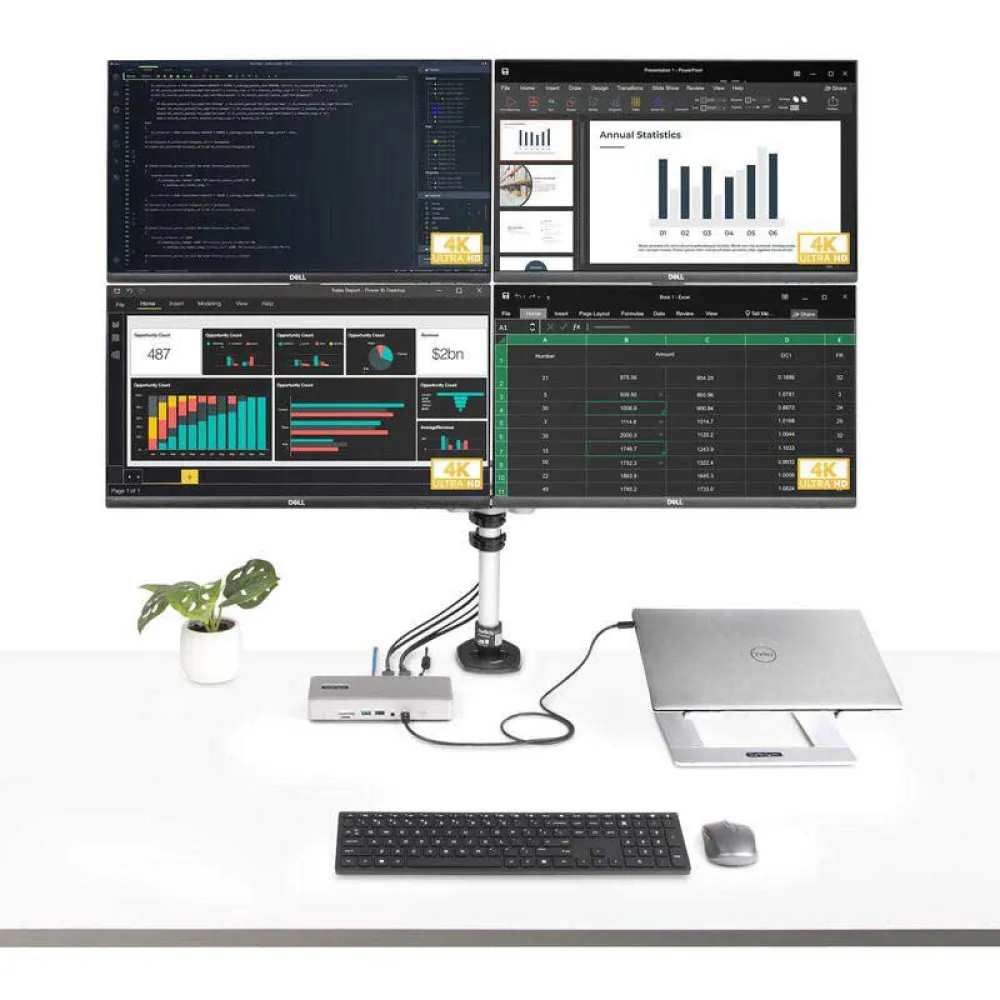

4x 4K60 displays with Intel 12th Gen CPU or higher with DP 1.4 DSC.

- 4x displays at lower resolutions or refresh rates without DSC with Intel 11th Gen CPU or lower.

- One HDMI display up to 8K60.

- Compatibility:

Windows, macOS and Ubuntu.

- For all Thunderbolt 4/3 and USB4 laptops.

- Quad display on Windows laptops.

- Dual display on MacBook Pro (Apple M1/M2/M3 Max and Pro).

- Single display on MacBook Air.

- 98w Power Delivery:

Includes a power adapter to simultaneously charge a laptop (98W PD) and power all ports.

- USB 2.0 downstream port supports 7.5W (1.5A) for charging mobile devices.

- Professional Benefits:

Includes 1m TB4 host cable.

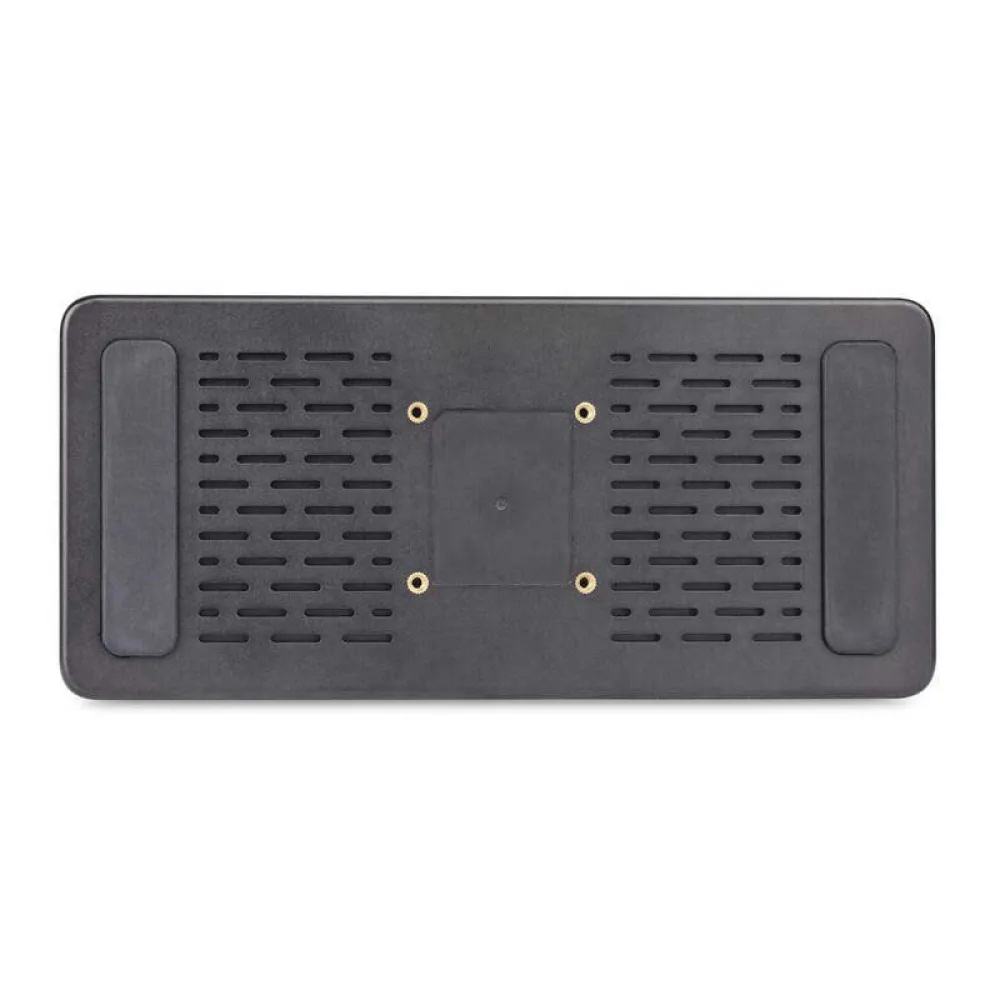

- Mounting holes for optional brackets (SSPMSVESA/SSPMSUDWM).

- K-Slot.

- Connectivity Tools Software.

Specifications:

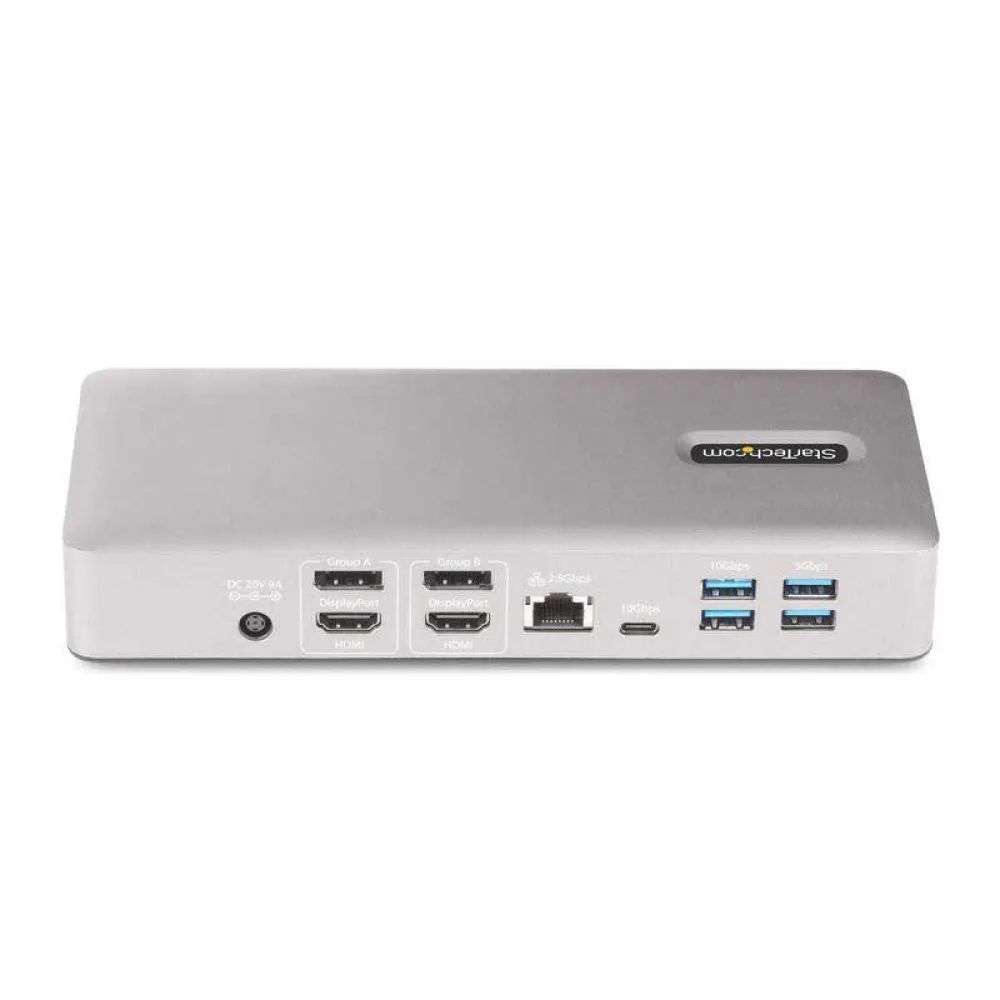

Ports and Interfaces:

- Connectivity.

Technology:

Wired.

- Host interface:

Thunderbolt 4.

- Number of USB 2.0 ports:

1.

- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports:

2.

- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports:

3.

- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports:

1.

- USB power supply:

Yes.

- USB Power Delivery Review:

3.0.

- USB Power Delivery up to:

98 W.

- Number of HDMI ports:

2.

- HDMI version:

2.1.

- Number of DisplayPorts:

2.

- DisplayPort Version:

1.4.

- Headphone/microphone output combo port:

Yes.

- Headphone outputs:

1.

- Headphones:

3.5 mm.

- DC input jack:

Yes Connection:

- Ethernet:

Yes.

- Ethernet LAN (RJ-45) ports quantity:

1.

- Ethernet LAN, data transfer rate:

10,100,1000,2500 Mbit/s.

- Copper Ethernet Cabling.

Technology:

2.5GBASE-T, 10BASE-T, 100BASE-T, 1000BASE-T.

- Full duplex:

Yes.

Performance:

- Integrated reading card:

Yes.

- Compatible memory cards:

MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC.

- Data transfer speed:

40 Gbit/s.

- HD Type:

8K Ultra HD.

- Resolution (maximum digital):

7680 x 4320 Pixels.

- Maximum update speed:

60 Hz.

- Security cable slot:

Yes.

- Cable lock slot type:

Kensington, Nano.

- Integrated on/off switch:

Yes.

- LED indicators:

LAN, Power.

- UASP support:

Yes.

- Case material:

Aluminum Energy control:

- Feeding:

DC.

- AC input voltage:

110.

- 240 V.

- Input current:

2.5 A.

- Output voltage:

20 V.

- Output current:

9 A.

- Power consumption (max):

180 W.

- Compatible power plug types:

EU, UK Software:

- Supported Windows operating system:

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64.

- Supported MAC OS:

Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura Environmental conditions:

- Operating temperature range:

0.

- 40 °C.

- Storage temperature range:

-20.

- 70 °C.

- Relative humidity range for operation:

0.

- 95% Sustainability:

- Sustainability compliance:

Yes.

- Sustainability certificates:

CE, RoHS Weight and measurements:

- Broad:

210 mm.

- Depth:

96 mm.

- Height:

34 mm.

- Weight:

200 g.
