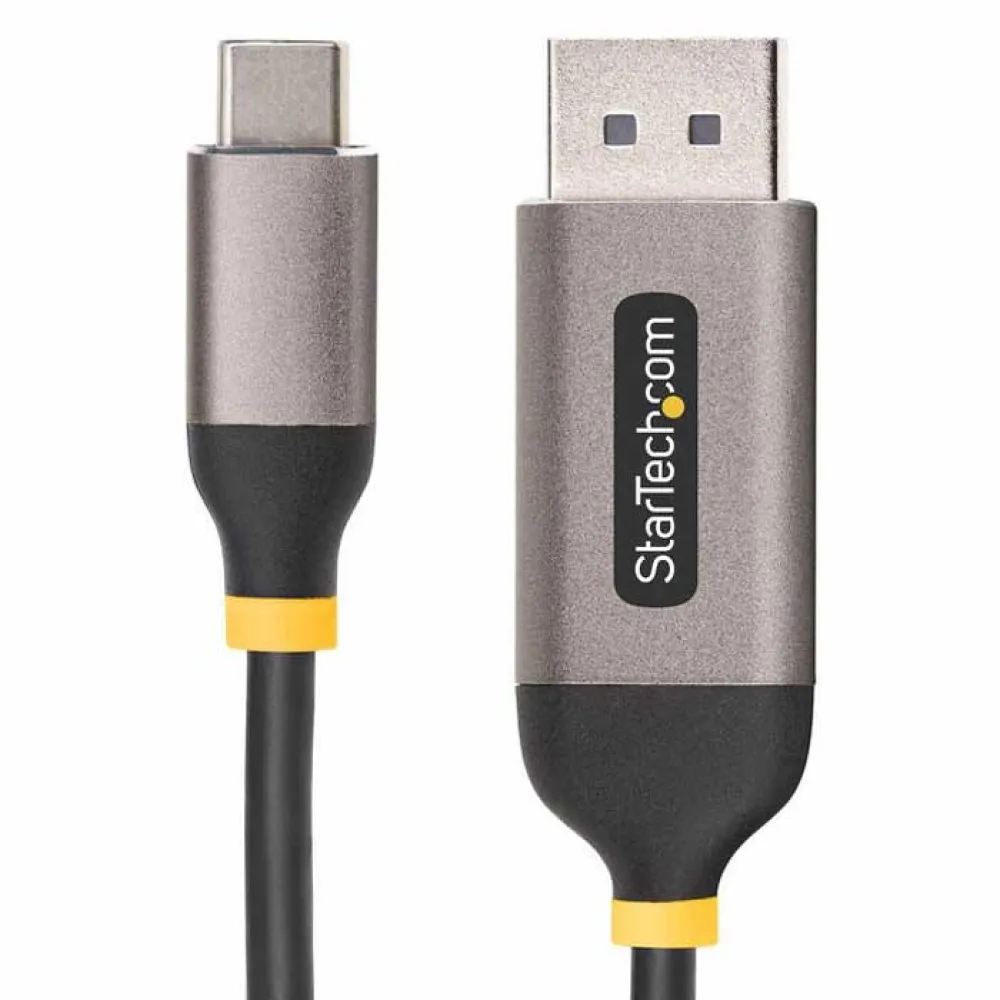

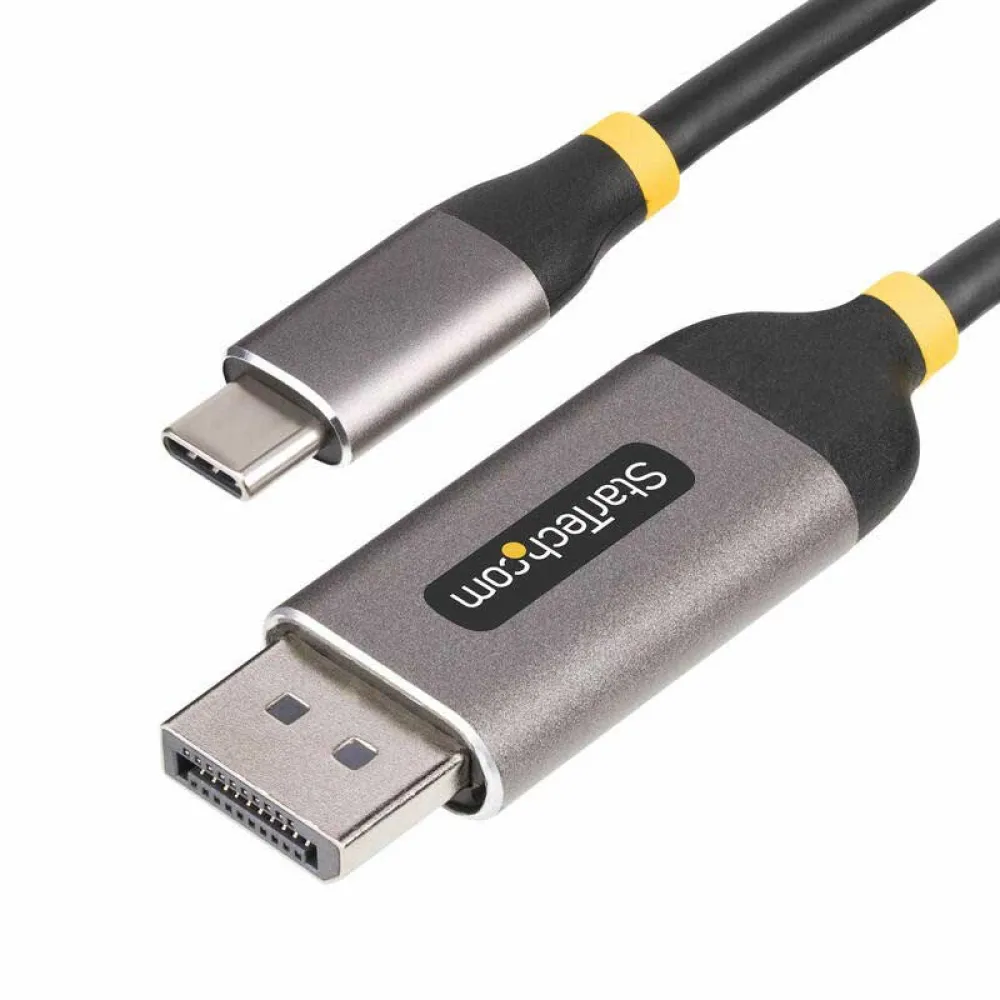

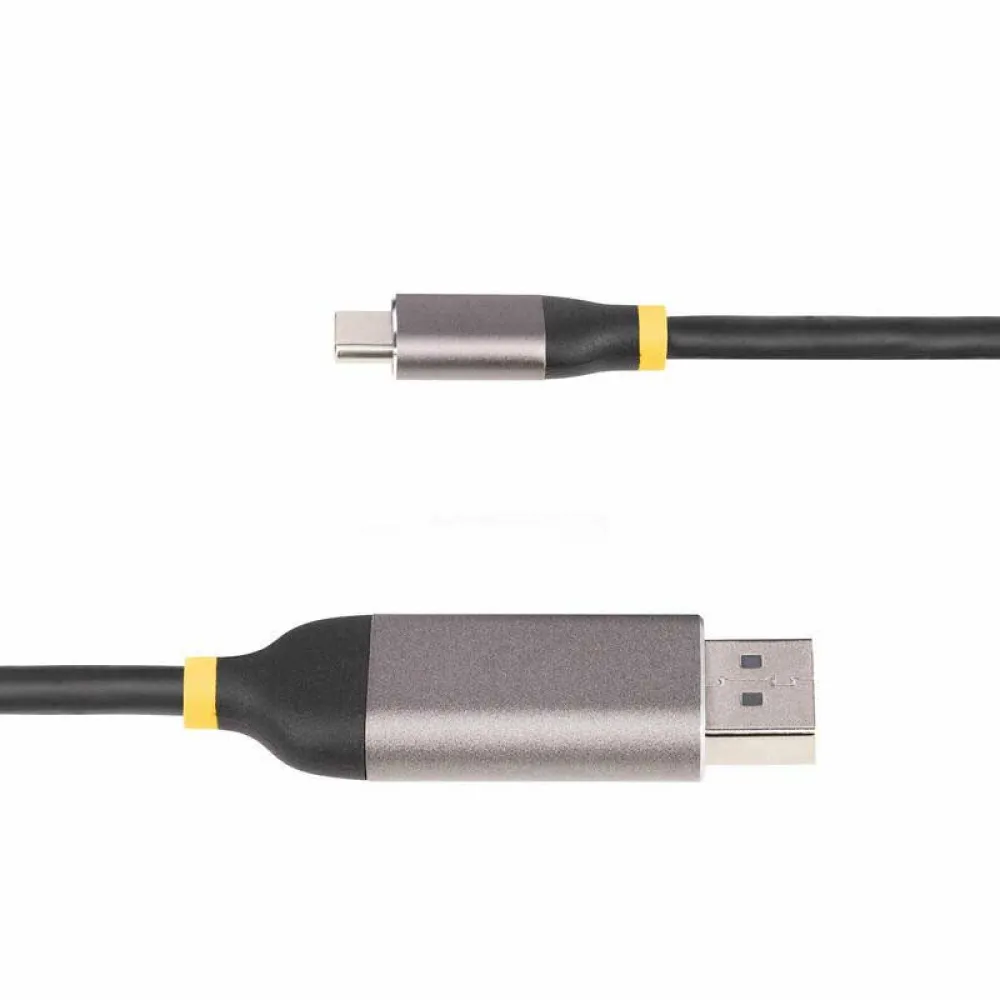

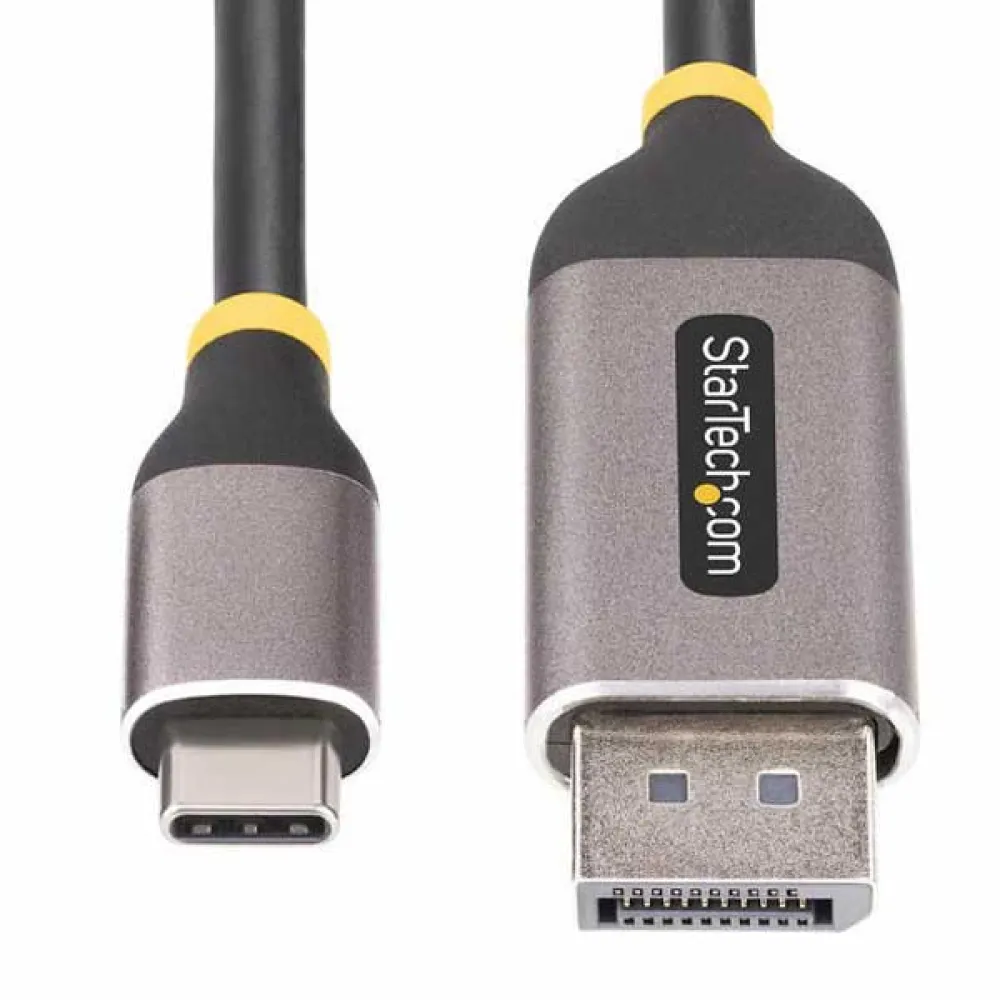

Startech 142 10F DisplayPort to USB-C cable

Features:

- High.

Performance:

3m USB-C to DisplayPort adapter cable connects a USB-C DP source in Alt mode to a 8K 60Hz/4K 144Hz DisplayPort monitor.

- - Connect a primary or secondary display in extended or mirrored mode.

- No Drivers Or Software:

Compatible with all hardware platforms and any operating system.

- USB Type-C to DisplayPort cable works with laptops and devices with DP Alt Mode over USB-C, USB4, Thunderbolt 3 and Thunderbolt 4.

- Host Compatibility:

Works with laptops and devices from Dell, HP, Lenovo, Microsoft and more.

- Apple M1/M2/M3 devices (e.g.

MacBook Pro) only support up to 4K 60Hz via USB-C DP Alt mode and will not be able to reach 8K 60Hz.

- Build Quality And Design:

Minimizes points of failure and signal loss.

- Latching DisplayPort connector ensures a secure connection, minimizing the risk of accidental disconnection.

- Aluminum housing provides EMI shielding.

Specifications:

- Connector Form Factor 1:

Right.

- Connector form factor 2:

Right.

- Cable length:

3 m.

- Connector 1:

USB Type C.

- Connector 2:

DisplayPort.

- Gender of connector 1:

Male.

- Gender of connector 2:

Male.

- HDCP:

Yes.

- HDCP version:

1.4/2.2/2.3.

- DisplayPort Version:

1.4.

- USB Type-C DisplayPort Alternate Mode:

Yes.

- High Dynamic Range (HDR):

Yes.

- Supported graphic formats:

800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768, 1280 x 768 (WXGA), 1280 x 800, 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 2560 x 1080, 3440 x 1440, 3840 x 2160, 4096 x 2160, 5120 x 1440, 5120 x 2880, 7680 x 4320.

- Bandwidth:

32400 MB/s.

- Maximum update speed:

144 Hz.

- Refresh rate at maximum resolution:

60 Hz.

- Integrated circuit:

VL103.

- Jacket material:

Thermoplastic elastomer (TPE).

- Cable type:

Round cable.

- Plug and Play:

Yes.

- Retention connectors:

Yes Environmental conditions:

- Operating temperature range:

-20.

- 70 °C.

- Storage temperature range:

-40.

- 70 °C.

- Relative humidity range for operation:

5.

- 95% Sustainability:

- Sustainability compliance:

Yes Weight and dimensions:

- Cable diameter:

4.3 mm.

- Weight:

111 g.
