Startech 154B docking station

Features:

- High Performance Triple 4K: Driver-free setup - 2x DisplayPort 1.4 & 1x HDMI 2.0b combo - 4-port USB-A hub (2x USB 5Gbps, 2x USB 2.0) - Gb Ethernet - 3.5mm headphone port - SD/MicroSD reader - 100W PD
- Flexible Multi-Monitor Output: Triple, dual, or single monitors up to 2x 4K 60Hz and 1x 4K 30Hz (Intel 11th Gen or later with DSC required for maximum performance) - Use a laptop´s integrated or discrete GPU
- Extra Long Cable & Durable Construction: Built-in cable with high-quality TPE jacket for extra durability - Sturdy aluminum housing - 4-port USB Type-A hub - SD/MicroSD reader for direct access to memory cards
- Compatibility: Docking station for USB-C, USB4, TB3 and TB4 Windows and ChromeOS computers - 100W PD pass-through with 15W reserved for the adapter and up to 85W for host charging - Works with DP 1.2 with Alt mode at lower resolutions
- Our Advantage: Included connectivity tools for IT professionals with MAC Address Passthrough, WiFi Auto-Switching to improve network performance, USB Event Monitoring, and Windows Setup


Specifications:

Ports and Interfaces:
- Connectivity technology: Wired
- Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
- Number of USB 2.0 ports: 2
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1
- USB power supply: Yes
- USB Power Delivery Review: 3.0
- USB Power Delivery up to: 100 W
- Number of HDMI ports: 1
- HDMI version: 2.0b
- Number of DisplayPorts: 2
- DisplayPort Version: 1.4
- Headphone/microphone output combo port: Yes
- Headphone outputs: 1
- USB Type-C DisplayPort Alternate Mode: Yes

Connection:
- Ethernet: Yes
- Ethernet LAN (RJ-45) ports quantity: 1
- Ethernet LAN, data transfer rate: 10,100,1000 Mbit/s
- Networking: Yes
- Network standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
- Full duplex: Yes

Performance:
- Integrated reading card: Yes
- Compatible memory cards: MicroSD (TransFlash), SD
- Data transfer speed: 5 Gbit/s
- HD Type: 4K Ultra HD
- Resolution (maximum digital): 3840 x 2160 Pixels
- Number of supported displays: 3
- Maximum update speed: 60 Hz
- LED indicators: Activity
- UASP support: Yes
- Case material: Aluminum, Plastic

Energy control:
- Feeding: USB
- Energy consumption: 15 W
- USB cable length: 0.3 m

Software:
- Supported Windows operating system: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
- Other supported operating systems: ChromeOS

Environmental conditions:
- Operating temperature range: 0 - 70 °C
- Storage temperature range: -10 - 70 °C
- Relative humidity range for operation: 5 - 90%

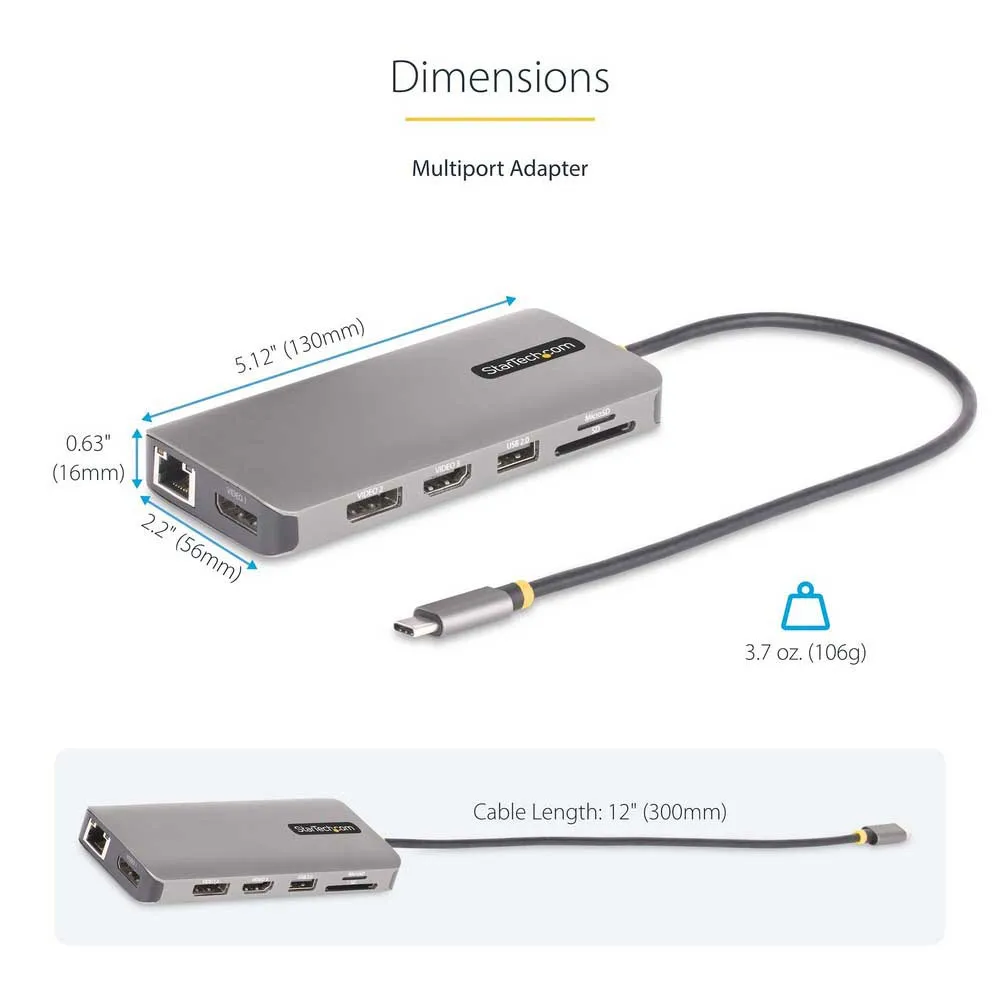

Weight and dimensions:
- Broad: 56 mm
- Depth: 130 mm
- Height: 16 mm
- Weight: 106 g
