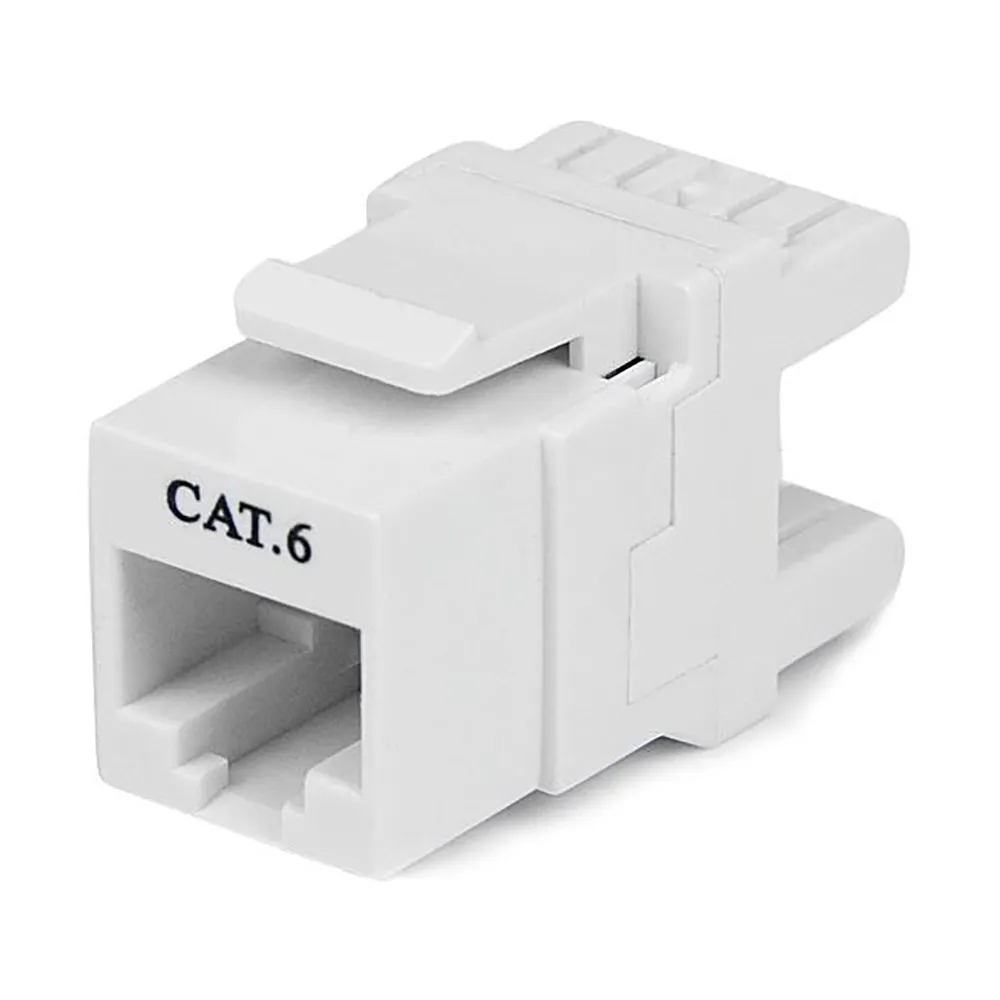

Startech 180° Cat 6 Keystone Wall Jack

STARTECH 180° CAT 6 Keystone Wall Jack | High-Performance RJ45 Networking

Achieve professional-grade network installations with the STARTECH 180° CAT 6 Keystone Wall Jack. Engineered for superior performance and reliability, this RJ45 keystone jack is the cornerstone for building a robust, high-speed wired network infrastructure in your home, office, or data center. It provides a clean and secure connection point for all your CAT 6 network cables, ensuring optimal signal integrity for demanding applications like Gigabit Ethernet, streaming 4K video, and Power over Ethernet (PoE) devices. This component is essential for creating a finished, professional-looking installation while future-proofing your network for evolving speed and bandwidth requirements.

The C6KEY110SWH Cat6 Keystone Jack is designed to snap into wall plates, patch panels, and surface connection boxes for quick, seamless deployment.

Meeting and exceeding the international standard ISO / IEC 11801 and the ANSI/TIA-568-C.2 requirements, this RJ45 keystone jack provides the perfect solution for your Ethernet networks.



Key Benefits
* Superior Network Performance: Fully compliant with the CAT 6 attribute, this jack supports bandwidth up to 500 MHz. It is optimized for 1000BASE-T Gigabit Ethernet and can support 10GBASE-T networks over limited distances, ensuring your network operates at maximum speed with minimal signal interference or crosstalk.

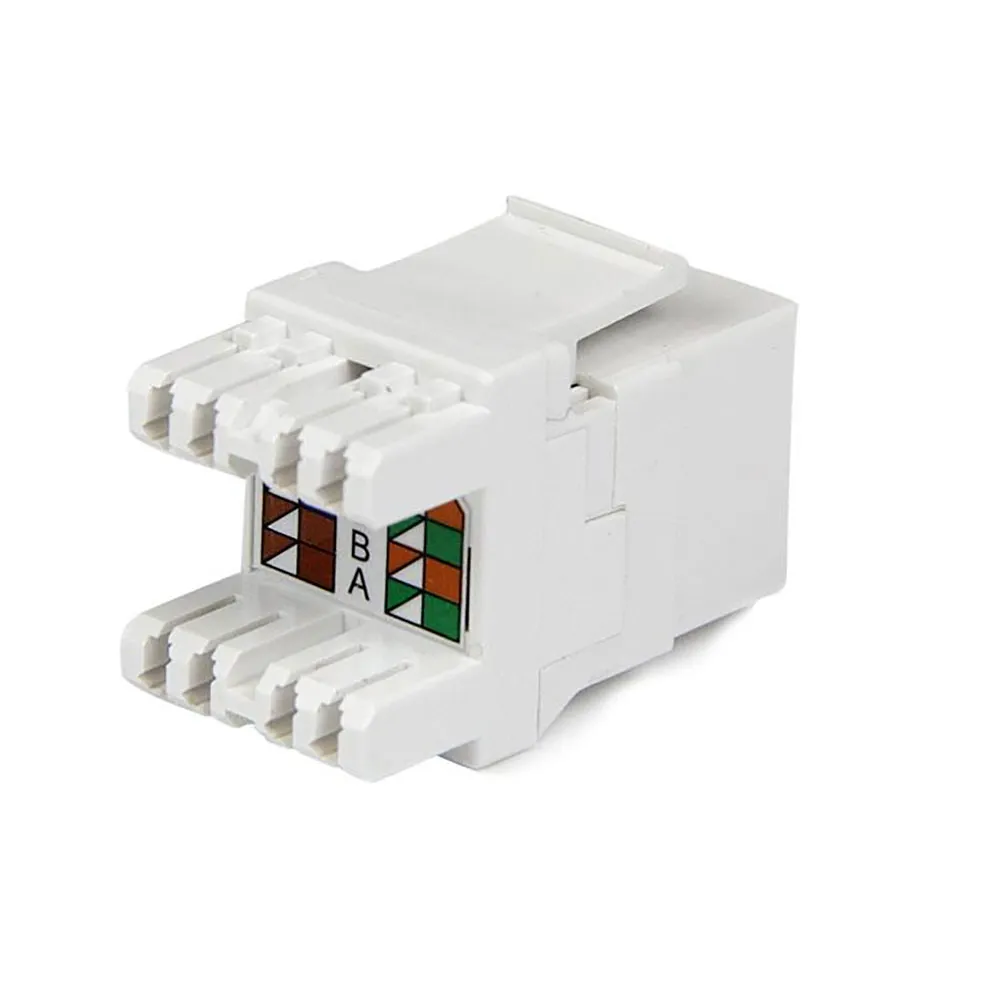

* Simplified and Rapid Installation: The 180° 110-type punch-down termination design allows for straightforward wire insertion. Coupled with clear, dual-color coded wiring diagrams printed directly on the jack for both T568A and T568B standards, the installation process is simplified, reducing time and preventing common wiring errors.
* Versatile and Universal Compatibility: Designed with a universal keystone form factor, this jack snaps easily into standard keystone wall plates, patch panels, and surface-mount boxes. This versatility makes it an ideal solution for a wide range of new installations or for upgrading existing network connections.
* Durable and Long-Lasting Construction: Built with high-impact, fire-retardant plastic housing and featuring 50-micron gold-plated contacts, this keystone jack is designed for durability. The gold plating prevents rust and corrosion, guaranteeing a long-lasting, stable connection with excellent conductivity for years to come.

Main Features
* 180° termination design for easy punch-down access
* Utilizes a standard 110-type punch-down tool for termination
* Dual IDC (Insulation Displacement Connector) supports both T568A & T568B wiring standards
* Color-coded labels for straightforward wire identification and termination
* Compatible with 22-26 AWG solid network cabling
* Supports Power over Ethernet (PoE), PoE+, and PoE++ (IEEE 802.3af/at/bt)
* UL Listed for proven safety and quality assurance

Technical Specifications
* Attribute: CAT 6
* Connector Type: 1 - RJ-45 Female
* Termination Type: 110-Type Punch Down
* Contact Plating: Gold (50 Micron)
* Contact Material: Phosphor Bronze
* Housing Material: Durable ABS Plastic, CMG Rated (General Purpose)
* Frequency Performance: Up to 500 MHz
* Wiring Standards: TIA/EIA-568-A and TIA/EIA-568-B
