Startech 2 Port 2.0 hdmi splitter

Features:

- 2-PORT HDMI SPLITTER:

Displays the same image with sound on 2 screens.

Splits an HDMI video signal up to Ultra HD 4K 60Hz & 7.1 CH audio.

4:4:4 chroma subsampling support w/ bandwidth up to 18Gbps (HDMI 2.0b).

HDR.

HDCP 2.2 to HDCP 1.4 conversion.

- EDID MANAGEMENT SWITCH:

1x2 HDMI splitter is capable of outputting 2 different display resolutions w/ a built-in scaler (EDID Auto) or copy the EDID settings from output port 1 to the other display at the desired resolution (720p & up) (EDID Copy).

- FLEXIBLE AUDIO SUPPORT:

3 different audio outputs HDMI/3.5mm port/Optical digital port for output to speakers/amplifiers.

Audio output is supported on all ports simultaneously.

Support Digital to Analog conversion (DAC).

- This 2-port HDMI splitter lets you connect your HDMI video source to two HDMI displays, with support for Ultra HD resolutions and HDR (High Dynamic Range) as well as 7.1 surround sound audio.

Supports True 4K at 60Hz:

- This 2 way HDMI splitter offers full support for your HDMI 2.0b equipment, including true 4K resolution at 60Hz.

For smoother video and color transitions, the splitter offers 4:4:4 chroma subsampling, meaning every pixel gets its own unique color.

Widely Compatible:

- The HDMI 2.0 splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz, 1080p and 720p displays.

This ensures that it will work with lower resolution displays such as TVs or projectors around your site or in your digital signage application.

With the built-in scaling function, the HDMI 1 in 2 out splitter can output to two displays at different resolutions simultaneously.

The Choice of IT Pros Since 1985:

- StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals.

Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.

- The ST122HD20 is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Applications:

- Output and split your 4K 60Hz HDMI signal to two different HDMI displays with different resolutions.

- Distribute 4K 60Hz video to monitors or TVs that require the highest quality of image detail, such as in control centers or video production studios.

- Display corporate information or advertising on multiple displays at a shopping center.

- Display the same information on multiple displays in the waiting rooms of healthcare facilities.

Specifications:

Connector(s):

- 1.

- Connector A:

HDMI (19 pin).

- 2.

- Connector B:

HDMI (19 pin).

- 1.

- Connector B:

Toslink (SPDIF, Optical).

- 3.5 mm Mini-Jack (3 Position Environmental:

- Operating Temperature:

0°C.

- 40°C (32°F.

- 104°F).

- Storage Temperature:

-20°C.

- 60°C (-4°F.

- 140°F).

- Humidity:

20-90% RH Hardware:

- AV Input:

HDMI.

- 2.0.

- Ports:

2.

- AV Output:

HDMI.

- 2.0.

- Audio:

Yes.

- Industry Standards:

HDMI 2.0b Indicators:

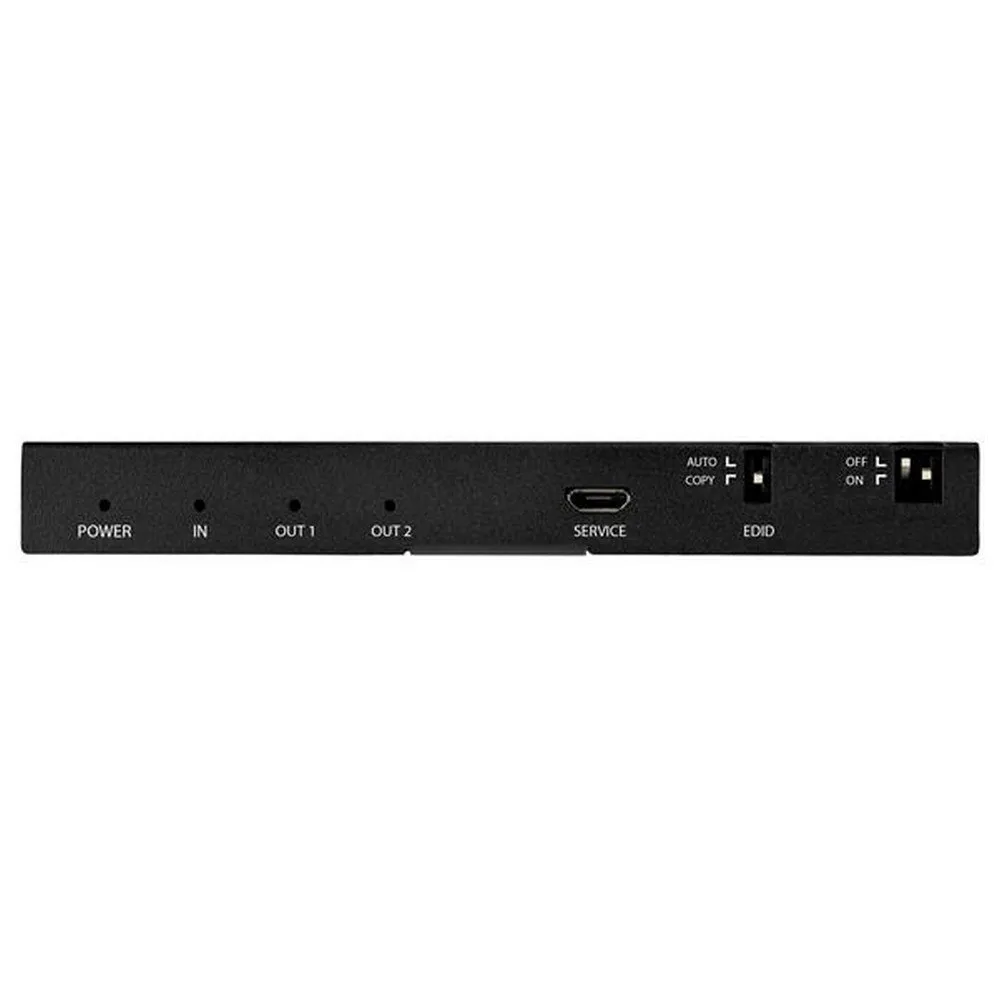

- 1.

- LED Indicators.

- Power LED.

- Input LED.

- 2.

- LED Indicators:

Output LEDs Packaging Information:

- Package Height:

2.7 in [69 mm].

- Package Length:

8.0 in [20.2 cm].

- Shipping (Package) Weight:

13.8 oz [392 g].

- Package Width:

4.5 in [11.4 cm].

Performance:

- Video Revision:

HDMI 2.0b.

- Maximum Data Transfer Rate:

18 Gbps.

- Maximum Cable Length:

16.4 ft [5 m] Maximum Digital Resolutions:

- 3840x2160 (4K) 60Hz.

- 3840x2160 (4K) 30Hz.

- 1920x1080 (1080p).

- 1280x720 (720p).

- Wide Screen Supported:

Yes.

- Audio.

Specifications:

7.1 surround sound Physical Characteristics:

- Product Height:

0.4 in [11 mm].

- Product Length:

4.7 in [12.0 cm].

- Weight of Product:

6.0 oz [170 g].

- Product Width:

2.5 in [63 mm].

- Material:

Steel Power:

- Power Source:

AC Adapter Included.

- Input Voltage:

100.

- 240 AC.

- Output Voltage:

5V DC.

- Output Current:

1A.

- Power Consumption (In Watts):

5W What´s in the Box:

- Included in Package.

- HDMI video splitter.

- Universal Power Adapter (NA, EU, UK, ANZ).

- Instruction Manual.
