Features of Startech 2S232422485-PC-CARD PCI-e expansion card
Product description of Startech 2S232422485-PC-CARD PCI-e expansion card
Description summary

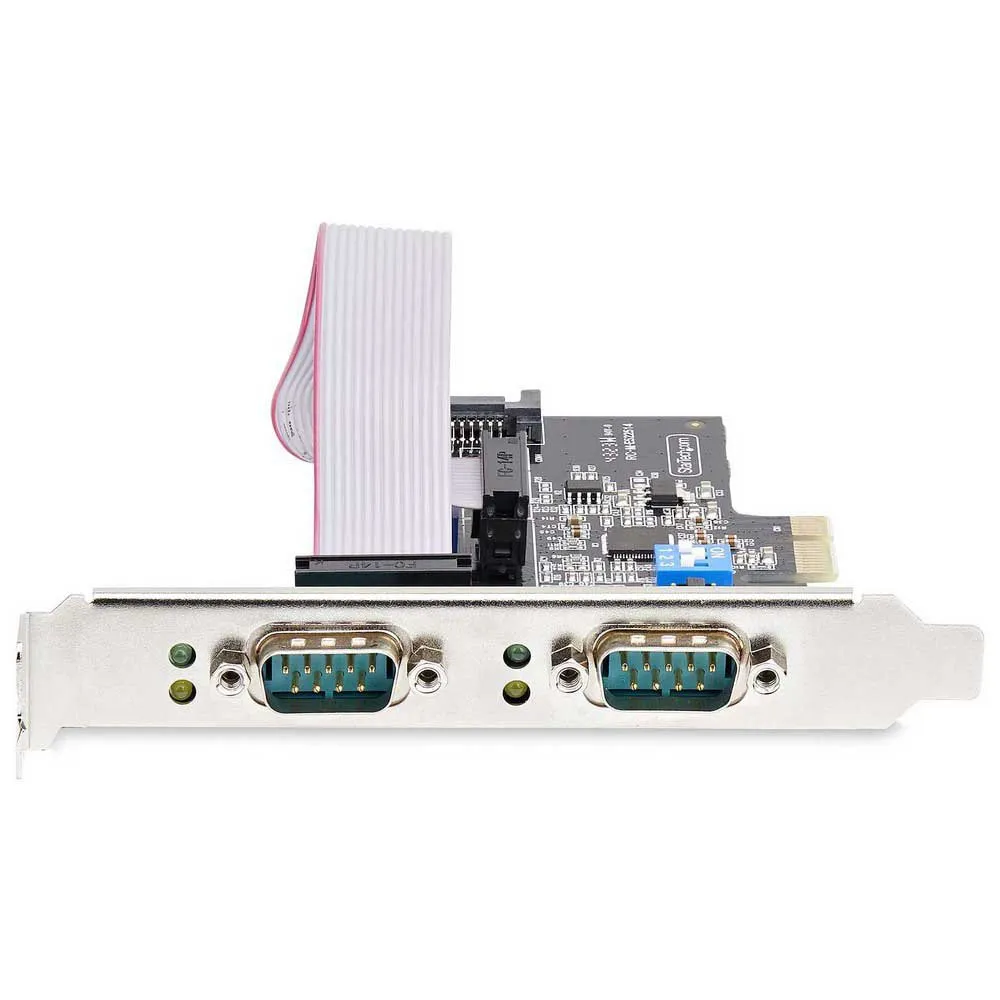

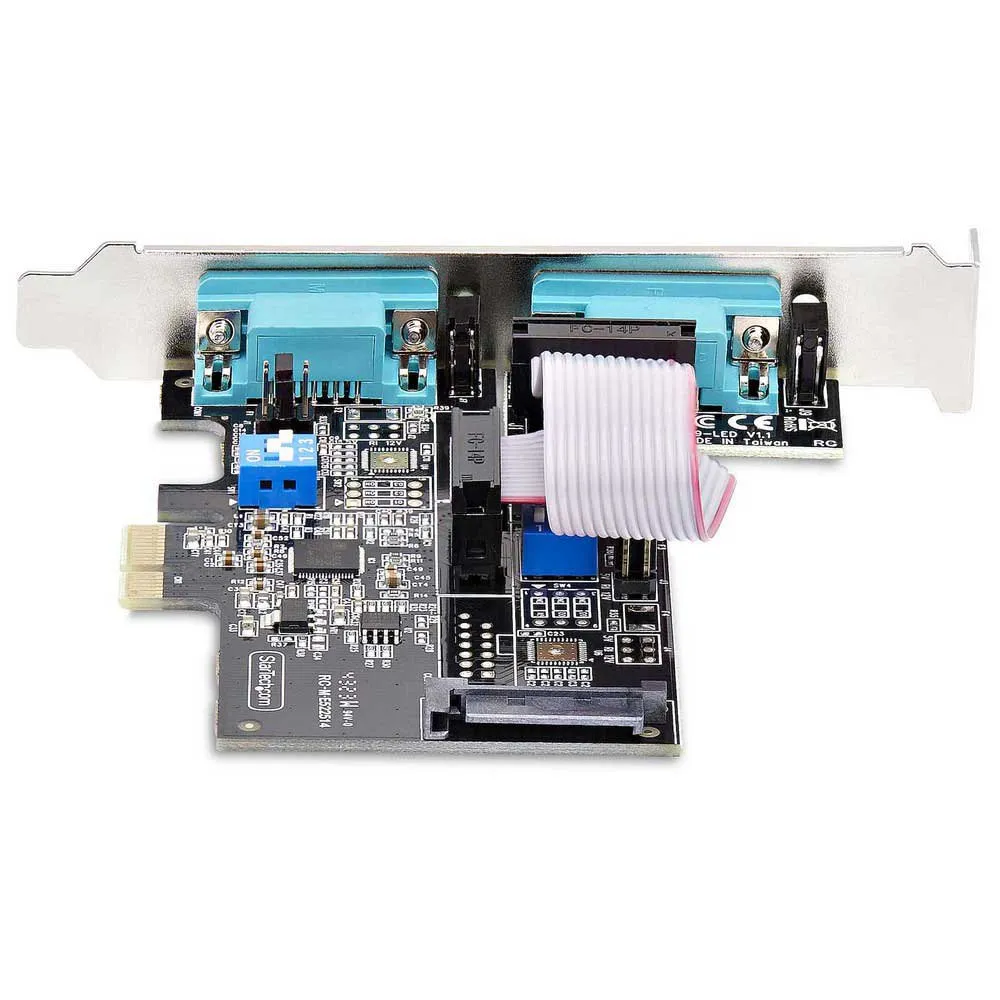

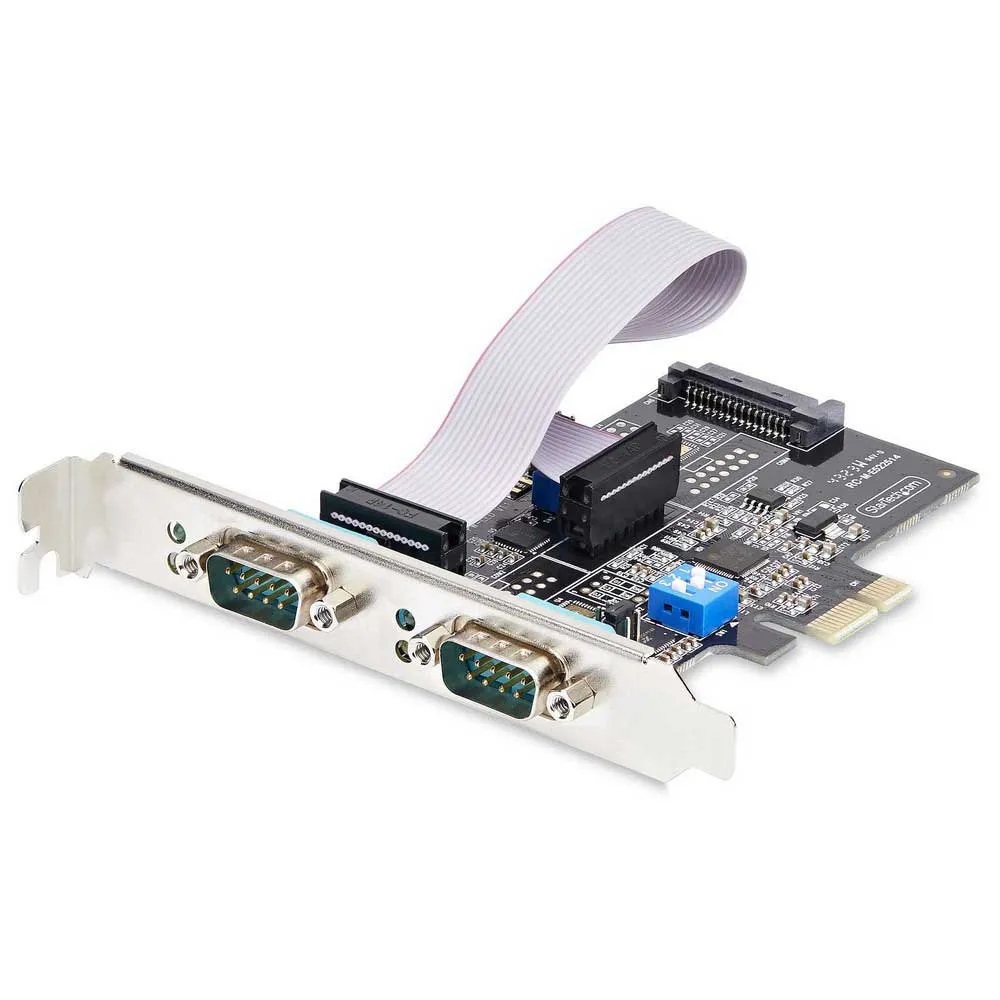

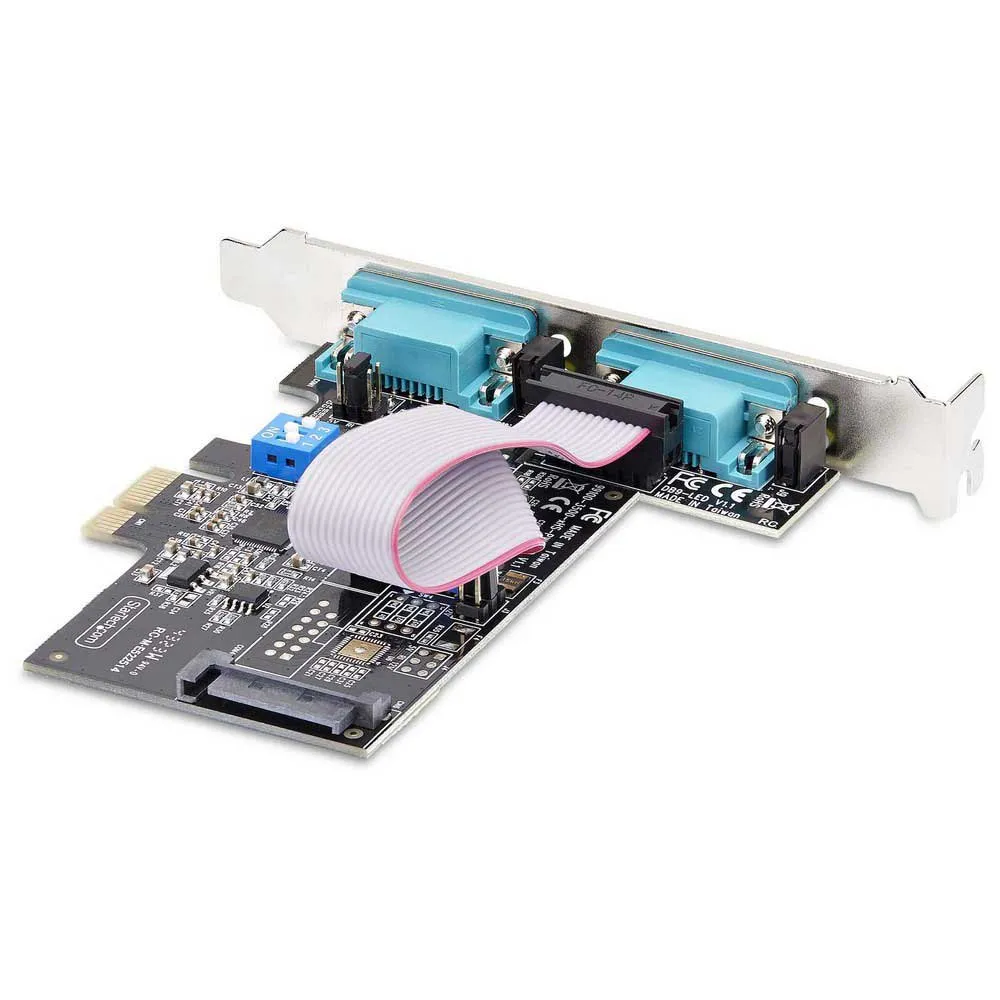

Expand your connectivity with the STARTECH 2-Port PCIe Serial Card. This versatile card supports RS-232, RS-422, and RS-485 devices, each configurable with independent power (12V/5V) or no power via pin 9, utilizing auxiliary SATA power. Monitor transmit/receive status with integrated LEDs. Ideal for POS terminals, factory automation, and sensor applications, it includes standard and low-profile brackets for broad compatibility with desktop and server systems. Enhanced with screw-lock DB9 ports and high-speed data transmission up to 921.6 Kbit/s, this PCIe 2.0 expansion card ensures reliable connections across various operating systems
- 2-Port Pcie Serial Card:

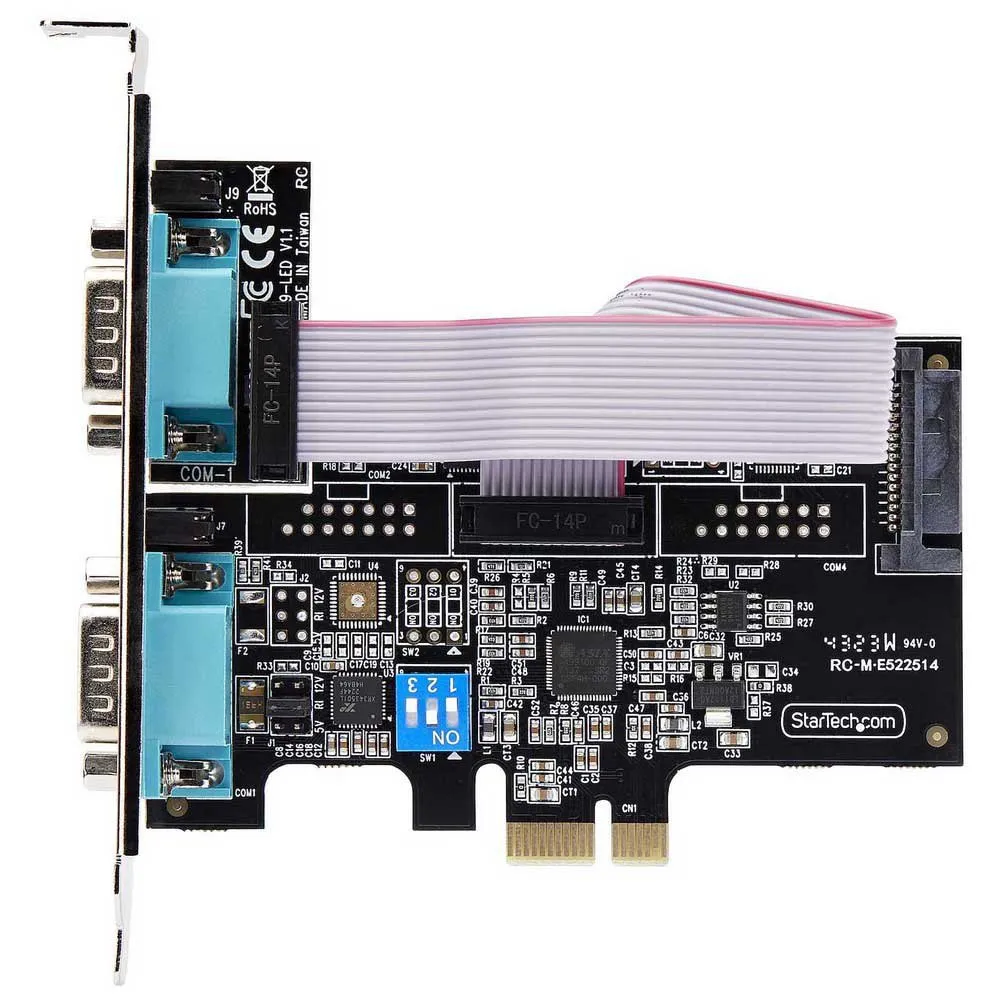

Built-in DIP switches allow each DB9 port to operate in its own mode independently, allowing connection of RS-232, RS-422 and RS-485 devices.
- LEDs to monitor transmit/receive status.
- Configurable Power:
Features configurable 12V (1.5A per port), 5V (1.5A per port), or no power (RI) via pin 9 using auxiliary SATA power.
- Individually configurable per-port power modes.
- Applications:
Ideal for desktop and server computers, with a wide range of uses such as point-of-sale terminals and factory automation, sensors and others.

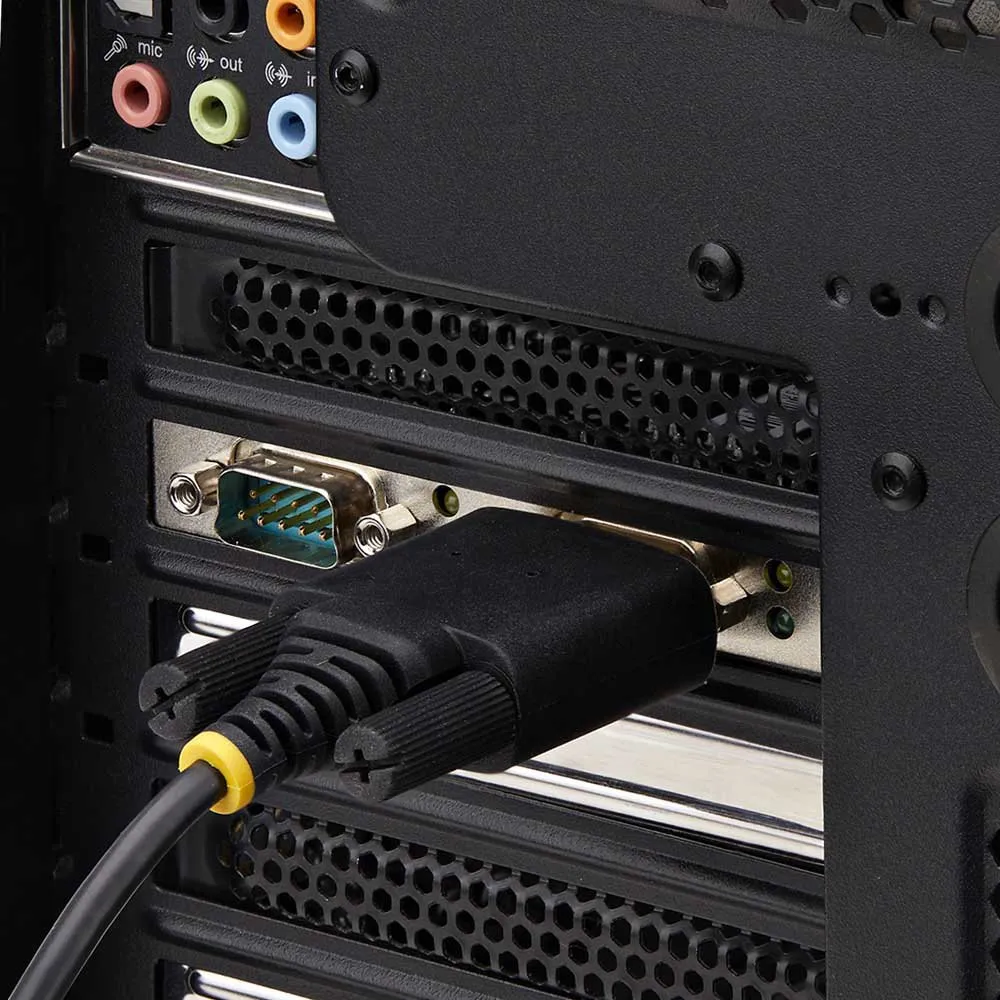

- DB9 ports work with screw-lock cables.

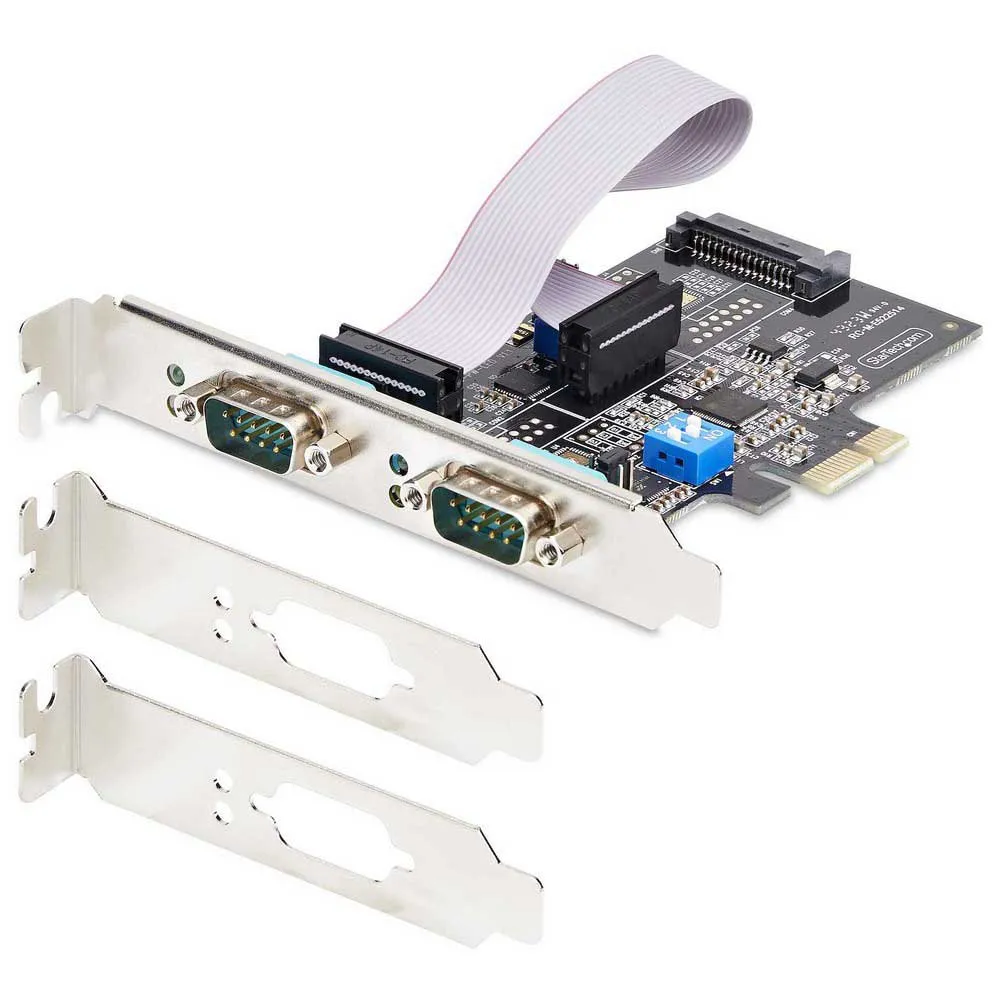

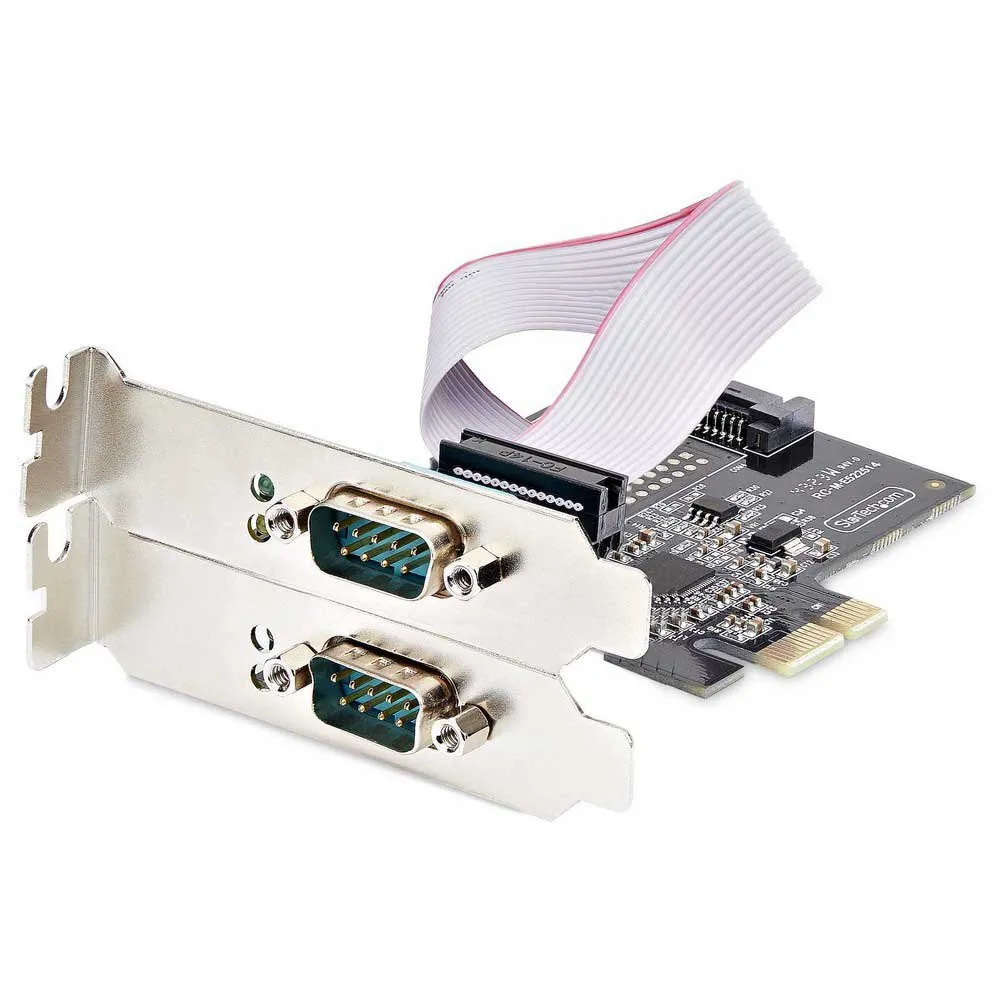

- Standard And Low Profile Brackets The serial card is equipped with one standard profile bracket (pre-installed), and includes two low profile brackets for compatibility with small form factor desktops/servers.
Specifications:
Ports and Interfaces:
- Host interface:
PCIe.
- Output interface:
Serial.
- Expansion Card Standard:
PCIe 2.0.
- Serial port:
2.
- Interface serial type:
RS-232/422/485 Design:
- Internal:
Yes.
Features:
- Integrated circuit:
ASIX.
- AX99100.
- Transmission speed:
921.6 Kbit/s.
- FIFO (First In, First Out):
256 B.
- Data bits:
5, 6, 7, 8, 9.
- Stop bits:
1, 1.5, 2.
- Flow control support:
Yes Environmental conditions::
- Operating temperature range:
0.
- 70 °C.
- Storage temperature range:
-20.
- 80 °C.
- Relative humidity range for operation:
20.
- 80% System Requirements:
- Supported Windows operating system:
Windows 11 Enterprise x64, Windows 7 Professional x64, Windows 8.1 Pro, Windows 10, Windows 11 Home, Windows 7 Starter, Windows 8.1 Pro x64, Windows 10 Education, Windows 11 Pro, Windows 7 Starter x64, Windows 8.1 x64, Windows 10 Education x64, Windows 11 x64, Windows 7 Ultimate, Windows 10 Enterprise, Windows 7 Ultimate x64, Windows 10 Enterprise x64, Windows 7 x64, Windows 10 Home, Windows 8, Windows 10 Home x64, Windows 7, Windows 8 Enterprise, Windows 10 IOT Core, Windows 7 Enterprise, Windows 8 Enterprise x64, Windows 10 IoT Enterprise, Windows 7 Enterprise x64, Windows 8 Pro, Windows 10 Pro, Windows 7 Home Basic, Windows 8 Pro x64, Windows 10 Pro x64, Windows 7 Home Basic x64, Windows 8 x64, Windows 10 x64, Windows 7 Home Premium, Windows 8.1, Windows 11, Windows 7 Home Premium x64, Windows 8.1 Enterprise, Windows 11 Enterprise, Windows 7 Professional, Windows 8.1 Enterprise x64.
- Supported Linux operating system:
Yes.
- Supported Server Operating System:
Windows Server 2016, Windows Server 2019, Windows Server 2022 Technical details:
- Sustainability compliance:
Yes.
- Sustainability certificates:
RoHS, Trade Agreements Act (TAA).
- Compliance certificates:
RoHS, Trade Agreements Act (TAA) Weight and measurements:
- Broad:
102 mm.
- Depth:
105 mm.
- Height:
16 mm.
- Weight:
57 g.
