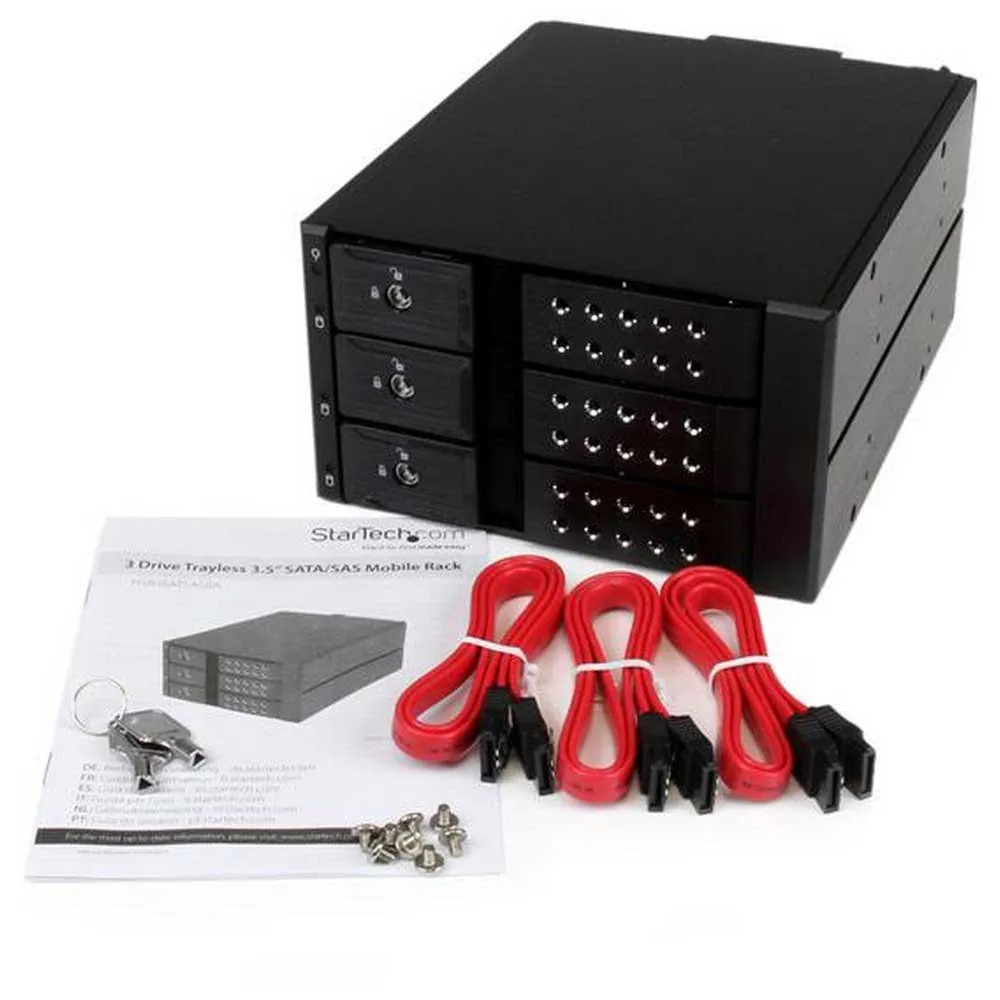

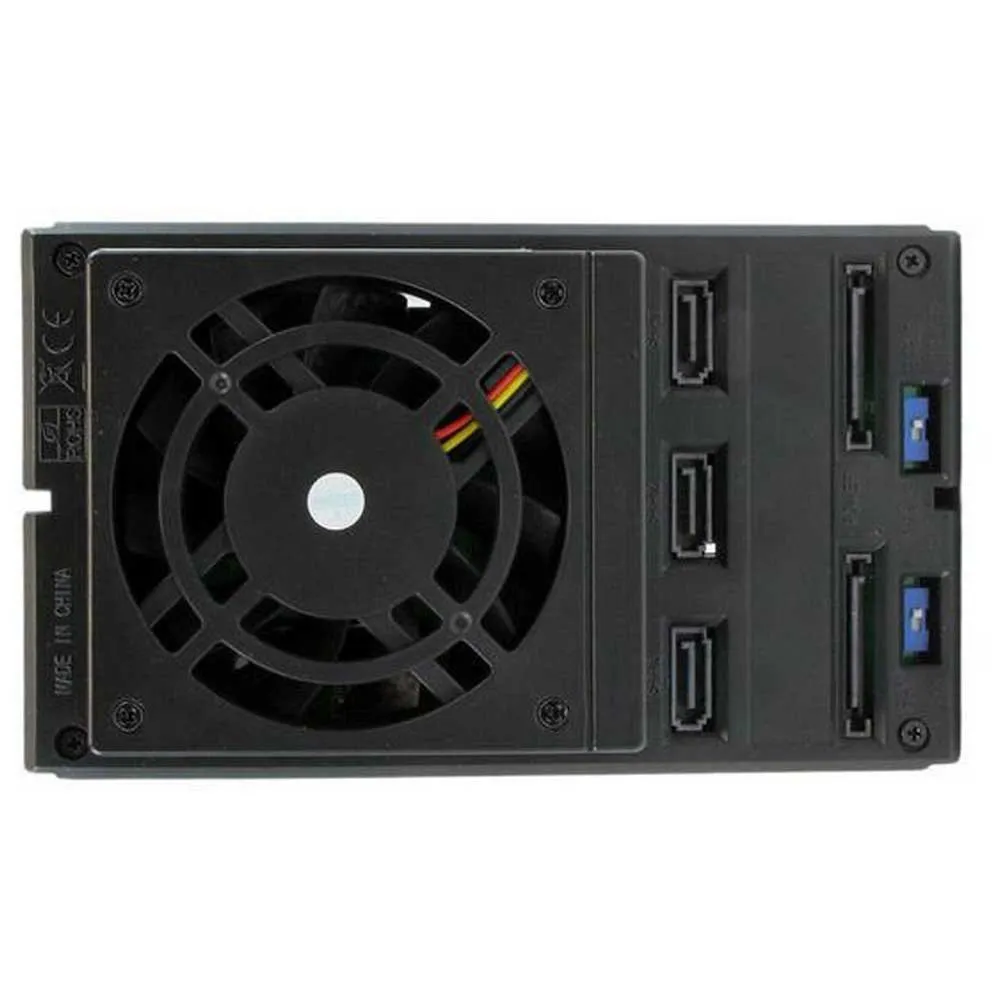

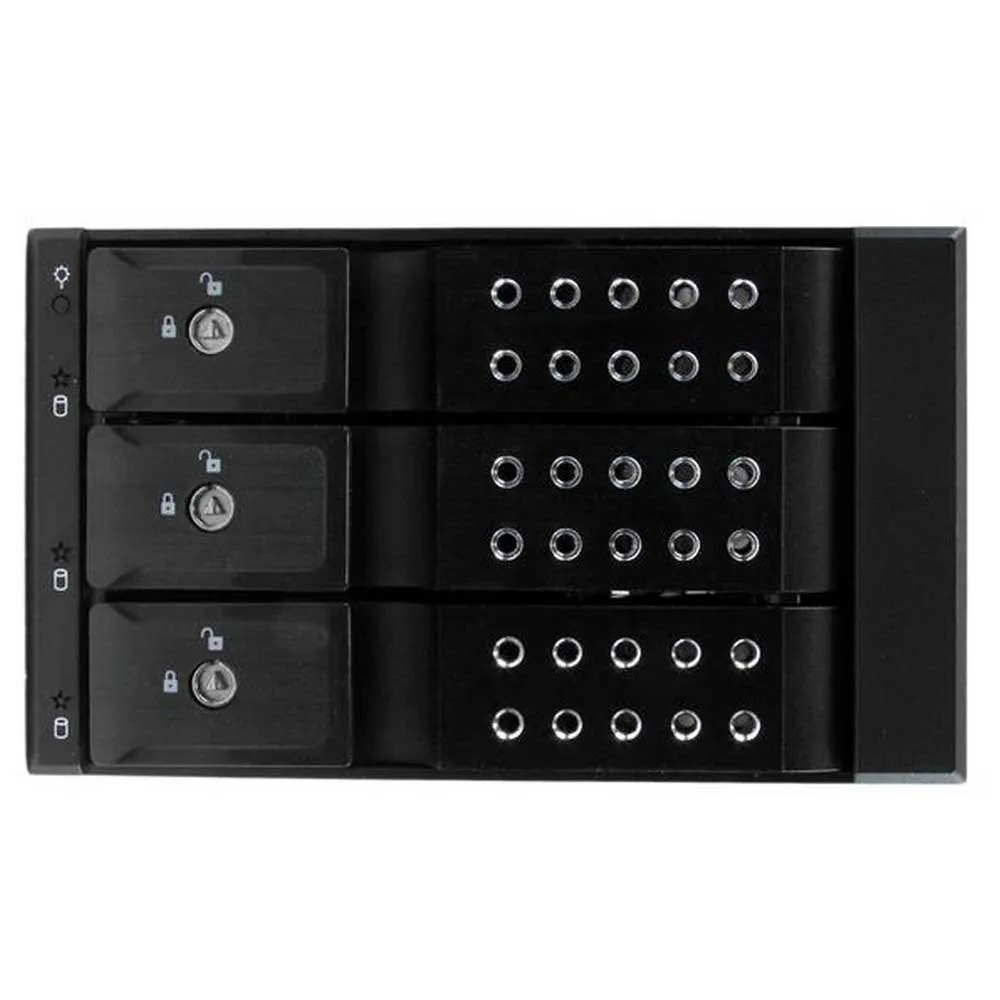

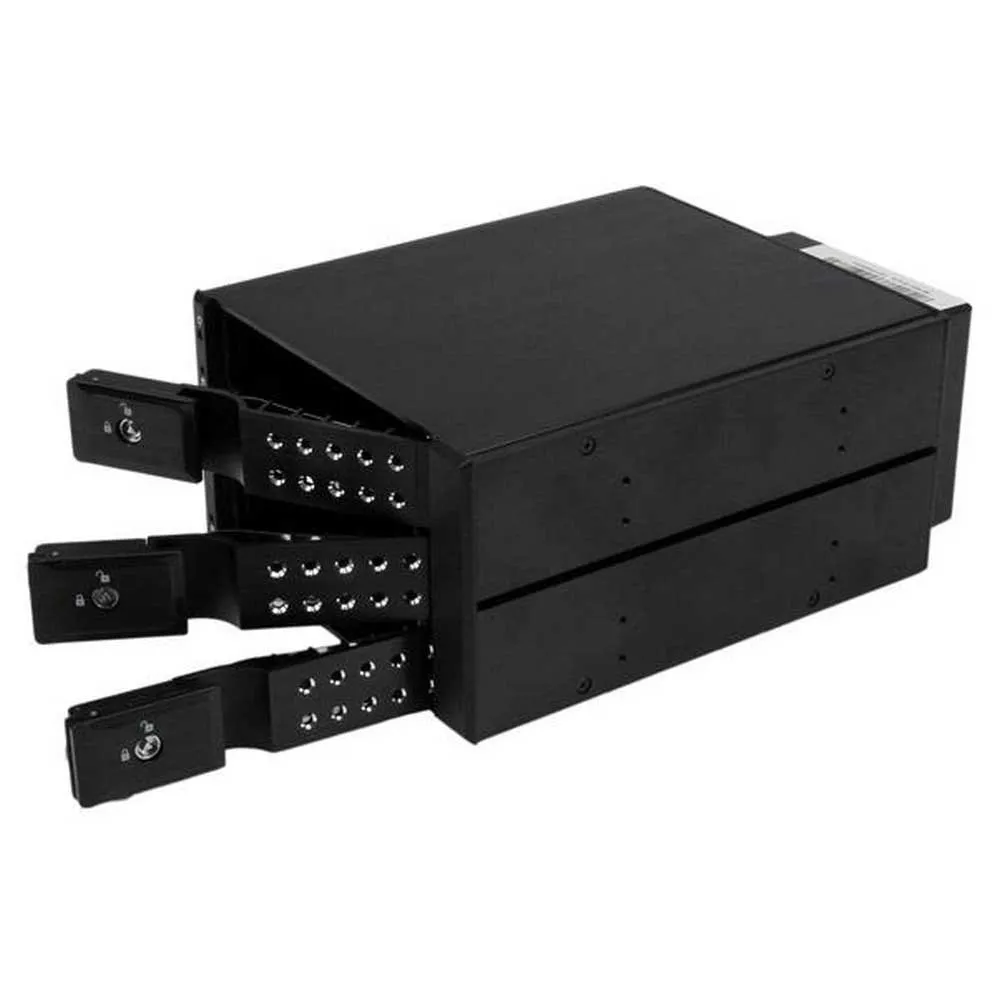

Startech 3.5´´ SATA Mobile Rack 3 Bays

The Removable 3-drive backplane lets you quickly install and hot-swap 3.5´´ drives from the front of your computer, by turning two 5.25´´ bays into a hot-swappable interface for you to connect up to three 3.5´´ SATA or SAS hard drives (HDD).

- For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives an ideal accommodation for enterprise system applications.

- For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design.

To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.

Applications:

- Imaging for new system builds or configurations, use the hot swap bay in your master system to quickly copy the Windows OS to multiple blank hard drives.

- Add a hot-swap bay to a server or workstation computer that you can use as a removable backup solution.

- IT environments where you need to quickly insert/replace hard drives with no external HDD enclosure required Benefits:

- Delivers peak drive performance, with support for full SATA III/SAS II data transfer speeds up to 6Gbps.

- Flexible drive options with support for both SATA and SAS drive interfaces.

- Helps maintain ideal drive operating temperatures by providing excellent heat dissipation, vented aluminum housing and a built-in fan.

Features:

- Solid aluminum construction.

- Key lock design.

- Built-in fan.

- 3 drive bay design.

- Trayless design for hot swap support.

- Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps).

- Support for SAS revision I/II (3.0/6.0 Gbps).

- UL VO flammability rating.

- Power and Activity LEDs for each drive.

Specifications:

Connector(s):

- Drive Connectors:

3 SFF-8482 (29 pin, Data & Power, Internal SAS).

- Host Connectors:

2 SATA Power (15 pin), 3.

- SATA (7 pin, Data) Environmental:

- Operating Temperature:

0°C to 55°C (23°F to 95°F).

- Storage Temperature:

20°C to 60°C (-4°F to 122°F).

- Humidity:

5%~85% RH Hardware:

- Interface:

SATA.

- Front Door Key Lock:

Yes.

- Number of Drives:

3.

- Drive Size:

3.5in.

- Compatible Drive Types:

SAS & SATA.

- Drive Installation:

Removable.

- Number of internal 3.5 inch bays:

3.

- Fan(s):

Yes.

- Fans:

1.

- 70 mm.

- Fan Bearing Type:

Sleeve Bearing Indicators:

LED Indicators:

- 1 Power LED.

- 1 Drive 1 Activity LED.

- 1 Drive 2 Activity LED.

- 1 Drive 3 Activity LED Packaging Information:

- Package Height:

12.3 cm [4.8 in].

- Package Length:

25.3 cm [10.0 in].

- Package Width:

17.9 cm [7.0 in].

Performance:

- Maximum Data Transfer Rate:

6 Gbit/s.

- Type and Rate:

SATA III (6 Gbps).

- Max Drive Capacity:

Currently tested with up to 4TB 7200 RPM hard drives Physical Characteristics:

- Material:

Aluminum.

- Product Length:

19.4 cm [7.6 in].

- Product Width:

14.6 cm [5.7 in].

- Product Height:

8.5 cm [3.3 in].

- Weight of Product:

0.9 kg [1.9 lb] Software:

- OS Compatibility:

OS independent.

No software or drivers required.
