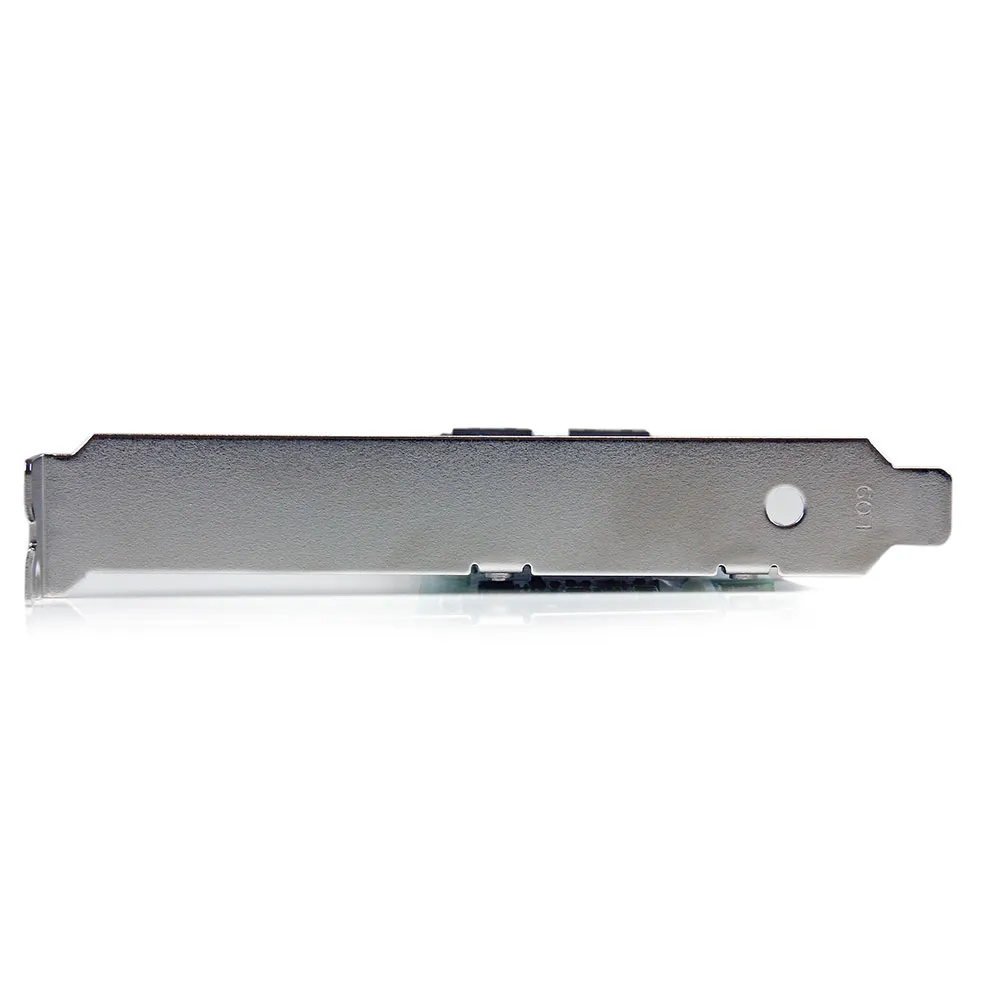

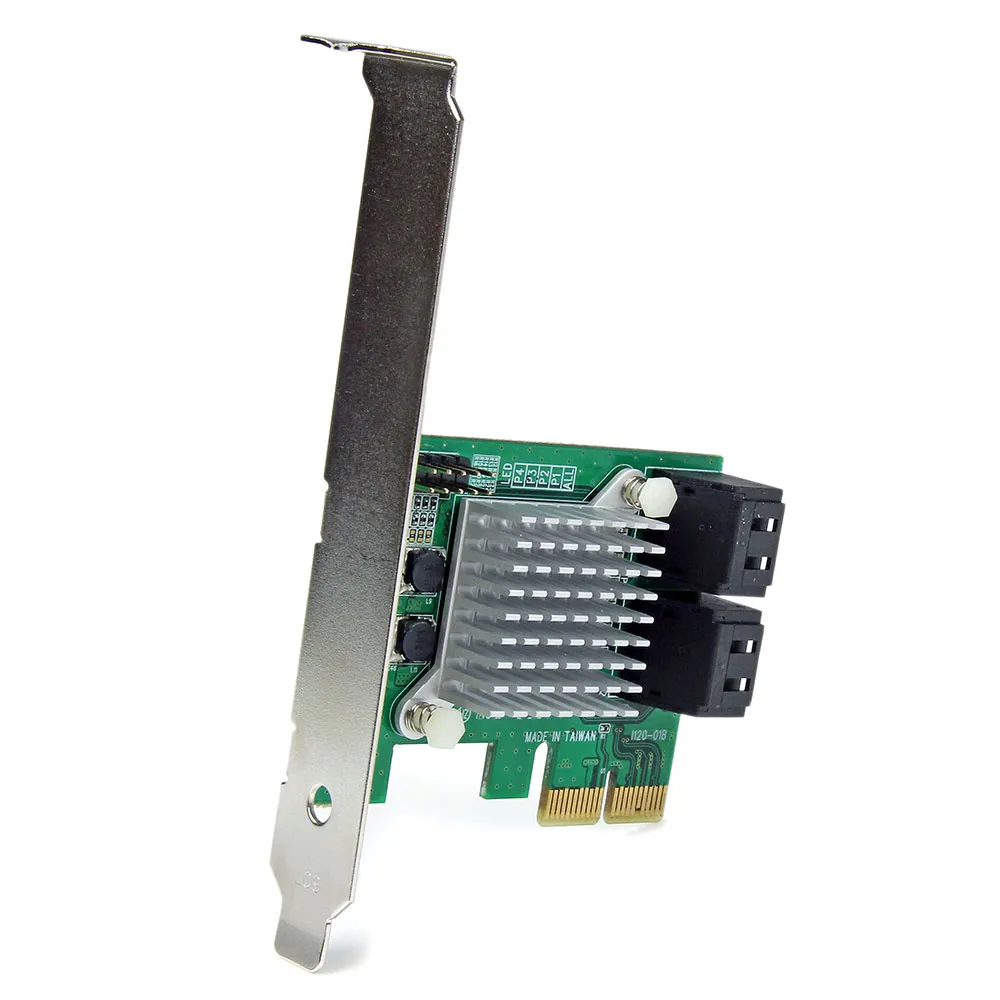

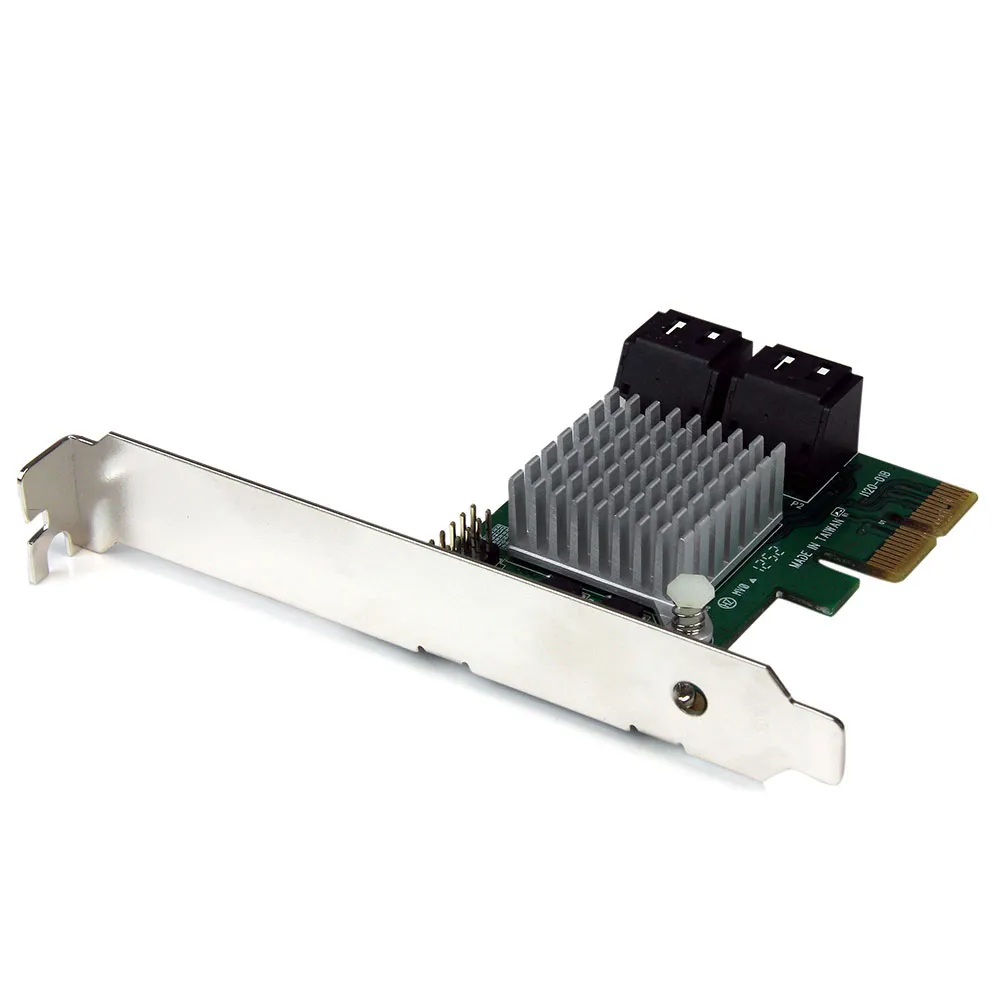

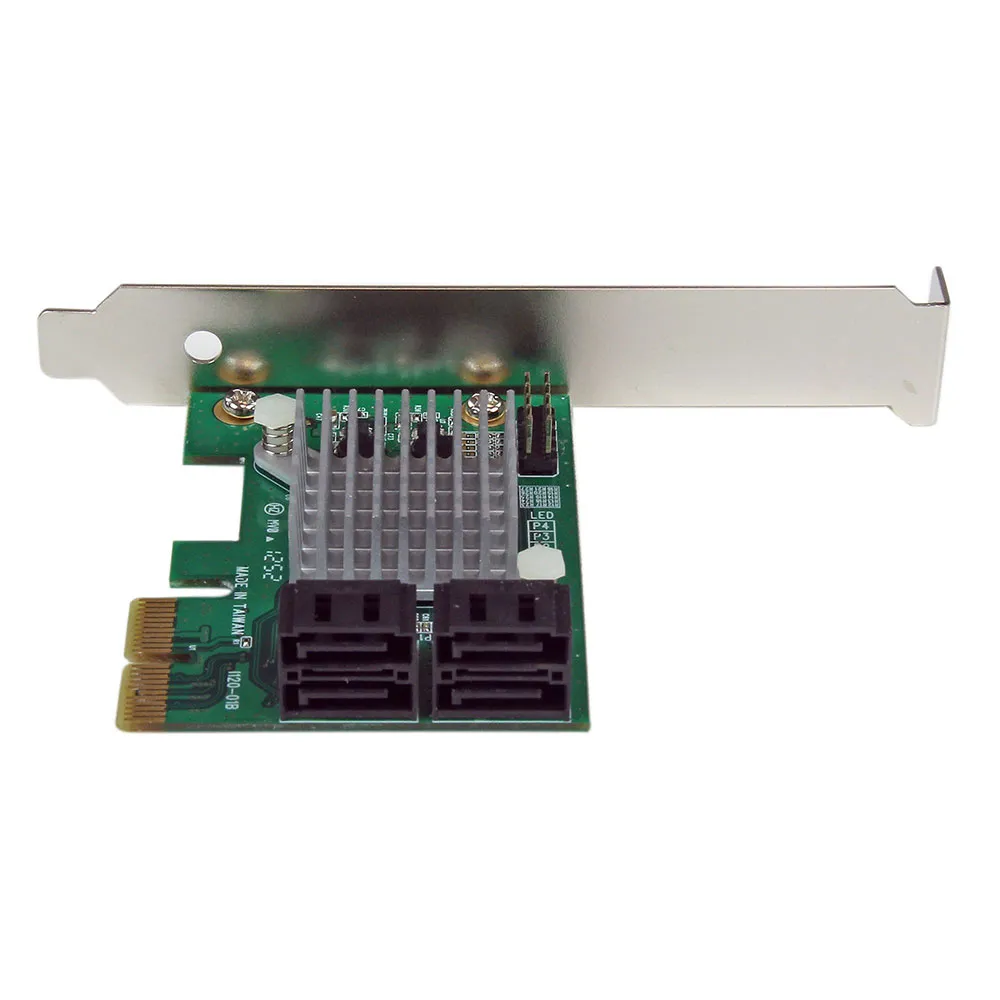

Startech 4 Port PCIe SATA III Controller Card

The PEXSAT34RH 4-Port PCI Express 2.0 SATA Controller Card with HyperDuo adds 4 AHCI SATA III ports to a computer through a PCIe slot (x2), delivering multiple internal 6Gbps connections for high-performance hard drives and Solid State Drives (SSDs).

Featuring HyperDuo technology, the SATA card offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volume (up to 3 SSD + 1 HDD), HyperDuo discreetly works in the background to identify and move frequently accessed files to the faster SSD drive(s) for improved data throughput - up to 80% of SSD performance! (Note: The HyperDuo automatic storage tiering feature is compatible with computers that use a BIOS.)

The PCIe SATA controller card supports Port Multiplier (PM), enabling multiple SATA drives to be connected to one port over a single cable, for a total of 7 drives (Up to 4 drives through PM on one port, and a single drive to the remaining 3 ports). Plus, the SATA controller card offers an effective hardware RAID solution, with native RAID (0, 1, 1+0) support.


FEATURES:
- Throughput Benchmark
- Drive configuration
- Throughput
- Drive size
- 1 x HDD
- 112.81 MB/s
- 2 TB
- 1 x SSD
- 490.28 MB/S
- 120 GB
- 1 x HDD + 1 x SSD HyperDuo (Safe Mode)
- 489.28 MB/s
- 2 TB
- 1 x HDD + 2 x SSD HyperDuo (Safe Mode)
- 715.13 MB/s
- 2 TB

Drives Used:
- SSD: OCZ Vertex 3 Series 2.5” 120 GB (VTX3-25SAT3-120G)
- HDD: Western Digital Caviar Green 3.5” 2 TB (WD20EARS)
- Software Used:
- IO Meter, 256KB Sequential Read, queue depth = 10
