Startech Adapter SSD M. SATA NGFF 2 A

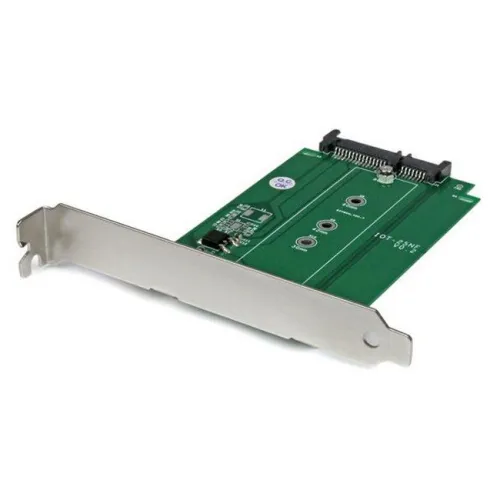

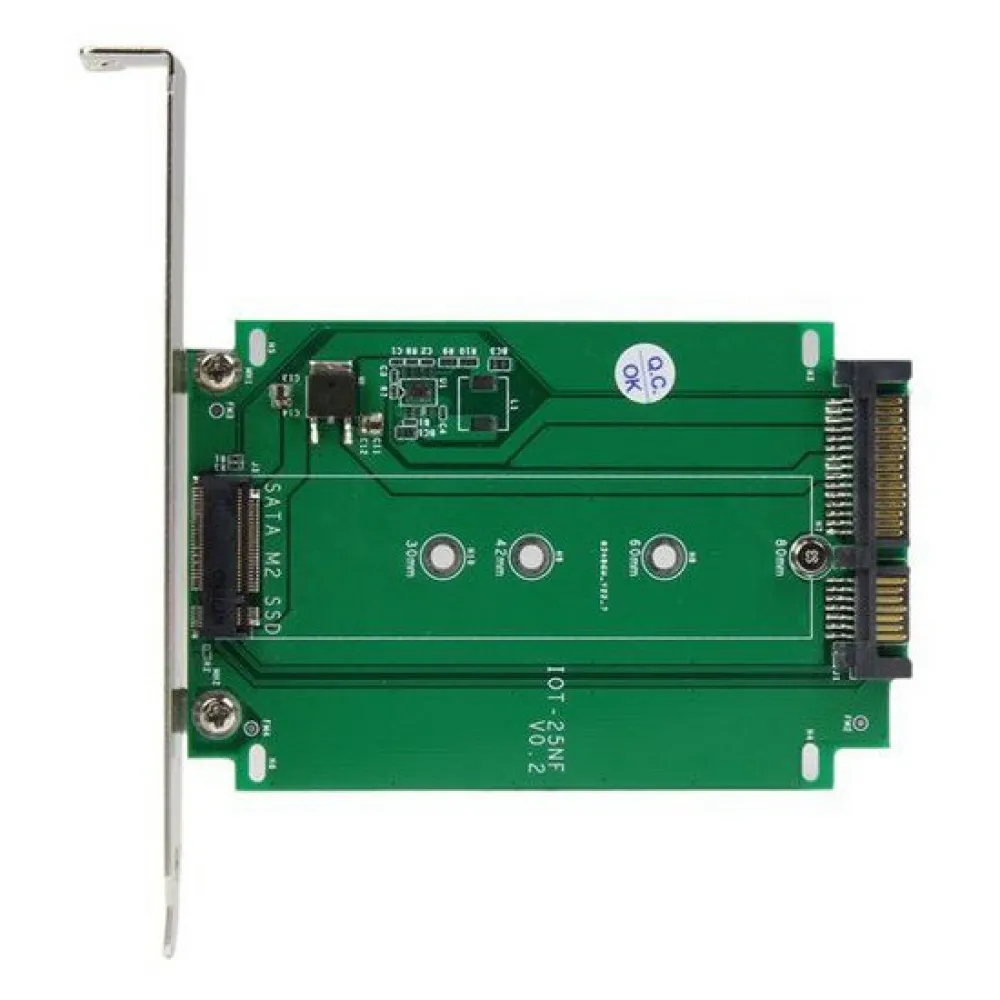

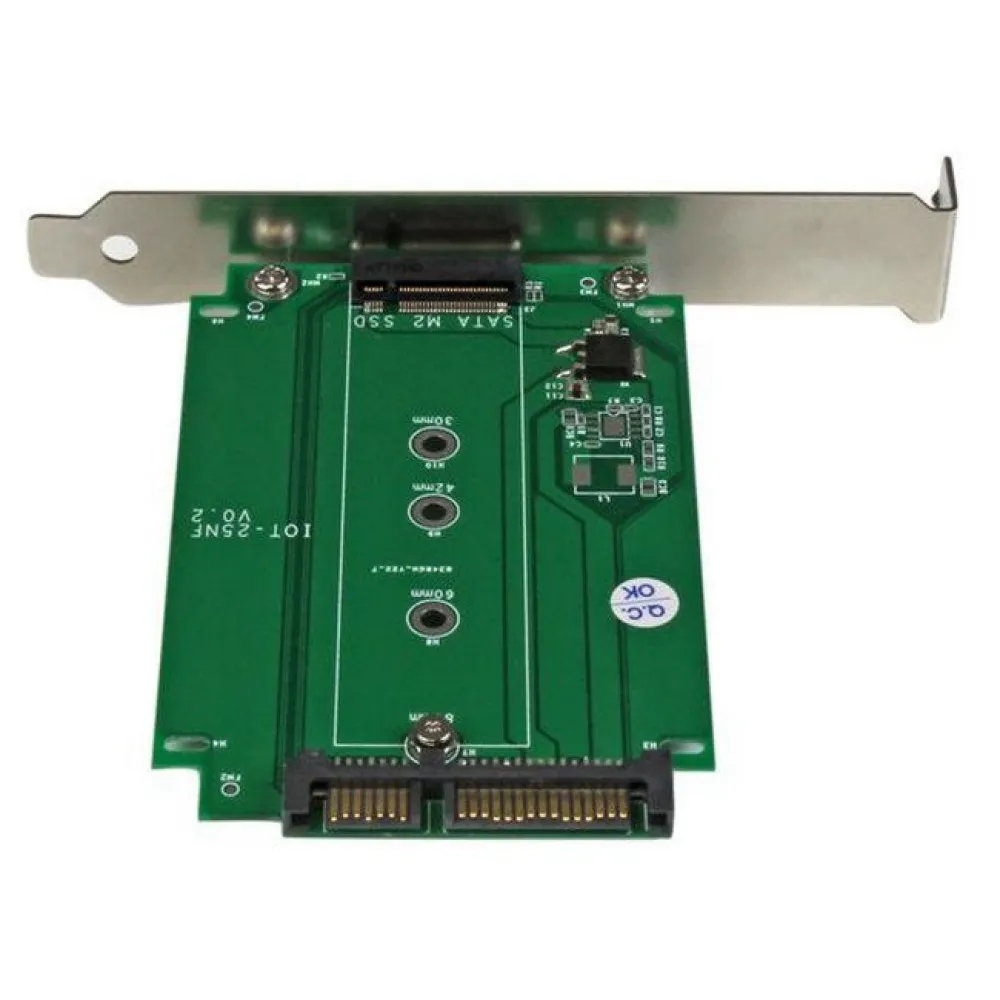

The S32M2NGFFPEX M.2 to SATA adapter lets you connect a SATA M.2 (NGFF) SSD to a standard SATA port, and mount the drive into any desktop expansion slot.

Now, you can greatly increase the performance of your desktop computer by replacing your platter drive with a fast M.2 NGFF solid state drive. By installing your primary operating system on the M.2 SSD drive and using your higher-capacity platter HDD for bulk storage, you can harness the speedy performance of the M.2 drive for frequently accessed data while storing files you access less often on your platter drive.

For a hassle-free installation, the adapter mounts into any new or legacy desktop expansion slot, with support for AGP, PCI, and PCIe slots. The adapter also includes full-profile and low-profile brackets, ensuring compatibility with both full-sized and small form factor desktops.


Specifications:

Connector(s):
- 1 - Drive Connectors: M.2 (SATA, B-Key, NGFF)
- 1 - Host Connectors: SATA Data & Power Combo (7+15 pin)

Environmental:
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Storage Temperature: -10°C to 85°C (14°F to 185°F)
- Humidity: 5% to 95% RH

Hardware:
- Interface: SATA
- Number of Drives: 1
- Compatible Drive Types: M.2 (SATA, B-Key, NGFF)
- Drive Installation: Fixed
- Supported Drive Height(s): 2230,2242,2260,2280

Packaging Information:
- Package Height: 1.3 in [33.0 mm]
- Package Length: 6.4 in [16.3 cm]
- Shipping (Package) Weight: 5.3 oz [150.0 g]
- Package Width: 5.1 in [13.0 cm]

Performance:
- Maximum Data Transfer Rate: 6 Gbps
- Type and Rate: SATA III (6 Gbps)
- Hardware Raid Supported: No
- General Specifications: Not compatible with PCI-Express M.2 SSDs

Physical Characteristics:
- Product Length: 4.7 in [12.0 cm]
- Product Width: 0.7 in [18.0 mm]
- Product Height: 3.7 in [95.0 mm]
- Weight of Product: 4.6 oz [130.0 g]

Software:
- OS Compatibility: OS independent; No software or drivers required

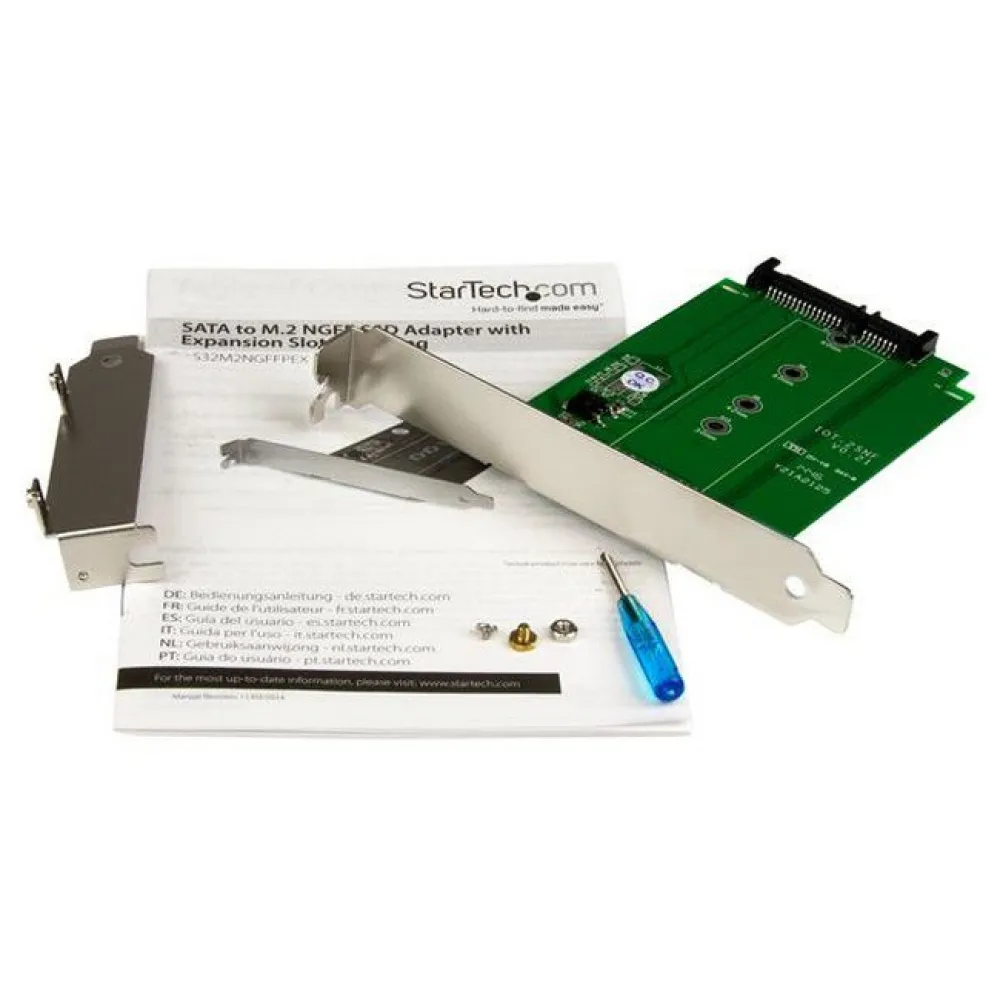

What´s in the Box:
- 1 - Included in Package:
- SATA to M.2 NGFF SSD Adapter

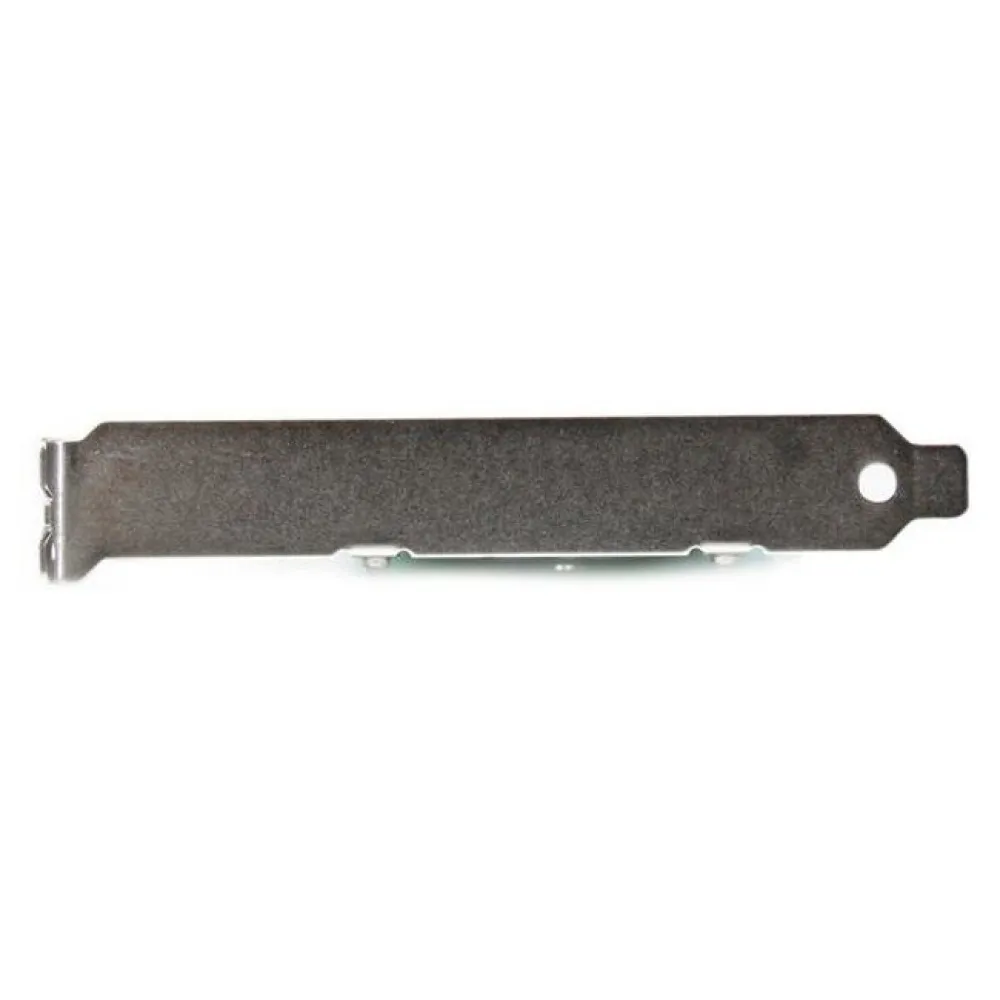

- Full profile bracket (preinstalled)
- Low profile bracket
- SSD installation screw
- Screw driver
- 2 - Included in Package: Standoffs (for PCI slot installation)
