Startech Ceiling Mount VESA For TV

This ceiling TV mount supports VESA mount compatible TVs from 32´´ to 75´´ in size, with a weight capacity of up to 110 lb. (50 kg). It lets you save wall and floor space by hanging your flat-panel LCD, LED or plasma TV from the ceiling in a prominent area.

The ceiling mount is ideal for use in lobbies, entrances or other areas with high ceilings.

Adjustable Height:

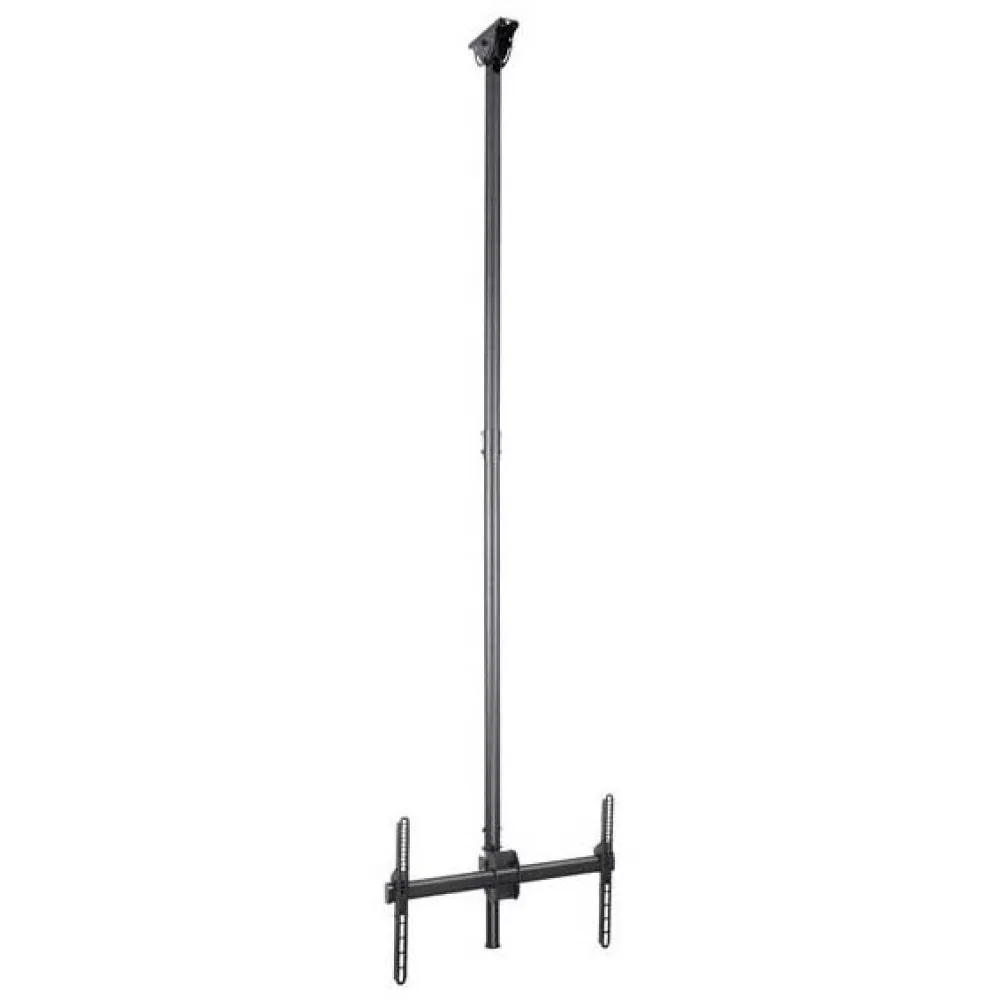

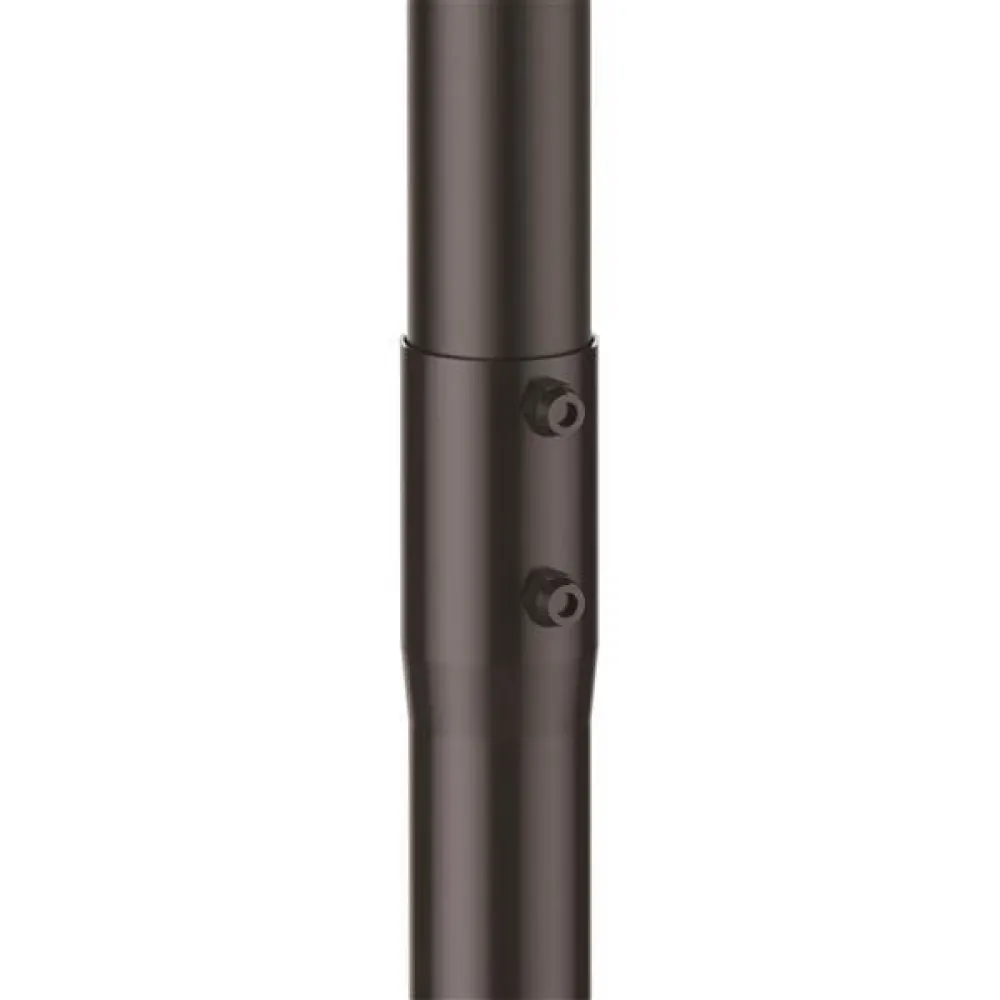

- With a telescopic pole, the TV mount lets you suspend a display at your desired distance from the ceiling. This works well with a range of ceiling heights. The steel pole can extend from 8.2 to 9.84 ft. (2.5 to 3 m), with a total lift (height extension) of 19.6´´ (.5 m).

Swivels to Suit Your Ceiling:

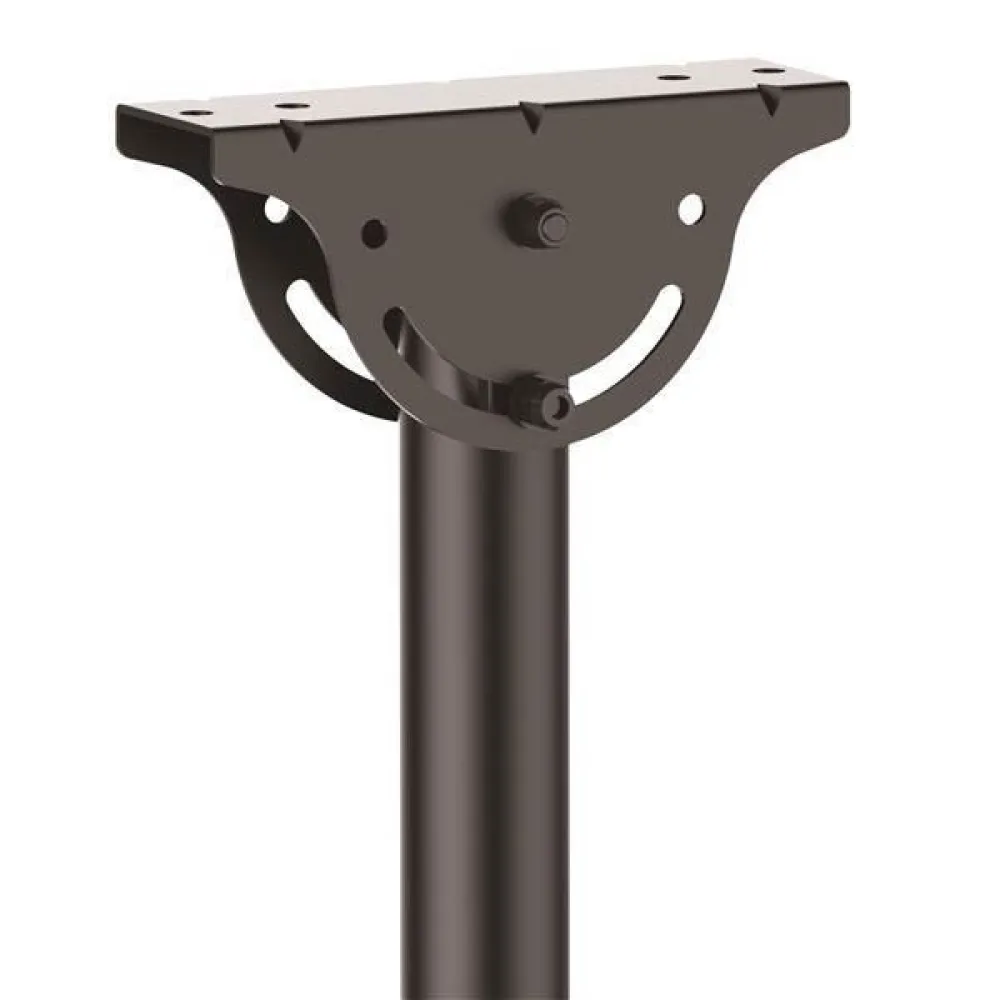

- The flat-screen ceiling mount accommodates a wide variety of ceiling types. You can swivel the TV to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to 60 degrees), and pitched or horizontal (flat) ceilings.

Viewable from Any Direction:
- You can adjust your TV to create a comfortable viewing angle, by tilting it up to -25 degrees down towards your audience for optimum visibility. Plus, the full-motion mount lets you swivel your display around the pole + 180 / - 180 degrees, without using tools.

Hook-and-Mount Design:

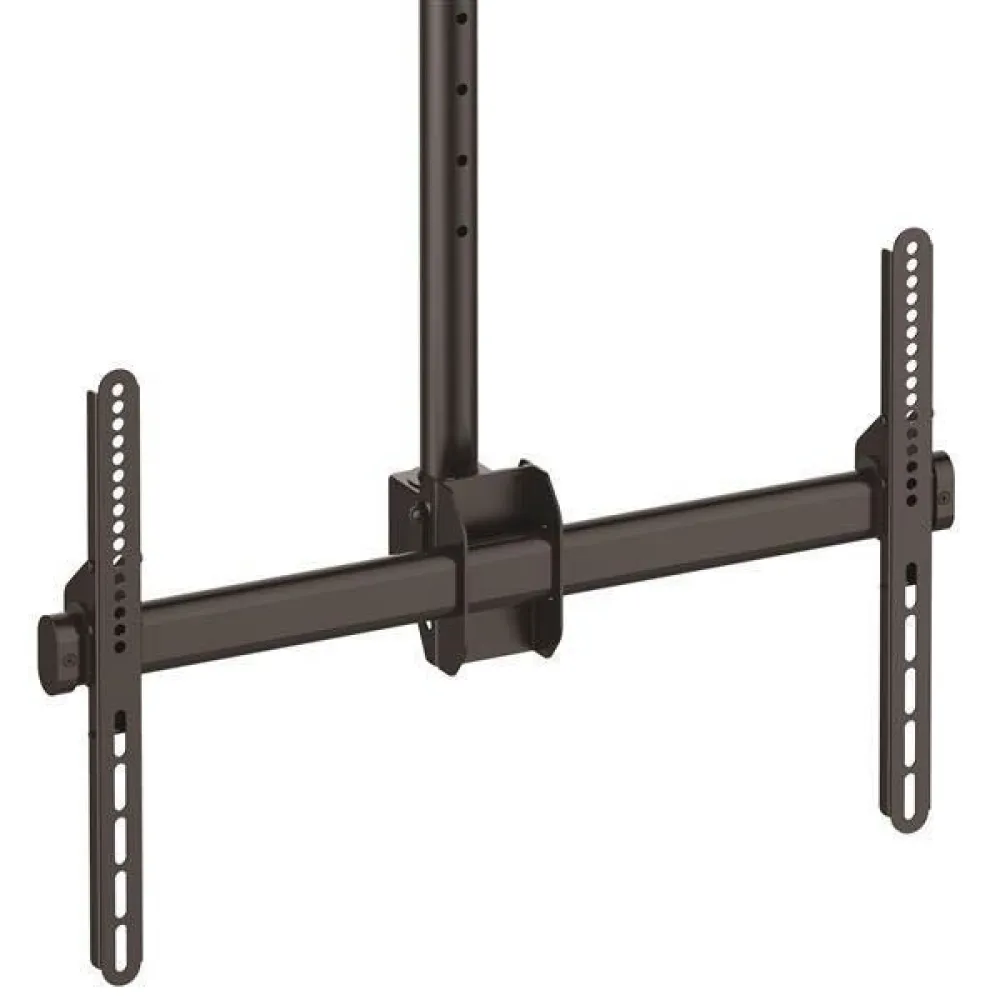

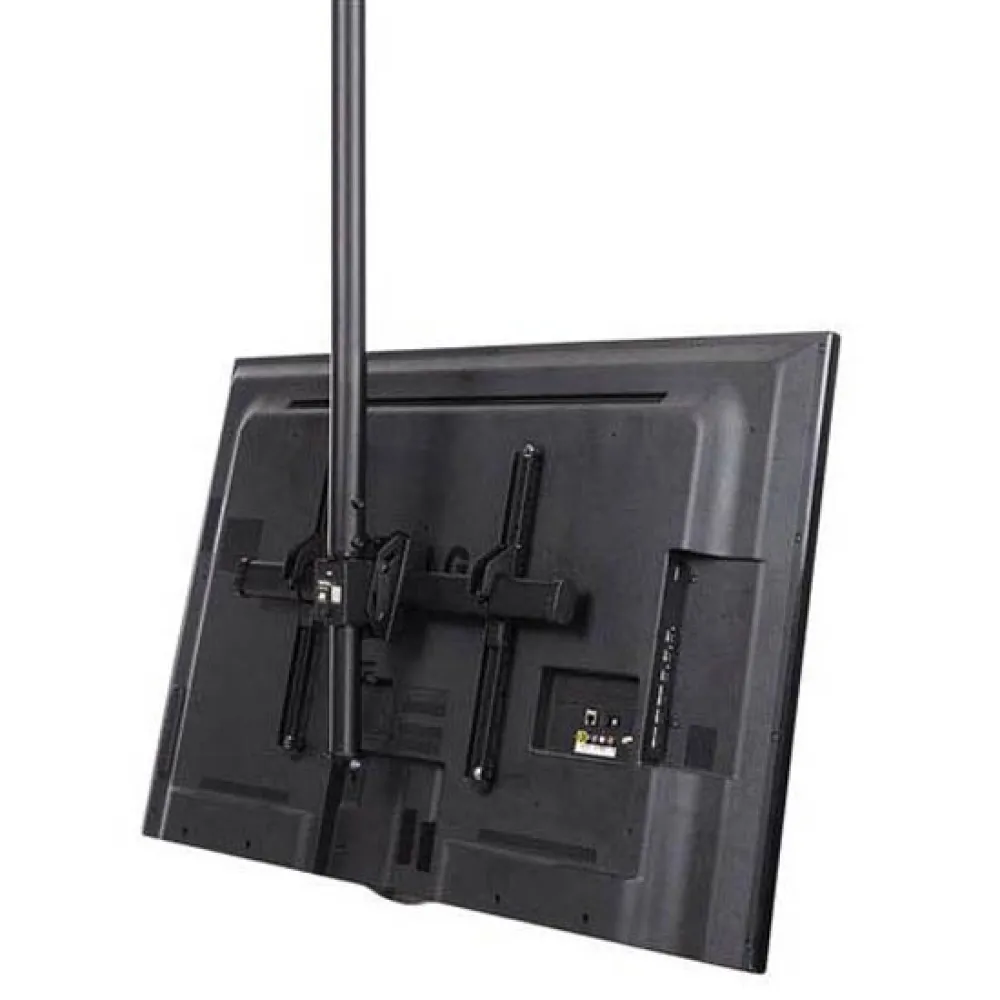

- Simply attach the included vertical brackets, with built-in hooks, to the back of your TV. Once attached, hang your TV securely onto the ceiling mount. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.

FPCEILPTBLP is backed by a StarTech.com 5-year warranty and free lifetime technical support.

Applications:

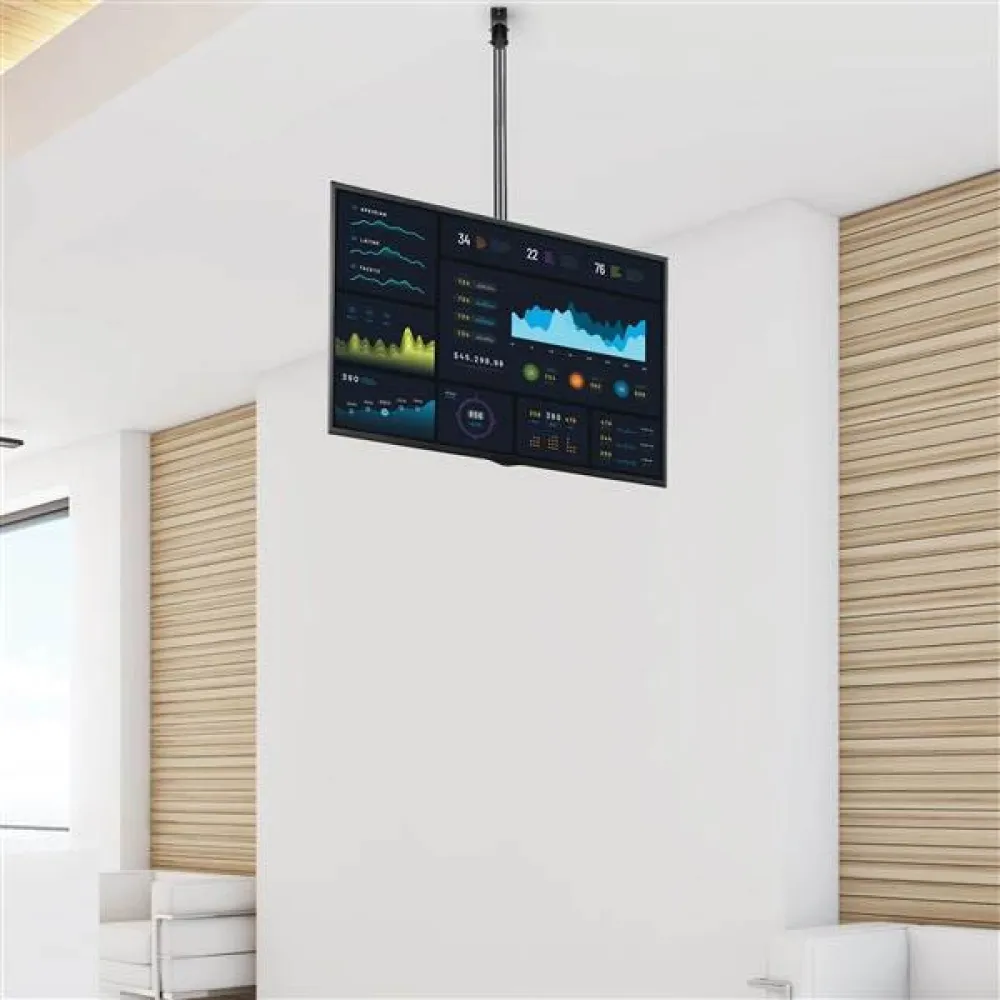

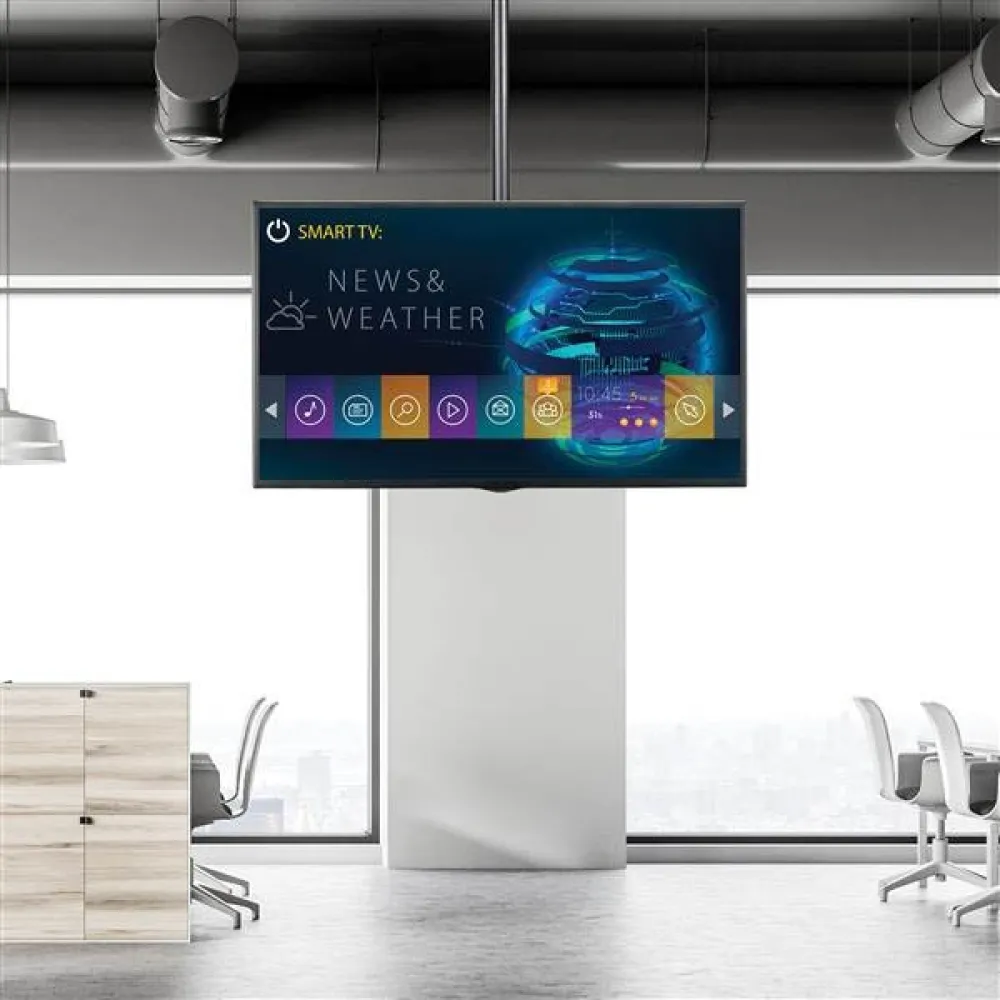

- Suspend a flat-screen TV in an area with a high ceiling
- Ideal for lobbies and entrance ways
- Keep your guests informed and entertained


Specifications:

Warranty Information:
- Warranty:5 Years

Hardware:
- Cable Management:Yes
- # of Displays Supported:1

Mounting Options:
- Ceiling Mount
- Wallmountable:No

VESA Hole Pattern(s):
- 200x200 mm
- 300x300 mm
- 400x200 mm
- 400x400 mm
- 600x400 mm

Packaging Information:
- Package Height:4.5 in [115 mm]
- Package Length:50.0 in [127 cm]
- Shipping (Package) Weight:23.9 lb [10.8 kg]
- Package Width:12.6 in [32 cm]

Performance:
- Weight Capacity (Per Display):50000

General Specifications:
- Post-Installation Leveling Adjustment: +/-3°:-
- Minimum Display Size:32´´
- Maximum Display Size:75´´
- Fits Curved Display:Yes
- Video Wall:No
- Height Adjustment:Yes
- Minimum Height:2500
- Maximum Height:3000
- Display Tilt:+0° / -25°
- Swivel / Pivot:+180° to -180°
- Anti-theft:No

Physical Characteristics:
- Material:Steel
- Product Length:26.8 in [68 cm]
- Product Width:17.1 in [435 mm]
- Product Height:126.7 in [321.8 cm]
- Weight of Product:352.7 oz [10000 g]

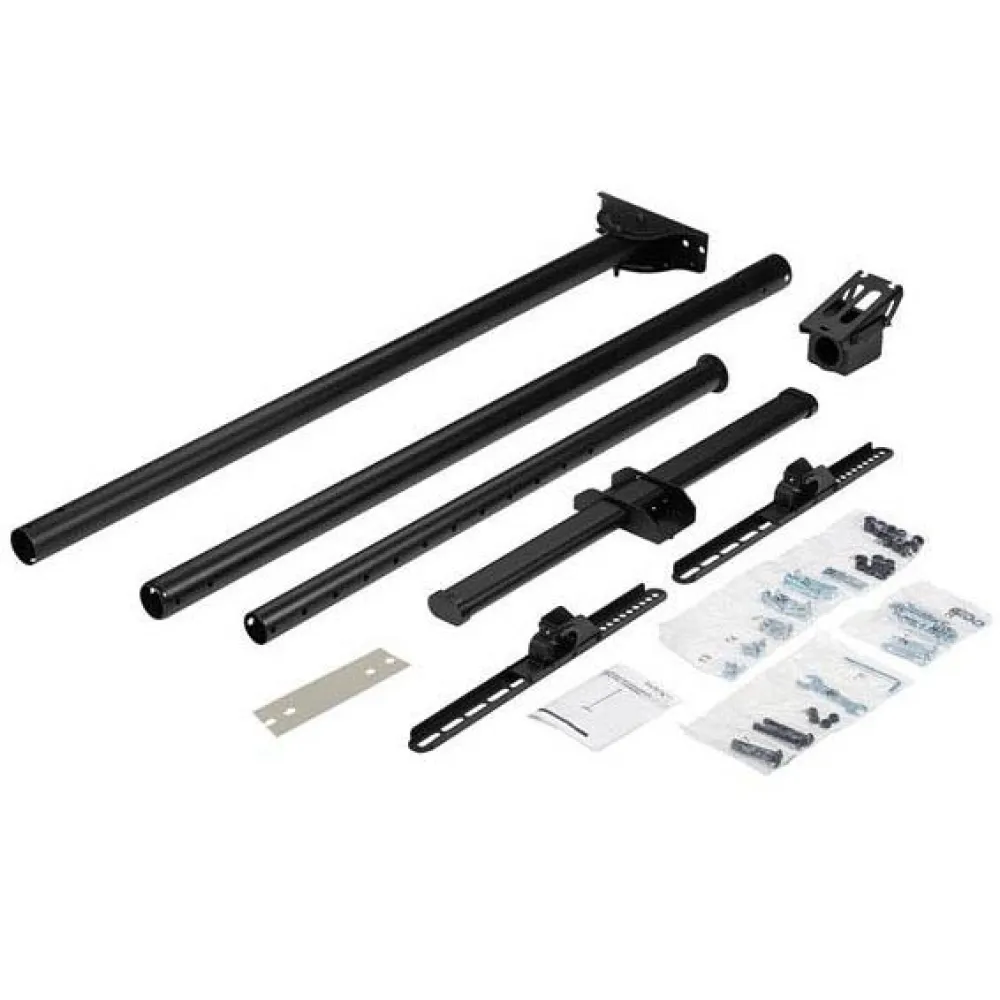

What´s in the Box:
- Included in Package
- 1 - ceiling mount and pole
- 1 - middle pole
- 1 - lower pole
- 1 - TV mount
- 2 - vertical brackets
- 1 - horizontal bracket
- 2 - M8x55 mm screws
- 2 - M8x60 mm screws
- 4 - nuts
- 1 - wrench
- 1 - hex key
- 1 - mounting template
- 4 - M5x14 mm screws
- 4 - M6x14 mm screws
- 4 - M6x30 mm screws
- 4 - M8x30 mm screws
- 4 - M8x50 mm screws
- 4 - rectangular washers
- 8 - small spacers
- 8 - large spacers
- 4 - screws
- 4 - concrete anchors
- 4 - circular washers
- 1 - instruction manual
