Startech Ceiling TV Back-To-Back 32-75´´ TV stand

Create impressive and effective digital signage with this ceiling TV mount, suspending two 32´´ to 75´´ TVs, back-to-back. Ideal for open spaces in retail, hospitality, restaurants and many other areas, the dual-screen mount provides a versatile way to inform customers, and doubles the audience viewing your content.

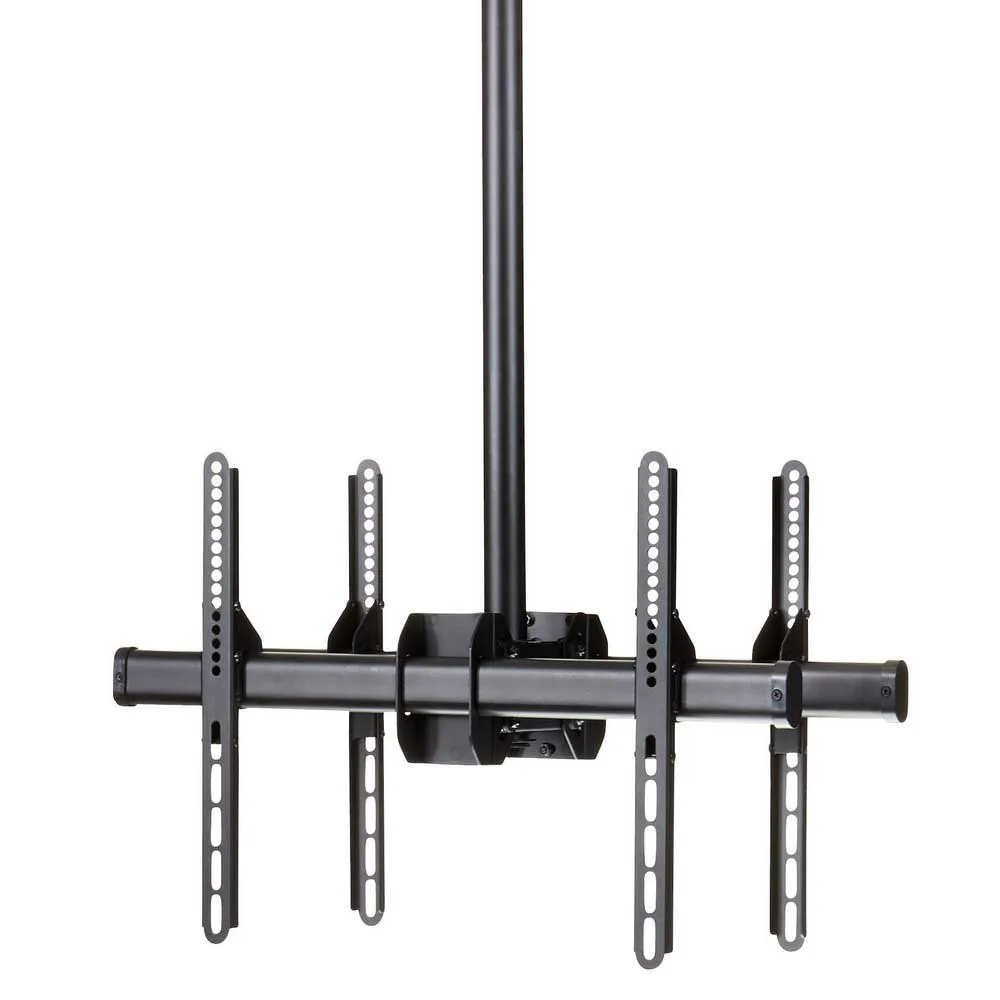

Back-to-Back TV Mount
The dual-screen mount securely holds two flat-screen TVs back to back, in landscape position. The steel mount supports VESA mount displays up to 600 x 400 mm with a weight capacity of 110 lb. (50 kg) per display.

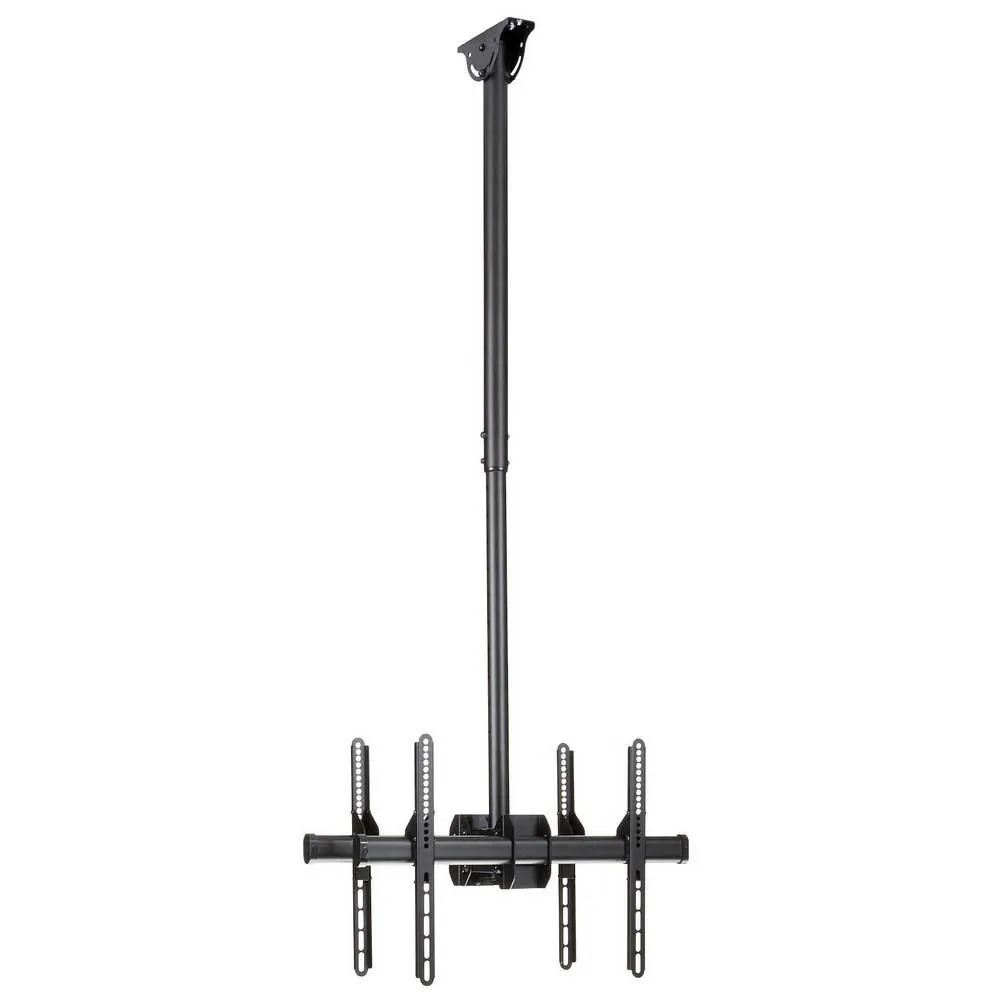

Adjustable Height
With a telescopic pole, the ceiling TV mount lets you suspend two displays at your desired distance from the ceiling, working with a range of ceiling heights. The pole-mount TV bracket can extend from 41.7´´ to 61.4´´ (1060 to 1560 mm) from the ceiling, with a total lift (height extension) of 19.7´´ (500 mm).

Easy Screen Adjustment
For optimum viewing, the mount lets you swivel the display 360 degrees around the pole. The free-tilting design lets you adjust the tilt angle +5/-20 degrees.

Swivels to Suit Your Ceiling
The dual-display mount accommodates a wide variety of ceiling types. Swivel the ceiling TV mount to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to +/-60 degrees) or horizontal (flat) ceilings.

Simple Setup and Cable Management
The ceiling mount provides a hook-and-mount design for easy setup. The wire-management channels keep cables concealed. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.

FPCEILBTB is backed by a StarTech.com 5-year warranty and free lifetime technical support.

Applications
Set up back-to-back TVs in retail, healthcare, hospitality and other areas
Keep your guests informed and entertained
Ideal for digital signage, menu boards, and other applications


Specifications:

Warranty Information:
- Warranty:5 Years

Hardware:
- Cable Management:Yes
- # of Displays Supported:2
- Mounting Options:Ceiling Mount
- Wallmountable:No

VESA Hole Pattern(s):
- 200x200 mm
- 300x300 mm
- 400x200 mm
- 400x400 mm
- 600x400 mm

Packaging Information:
- Shipping (Package) Weight:23.9 lb [10.8 kg]
- Package Length:36.8 in [93.5 cm]
- Package Width:12.2 in [31 cm]
- Package Height:5.7 in [145 mm]

Performance:
- General Specifications
- Post-Installation Leveling Adjustment: +/-3°
- Weight Capacity (Per Display):45000
- Minimum Display Size:32´´
- Maximum Display Size:75´´
- Fits Curved Display:Yes
- Video Wall:No
- Height Adjustment:Yes
- Minimum Height:1060
- Maximum Height:1560
- Display Tilt:+5° / -20°
- Swivel / Pivot:360°
- Display Rotation:360°
- Anti-theft:No

Physical Characteristics:
- Weight of Product:345.7 oz [9800 g]
- Material:Steel
- Product Length:26.8 in [68 cm]
- Product Width:6.5 in [165 mm]
- Product Height:32.9 in [83.5 cm]

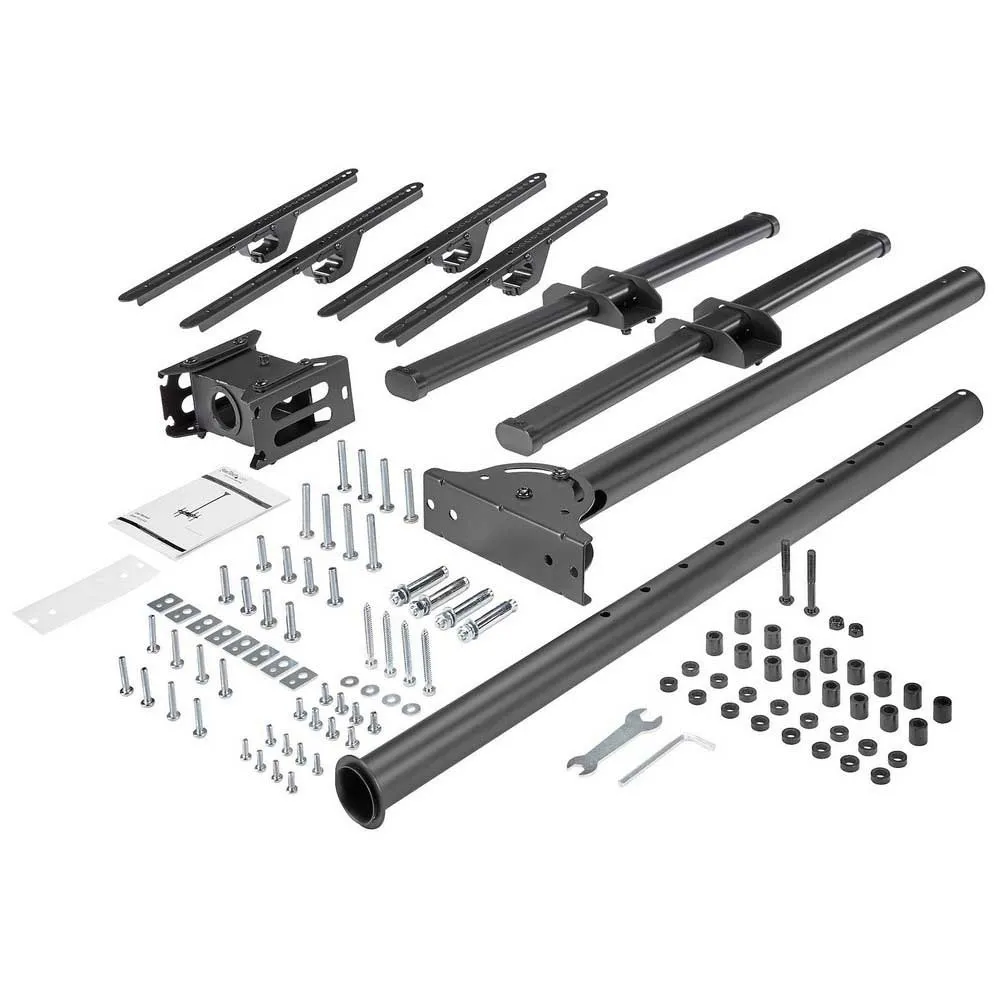

What´s in the Box:
Included in Package:
- 1 - Upper Pole (with Ceiling Mount)
- 1 - Lower Pole
- 1 - TV Mount
- 4 - Vertical Brackets
- 2 - Horizontal Brackets
- 2 - M5 x 55 Screws
- 2 - Nuts
- 8 - M5 x 14 Screws
- 8 - M6 x 14 Screws
- 8 - M6 x 30 Screws
- 8 - M8 x 30 Screws
- 8 - M8 x 50 Screws
- 8 - Rectangular Washers
- 4 - Round Washers
- 16 - Small Spacers
- 16 - Large Spacers
- 4 - Ceiling Mounting Screws
- 4 - Concrete Anchors
- 1 - Wrench
- 1 - Hex Key
- 1 - Mounting Template
- 1 - User Manual
