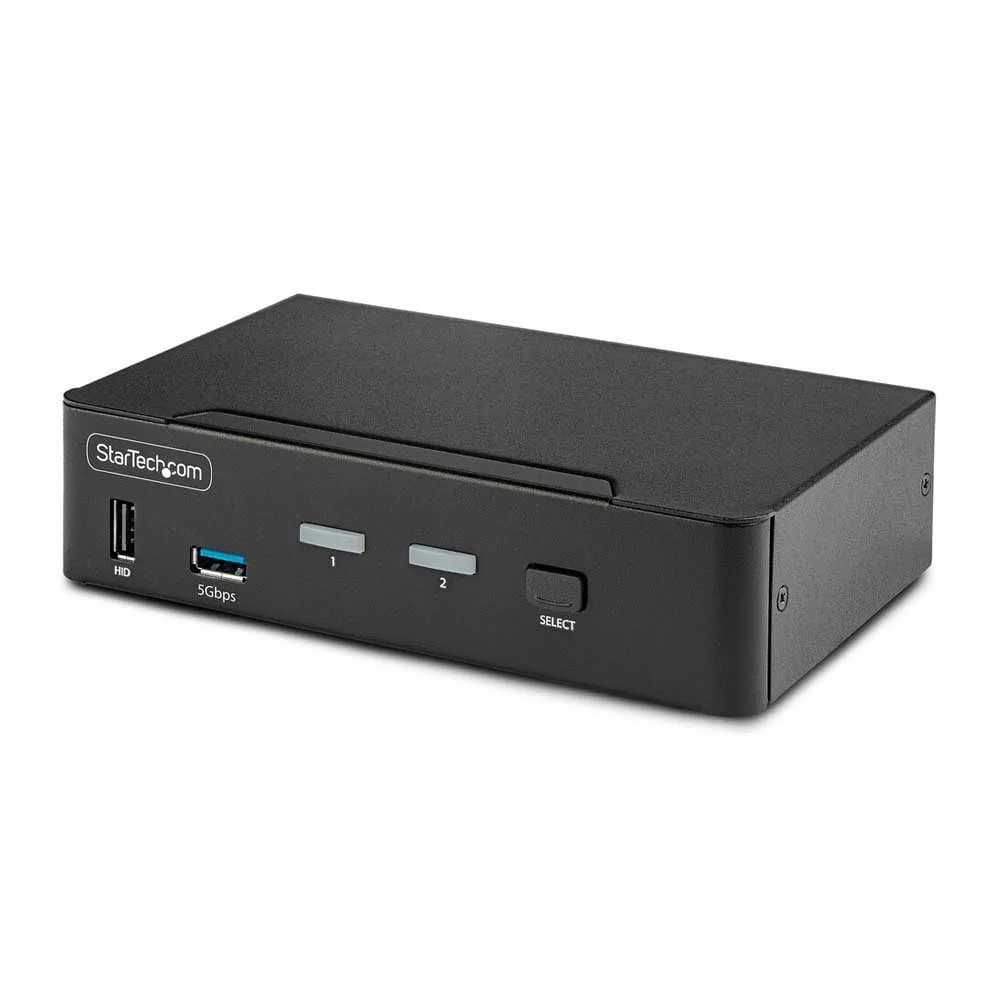

Startech D86A2 kvm console

Features:

- 8K 60HZ WITH HDR: Quickly switch between two USB-A and DisplayPort desktops to share a keyboard, mouse, audio device, and a single monitor DisplayPort 8K60Hz - Requires DSC support for maximum performance - MST Pass-through
- Universal Compatibility: TAA Compliant - Works with any operating system including Windows, macOS, ChromeOS and Linux - Compatible with all hardware platforms including Intel and AMD - Supports resolutions up to 5120x1440 60Hz
- Multiple Switching Options: Switch with buttons or hotkeys - Audible signal provides confirmation - LEDs show quick visual status of ports - Listen to audio from one computer while controlling the other
- Smart Design: Durable metal housing helps prevent EMI interference - OCP protection prevents peripherals from consuming too much power, reducing the risk of damage to the KVM and connected USB devices


Specifications:

Ports and Interfaces:
- Number of computers controlled: 2
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: DisplayPort
- Number of DisplayPorts: 2
- DisplayPort Version: 1.4
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports: 2
- Console ports: 3.5mm Headphones, DisplayPort, USB A
- Number of USB ports on the console: 6
- Number of DisplayPorts on the console: 1
- Audio connection: Yes
- Headphone outputs: 3
- DC input jack: Yes

Performance:
- HD Type: 8K Ultra HD
- Maximum resolution: 7680 x 4320 Pixels
- Data transfer rate (max): 5 Gbit/s
- Scanning interval: 3,8,15,30 s
- High Dynamic Range (HDR): Yes
- HDCP: Yes
- Plug and Play: Yes
- Integrated circuit: GL-3523
- HDCP version: 1.4/2.2

Design:
- Case material: Steel
- LED indicators: Yes
- Button to press: Yes
- Shortcut keys: Yes
- Mean time between failures: 130000 h

Energy control:
- Energy source: DC
- AC input voltage: 100 - 240 V
- Input current: 1 A
- Output voltage: 12V
- Output current: 3 A
- Energy consumption: 36 W
- Compatible power plug types: EU, JP, UK, US

Sustainability:
- Sustainability compliance: Yes
- Sustainability certificates: CE, RoHS, Trade Agreements Act (TAA)

Environmental conditions:
- Operating temperature range: 0 - 40 °C
- Storage temperature range: -20 - 60 °C
- Relative humidity range for operation: 0 - 80%

Weight and dimensions:
- Broad: 100 mm
- Depth: 160 mm
- Height: 40 mm
- Weight: 600 g
