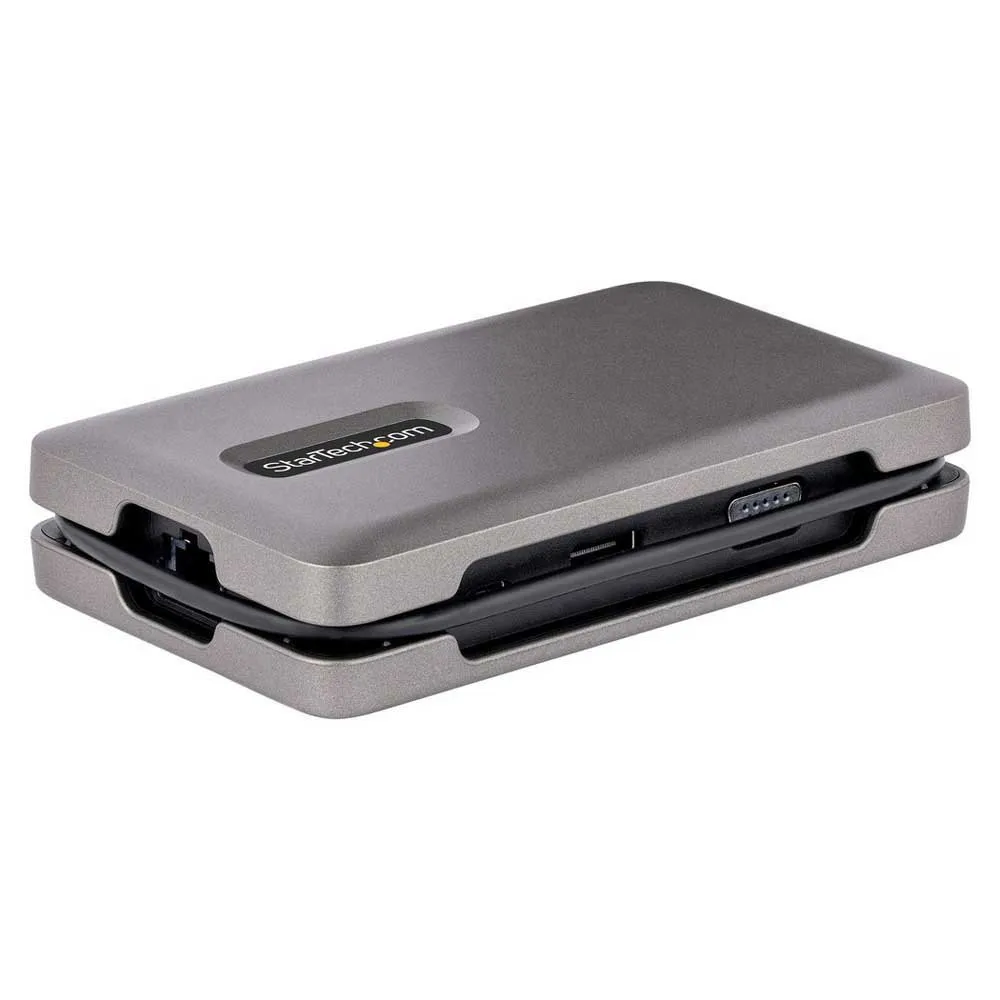

Startech DKM31C3HVCPD docking station

This Usb-C™ Multiport Adapter/Docking Station With Displayport™ 1.4 (Alt Mode) And Multi-Stream Transport (Mst), Features Three Video Output Options (Hdmi, Vga And Usb-C Video) To Support A Single Or Multi-Monitor Workstation.

The Usb-C Video Port Supports Usb 3.2 Gen 2 (10gbps) With 10w Of Power, To Connect A Usb-C Monitor Or A Usb-C Peripheral.

In Addition, The Docking Station Also Features A 2-Port Usb-A 3.2 Gen 2 (10 Gbps) Hub, A Gigabit Ethernet Port, And Providing Advanced Charging Through A Usb Power Delivery (Pd) 3.0 Pass-Through Port.

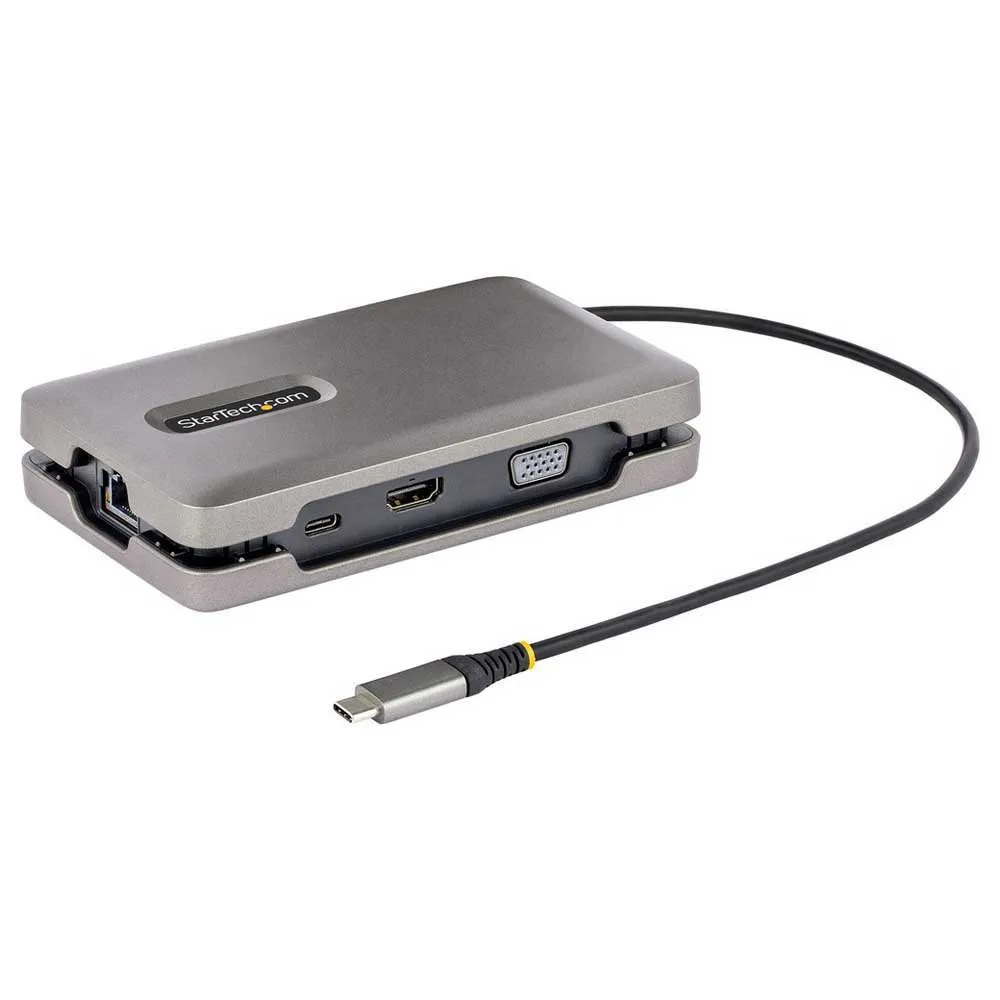

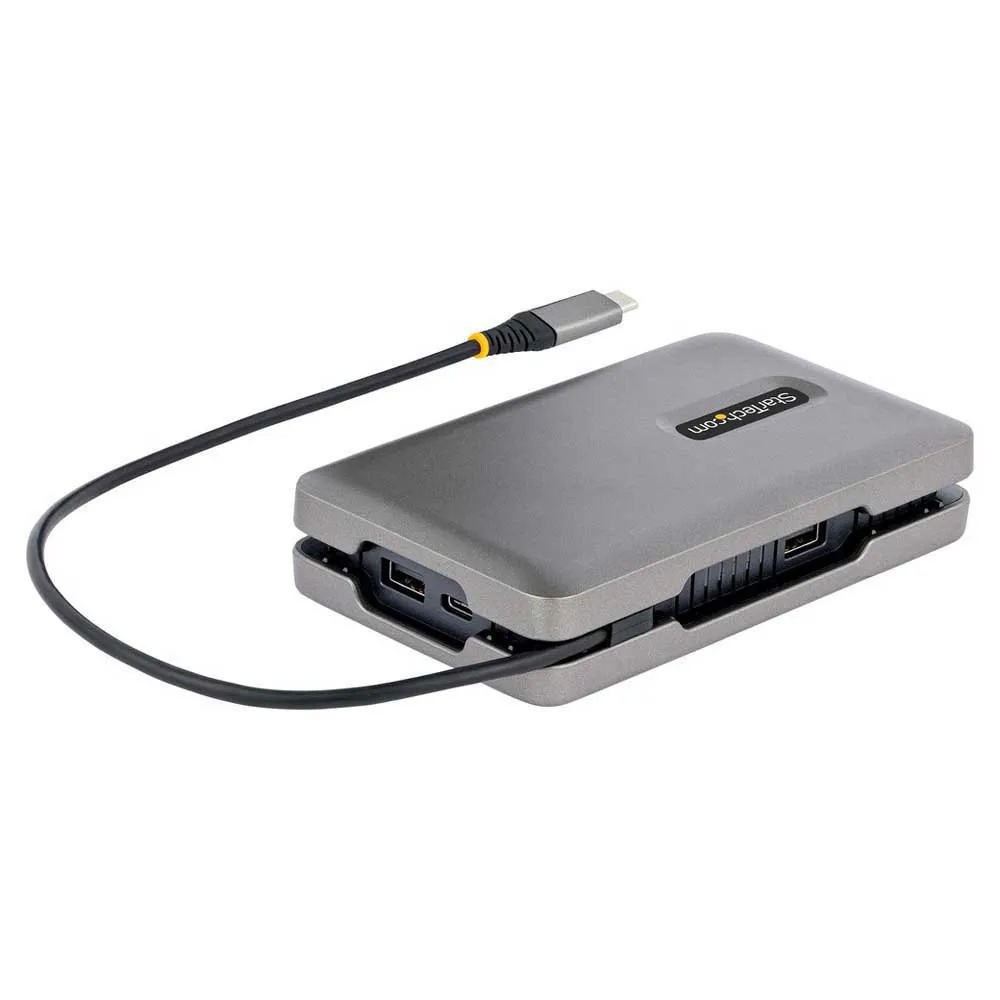

The Multiport Adapter Connects To A Laptop´s Usb-C Or Thunderbolt 3/4™ Port, Using The Integrated 10-Inch (25cm) Usb-C Cable.

Versatile, High-Performance Video Via Mst:

- The Compact Usb Type-C Docking Station Features Three Video Output Options To Turn Your Laptop Into A Single Or Multi-Monitor Workstation.

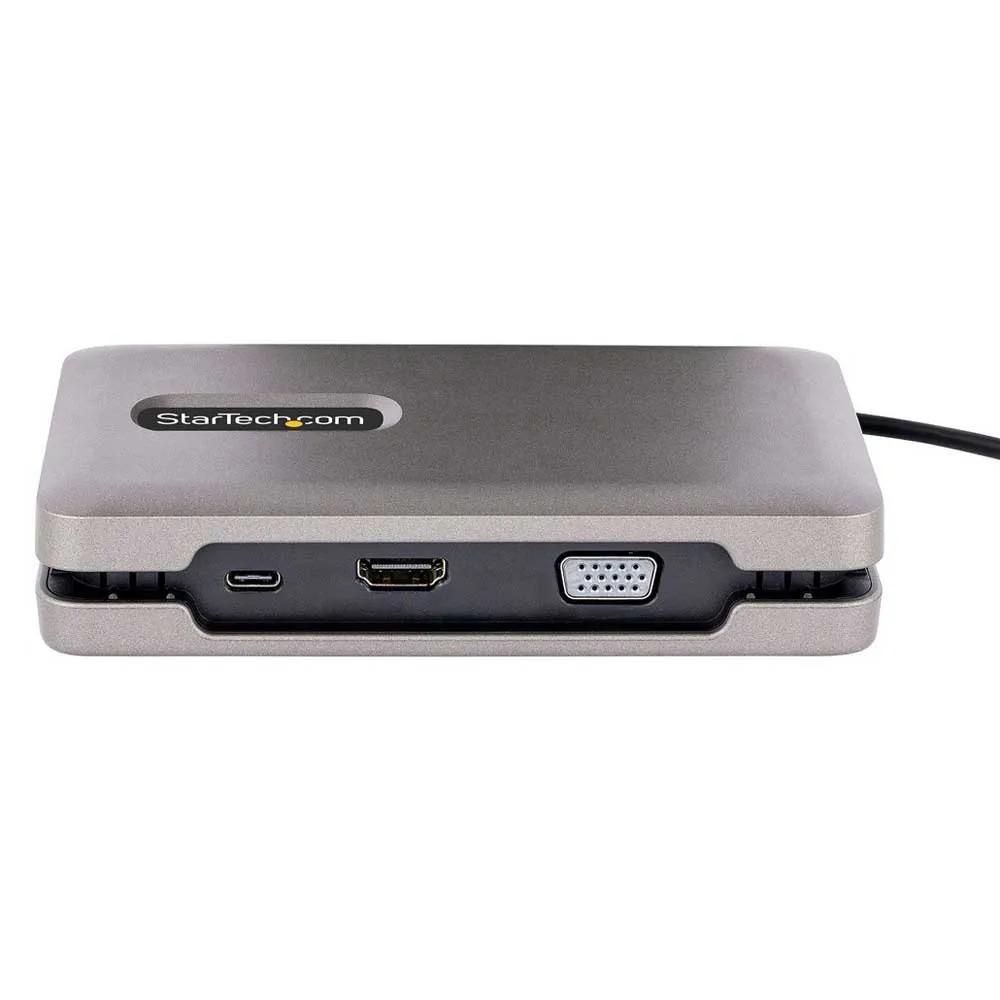

Hdmi Port:

- Provides Hdr Video With Resolutions Up To 4k 60hz.

Vga Port:

- Provides Analog Video With Resolutions Up To 1080p 60hz.

Usb-C Port:

- Provides The Industry´s First Downstream Full Featured Video Or Data (10gbps) Usb-C Port That Supports Dp Alt Mode Video Or Peripheral Connection, On A Non-Thunderbolt Adapter.

The Advanced Video Versatility Of This Multiport Adapter, Makes It Suitable For A Wide Variety Of Applications:

- Connect A Portable Usb-C Monitor As An Extended Display, To Obtain A High Resolution External Monitor During On-The-Go Travel Between An Office Desk, Home Office, Hot Desk, Or The Boardroom.

- Connect A Usb-C Peripheral To The Downstream 10gbps Usb-C Port, While Using The Hdmi And/Or Vga Ports To Connect External Monitor(S) As Extended Display(S).

- Connect Multiple External Monitors As Extended Displays, Using Any Combination Of The Two Video Ports, To Create A High-Productivity Workstation.

Usb-C Video Adapters (Sold Separately) Can Be Used To Connect Hdmi, Dvi, Vga, Or Displayport Monitors To The Usb-C Video Port.

Connect Your Devices:

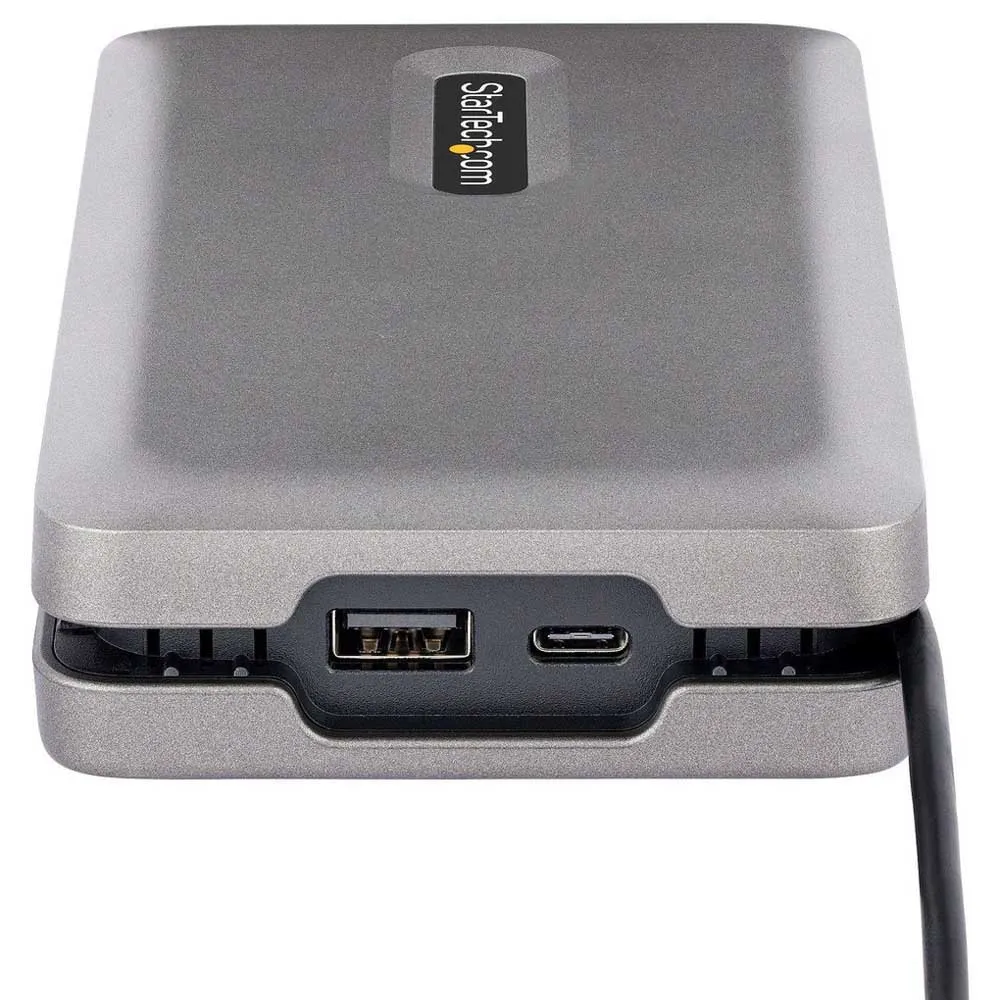

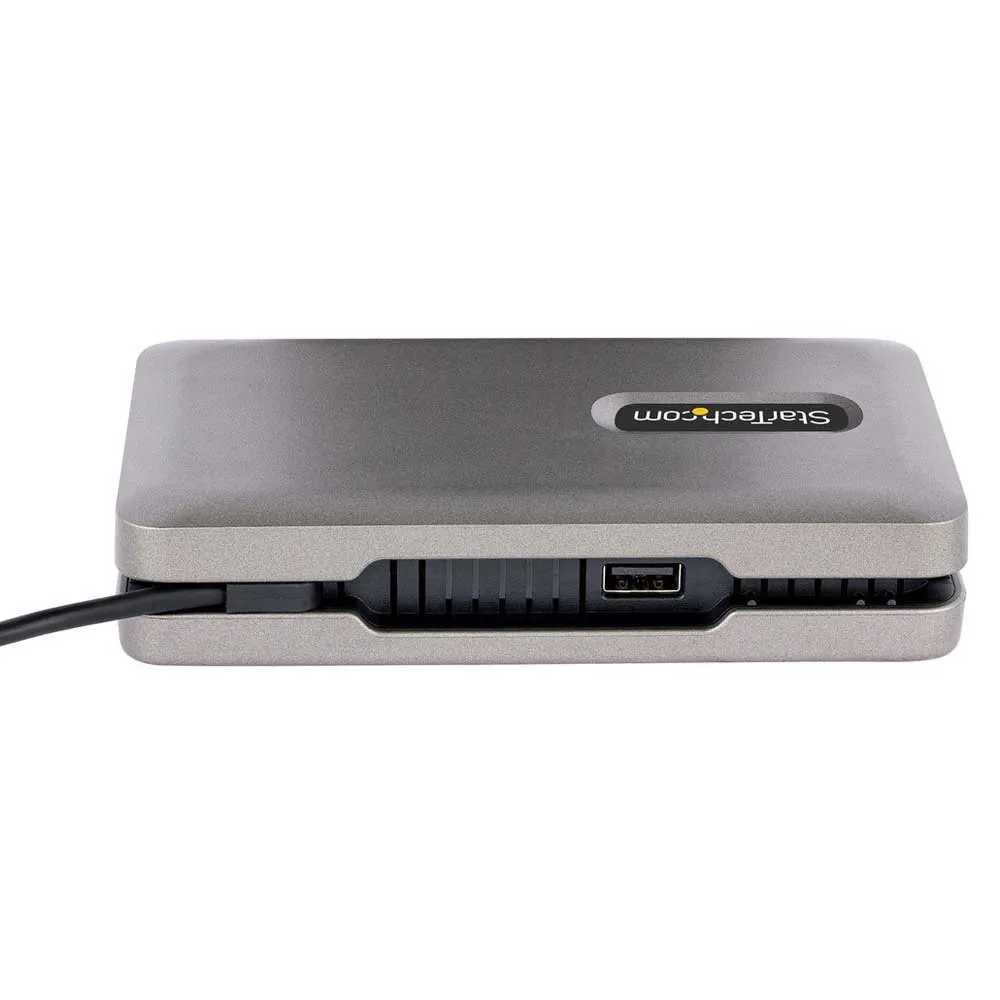

- The Usb 3.2 Gen 2 (10gbps) Hub Features Two Usb-A Ports And One Usb-C Port, For Connecting Your Usb Devices.

The Downstream Usb-C Port Can Be Used To Connect A Monitor, Or Usb-C Peripheral With Up To 10w (5v/2a) Of Power, To Power Or Charge Your Peripherals.

Multiple Use Cases:

- A Versatile Docking Solution For Use At An Office Desk, Home Office, Hot Desk, Or In The Boardroom.

It´s Portable Enough To Be Carried In A Bag / Backpack For Mobile Use.

The Usb-C Dock Can Operate With Bus-Power Alone, Or With A Usb-C Power Adapter Connected To The Usb Power Delivery Pass-Through Port.

- For Full Laptop And Usb-C Peripheral Charging.

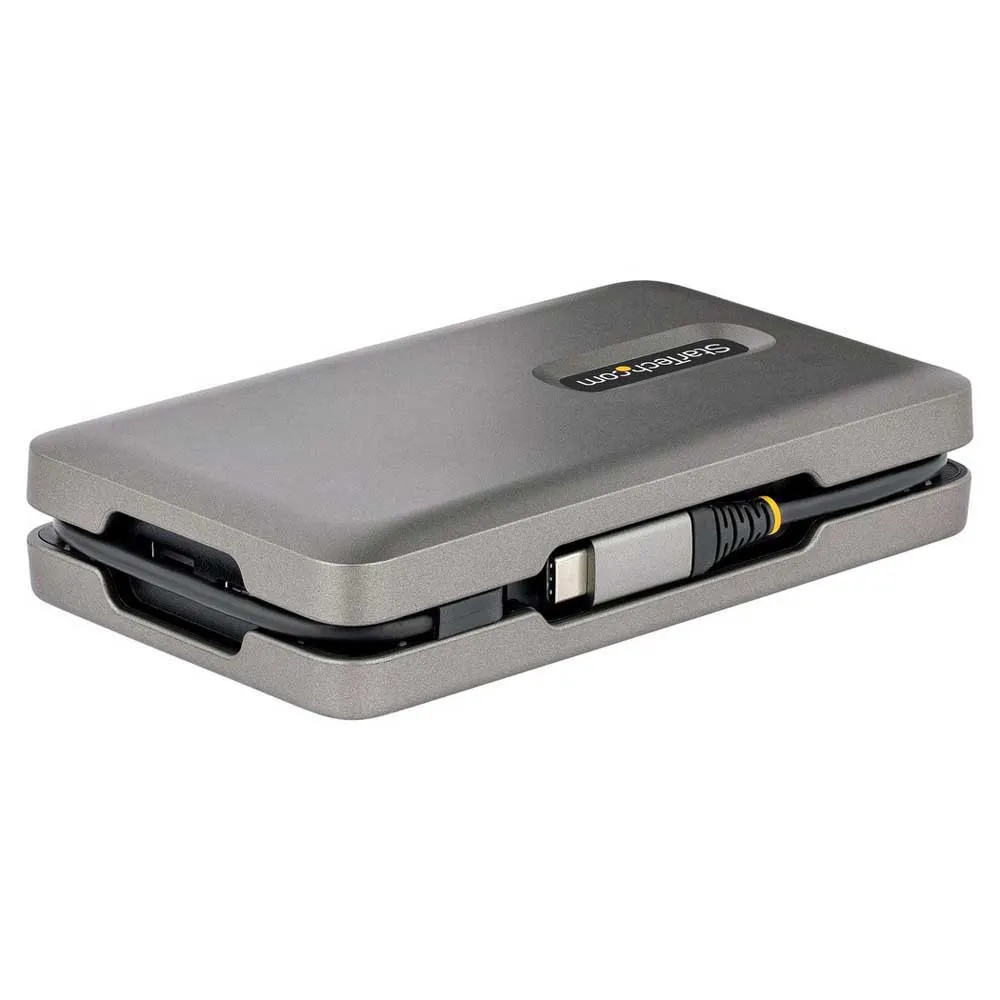

The Lightweight Docking Station Features A Built-In 10 In (25 Cm) Usb-C Host Cable For Added Setup Flexibility And To Reduce Port Strain With Laptop Connection Elevated Off Desktop Surface.

Charge Your Laptop And Peripherals:

- With Support For Usb Pd 3.0 (100w.

- 80w Charging, 20w Reserved For Multiport Adapter), The Multiport Adapter Enables Charging Of The Host Computer And Peripherals Connected To The Usb-C Port.

Usb Pd Is Only Available When A Usb-C Power Adapter Is Connected To The Pd Pass-Through Port.

Pd 3.0 Features Fast Role Swap (Frs) Which Prevents Usb Data Disruption When Switching Power Sources (E.G., Usb-C Power Adapter To Bus Power).

Reliable Network Connectivity:

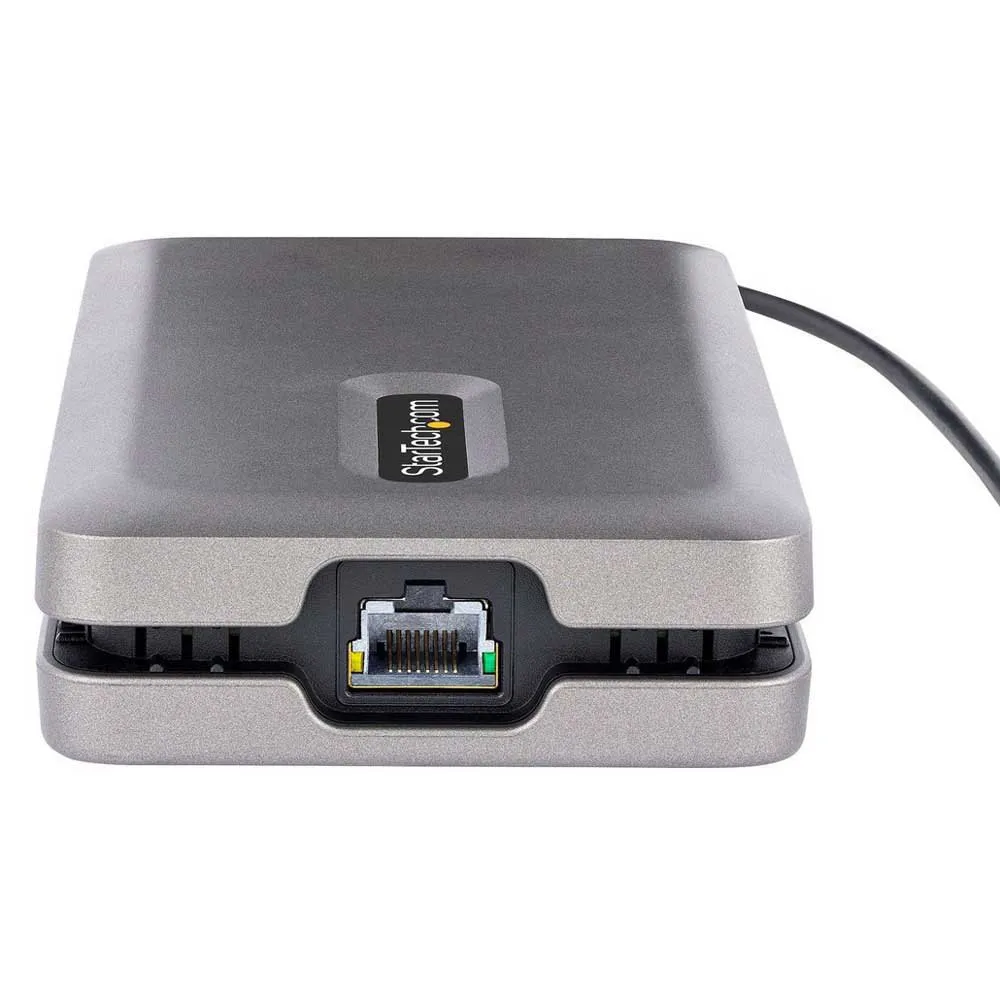

- The Gigabit Ethernet Port Ensures Reliable Wired Network Access.

Support For Wake-On-Lan (Wol) Enables Remote Booting Of The Host Computer.

- Enhance Productivity And Device Management With The Startech.Com Connectivity Tools Application.

- Developed To Improve Performance And Security, Startech.Com Connectivity Tools Is The Only Software Suite On The Market That Works With A Wide Range Of It Connectivity Accessories.

The Software Suite Includes:

- Advanced Windows Layout Utility:

Setup And Save Custom Windows Layouts.

- Mac Address Pass-Through Utility:

Improve Network Security.

- Usb Event Monitoring Utility:

Track And Log Connected Usb Devices.

- Wi-Fi Auto Switch Utility:

Enable Users To Quickly Access Faster Network Speeds Via Wired Lan.

Applications:

- Home Office It Deployment, Ideal For Traveling Between The Home And Office.

- Connect A Portable Usb-C Monitor As An Extended Display During On-The-Go Travel Between Your Office Desk, Home Office, Hotel Desk, Or The Boardroom.

- Connect A Usb-C Peripheral To The Downstream 10gbps Usb-C Port, While Using The Hdmi And/Or Vga Port(S) To Connect External Monitor(S).

- Charge Your Tablets And Smartphones From The 10w Usb-C Port.

Specifications:

Connector(S) External Ports:

- 1.

- Hdmi (19 Pin).

- 1.

- Vga (15 Pin, High Density D-Sub).

- 1.

- Usb 3.2 Type-C (24 Pin, Gen 2, 10gbps, 10w Power, Dp Alt-Mode Video).

- 2.

- Usb 3.2 Type-A (9 Pin, Gen 2, 10gbps).

- 1.

- Usb Type-C (24 Pin) Usb Power Delivery Only.

- 1.

- Rj-45 Host Connectors:

- 1.

- Usb 3.2 Type-C (24 Pin, Gen 2, 10gbps) Environmental:

- Operating Temperature:

0°C To 60°C (32°F To 140°F).

- Storage Temperature:

-20°C To 60°C (-4°F To 140°F).

- Humidity:

<90% Rh Hardware:

- 4k Support:

Yes.

- Fast-Charge Port(S):

Yes.

- Displays Supported:

2.

- Interface:

Usb 3.2 Gen 2 (10 Gbps).

- Bus Type:

Usb-C.

- Industry Standards:

Hdmi 2.0b.

- Hdr10:

Displayport 1.4,Usb 3.2 Gen 2 (10gbps),Usb Power Delivery Specification Rev.

3.0.

- Chipset Id:

Genesys Logic.

- Gl3590.

- Genesys Logic.

- Gl9510-Ufp.

- Realtek.

- Rtd2142.

- Realtek.

- Rtl8153 Indicators Led Indicators:

- 1.

- Network Link Led.

- 1.

- Network Activity Led (Amber) Packaging Information:

- Package Height:

1.5 In [3.8 Cm].

- Package Length:

8.1 In [20.7 Cm].

- Shipping (Package) Weight:

9.1 Oz [258.0 G].

- Package Width:

5.7 In [14.4 Cm].

Performance:

- Maximum Data Transfer Rate:

10gbps.

- Maximum Digital Resolutions:

Hdmi:

Up To 4k (3840 X 2160p) 60hz.

- Usb-C (Dp Alt Mode):

Up To Up To 4k (3840 X 2160p) 60hz.

- Vga:

Up To 1080p (1920x1200p/1920x1080p).

- Type And Rate:

Usb 3.2 Gen 2.

- 10 Gbit/S.

- Uasp Support:

Yes.

- Compatible Networks:

10/100/1000 Mbps.

- Full Duplex Support:

Yes.

- General.

Specifications:

Maximum Laptop Charging:

80w.

- Mtbf:

40,030 Hours Physical Characteristics:

- Product Height:

1.1 In [2.8 Cm].

- Product Length:

5.7 In [14.4 Cm].

- Weight Of Product:

5.9 Oz [168.0 G].

- Product Width:

3.3 In [8.3 Cm].

- Material:

Plastic.

- Cable Length:

9.8 In [25 Cm].

- Power:

Power Source.

- Bus Powered And Host Usb-C Power Adapter.

- Power Consumption (In Watts):

20w Software:

Os Compatibility:

- Windows® 7, 8, 8.1, 10, 11.

- Chrome Os™ Special Notes / Requirements System And Cable Requirements:

- A Host Laptop With An Available Usb-C Port (To Ensure Full Adapter Functionality, The Host Usb-C Port Must Support Usb Power Delivery 2.0 And Dp Alt Mode).

- For A Multi-Monitor Configuration, The Computer Must Support Mst.

- Optional:

Usb-C Power Adapter (E.G., Your Laptop´s Usb-C Based Power Adapter).

Note:

- Not All Usb-C Ports Support The Full Functionality Of The Usb Type-C Standard.

Ensure That Your Host Usb-C Port Supports Usb Power Delivery And Dp Alt Mode.

- The Adapter Can Connect To Usb-C Ports That Don´t Support Usb Pd.

Pd Will Not Occur Without A Connection To A Pd Capable Usb-C Port.

However, In This Configuration If A Power Adapter Is Connected To The Multifunction Adapter, It Will Not Pass Power Through To Your Host Laptop.

- A 4k-Capable Display Is Required To Achieve 3840 X 2160p Resolution (4k Is Also Known As 4k X 2k).

- A 4k-Capable Computer Is Required To Achieve 3840 X 2160p Resolution (4k Is Also Known As 4k X 2k).

- Usb 3.2 Gen 2 (10gbps) Is Also Known As Usb 3.1 Gen 2 (10gbps).

- Your Laptop Might Have Specific Charging Requirements.

For Example, If Your Laptop Requires Exactly 60w Of Power And An Adapter Consumes Some Of The 60w, Your Laptop Might Not Recognize That It Is Getting Enough Power.

For More Information About Power Delivery, Refer To The Manufacturer Of Your Hardware.

What´s In The Box.

- 1.

- Docking Station.

- 1.

- Quick-Start Guide.
