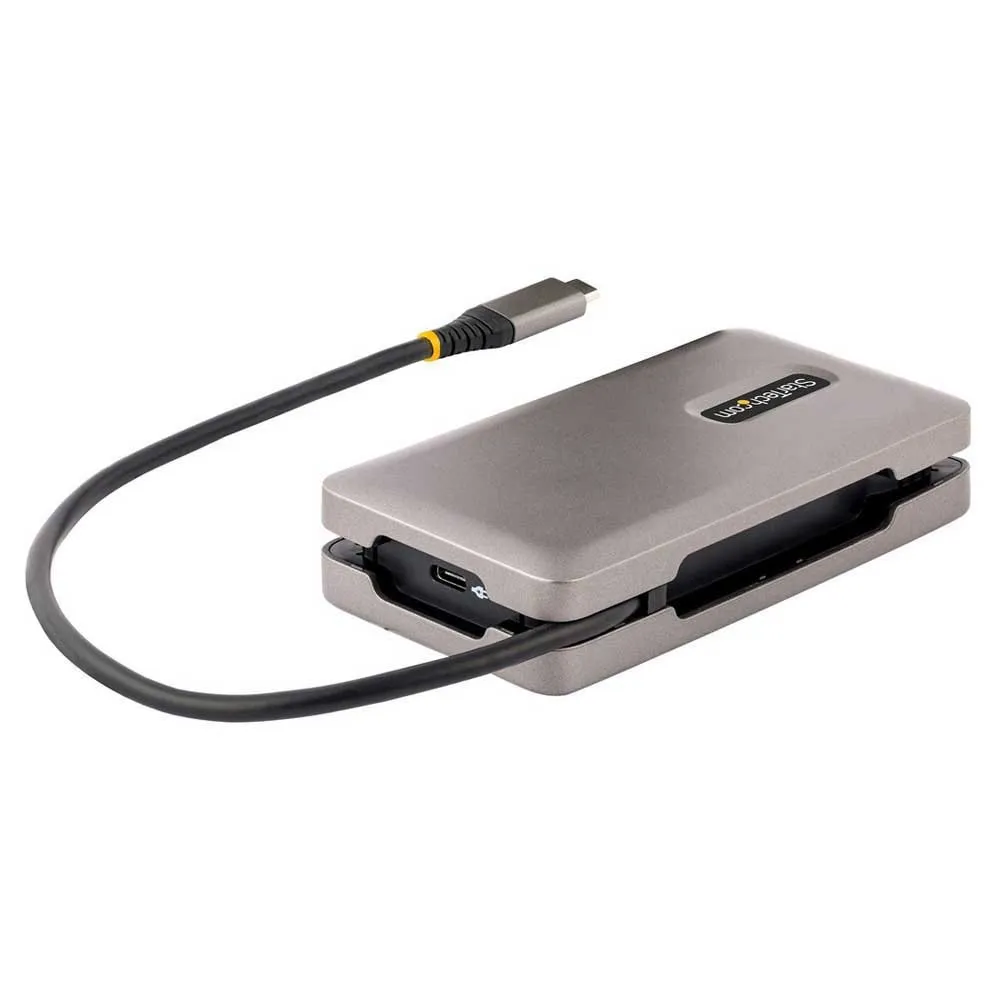

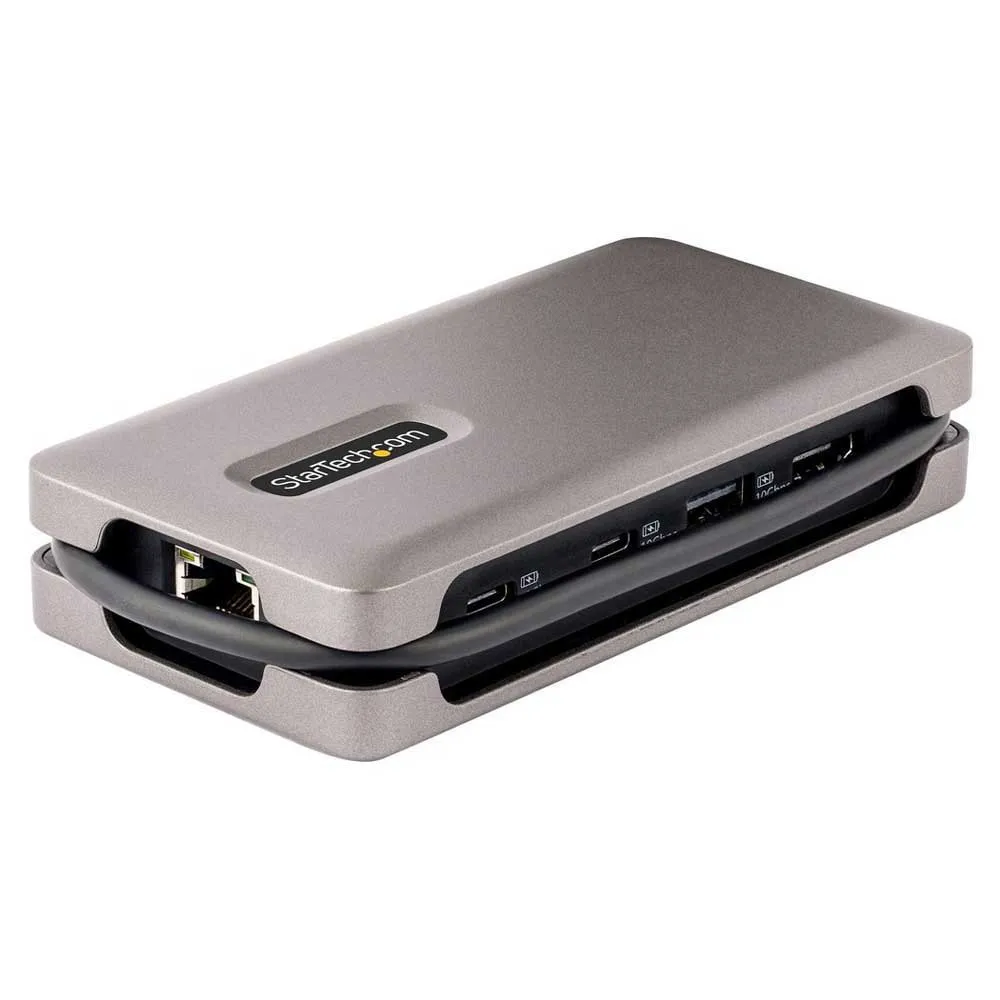

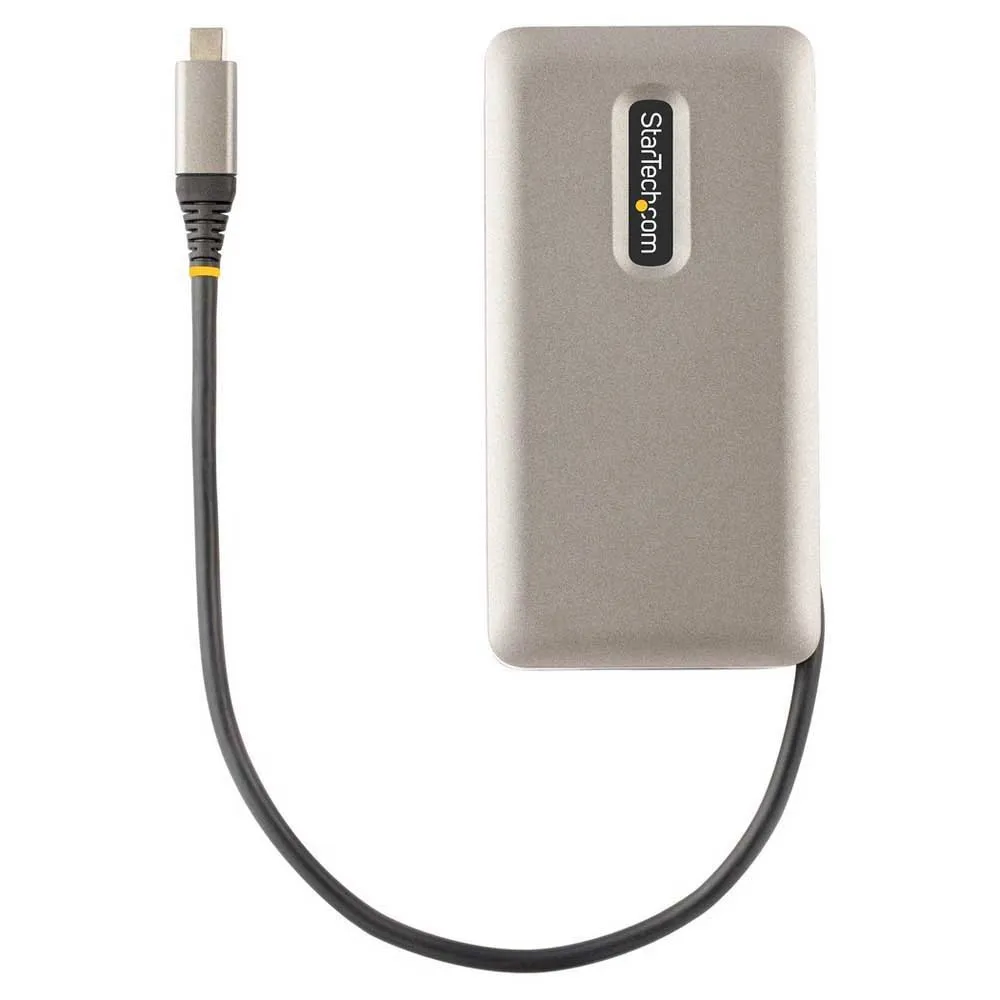

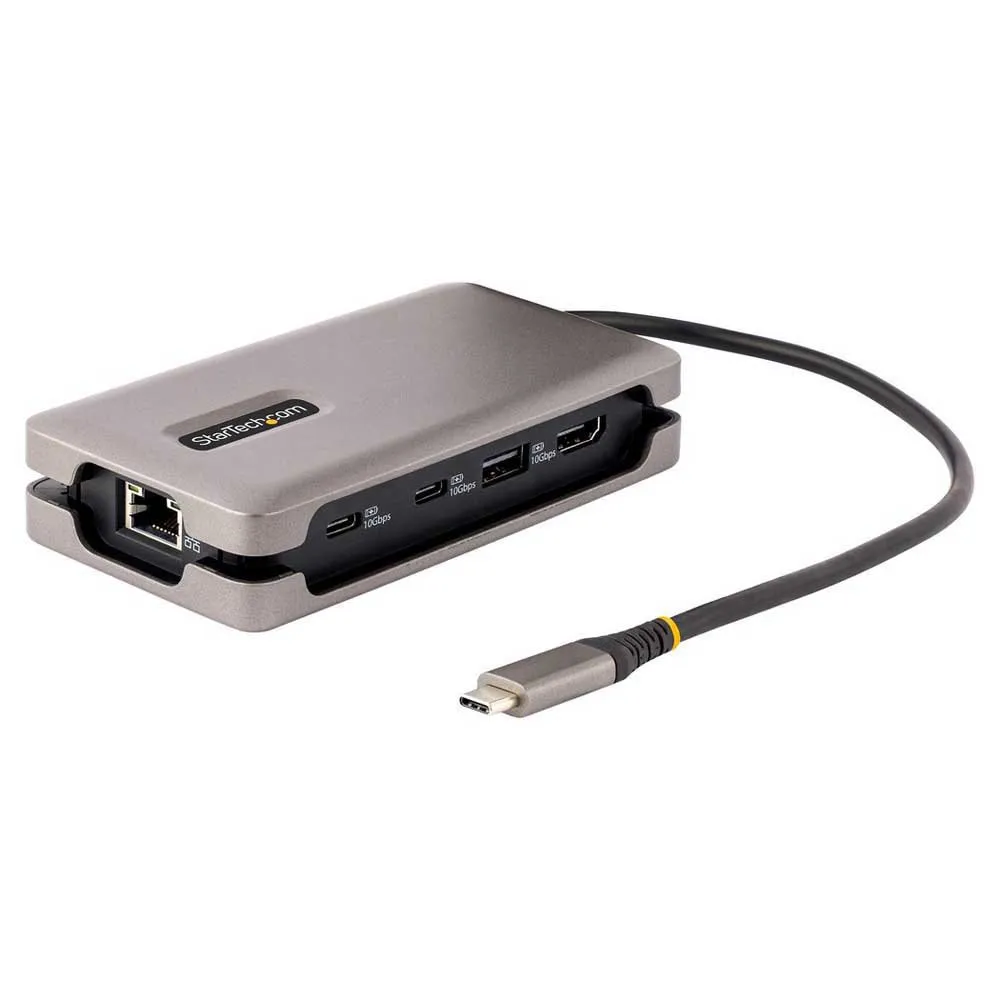

Startech DKT31CH2CPD3 docking station

10/100/1000mbps Ethernet Usb Type-C To 3x Usb Type-A Usb 3.2 Gen 1 (5gbps) 1ft (30cm) Built-In Host Cablethis Usb Hub Adds Three Usb-C 3.2 Gen 1 (5gbps) Ports And One Gigabit Ethernet Port To A Usb-C Enabled Desktop Or Laptop Computer.

The Usb Hub Connects To A Usb-C Port On A Computer, Using The Built-In 1ft.

(30cm) Host Cable.

The Usb Hub Is Backward Compatible With Usb 2.0 (480mbps) Devices, Ensuring Support For A Wide Range Of Modern And Legacy Usb Peripherals (E.G., Thumb Drives, External Hdds/Ssds, Hd Cameras, Mice, Keyboards, Webcams, And Audio Headsets).The Usb Hub Is Compact In Size, Facilitating Portability When Travelling.Gigabit Ethernetthe Usb Hub Features A Gigabit Ethernet Adapter.

The Ethernet Controller Is Compatible With The Ieee 802.3u/Ab Standards And Supports Wake-On-Lan (Wol), Jumbo Frames, And V-Lan Tagging.

The Network Adapter Enhances Laptop Network Reliability, Security, And Performance By Utilizing Wired 10/100/1000mbps Ethernet.Bus-Powered With Optional Auxiliary Powerthe Usb Hub Can Operate With Bus Power Alone, But Features A Micro Usb Power 4K 60Hz HDMI 100W PD Pass-Through 12´´ (30cm) Cable 3-Port USB Hub (10Gbps)This USB-C multiport adapter with DP 1.4 supports 4K 60Hz HDMI® (HDR) and turns a USB-C™ laptop or tablet into a workstation, anywhere you go.Enhance ProductivityThe portable docking station provides 4K 60Hz HDMI video output, two USB 3.2 Gen 2 Type-C (10Gbps) ports, one USB 3.2 Gen 2 Type-A (10Gbps) port, and a Gigabit Ethernet port (PXE and WoL support) all through one connection to your laptop´s USB-C or Thunderbolt 3/4™ port.

A USB-C DisplayPort 1.4 Alt-Mode port is required for 4K 60Hz HDMI output.Host ConnectionMaximum ResolutionDP 1.4 Alternate ModeUp to 4K 60HzDP 1.2 Alternate ModeUp to 4K 30HzConnect and Charge Your USB DevicesThe USB hub features two USB-C (10Gbps) ports and one USB-A (10Gbps) port for connecting up to three USB peripherals.

The USB PD pass-through port enables charging of the host laptop.

USB PD is only available when a USB-C power adapter is connected to the PD pass-through port.

Connect a USB-C Power Adapter to use as a standalone USB peripheral charger.

The extra-long attached 12inch (30cm) USB-C host cable enables an extended reach for setup flexibility.Portable ConnectivityFor use while travelling, the USB-C adapter can operate bus-powered alone, or with a USB-C power adapter to enable laptop and peripheral charging.

The docking station is lightweight and features a built-in wraparound USB-C host cable.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories.

The software suite includes:• Advanced Windows Layout Utility:

Setup and save custom windows layouts.• Mac Address Pass-Through Utility:

To improve network security.• USB Event Monitoring Utility:

To track and log connected USB devices• Wi-Fi Auto Switch Utility:

Features:

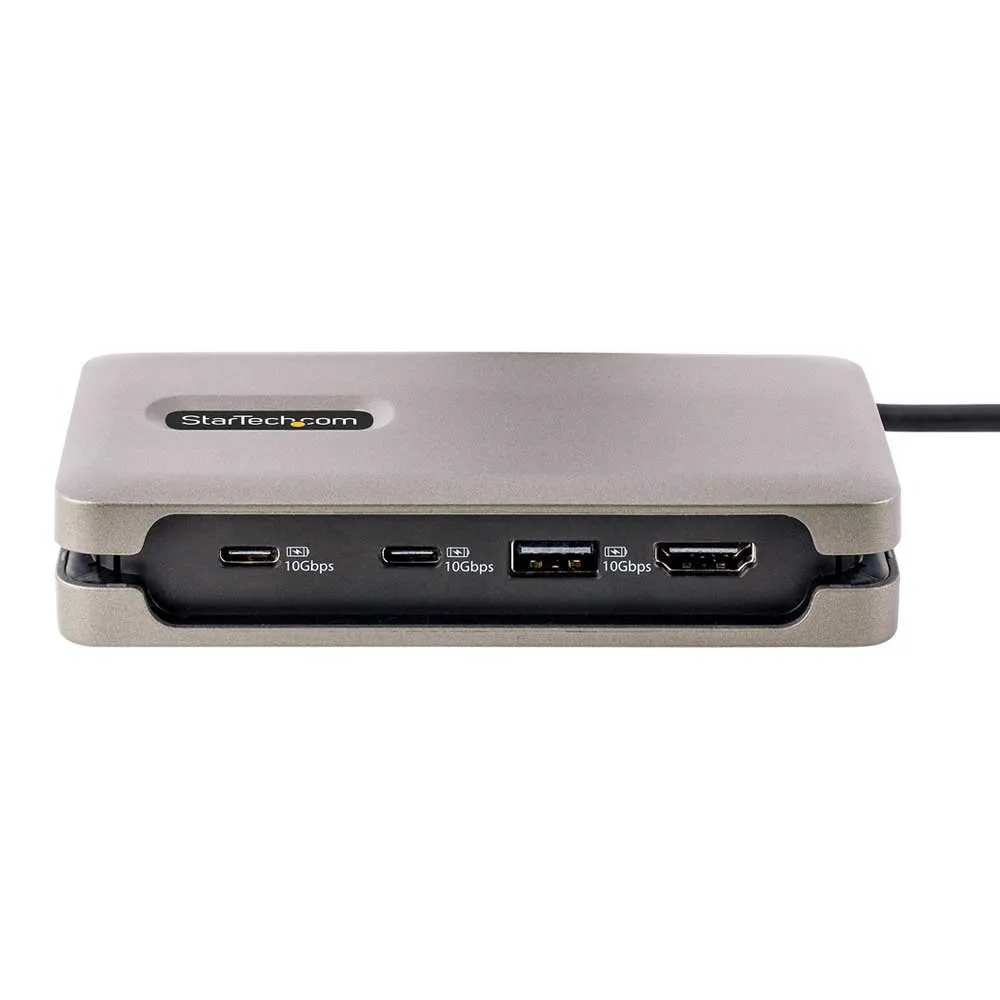

- 6-IN-1 USB-C MULTIPORT ADAPTER:

Features 4K 60Hz HDMI (HDR), 2x USB-C 3.2 Gen 2 (10Gbps), 1x USB-A 3.2 Gen 2 (10Gbps), Gigabit Ethernet, and a USB-C Port for 100W USB-C Power Delivery 3.0 Pass-Through.

- 4K 30Hz on DP 1.2 Alt-Mode hosts.

- USB 3.2 GEN 2 HUB PLUS CHARGING:

This USB-C Docking Station´s 3-port 10 Gbps hub w/ charging has 2x USB-C ports and 1x USB-A port (high draw devices may require more power).

- Connect a USB-C power adapter to enable device charging without host connection.

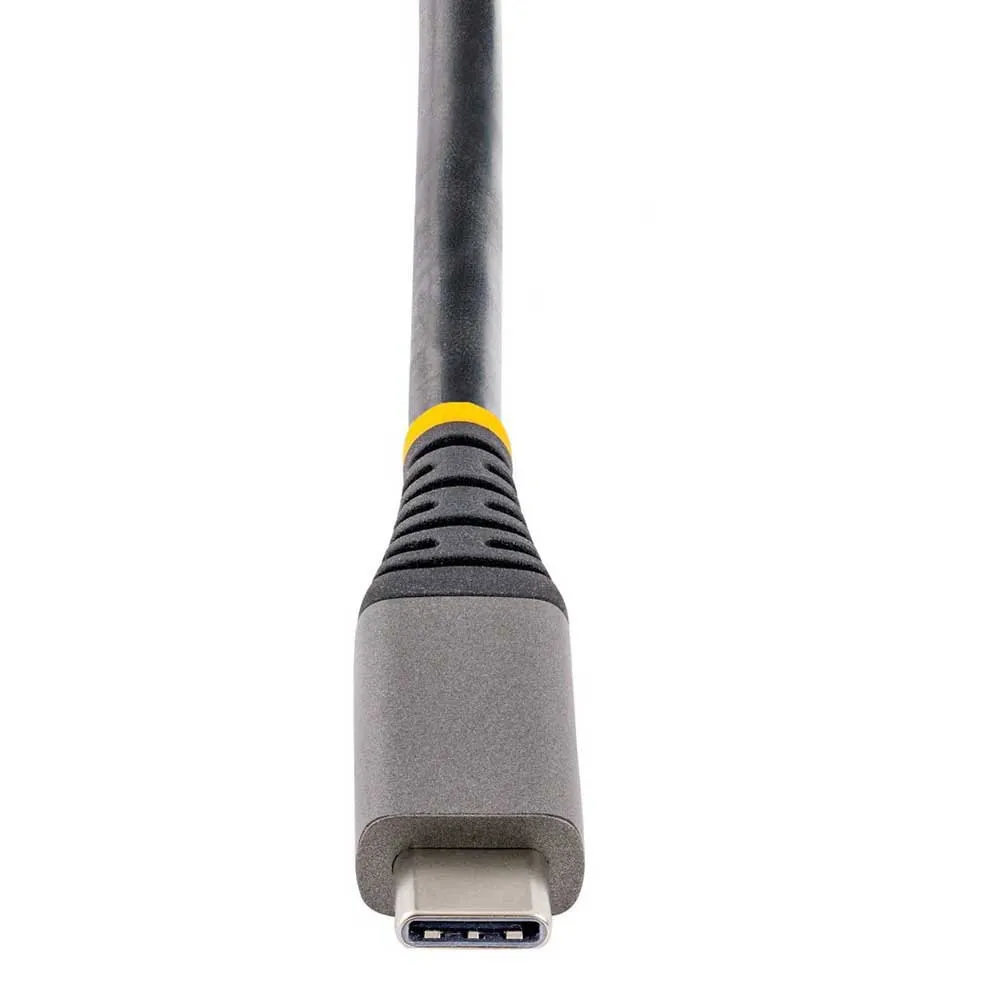

- BUILT-IN CABLE:

USB-C Mini Dock with 12´´ (30 cm) attached cable extends reach to reduce port/connector strain on 2-in-1 devices:

Surface Pro 7/iPad Pro/HP Elite x2/laptops on riser stands.

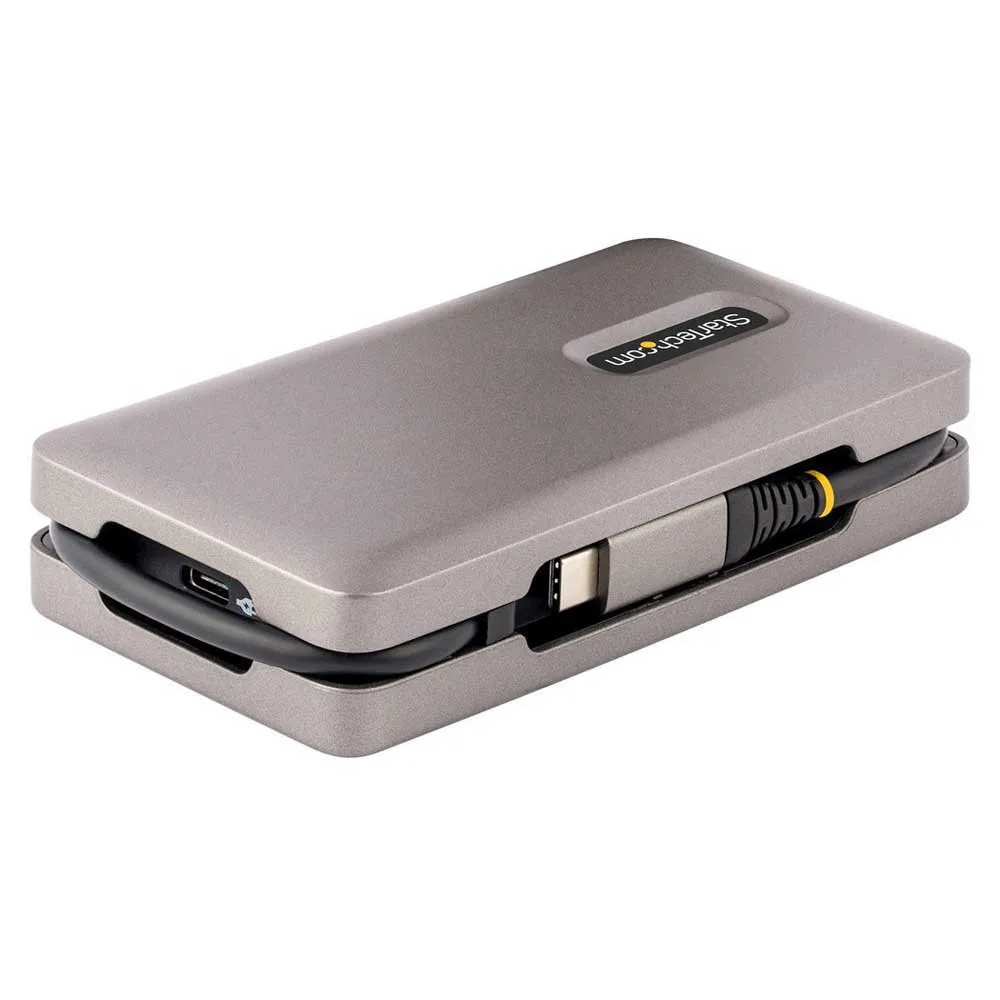

- Hideaway cable management feature hides cable during travel.

- RELIABLE.

Performance:

USB bus powered or via external USB-C power adapter.

- 100W Power Delivery 3.0 pass through w/ 15W reserved for adapter to avoid video flickering, device dropouts or overdrawing power common in other hubs.

- up to 85W for host charging.

- COMPATIBILITY:

Mini dock is compatible with USB-C laptops, Ultrabooks, Chromebooks, USB4 and Thunderbolt 3/4 laptops from HP, Dell, Lenovo, MacBooks (Intel & M1 Pro/Max processors) and Surface.

- Works w/ Windows, macOS, iPadOS, Android, Linux & ChromeOS.

- PORTABLE & COMPACT:

Portable USB Type-C laptop docking station with wraparound cable is designed for transport in a laptop bag, convenient for on-the-go use between office, home office, shared office spaces, and business travel.

Specifications:

Ports & interfaces:

- Connectivity.

Technology:

Wired.

- Host interface:

USB 3.2 Gen 2 (3.1 Gen 2):

Type-C.

- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

1.

- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

1.

- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

2.

- USB Power Delivery:

Yes.

- USB Power Delivery revision:

3.0.

- USB Power Delivery up to:

100 W.

- HDMI ports quantity:

1.

- USB Type-C DisplayPort Alternate Mode:

Yes Network:

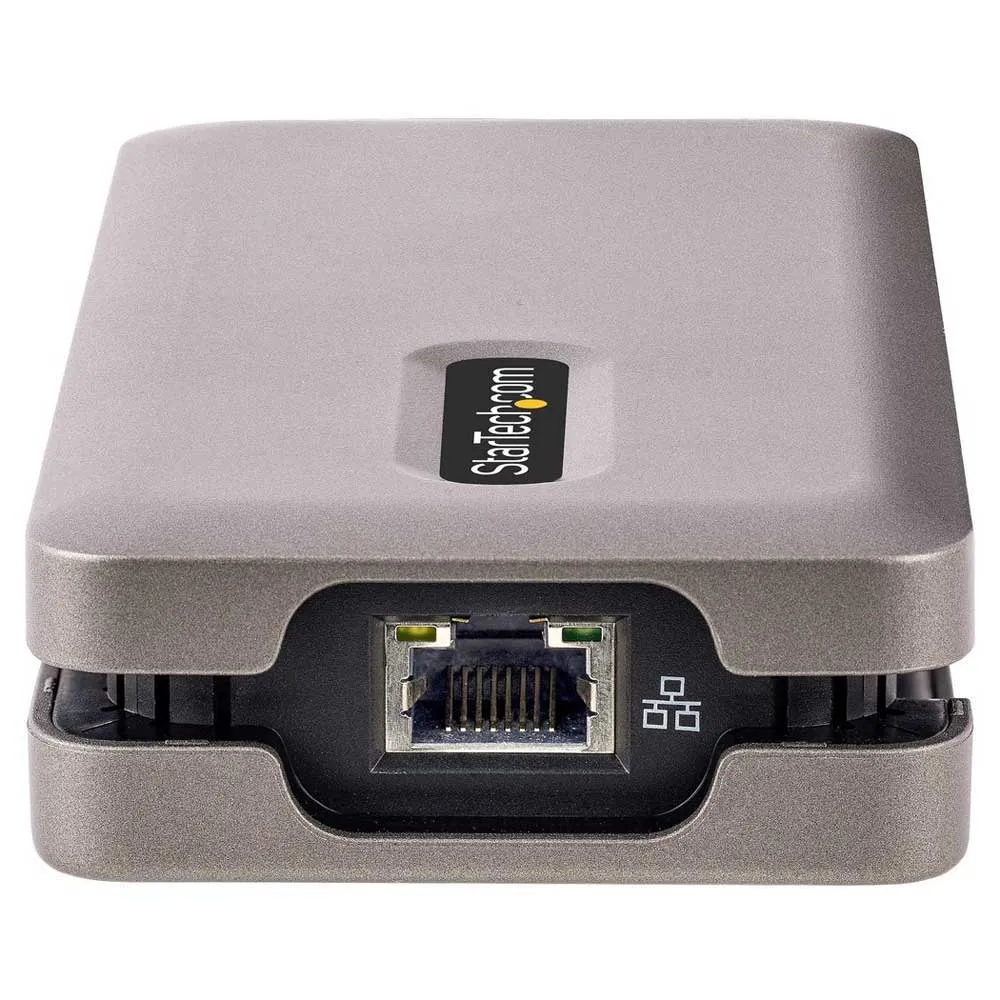

- Ethernet LAN:

Yes.

- Ethernet LAN (RJ-45) ports:

1.

- Ethernet LAN data rates:

10,100,1000 Mbit/s.

- Full duplex:

Yes.

Performance:

- Data transfer rate10 Gbit/s.

- HD type4K Ultra HD.

- Maximum digital resolution:

3840 x 2160 pixels.

- Maximum refresh rate:

60 Hz.

- High Dynamic Range (HDR):

supportedYes.

- LED indicators:

Yes.

- UASP support:

Yes.

- Housing material:

Plastic Power:

- Power source type:

USB.

- Power consumption (typical)15 W Software:

- Windows operating systems supported:

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64.

- Mac operating systems supportedMac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey.

- Linux operating systems supported:

Yes.

- Mobile operating systems supported:

Android, iPadOS.

- Other operating systems supported:

ChromeOS Operational conditions:

- Operating temperature (T-T):

0.

- 50 °C.

- Storage temperature (T-T):

-20.

- 70 °C.

- Operating relative humidity (H-H)0.

- 85%.

- Sustainability:

- Sustainability compliance:

Yes.

- Sustainability certificatesCE, RoHS.

- Weight & dimensions:

- Width:

64 mm.

- Depth:

124 mm.

- Height:

26 mm.

- Weight:

93 g.
