Startech Flat Screen TV Wall For 60-100´´ TV stand

Save space and create an impressive display by wall-mounting a large TV in a boardroom or customer-facing area. This tilting flat-screen TV wall mount securely supports a TV up to 100´´ and features an attractive low-profile design.

Create an Engaging Display for Digital Signage:
- Mount your large flat-screen TV in a location that´s convenient for visitors, clients and employees. Create an engaging display to keep guests informed or entertained, ideal in lobbies, lecture halls, restaurants, health care centers and other meeting spaces.

- The television wall mount supports most 60´´ to 100´´ (812.8 to 1778 mm) LED or LCD flat panel TVs weighing up to 165 lb. (75 kg). It also supports curved TVs, with a compatible VESA mount up to 900x600.

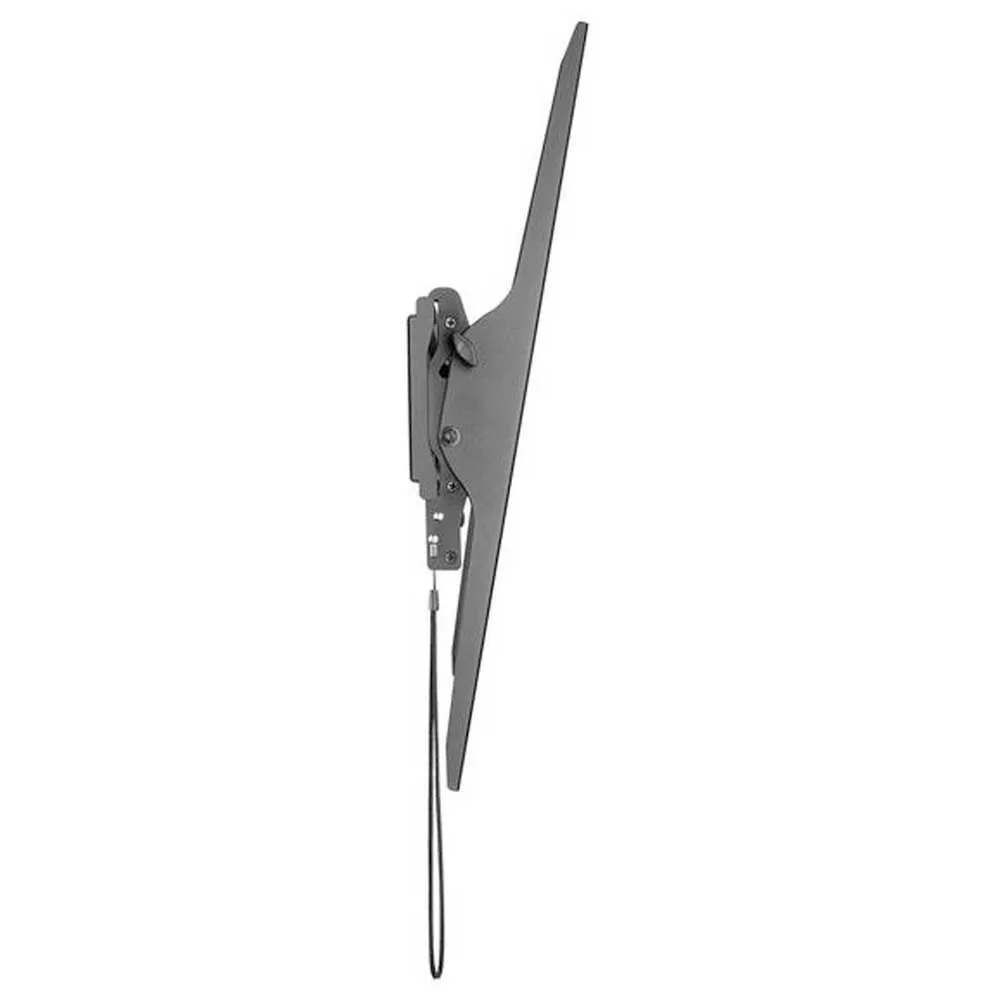

Tilting Design for Optimal Viewing:
- Find the ideal viewing angle. The tilting TV wall mount lets you tilt your display up (maximum 5 degrees) or down (maximum 10 degrees) with ease.

Low-Profile Design:
- Save space with this slim TV wall mount. With its low-profile design, your TV sits just 3.3´´ (85 mm) from the wall.

Robust Steel Construction and Easy Installation:
- The heavy-duty TV mounting bracket securely supports your large flat-screen TV and is easy to install. The spring locks allow quick attachment and release. The open architecture provides ventilation and easy access to wires.

FPWTLTB1 is backed by a StarTech.com 5-year warranty and free lifetime technical support.

Applications:
- Securely wall-mount your TV in boardrooms, classrooms and meeting spaces
- Keep visitors informed in hotels, restaurants, commercial facilities and other venues
- Wall-mount your TV in your home theater or living room

LARGE 100´´ TV WALL MOUNT: Heavy-duty TV wall mount supports VESA compatible displays incl. curved TVs up to 100inch (165lb/75kg) w/ a durable steel frame and a powder-coated finish
- EASY ADJUSTMENT: Tilting TV wall mount offers +5/-10° precise tilt; Tilt is adjustable by hand using the tilt adjustment knobs, making it easier to position larger displays for an ideal viewing angle
- COMPATIBILITY: Universal TV wall mount supports LG, Samsung and others (screws/spacers incl) & VESA hole patterns 200x200, 300x200, 300x300, 400x200, 400x300, 600x400, 600x600, 800x600, 900x600
- EASY INSTALLATION: Features a hook-on bubble level for proper alignment; Click-in Spring Lock helps TV mounting brackets snap into place for added safety & can be released by pulling on the straps
- LOW PROFILE DESIGN: A low profile design that sits just 3.3´´ (85mm) from the wall to complement the professional look of ultra-thin flat screen LCD/LED televisions


Specifications:

Warranty Information:
- Warranty:5 Years
- Hardware:Wallmountable
Yes
- Cable Management:No
- # of Displays Supported:1

VESA Hole Pattern(s):
- 200x200 mm
- 300x200 mm
- 300x300 mm
- 400x200 mm
- 400x300 mm
- 600x400 mm
- 600x600 mm
- 800x600 mm
- 900x600 mm

Packaging Information:
- Shipping (Package) Weight:10.5 lb [4.8 kg]
- Package Length:38.6 in [98 cm]
- Package Width:6.1 in [15.6 cm]
- Package Height:2.0 in [50 mm]

Performance:
- Weight Capacity (Per Display):75000
- Minimum Display Size:60´´
- Maximum Display Size:100´´
- Fits Curved Display:Yes
- Video Wall:No
- Display Tilt:+ 5° / - 10°
- Anti-theft:No

Physical Characteristics:
- Material:Steel
- Product Length:37.6 in [95.4 cm]
- Product Width:24.6 in [625 mm]
- Product Height:2.0 in [5 cm]
- Weight of Product:158.7 oz [4500 g]

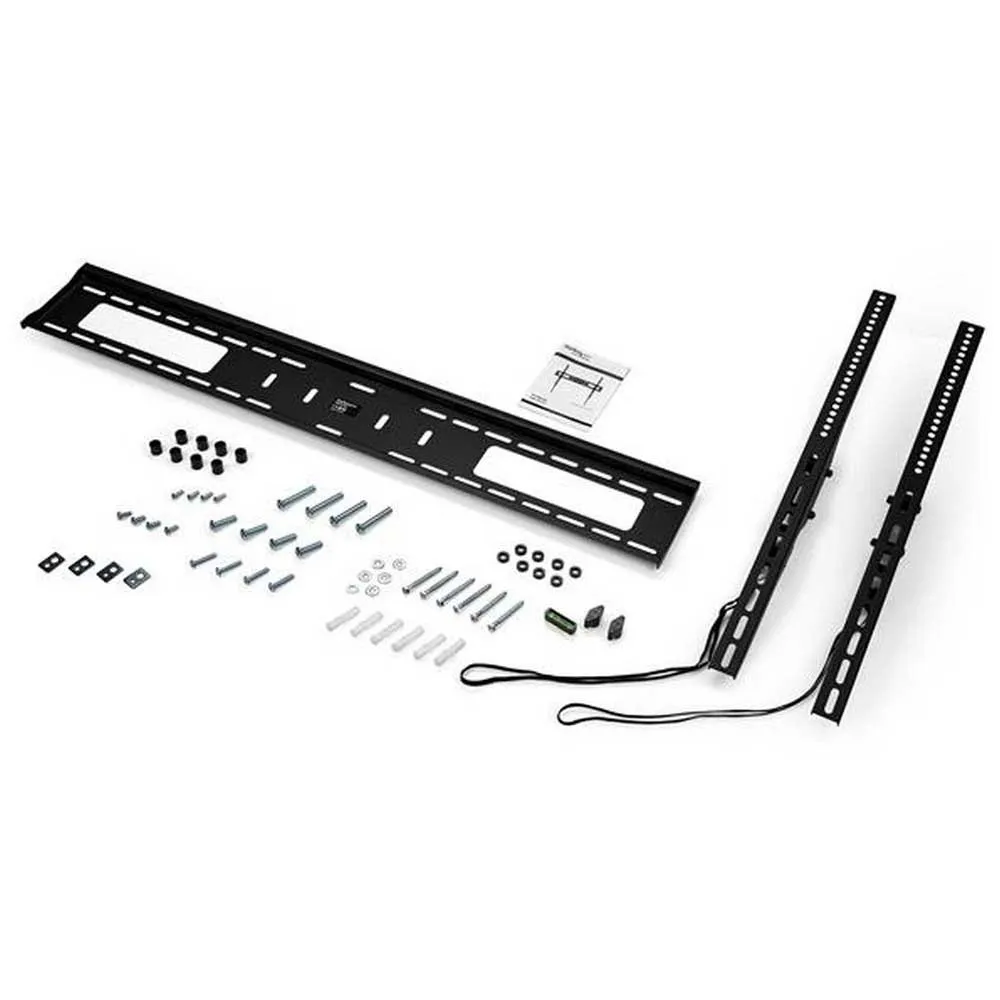

What´s in the Box:
- Included in Package
- 1 - Wall Bracket
- 2 - Vertical Brackets
- 2 - Tilt-Adjustment Knobs
- 1 - Bubble Level
- 4 - M5 x 14 Screws
- 4 - M6 x 14 Screws
- 4 - M6 x 30 Screws
- 4 - M8 x 30 Screws
- 4 - M8 x 50 Screws
- 4 - Rectangular Washers
- 8 - Small Spacers
- 8 - Large Spacers
- 6 - Wall Screws
- 6 - Concrete Anchors
- 6 - Round Washers
- 1 - Instruction Manual
