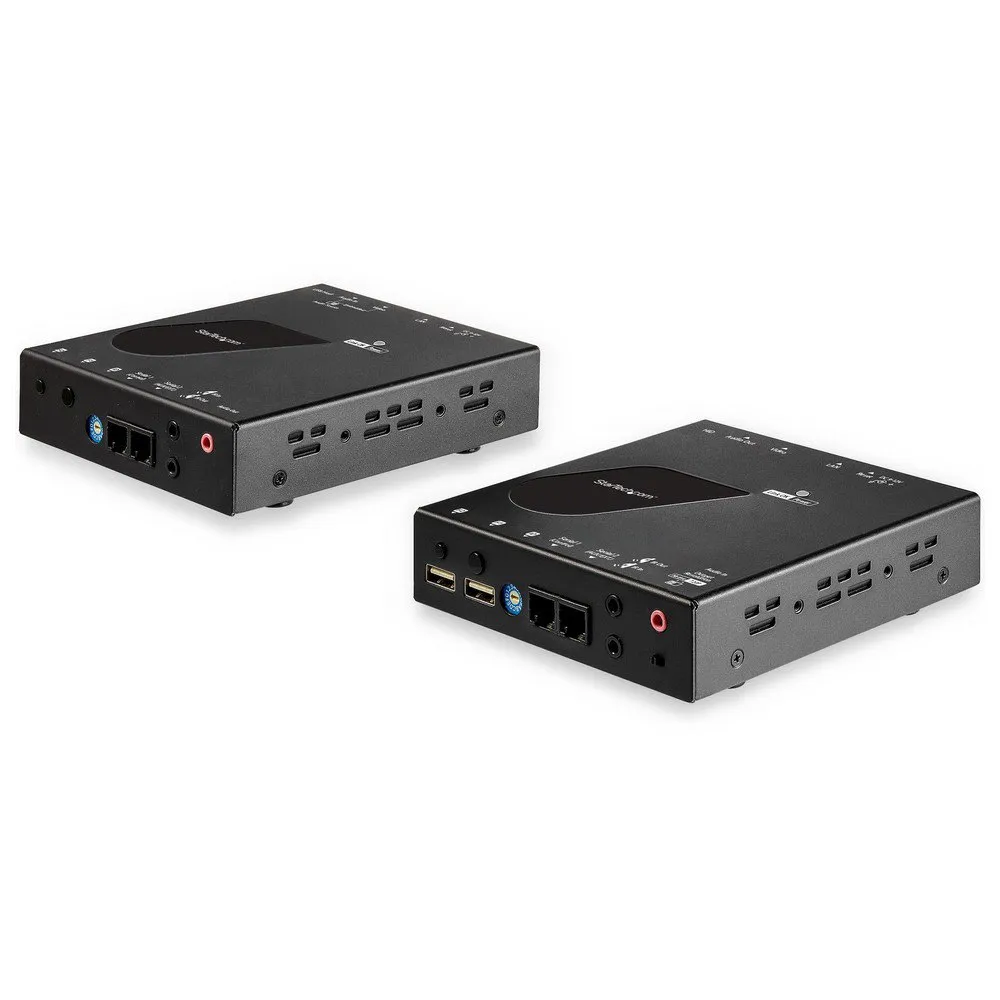

Startech HDMI IP Extender

This HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over your IP-enabled local area network (LAN). Combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features four USB ports that enable you to connect other USB devices, in addition to your keyboard and mouse.

Supports UHD 4K 30Hz:
- The HDMI KVM extender delivers astonishing 4K UHD picture quality to your remote display with support for resolutions up to 3840 x 2160p at 30Hz.

Hassle-Free Installation:
- With a transmitter and a receiver, the KVM extender provides a complete end-to-end solution that supports mounting for tidy installation. Plus, it uses standard CAT5e or CAT6 Ethernet cable, eliminating the expense and hassle of specialized cables and enabling you to use existing network infrastructure.

- The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display over your LAN.

Versatile Configuration Options:
- The extender uses your local intranet to connect your computers to your remote workstation. You can connect additional receivers (sold separately) to distribute your HDMI signal to multiple displays in your remote location, or combine the source to create a video wall that expands your single video source across multiple displays.

- For smaller-scale applications, you can connect the transmitter and receiver units directly over CAT5e or CAT6 cabling up to 330 feet (100 meters).


Specifications:

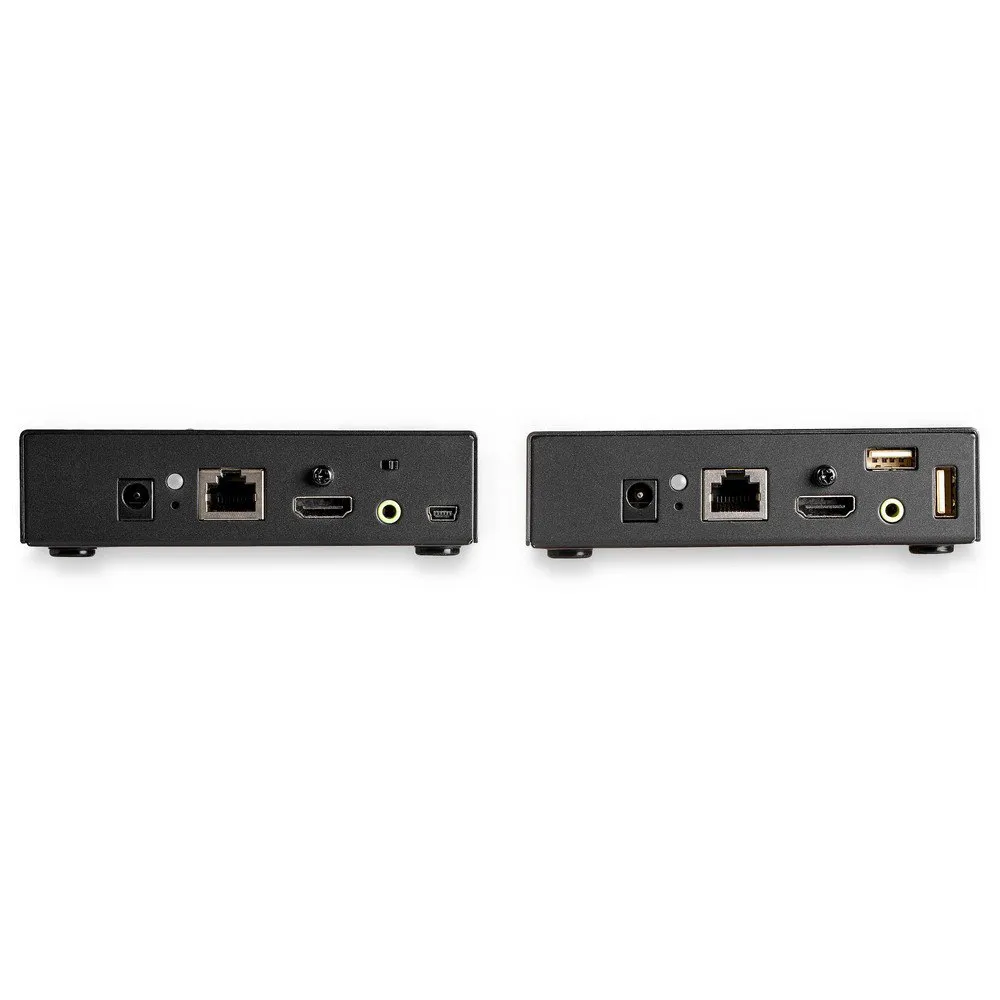

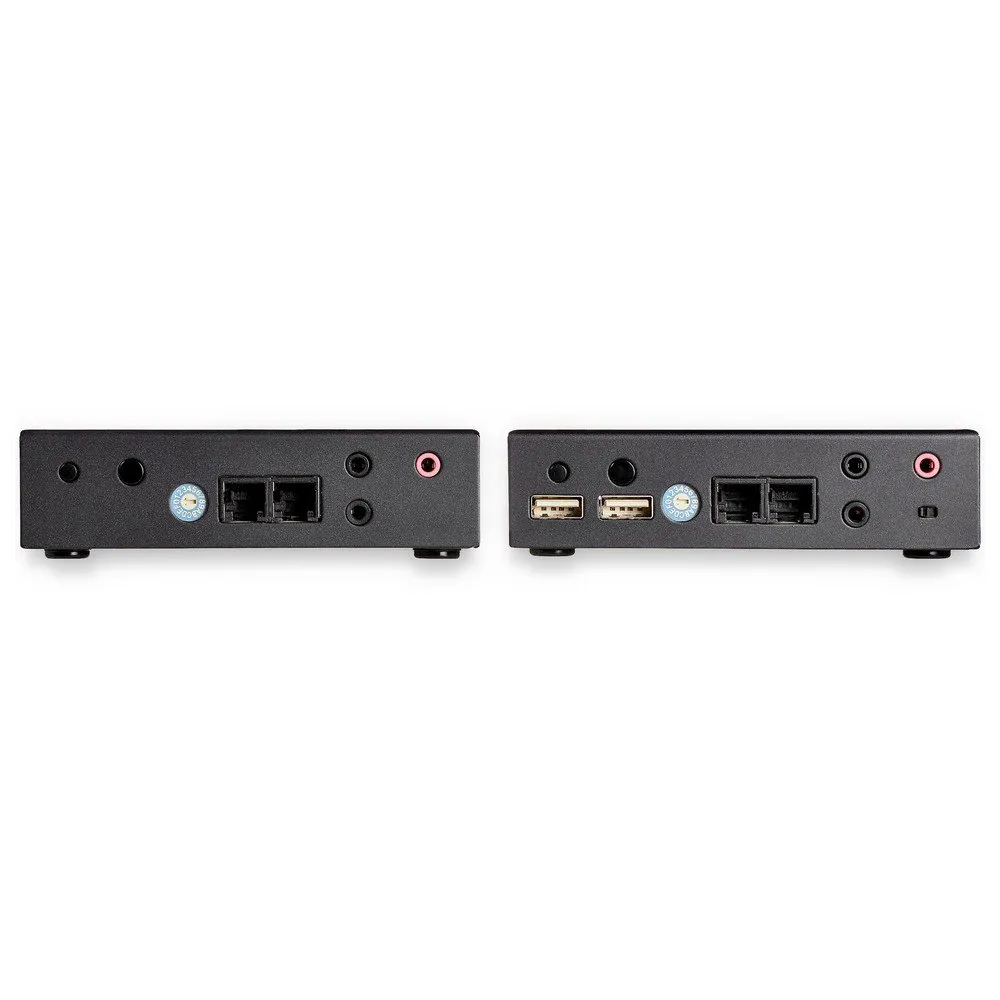

Connector(s):
- 1 - Local Unit Connectors: RJ-45/HDMI (19 pin)
- 1 - Remote Unit Connectors: RJ-45/HDMI (19 pin)
- 2 - Local Unit Connectors: RJ-11
- 2 - Remote Unit Connectors: RJ-11
- 2 - Local Unit Connectors: 3.5 mm Audio
- 2 - Remote Unit Connectors: 3.5 mm Audio
- 2 - Local Unit Connectors: 3.5 mm Mini-Jack (3 Position)
- 2 - Remote Unit Connectors: 3.5 mm Mini-Jack (3 Position)
- 1 - Local Unit Connectors: USB Mini-B (5 pin)
- 2 - Remote Unit Connectors: USB Type-A (4 pin) USB 2.0/USB Type-A (4 pin; HID Port) USB 1.1

Environmental:
- Operating Temperature: 0℃ to 40℃ (32°F to 104°F)
- Storage Temperature: -10℃ to 60℃ (14°F to 140°F)
- Humidity: 0% to 80%

Hardware:
- Audio: Yes
- Chipset ID: ASPEED - AST1520

Indicators:
- 1 - LED Indicators: Transmitter: Green - No Link; Blue - Good Link; Flashing Blue/Green - Linked but no video
- Transmitter: Flashing Orange - Network connection
- Receiver: Red - No Link; Blue - Good Link; Flashing Blue/Red - Linked but no video
- Receiver: Flashing Orange - Network connection

Packaging Information:
- Shipping (Package) Weight: 2.6 oz [75.0 g]
- Package Length: 7.7 in [19.5 cm]
- Package Width: 14.4 in [36.5 cm]
- Package Height: 9.3 in [23.5 cm]

Performance:
- Maximum Data Transfer Rate: 12MBps
- Maximum Cable Length: 328.0 ft [100 m]
- Maximum Digital Resolutions: 3840 x 2160 @ 30Hz (4K)

Supported Resolutions:
- 3840x2160 (4K) @ 30Hz
- 2560x1600
- 1920x1200 @ 60Hz
- 1920x1080 (1080p)
- 1280x720 (720p)

- Wide Screen Supported: Yes

Audio Specifications:
- 7.1 Surround Sound (HDMI)
- Analog Stereo Sound (3.5 mm)
- Analog Mono Microphone (3.5 mm)

- MTBF: 60000 hours

Physical Characteristics:
- Material: Steel
- Product Length: 5.1 in [13.0 cm]
- Product Width: 4.6 in [11.7 cm]
- Product Height: 1.1 in [28.0 mm]
- Weight of Product: 21.5 oz [610.0 g]

Power:
- Power Source: 2 AC Adapters Included
- Input Voltage: 100 - 240 AC
- Input Current: 0.6 A
- Output Voltage: 12V DC
- Output Current: 1.5A
- Center Tip Polarity: Positive
- Plug Type: M
- Power Consumption (In Watts): 18W

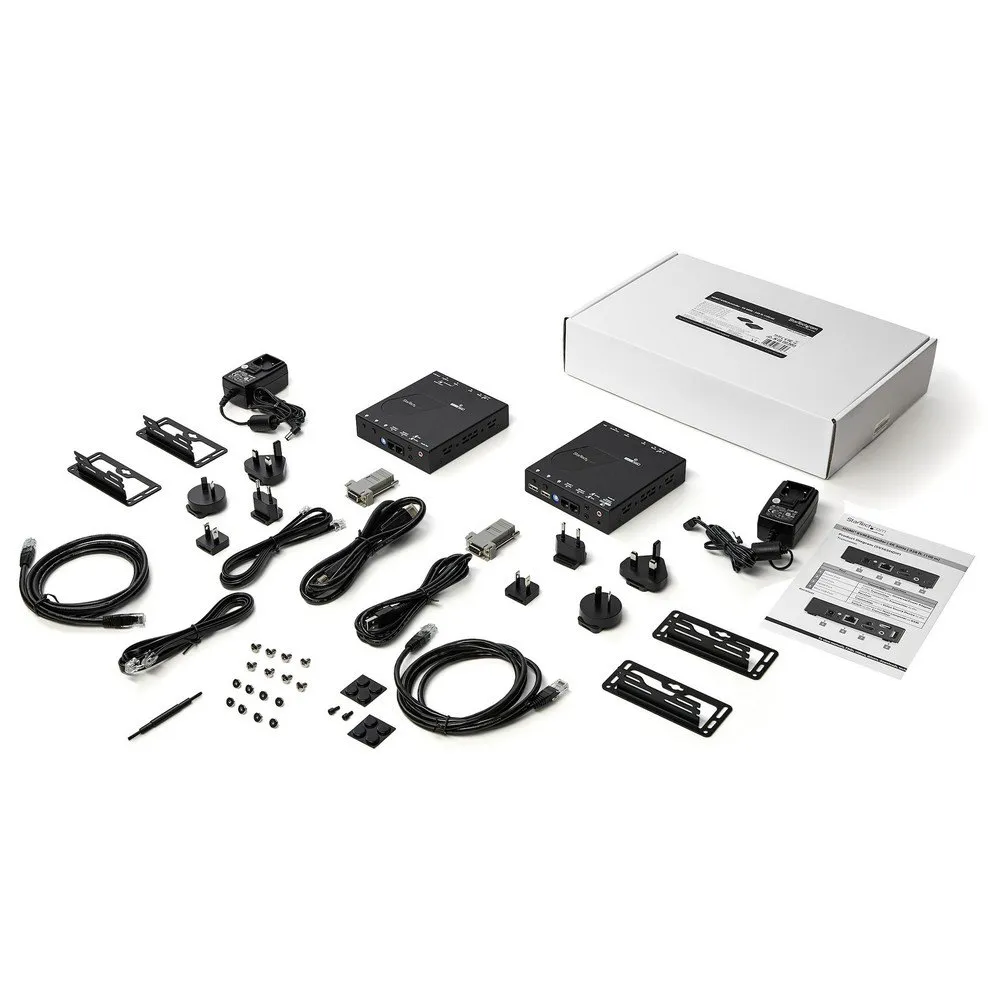

What´s in the Box:
- 1 - Included in Package: Transmitter Unit/Receiver Unit

2 - Included in Package:
- Universal Power Adapters (NA, JP, EU, UK, AU/NZ)
- Mounting Kits
- Ethernet Cables
- DB9 Serial Adapters
- RJ11 Serial Cables
- 1 - Included in Package: HDMI Cable (1.2 m)/USB Cable (1.5 m)
- 8 - Included in Package: Rubber Feet
- 1 - Included in Package: Plastic Screwdriver/Quick-Start Guide
