Startech Height Adjustable Arm Support

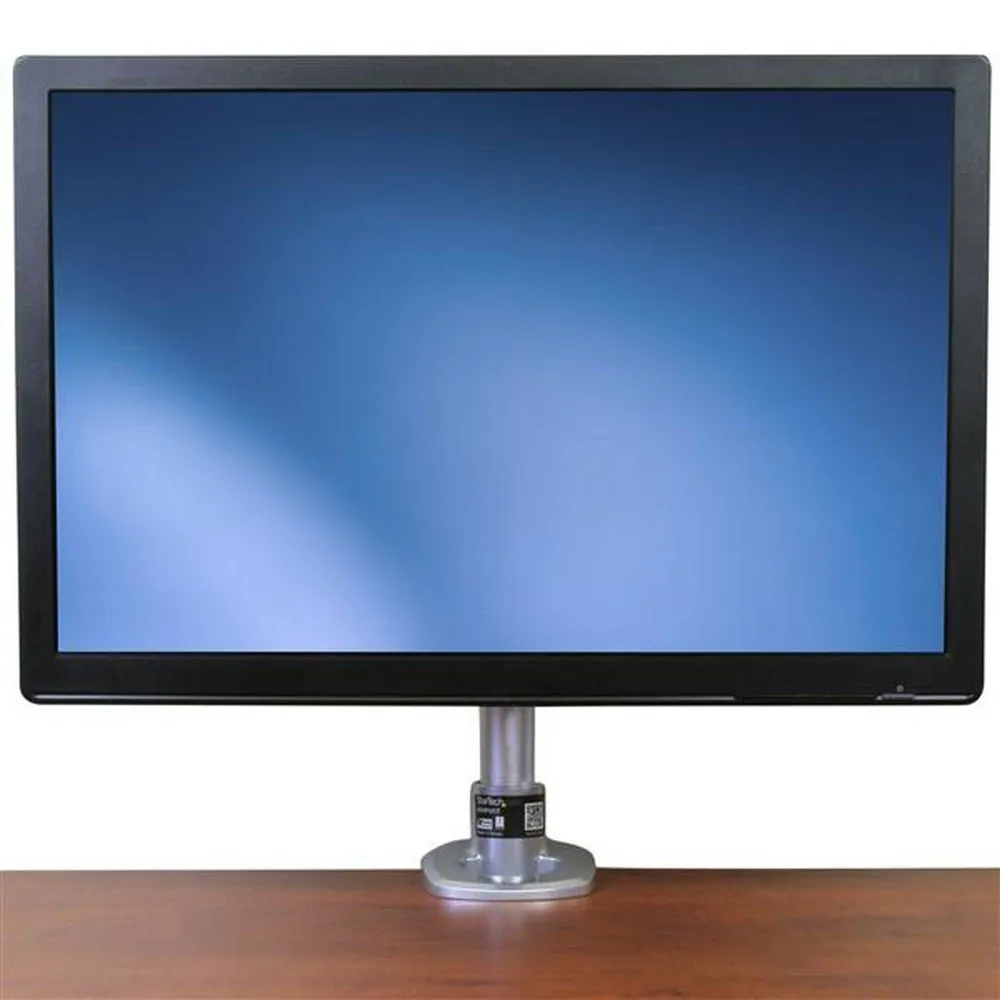

Save space and work in greater comfort with this monitor desk mount. The simple and stylish monitor pole lets you mount a single VESA mount monitor (75x75, 100x100) above your desk or table, and adjust the position of your display for ideal viewing.

Create an Ergonomic Work Space:

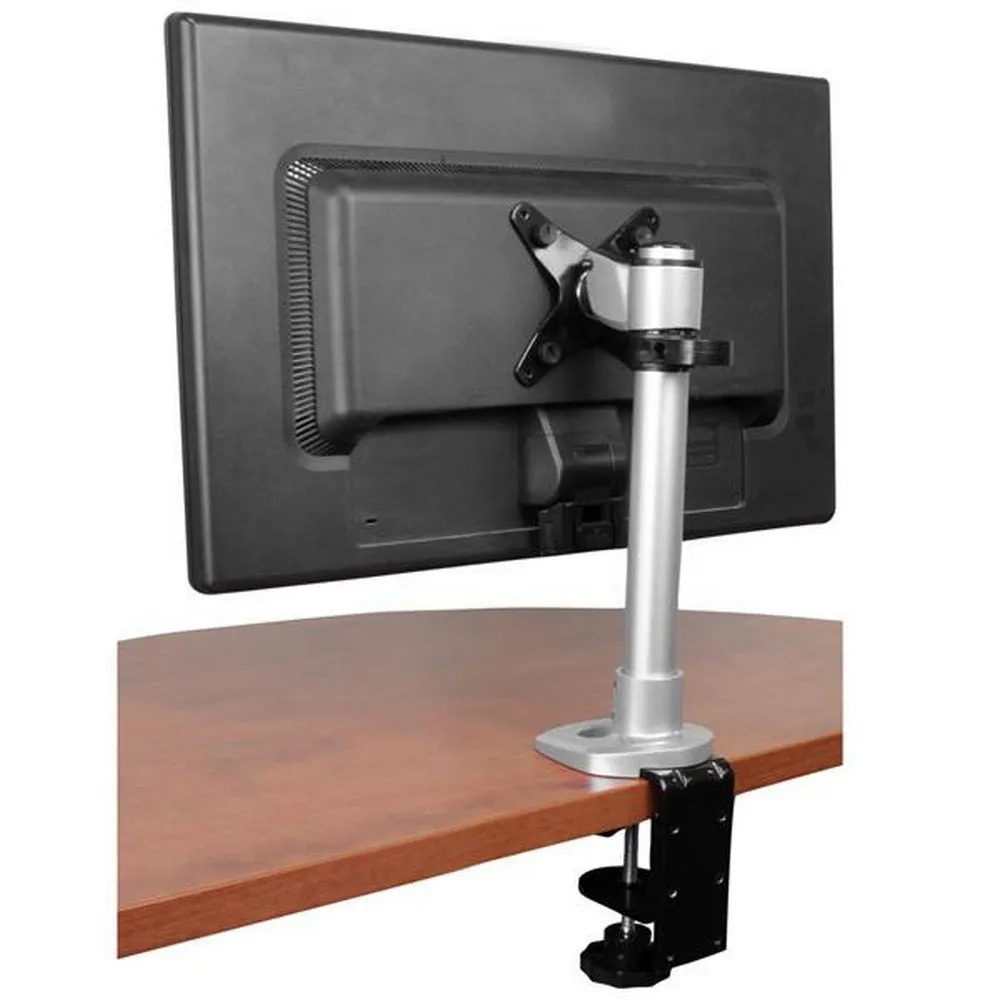

- With the computer screen mount, you can suspend your display on a support post above the desk surface and adjust your display height, position and viewing angles easily for an ergonomic work environment. The display mount gives you the added benefit of reclaiming valuable workspace on your desk. The steel single-monitor mount securely supports displays up to 34´´, with a maximum weight of 30.9 lb. (14 kg).

Easy Height Adjustment Along the Pole:

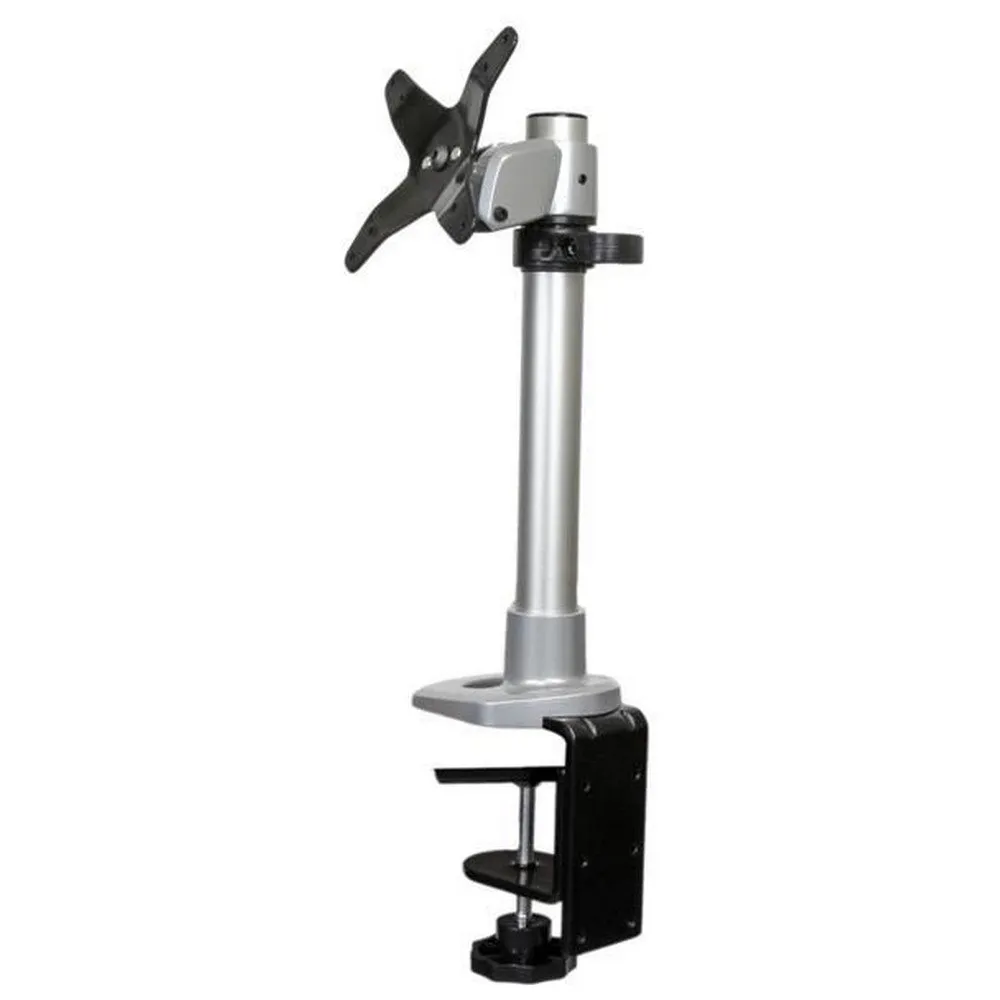

- The height adjustable monitor arm features an 11.89´´ (302mm) tall support post, so you can adjust the height of your monitor along the pole.

Adjust your Screen Position:

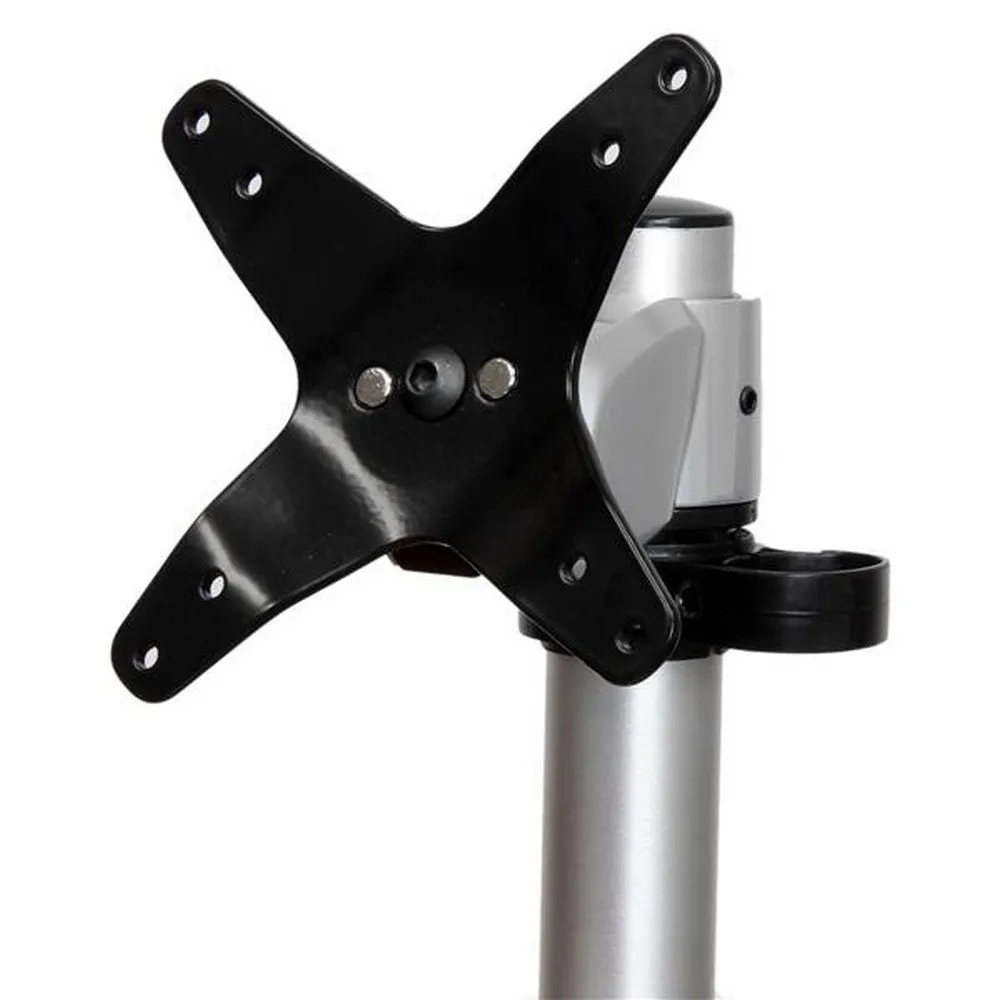

- Enjoy optimum viewing with easy tilt adjustment. The VESA mount can be rotated 360 degrees around the support pole to adjust your screen position. For viewing longer pages or blocks of code without scrolling, the monitor arm also supports landscape to portrait display rotation.

Steel Construction:
- The display mount is made of steel for long-lasting performance.

Easy and Flexible Installation:

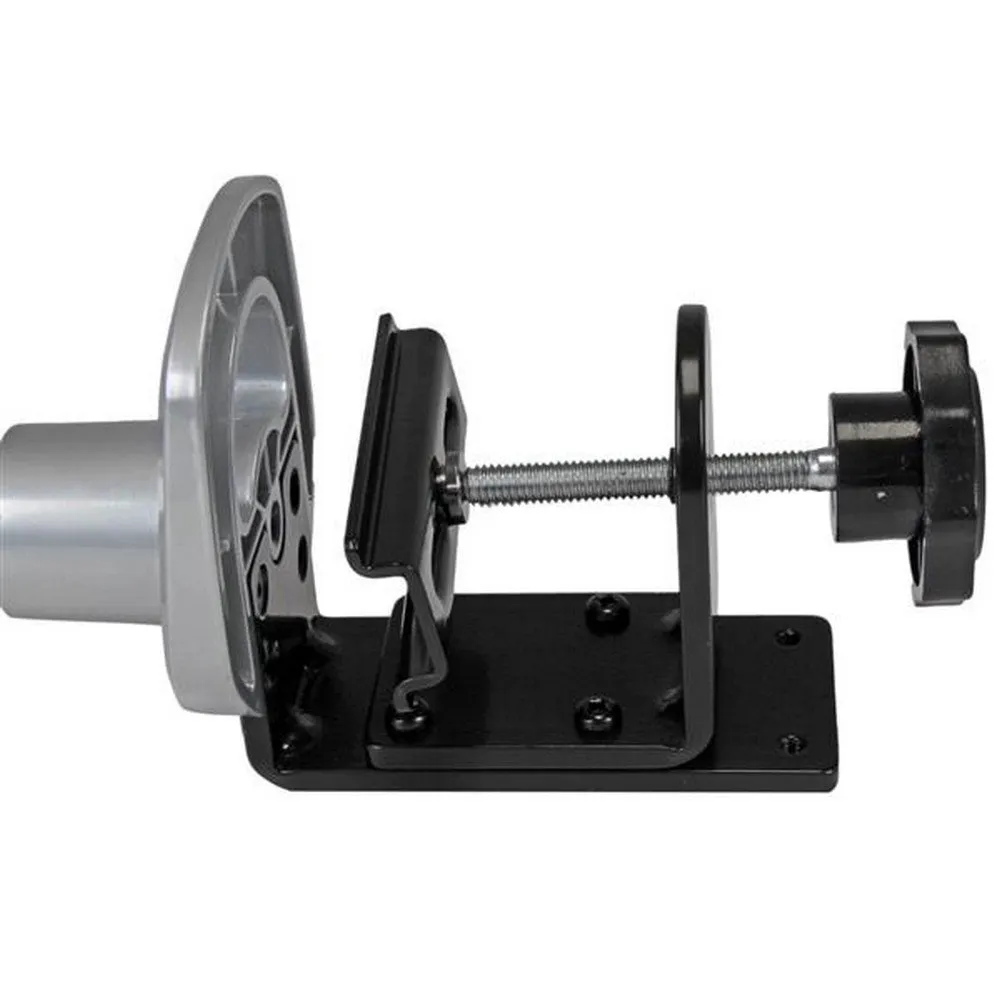

- The desk clamp monitor mount is easy to install. For added installation flexibility, the included mounting hardware can either clamp to the side of your desk, or mount through a grommet hole. The display mount integrates a cable management hook to keep things neat.

The TAA compliant ARMPIVOT is backed by a StarTech.com 10-year warranty and free, lifetime technical support.

Applications:
- Mount a display to a desk, table or counter to save space in commercial environments Create an ergonomic workspace in office environments Rotate your display from landscape to portrait position for web design or coding
- Create an ergonomic workspace in office environments
- Rotate your display from landscape to portrait position for web design or coding


Specifications:

Warranty Information:
- Warranty:10 Years

Hardware:
- Articulating:No
- # of Displays Supported:1

Mounting Options:
- Desk & Grommet Clamp
- Wallmountable:No
- VESA Hole Pattern(s)
- 75x75 mm
- 100x100 mm
- Mounting Surface Thickness
- Desk Clamp: Table Thickness 0.78 - 3.93 in. (20 - 100 mm)
- Grommet Clamp: Table Thickness 0.78 - 1.96 in. (20 - 50 mm)
- Grommet Mount Hole Size: 0.39 - 2.36 in. (10 - 60 mm)

Packaging Information:
- Package Height:132 mm [5.2 in]
- Package Length:54.8 cm [21.6 in]
- Shipping (Package) Weight:2.6 kg [5.7 lb]
- Package Width:14.5 cm [5.7 in]

Performance:
- Weight Capacity (Per Display):14000
- Maximum Display Size:34´´
- Fits Curved Display:Yes
- Fits UltraWide Displays:Yes
- Height Adjustment:Yes
- Display Tilt:+90° / -15°
- Swivel / Pivot:360° around the support post
- Display Rotation:360°
Physical Characteristics

Product Height:0 cm [0.0 in]
- Product Length:0 cm [0.0 in]
- Weight of Product:1974.939 g [69.7 oz]
- Product Width:0 mm [0.0 in]
- Material:Steel and Plastic
- Special Notes / Requirements

Note:
- This mount supports monitors up to 34”, including flat screen, curved and ultrawide displays, with a max weight of 30.9 lb. (14 kg). If you choose to use an ultrawide display in portrait position, the mount supports ultrawide displays with a max width of 20´´ (50.8 cm).

What´s in the Box:
- Included in Package
- 1 - Support Post
- 1 - Monitor Mount
- 1 - Large C Clamp
- 1 - Small C Clamp
- 1 - Hand Screw
- 1 - Pressure Plate
- 4 - Thumb Screws
- 4 - M6x12mm Phillips Screws
- 4 - M5x14mm Hex Screws
- 1 - M4x15mm Phillips Screw
- 1 - Male Round Washer
- 1 - Female Round Washer
- 1 - Cable Clip
- 1 - EVA Cushion
- 1 - M3 (2.5mm) Allen Wrench
- 1 - Instruction Manual
