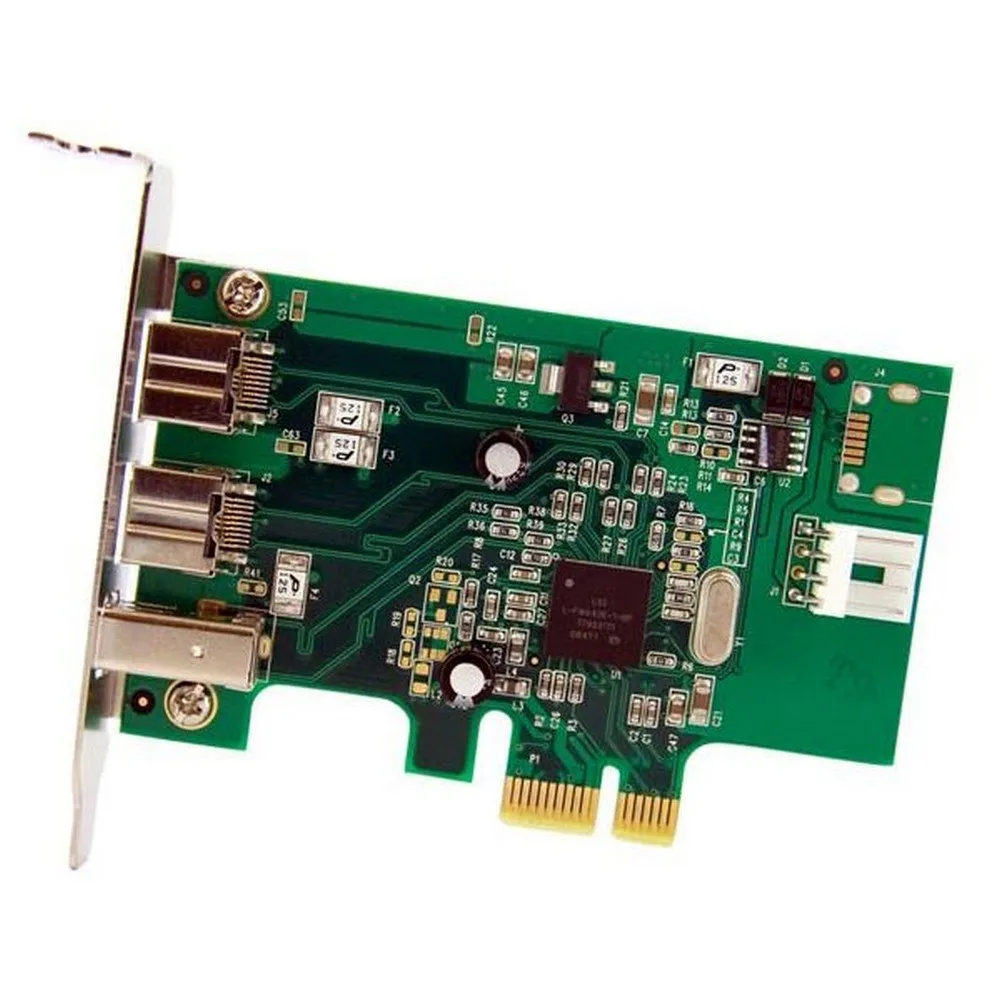

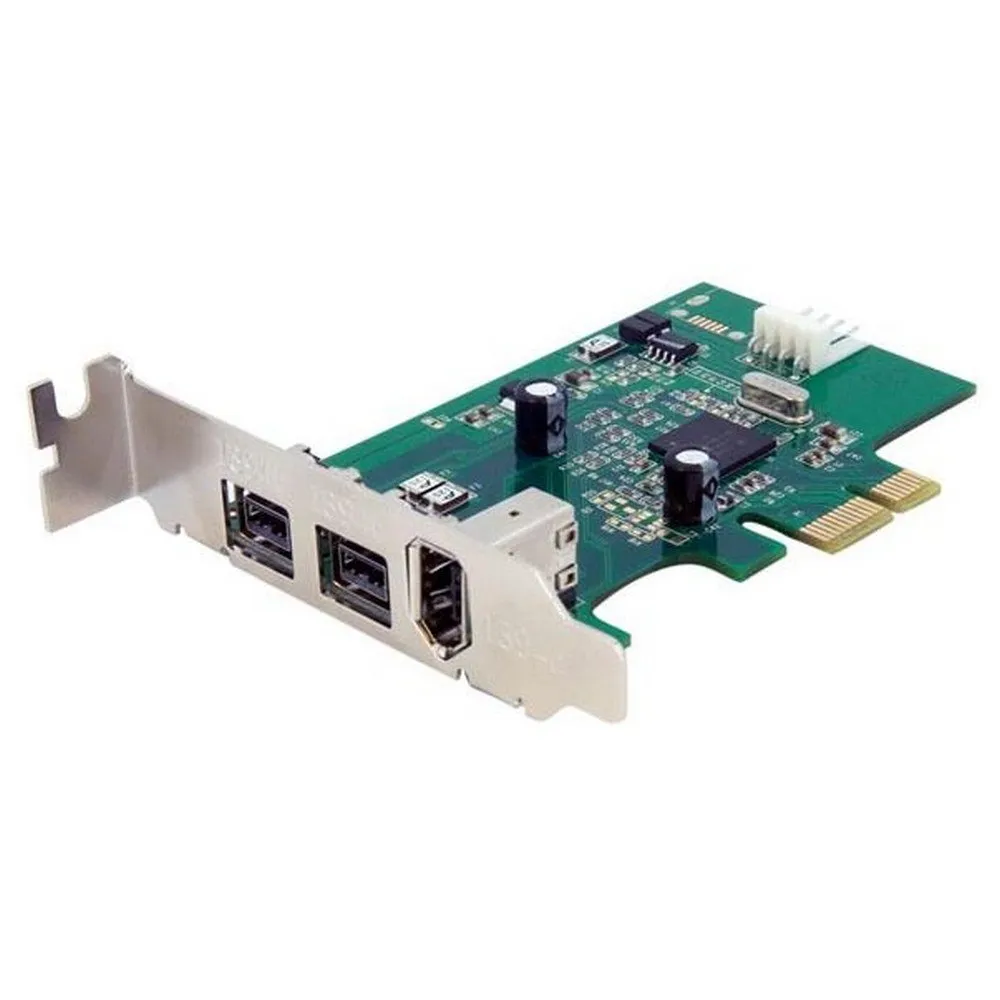

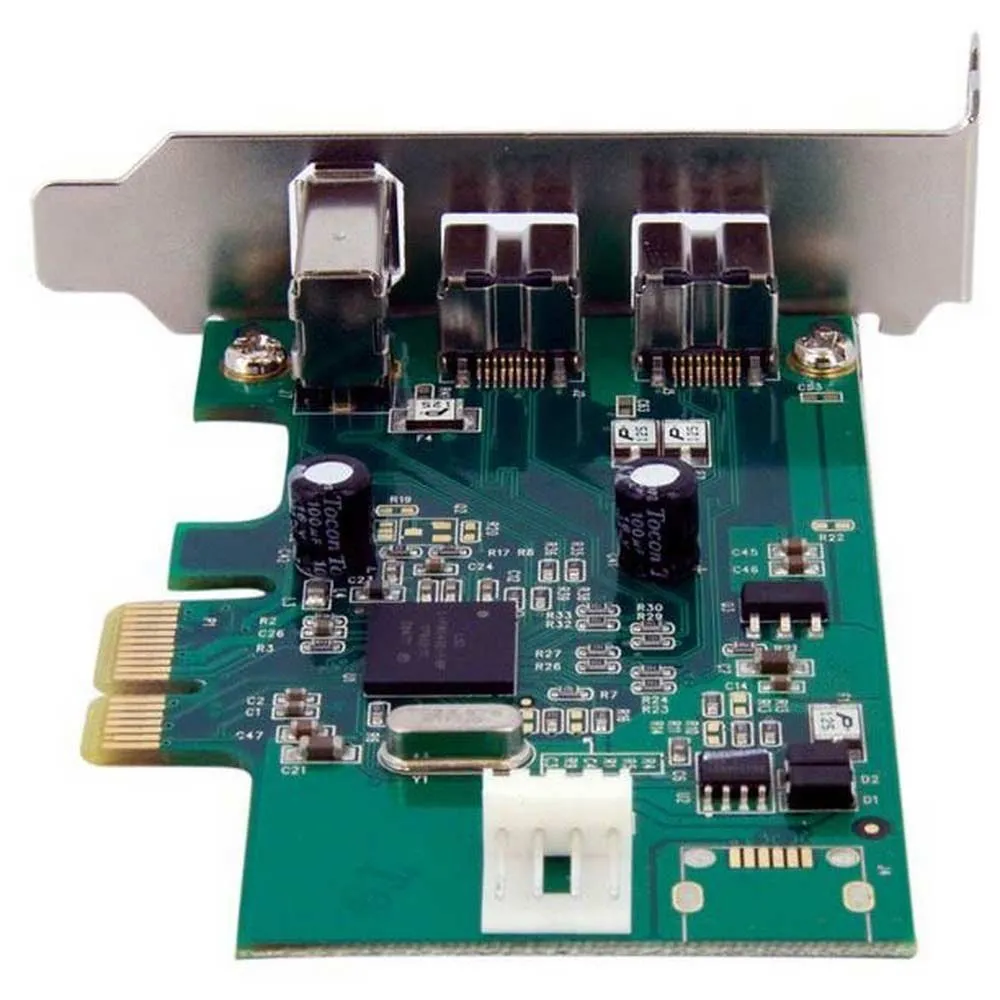

Startech ICUSB2322X FireWire PCIe Network Card

This 3 Port PCI Express FireWire card comes equipped with a low profile bracket for installation in small form factor PCs, and includes an optional full-size bracket for installation in a standard-sized PC case.

The FireWire card can be installed in a PCIe slot to add two IEEE1394b (FireWire 800.

- 9 pin) ports and one IEEE1394a (FireWire 400.

- 6 pin) port, providing broad compatibility with a wide range of FireWire devices (e.g.

DV camcorders, external hard drives, digital cameras, etc.).

The 2x FireWire 800 and 1x FireWire 400 card features a native (single chip) PCI Express chipset, which provides faster, more reliable and cost-effective performance than expansion cards that utilize a ´´bridge´´ chip.

Features:

- Two 9-pin FireWire 800 ports, each with transfer rates up to 800Mbps.

- One 6-pin FireWire 400 port, each with transfer rates up to 400Mbps.

- Includes full/standard profile installation bracket.

- Built with a native PCI Express chipset, no bridge chip.

- Internal power connector for high-powered FireWire devices.

- Compliant with IEEE 1394b and backwards compatible with IEEE 1394a.

- 2000 as well as 1394-1995 standards.

- Plug-and-Play and hot-swap compatible Compatibility:

- Windows® 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2016, 2019 macOS 10.6 to 10.15, 11.0 Linux 3.5.x to 4.4.x LTS Versions Only.

Specifications:

Connector(s):

- 1.

- Connector Type(s):

PCI Express x1.

- 1.

- Internal Ports:

LP4 (4 pin.

Large Drive Power).

- 2.

- External Ports:

FireWire 800 (9 pin, IEEE 1394b).

- 1.

- External Ports:

FireWire 400 (6 pin, IEEE 1394a) Environmental:

- Operating Temperature:

0°C to 70°C (32°F to 158°F).

- Storage Temperature:

-20°C to 90°C (-4°F to 194°F).

- Humidity:

0~90% RH Hardware:

- Ports:

3.

- Interface:

FireWire 800 (1394b).

- Bus Type:

PCI Express.

- Card Type:

Low Profile (SP bracket incl.).

- Interface:

FireWire 400 (1394a).

- Industry Standards:

IEEE-1394/1394A/1394B.

- OHCI:

PCI Express 1.1.

- Chipset ID:

Texas Instruments.

- XIO2213B.

Performance:

- Maximum Data Transfer Rate:

400/800 Mbps.

- Type and Rate:

FireWire 800 IEEE-1394b.

- 800 Mbit/s FireWire 400 IEEE-1394a.

- 400 Mbit/s.

- MTBF:

149,905 hours Physical Characteristics:

- Weight of Product:

1,5 oz [43 g].

- Material:

Steel.

- Product Length:

3,3 in [85 mm].

- Product Width:

2,3 in [58 mm].

- Product Height:

0,8 in [20 mm] Software:

OS Compatibility:

- Windows® 2000, XP, Vista, 7, 8, 8.1, 10.

- Windows Server® 2003, 2008 R2, 2012, 2016, 2019.

- macOS 10.6 to 10.15, 11.0.

- Linux 3.5.x to 4.4.x LTS Versions Only Special Notes / Requirements:

- System and Cable Requirements:

PCI Express enabled computer with an available PCI Express x1 slot or higher What´s in the Box:

- 1.

- Included in Package:

PCI Express FireWire Card.

- FireWire Cable:

Full Profile Bracket.

- Software CD:

Instruction Manual.
