Startech ICUSB2324 USB docking station 4 ports

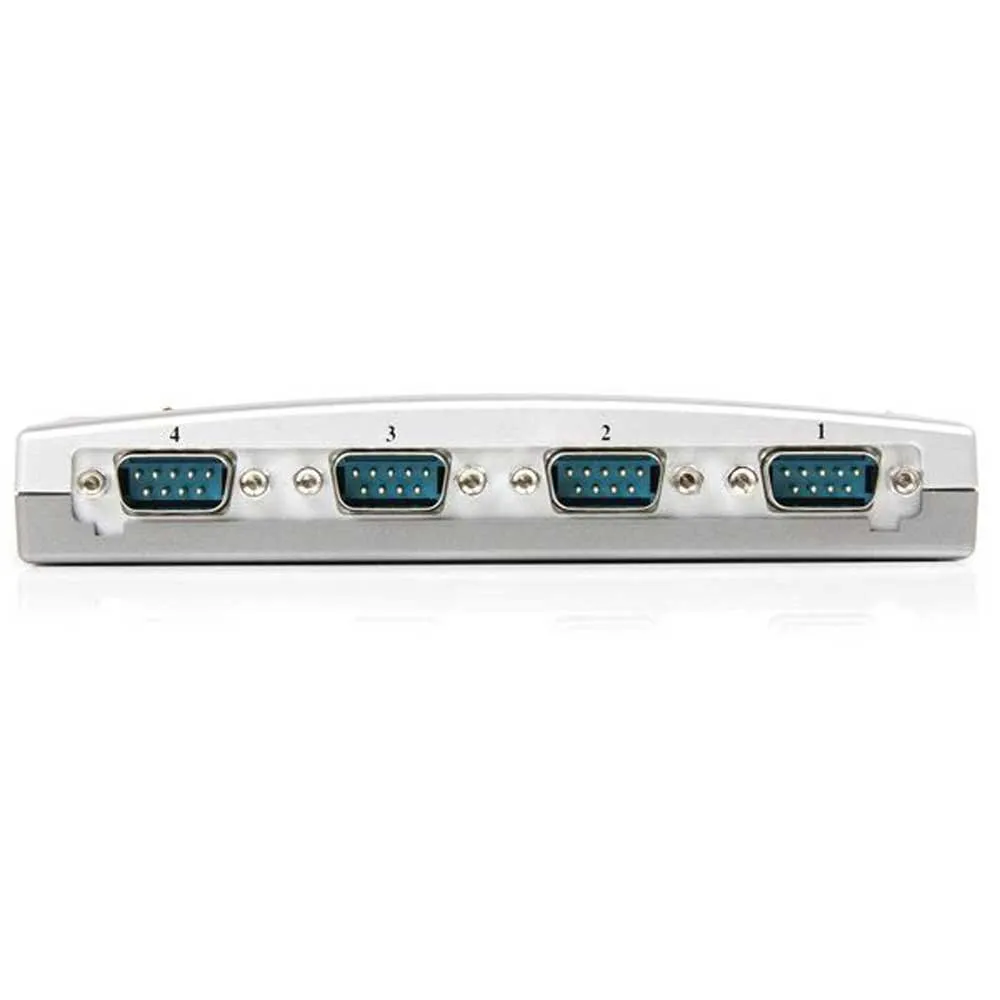

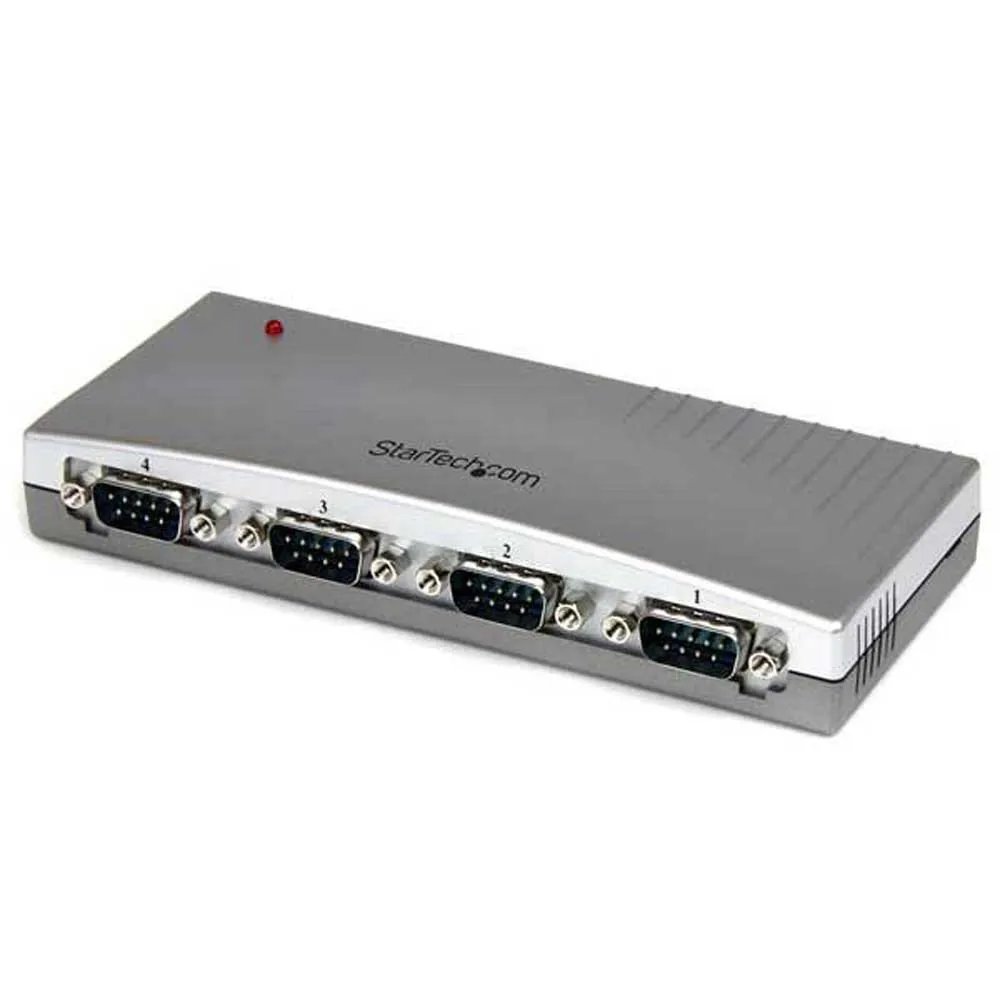

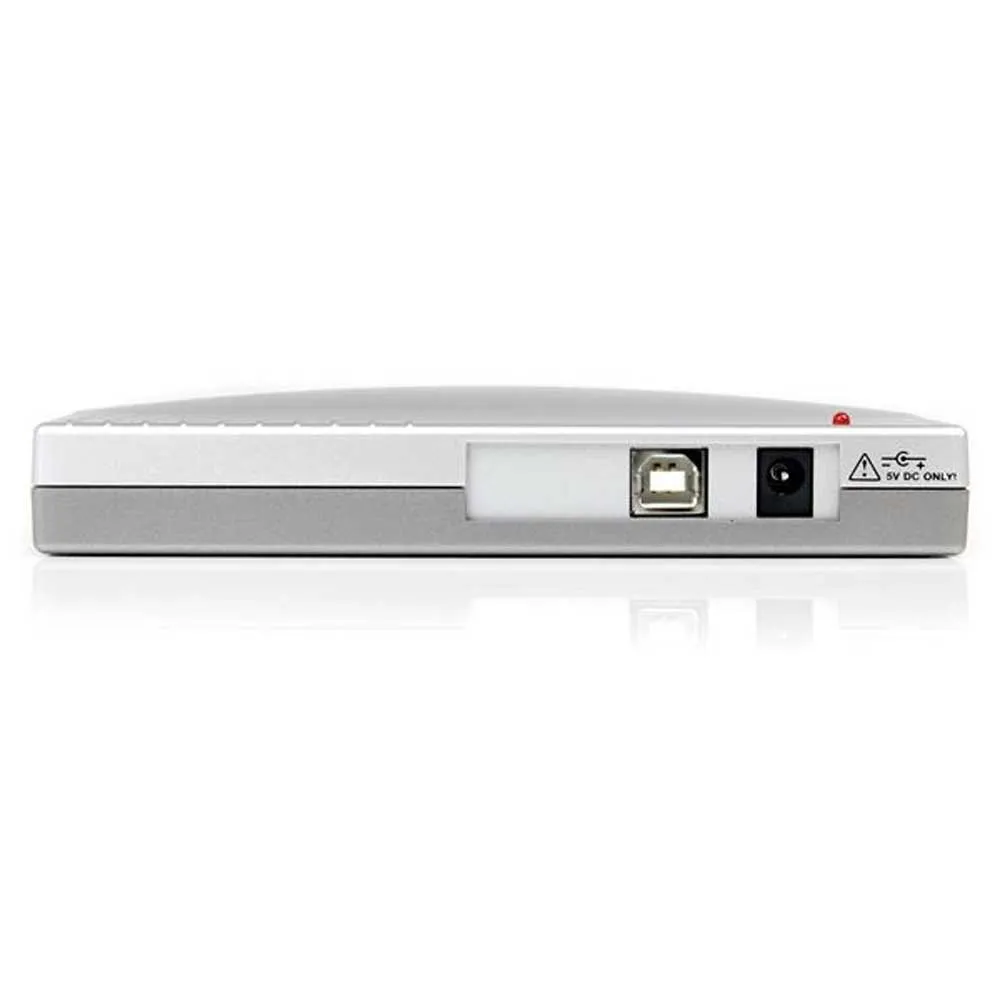

This 4 Port USB to RS232 Serial Hub lets you connect up to four RS232 serial devices to your Mac or PC laptop or desktop computer through a single USB port, as though the computer offered built-on DB9M serial connectors.

The RS232 Serial Hub is compactly designed to preserve valuable workspace, and is bus-powered to eliminate the need for an external power adapter.

A cost-effective solution that bridges the compatibility gap between modern USB-capable computers and legacy RS232 serial peripherals, this dependable USB/RS232 Serial Adapter hub is backed by StarTech.

Applications:

- Connect modems, digitizer tablets, mice, bar code scanners, GPS receivers, ISDN terminal adapters, mobile phones, scanners, UPSes and POS equipment to your system.

- Connect and program LED and Digital signage boards with serial communication ports The StarTech.com Advantage:

- Add four additional RS-232 serial ports to any computer with a free USB port.

- Supports wakeup and power management modes.

- Provides serial connectivity to legacy free systems lacking RS-232 serial ports Compatibility:

- Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10.

- Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019.

- macOS 10.6 to 10.15, 11.0.

- Linux Kernel 3.0.x.

- 5.4.x (LTS Versions Only).

Specifications:

Connector(s):

- 1.

- Connector Type(s):

USB Type-A (4 pin) USB 2.0.

- 4.

- External Ports:

DB-9 (9 pin, D-Sub) Environmental:

- Operating Temperature:

0°C to 55°C (32°F to 131°F).

- Storage Temperature:

-20 to 85°C (-4 to 185°F).

- Humidity:

5~95% RH Hardware:

- Ports:

4.

- Interface:

Serial.

- Bus Type:

USB 2.0.

- Port Style:

External Hub.

- Industry Standards:

RS232.

- Chipset ID:

FTDI.

- FT232RL Packaging Information:

- Package Height:

2.1 in [53 mm].

- Package Length:

8.7 in [22 cm].

- Shipping (Package) Weight:

13.3 oz [378 g].

- Package Width:

5.9 in [15 cm].

Performance:

- Serial Protocol:

RS-232.

- Max Baud Rate:

921.6 Kbps.

- FIFO:

256 Bytes Physical Characteristics:

- Weight of Product:

6.2 oz [175 g].

- Material:

Plastic.

- Cable Length:

6.0 ft [1.8 m].

- Product Length:

5.9 in [15 cm].

- Product Width:

2.6 in [66.5 mm].

- Product Height:

1.0 in [26 mm] Power:

- Power Consumption (In Watts):

1 ~ 1.5W Software:

OS Compatibility:

- Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10.

- Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019.

- MacOS 10.6 to 10.15, 11.0.

- Linux Kernel 3.0.x.

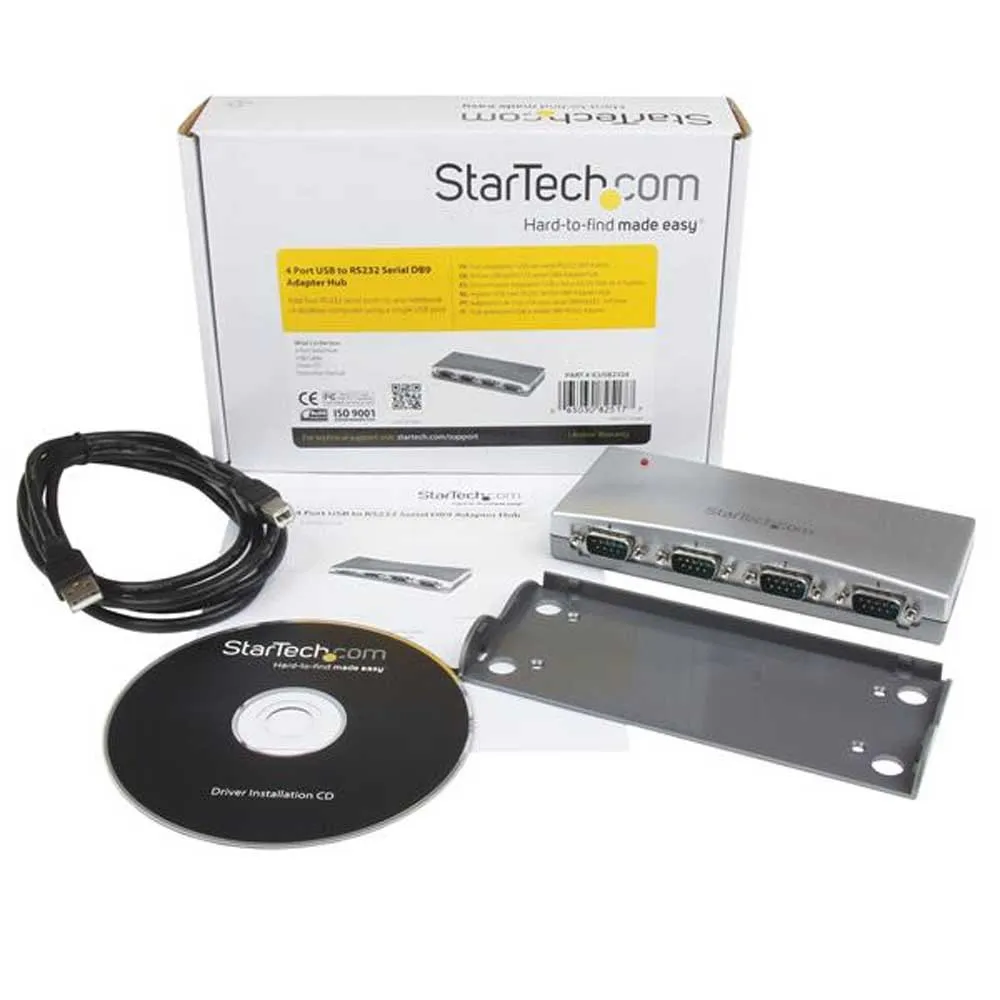

- 5.4.x (LTS Versions Only) What´s in the Box:

- 1.

- Included in Package.

- 4 Port Serial Hub.

- USB Cable.

- Mounting Bracket.

- Driver CD.

- Instruction Manual.
