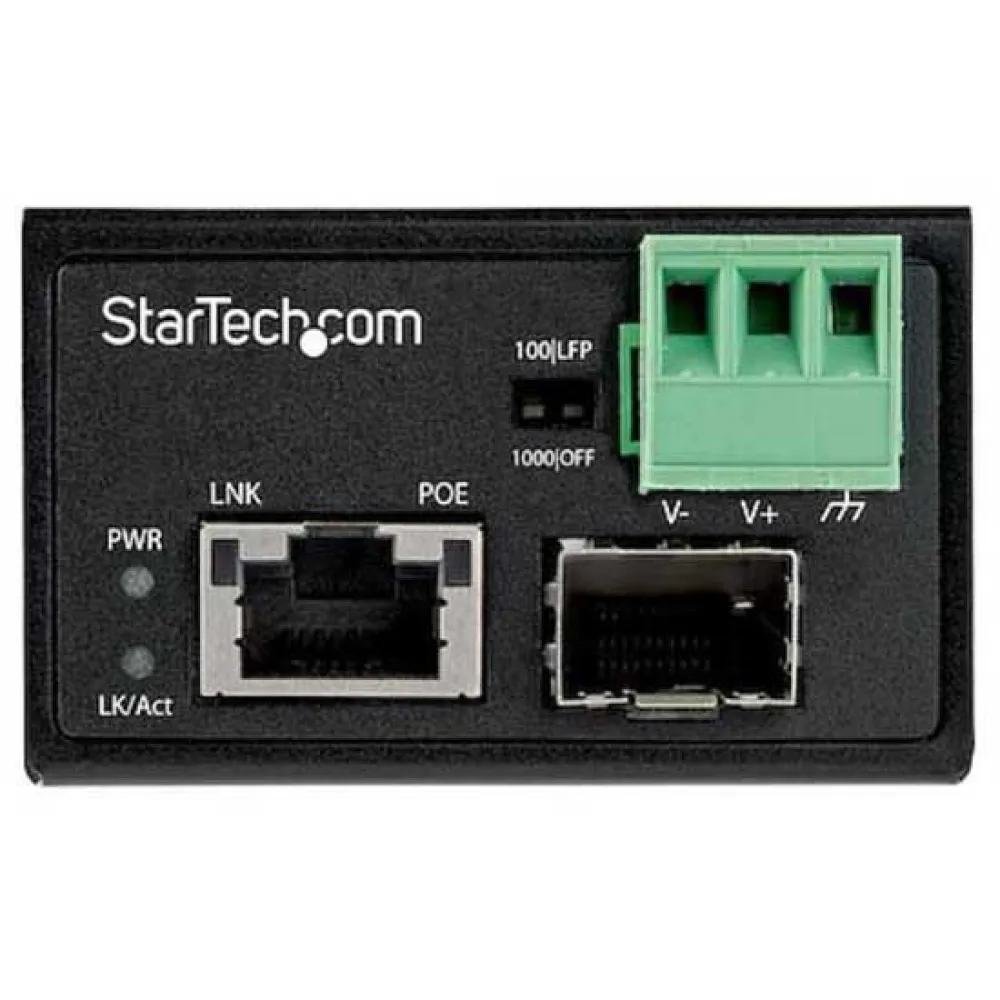

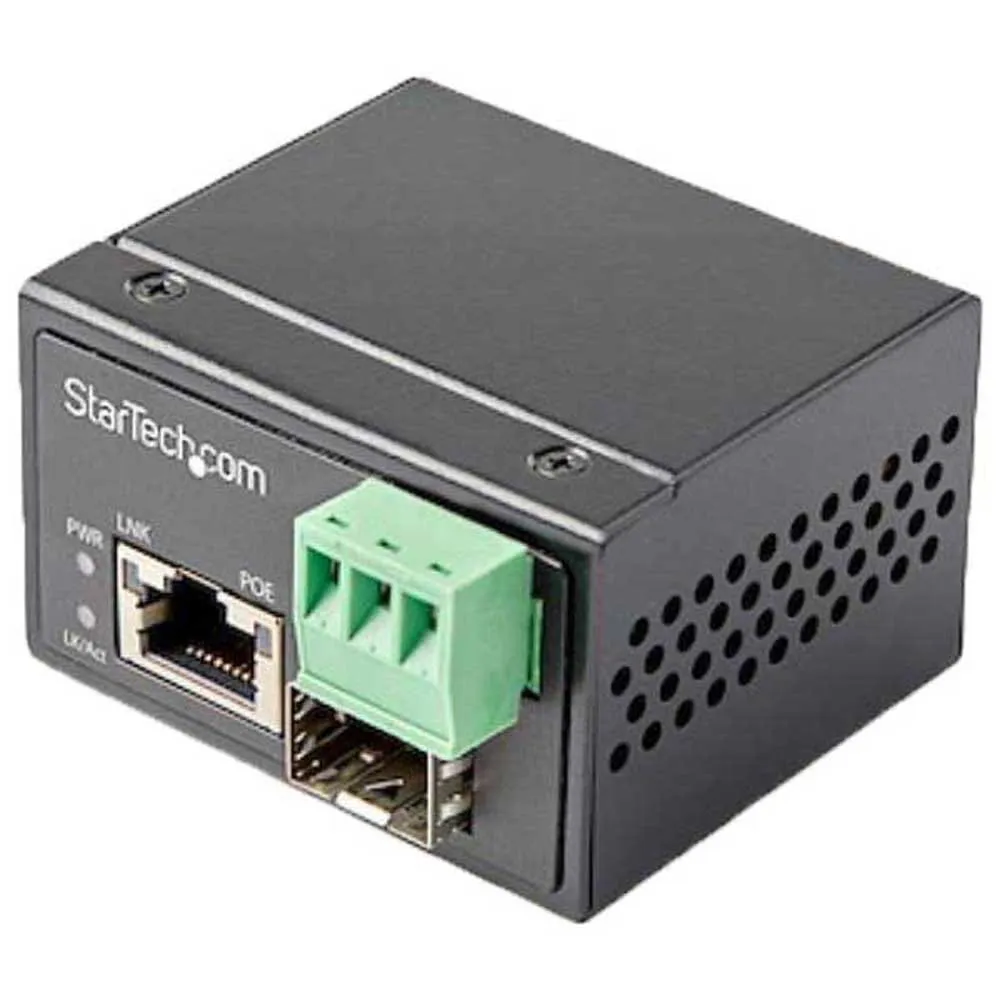

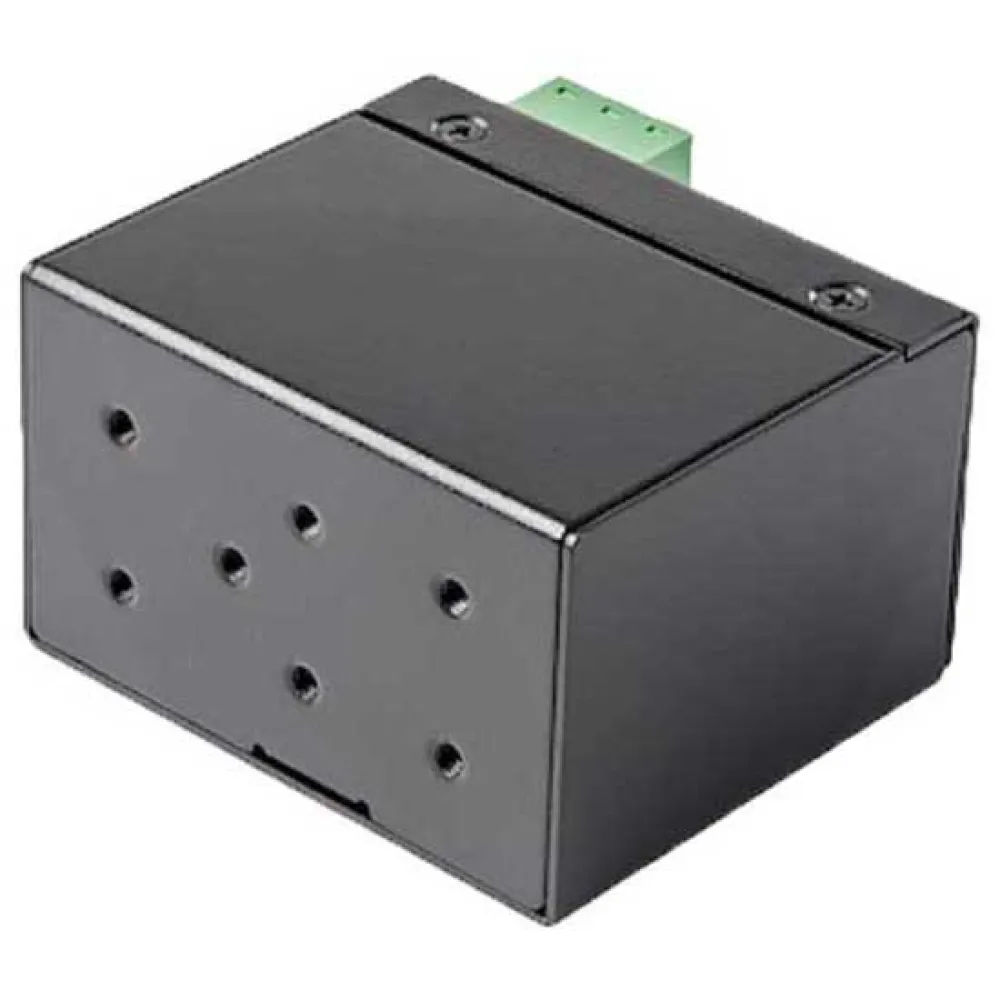

Startech IMC1GSFP30W Adapter

Specifications:

Network:

- Maximum data transfer rate:

1000 Mbit/s.

- Networking standards:

IEEE 802.3,IEEE 802.3u,IEEE 802.3z.

- Jumbo frames support:

Yes.

- Jumbo frames:

16000.

- Flow control support:

Yes.

- Duplex system:

Full Ports & interfaces:

- Connectivity.

Technology:

Wired.

- Ethernet LAN (RJ-45) ports:

1.

- Fiber ports quantity:

1.

- Fiber optic connector:

SFP.

Performance:

- Maximum transfer distance:

100 m.

- Fiber mode structure:

Multi-mode, Single-mode.

- Buffer size:

512 KB.

- Mean time between failures (MTBF):

500000 h Design:

- Internal:

No.

- Housing material:

Aluminium.

- International Protection (IP) code:

IP30.

- DIN rail mounting:

Yes.

-.

Certification:

CE, FCC Power:

- Input voltage:

48.

- 56 V.

- Power supply PoE:

Yes Power:

- Total Power over Ethernet (PoE) budget:

30 W.

- Power plug type:

Type N Weight & dimensions:

- Width:

36 mm.

- Depth:

59 mm.

- Height:

49 mm.

- Weight:

80 g Operational conditions:

- Operating temperature (T-T):

-40.

- 75 °C.

- Storage temperature (T-T):

-40.

- 85 °C.

- Operating relative humidity (H-H):

5.

- 95% Packaging data:

- Package width:

155 mm.

- Package depth:

105 mm.

- Package height:

64 mm.

- Package weight:

204.9 g Packaging content:

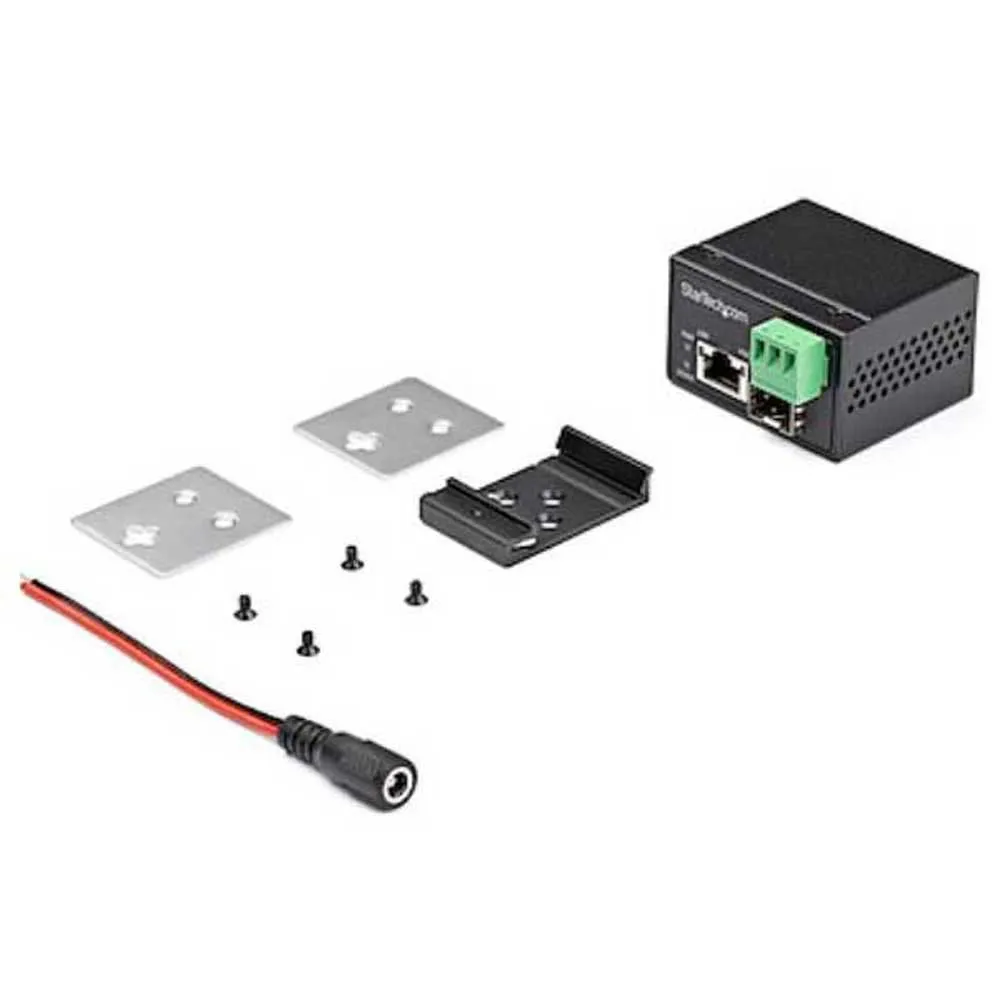

- Quick installation guide:

Yes.
