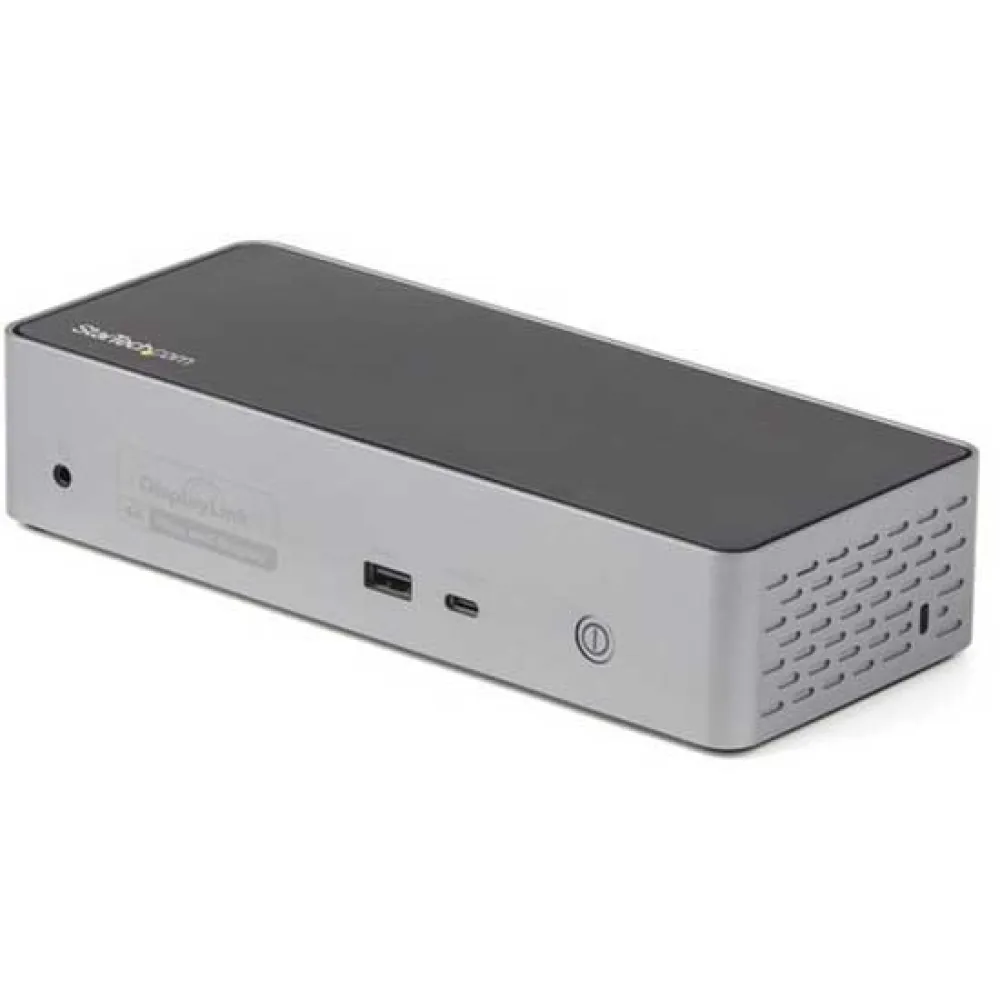

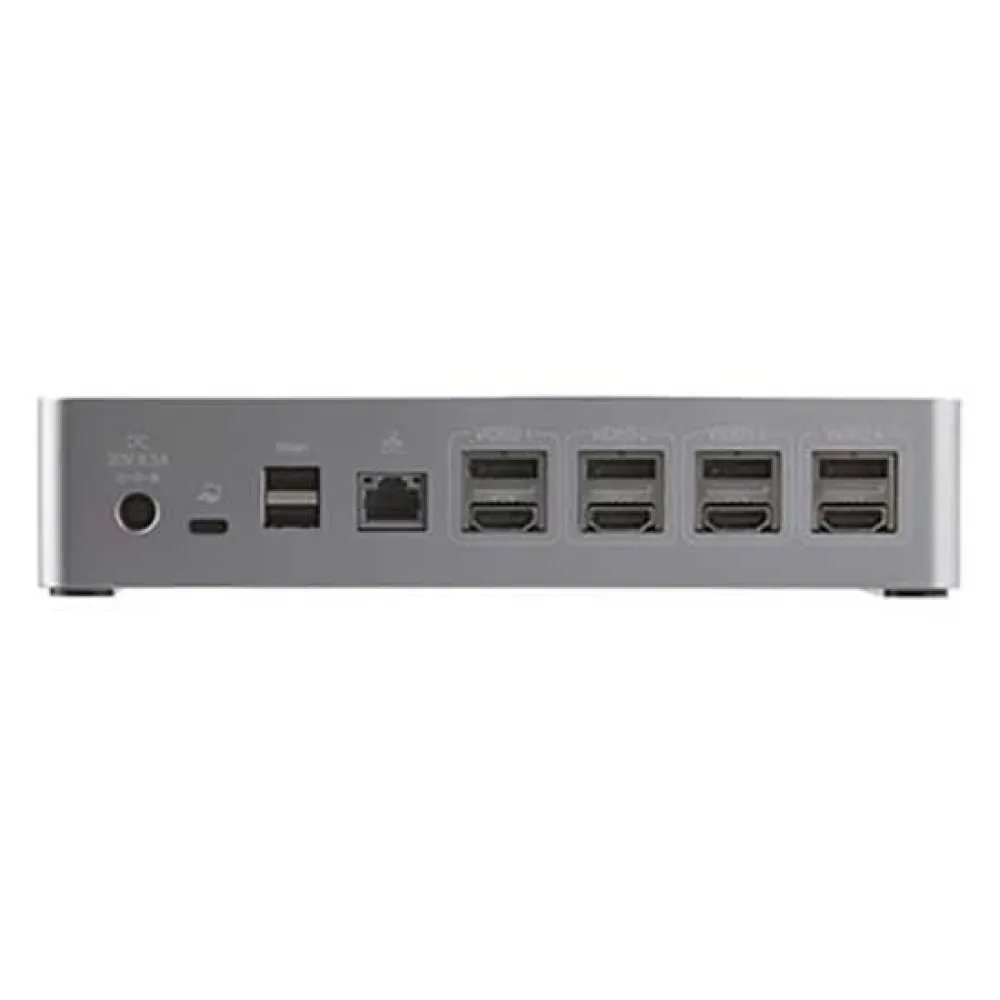

Startech Mini docking station 100W

This Usb-C Gen 2 10gbps Docking Station Turns Your Usb-C ® Or Thunderbolt™ 3 Macbook Pro, Windows Laptop, And Chromebook Into A Powerful Workstation. A Usb 3.2 Gen 2 Type-C Dock Features Everything You Need, From Quad Hdmi Or Displayport Video Outputs Up To 4k 60 Hz To 10gbps Usb-C & Usb-A Downstream Peripheral Ports To 100w Power Delivery.

Hdmi & Displayport For Four Monitor Outputs:
- This Usb-C Gen 2 Docking Station With Dp 1.2 And Hdmi 2.0 Hdr Support, Is A Perfect Choice For Dual, Triple, Or Quad Monitor Setup, Supporting Up To Quad 4k 60hz Display Output, With Any Combination Of Four Displayport Or Hdmi Video Interfaces, On Usb-C Gen 2 Laptops, Macbooks (Including M1 Based Systems) And Windows-Based Thunderbolt 3 Laptops.

Power & Charge With 100w Power Delivery:
Power And Charge Usb-C/Thunderbolt 3 Workstation Laptops & Ultrabooks With 100 Watt Pd. Higher Power Delivery, More Than Other Usb-C 10gbps Quad Monitor Docks. Charge Smartphones And Other High Powered Devices With Two Downstream Front-Facing Charging Ports With Bc 1.2 For Usb-A And Usb-C Devices. Fast-Charge Ports Support Always-On Charging So Devices Will Charge Whether Or Not A Host Laptop Is Connected.

Additional Security Features:

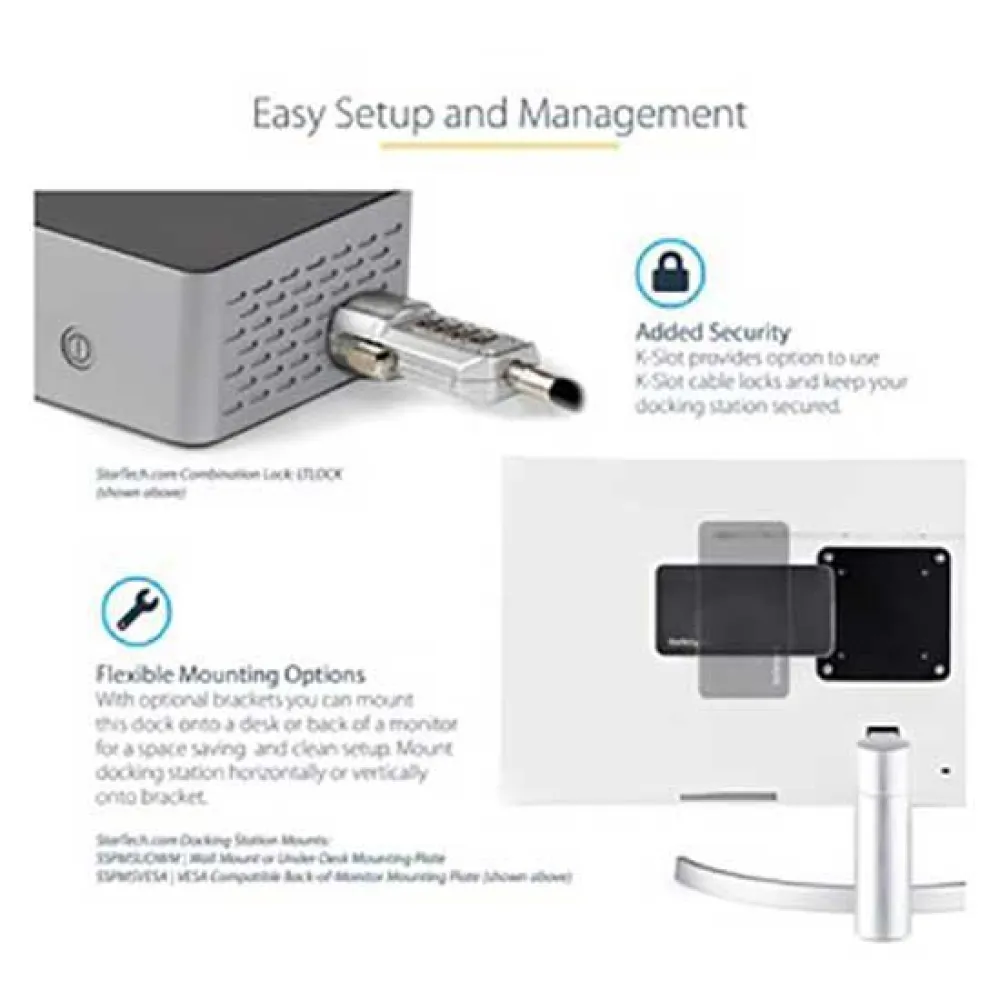

- This Usb-C Docking Station Comes With Plenty Of Security Features A K-Slot For A Kensington Style Laptop Lock And Holes To Mount The Dock On The Desk Or Wall And Includes A Usb-If Certified 1m Usb-C Cable.

Extra Ventilation:

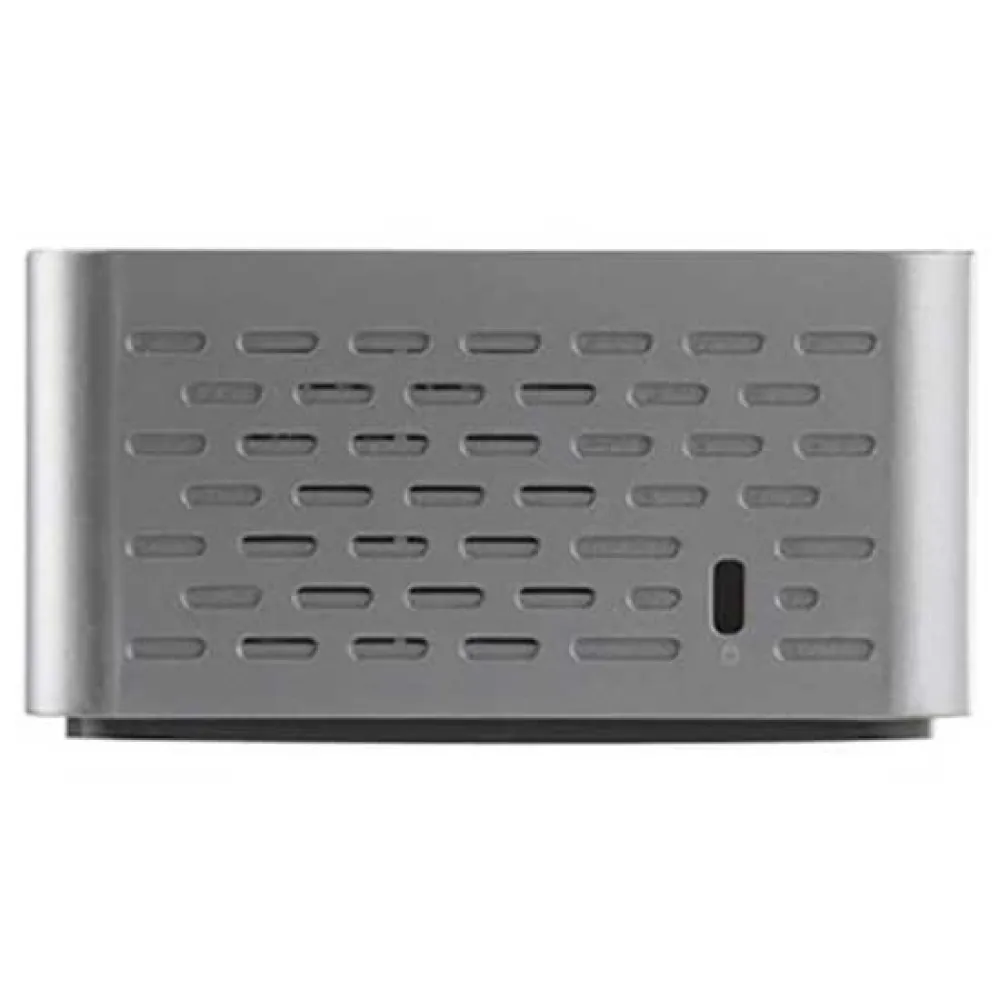

- Usb-C Dock Features Optimized Ventilation On Both Ends And Bottom Side Of Dock To Provide Cooling Support To Higher Temperature Thermals That Can Be Generated By High Performance Video/Graphics Applications And Multiple 4k 60hz Video Outputs.

Enhance Productivity And Device Management With The Startech.Com Connectivity Tools Application
Developed To Improve Performance And Security, Startech.Com Connectivity Tools Is The Only Software Suite On The Market That Works With A Wide Range Of It Connectivity Accessories. The Software Suite Includes:
- Advanced Windows Layout Utility: To Setup And Save Custom Windows Layouts.
- Mac Address Pass-Through Utility: To Improve Network Security.
- Usb Event Monitoring Utility: To Track And Log Connected Usb Devices
- Wi-Fi Auto Switch Utility: Enabling Users To Quickly Access Faster Network Speeds Via Wired Lan.


Features:

- Quad Monitor Usb-C Dock: Usb Type-C Docking Station Supports Up To 4 (4k 60hz) Monitors, Also Supports Dual & Triple Display Extended Modes, Using Any Combination Of Four Displayport (Dp) And/Or Four Hdmi 2.0 Video Outputs; Or 2x 5k Dp 1.2 Displays
- Increase Productivity: Displaylink Certified Dock With 4-Port Usb Hub Includes 3x Usb-A 5gbps (1x Fast-Charge 1.5a), 1x Usb-C Up To 10gbps (15w 3a Smartphone/Tablet Charging) Port, Gigabit Ethernet (Pxe Boot & Wol), And A 3.5mm Trrs Audio Headset/Mic Jack
- 100w Power Delivery: Usb Type-C Dock With 100w Pd To Power & Charge High Performance Usb-C/Thunderbolt 3 Laptops Incl. Lenovo X1 Extreme G2, X1 Carbon, Dell Xps15, Hp Spectre X360, Macbook Pro 16 (M1 Chip Or Intel Processor), & Surface Laptop 4 (13´´/15´´)

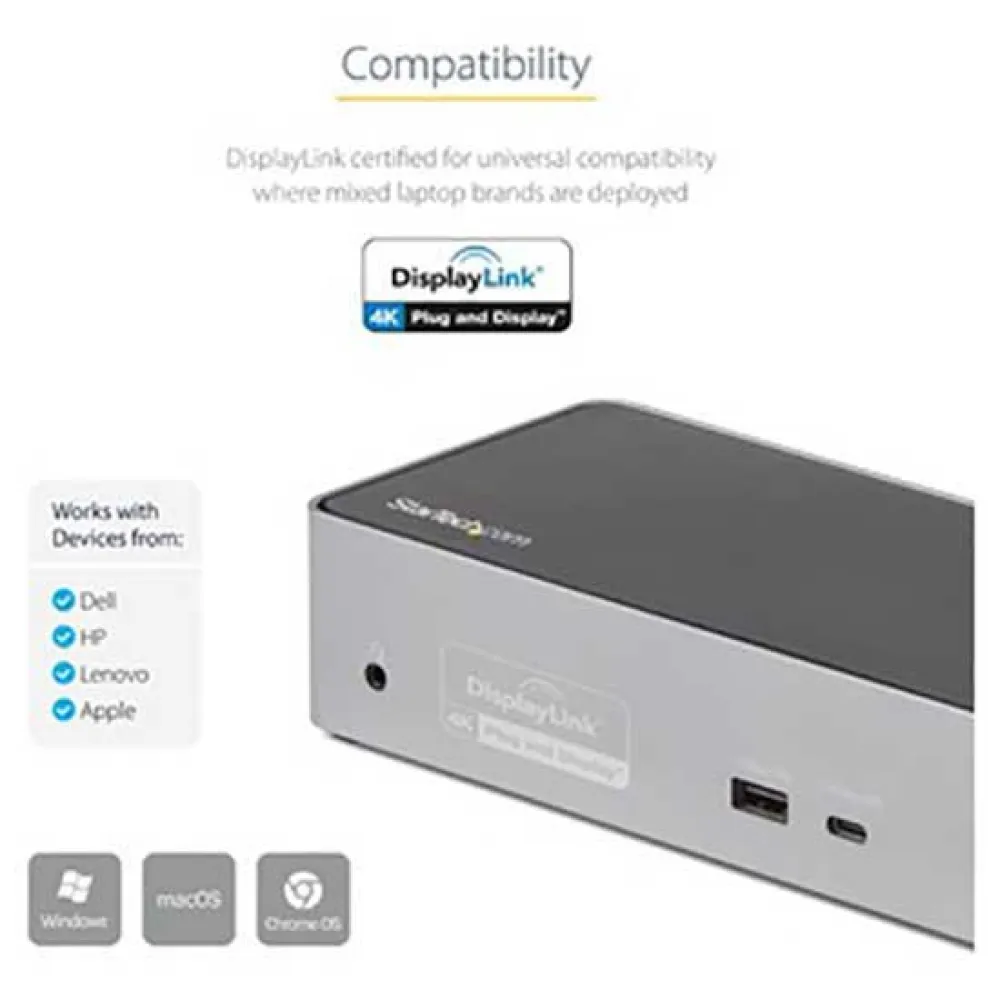

- Compatibility: Displaylink Certified For Universal Compatibility Where Mixed Laptop Brands Are Deployed & Works W/ Devices From Dell, Hp, Lenovo & Apple; Supports Windows, Macos, Chrome Os; Port Replicator Works W/ Tb3/Tb4, Usb4 & Usb-C 5gbps Host Devices

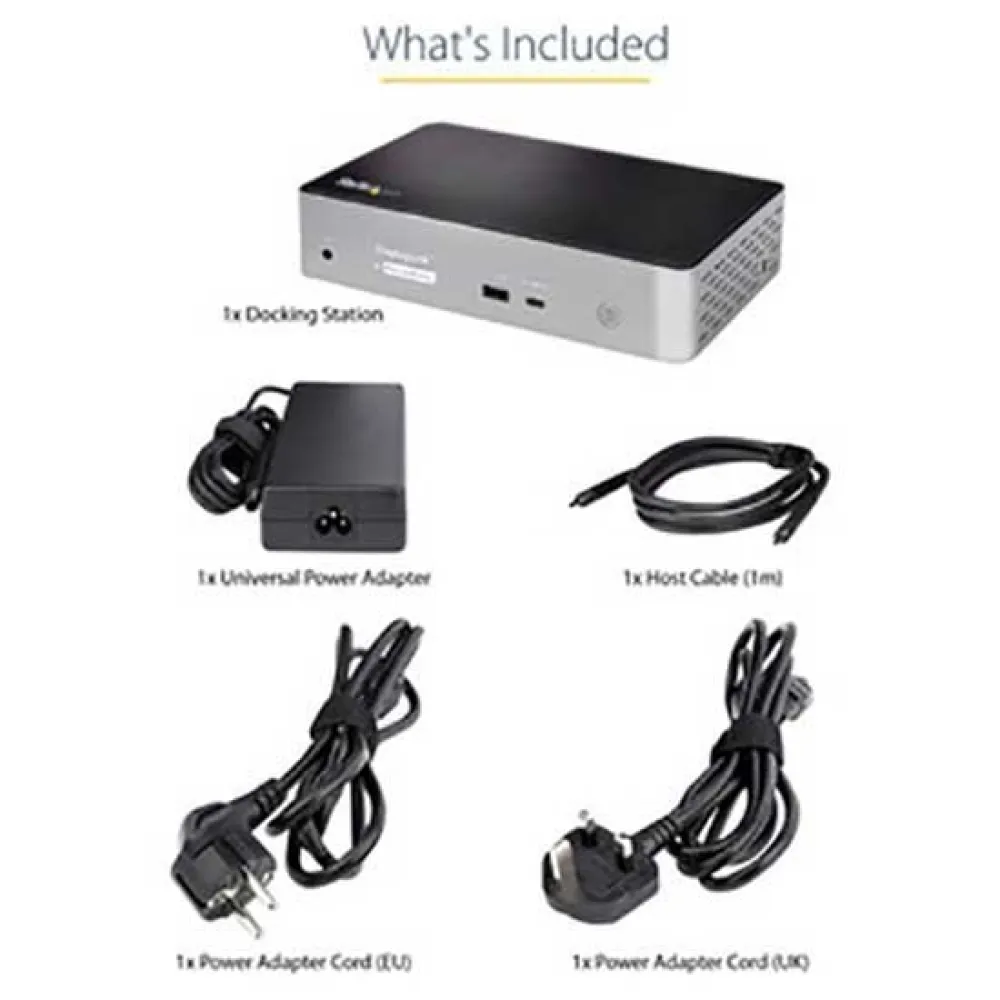

- Easy Setup & Management: Quadruple Display Docking Station With K-Slot, 3.3ft (1m) Usb-C Host Cable (Usb-If Certified), Mounting Holes, Front On/Off Button; Optimized Ventilation For Enhanced Cooling
- Connectivity Tools: Provided With This Device, The Application Improves Performance And Security, Featuring Mac Address Changer, Usb Event Monitoring, Windows Layout & Wi-Fi Auto Switch Utilities


Specifications:

Connector(S):
- Host Connectors: 1 - Usb 3.2 Usb Type C (10 Pin, Gen 2, 10 Gbps)

Environmental:
- Operating Temperature: 0 To 50°C
- Storage Temperature:-20 To 70°C
- Humidity: 0% To 95% (Non-Condensing) At 25°C

Hardware:
- 4k Support: Yes
- Fast-Charge Port(S): Yes
- Displays Supported: 4
- Ports: 16
- Audio: Yes
- Interface: Usb 3.2 Gen 2
- Compatible Lock Slot: Kensington Standard Slot (K-Slot)

Bus Type:
- Usb 3.2 Gen 1
- Usb 3.2 Gen 2

Chipset Id:
- Displaylink - Dl6910
- Realtek - Rts5423
- Realtek - Rts5411 Or Rts5411e
- Realtek - Rtl8153

Indicators:
- Led Indicators
- 1 - Power On/Off

Performance:
- Maximum Data Transfer Rate: 10 Gbps
- Maximum Digital Resolutions: 3840 X 2160p @ 60hz, 5120 × 2880 (With 2x Dp Connection)
- Type And Rate: Usb 3.2 Gen 1 - 5 Gbit/S Usb 3.2 Gen 2 - 10 Gbit/S
- Pxe: Yes

Supported Charging Outputs:
- Bc 1.2 (1.5a)
- Usb-C (15w)

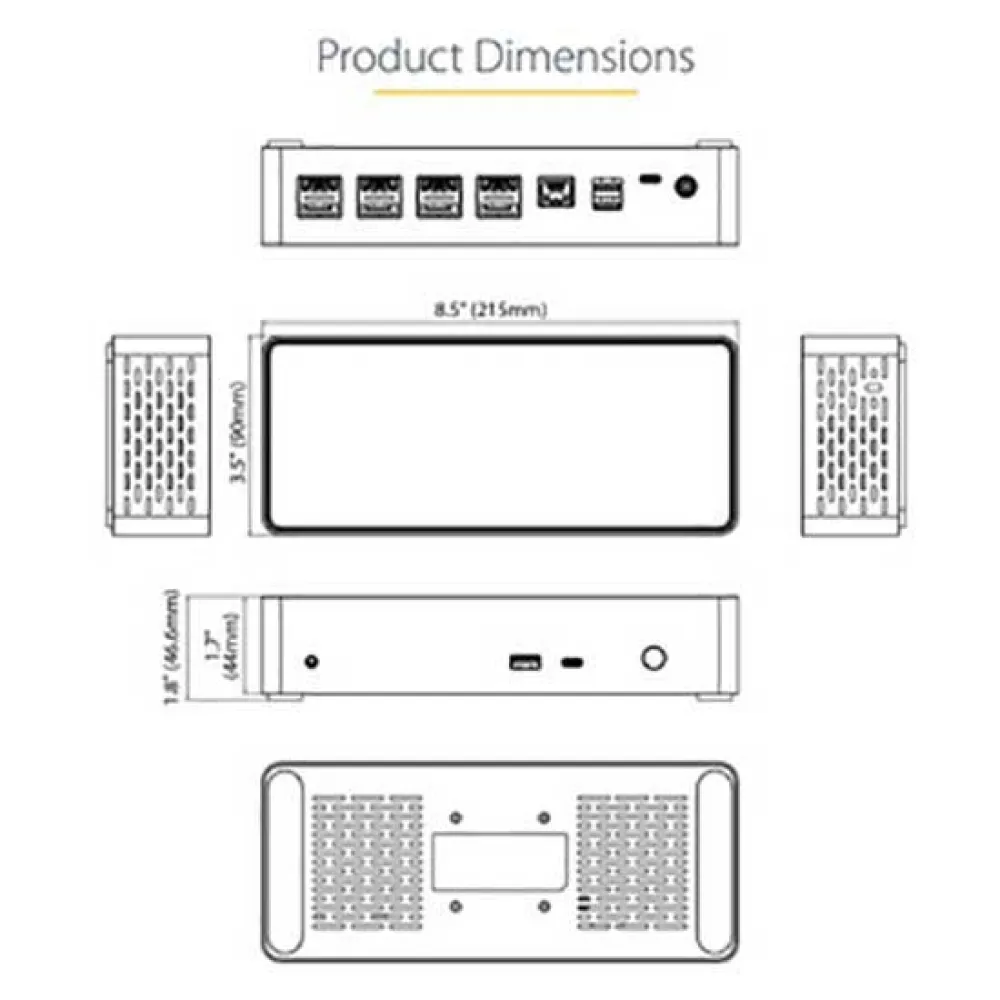

Physical Characteristics:
- Product Height: 4.7 Cm [1.9 In]
- Product Length: 21.5 Cm [8.5 In]
- Weight Of Product: 0.5 Kg [1.2 Lb]
- Product Width: 9.0 Cm [3.5 In]

Power:
- Power Source: Ac Adapter Included
- Input Voltage: 110v-240v Ac
- Output Voltage: 20v Dc
- Output Current: 8.5a

Software:
Os Compatibility:
- Windows 10, 11 (64 Bit)
- Mac Os 10.14-13.0
- Chrome Os 61.X
