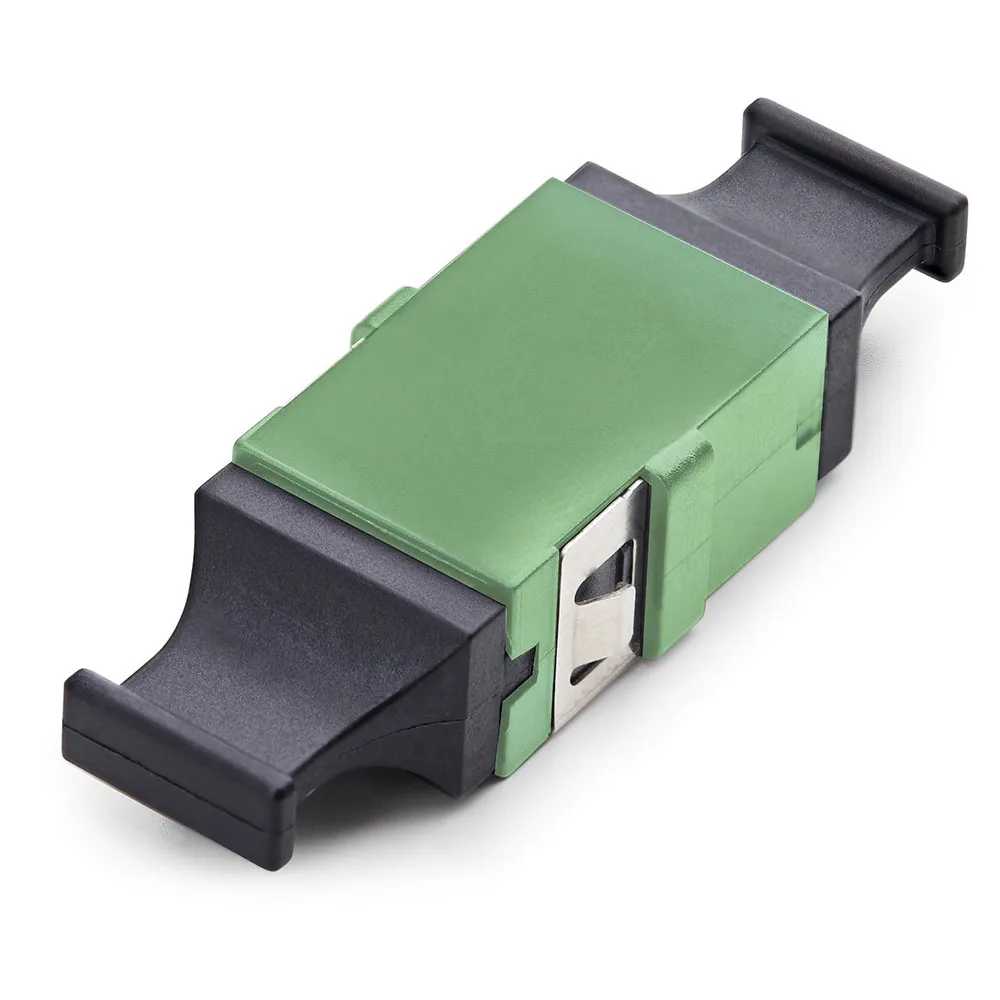

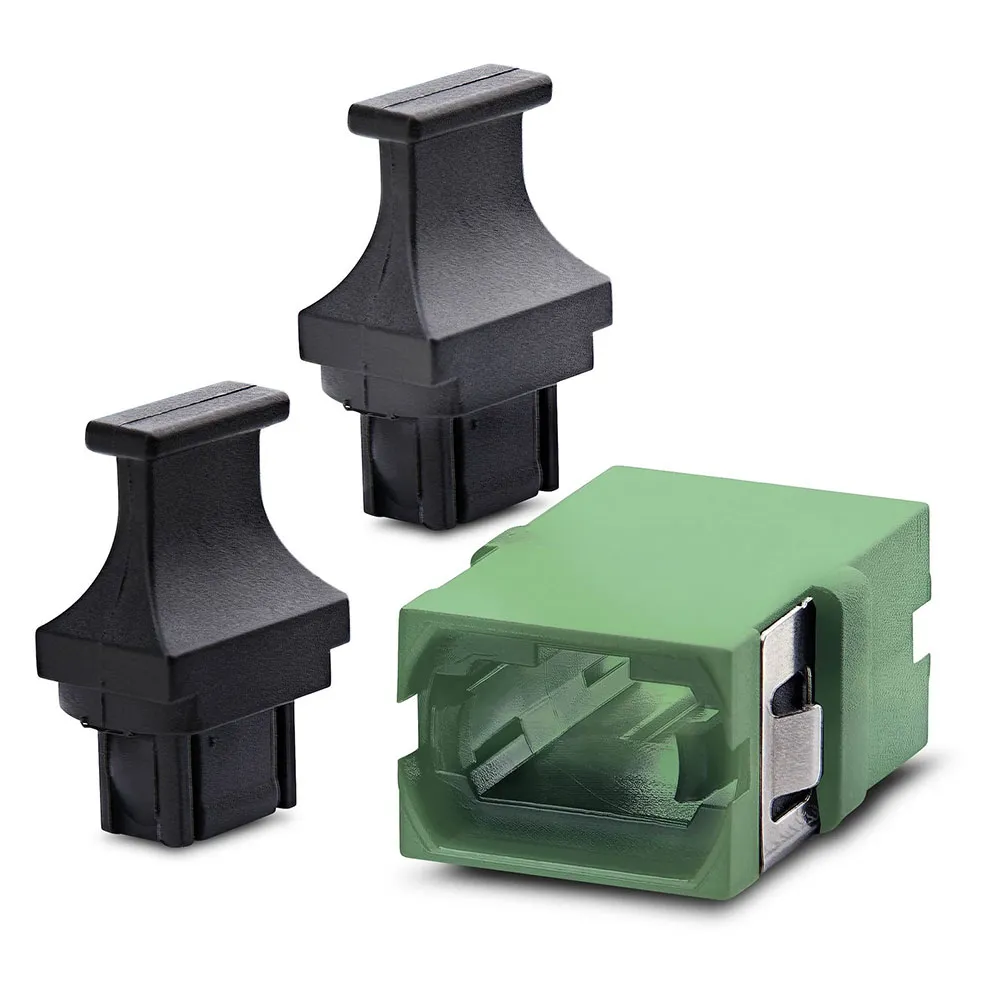

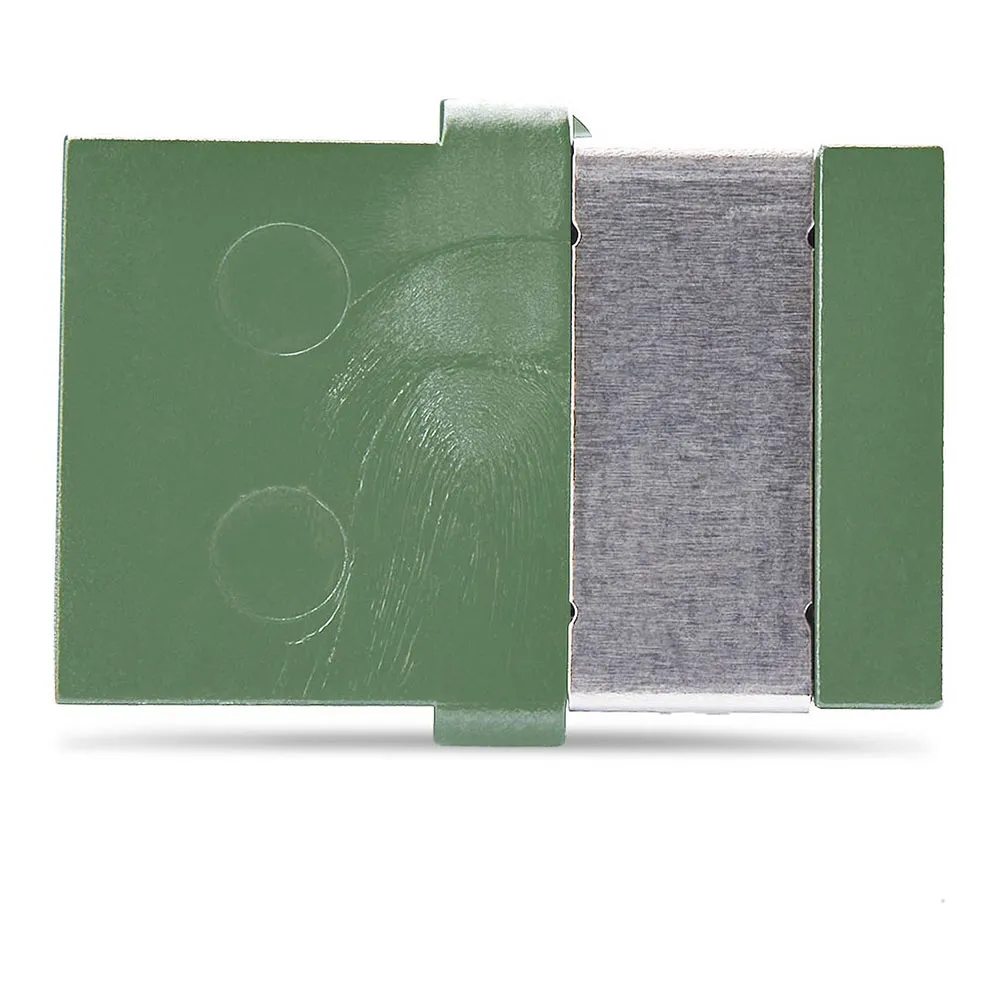

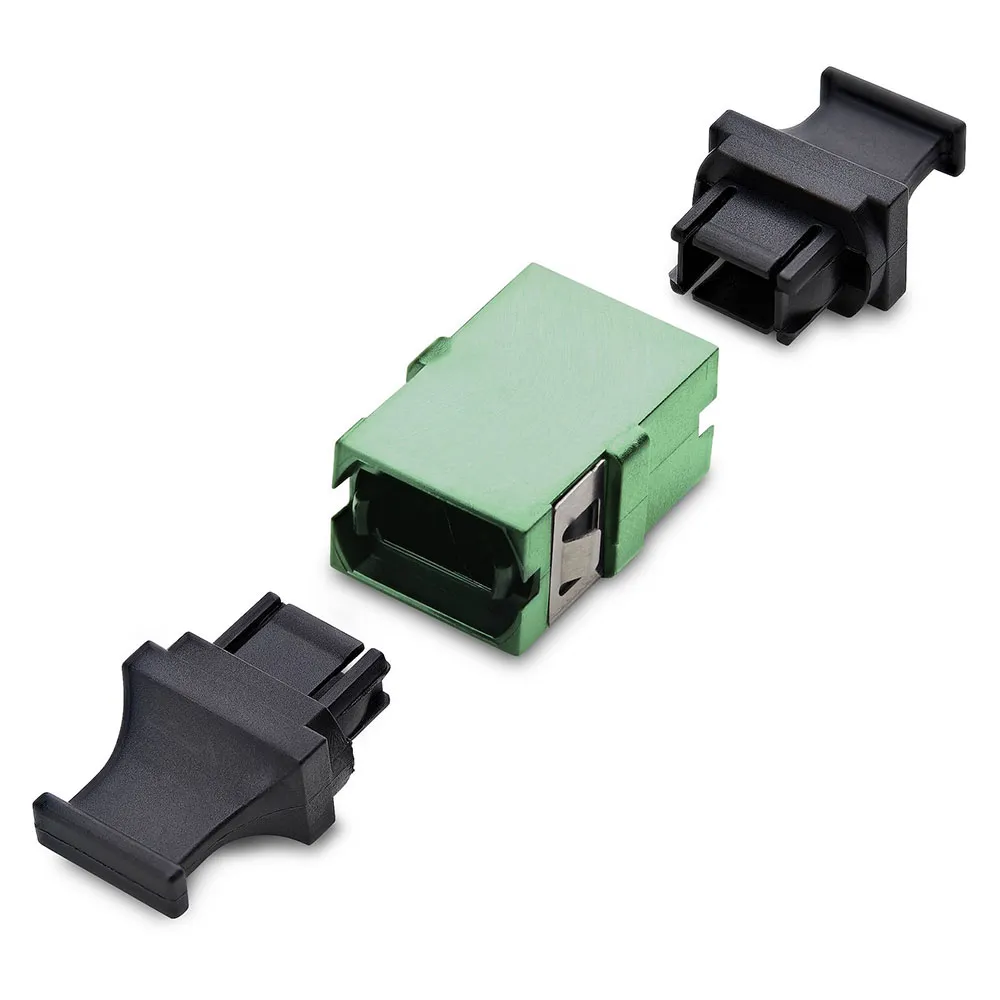

Startech MPOSMAPCGNCOUPLER Network Cables

Connect two MPO/MTP fiber cables or establish multi-fiber connectivity on a fiber distribution panel.

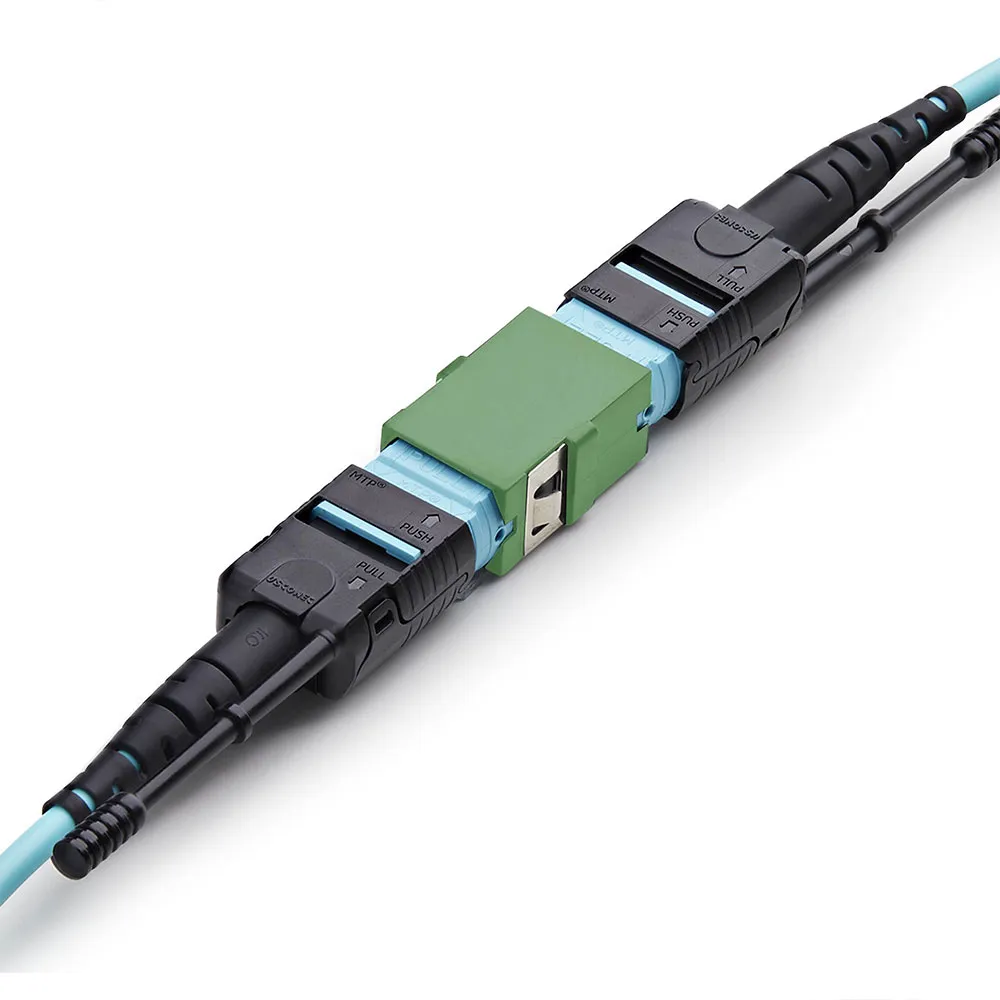

Extend a multi-fiber connection by connecting two MPO/MTP trunk cables with this MPO/MTP to MPO/MTP Coupler.

The female-to-female fiber coupler supports both Single Mode and Multimode MPO/MTP connections, maintaining optimal signal integrity while achieving low insertion loss that exceeds industry standards.

Quick, Toolless Setup.

The MPO/MTP Fiber Coupler is optimized for OS2/OS1 and OM3/OM4 fiber links.

The coupler features toolless setup to simplify installation into fiber adapter panels and enclosures.

Ideal for fast deployment in data centers, enterprise networks, and telecom applications.

Ideal for Fixed Installations.

The MPO Coupler features a durable ABS housing and precision alignment structure for accurate multi-fiber mating, minimizing signal loss for long-lasting reliability and performance.

The side metal mounting tabs enable fixed, secure positioning in high-density fiber installations.StarTech.com MPO/MTP Coupler, Single Mode/Multimode Fiber Adapter, Key Up-Key Down, Fiber Optic MPO/MTP Coupler - Green.

Connector type:MPO/MTP,.

Product colour:Green,.

Fiber mode structure:Single-mode.

Compliance certificates:Trade Agreements Act (TAA), CE.

Width:14.7 mm, Depth:44.5 mm, Height:9.4 mm.

Quantity per pack:1 pc(s),.

Package width:120 mm,.

Package depth:90 mm.

Master (outer) case width:430 mm,.

Master (outer) case length:335 mm,.

Master (outer) case height:400 mm Extend MPO/MTP.

Connections:Seamlessly join two Single Mode or Multimode MPO/MTP fiber cables or extend multi-fiber runs in fiber adapter panels, wall enclosures or distribution frames, Ideal for scalable data center and telecom builds.

:Engineered for 1/10/40/100Gbps transmission with low 0.2dB insertion loss and precision mating, this coupler ensures signal integrity and exceeds TIA-568.3-D standards.

:Plug-and-play design with metal mounting tabs enables fixed, secure positioning in high-density fiber installations with no tools required, no extra steps.

:Supports OS2 and OM3/OM4 MPO/MTP fiber links for broad compatibility and quick deployment in structured cabling installations, Extend multi-fiber MPO/MTP trunk cables with APC or UPC polished ends.

:Our network jacks, connectors, and couplers are tested for peak performance in structured cabling environments, Designed for reliability with consistent fit and finish, Backed by free lifetime 24/5 multi-lingual technical assistance
