Startech MSATA SSD to 2.5´´ SATA Adapter Convert

Product Category: Components
Product Subcategory: Connectivity

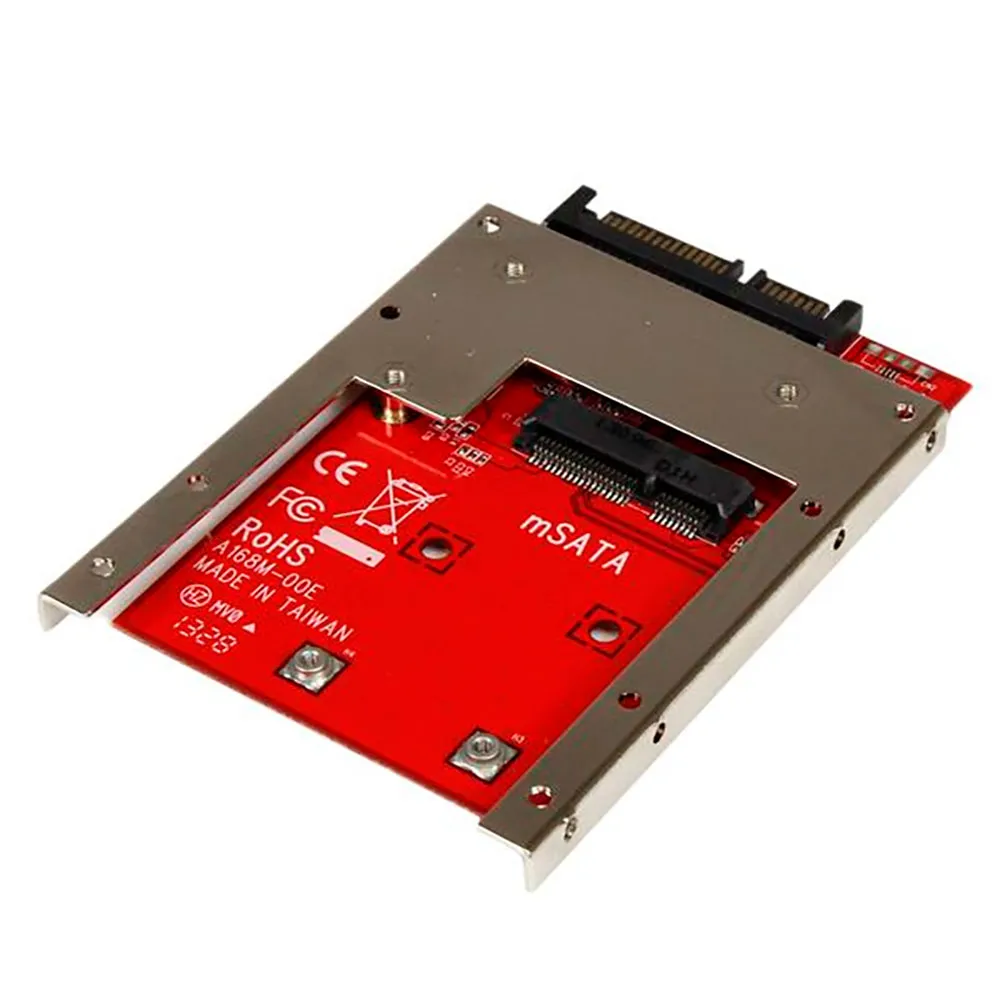

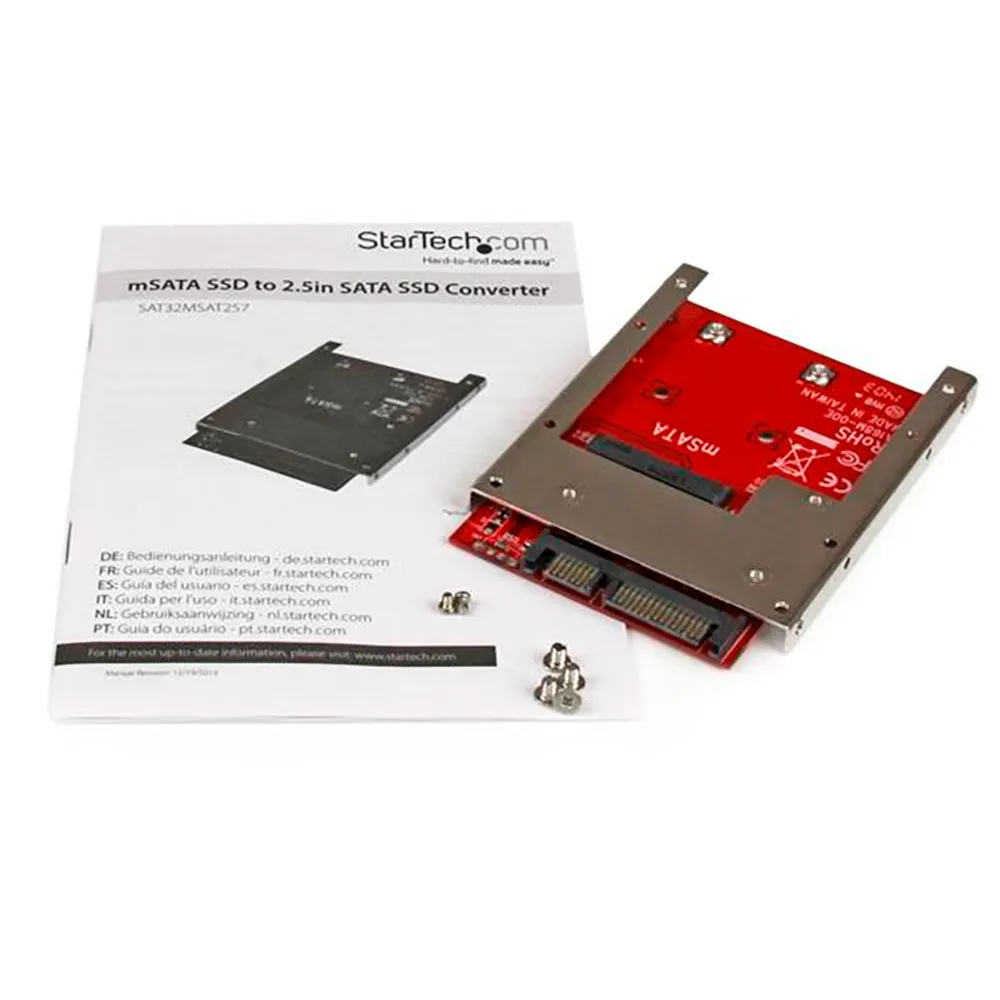

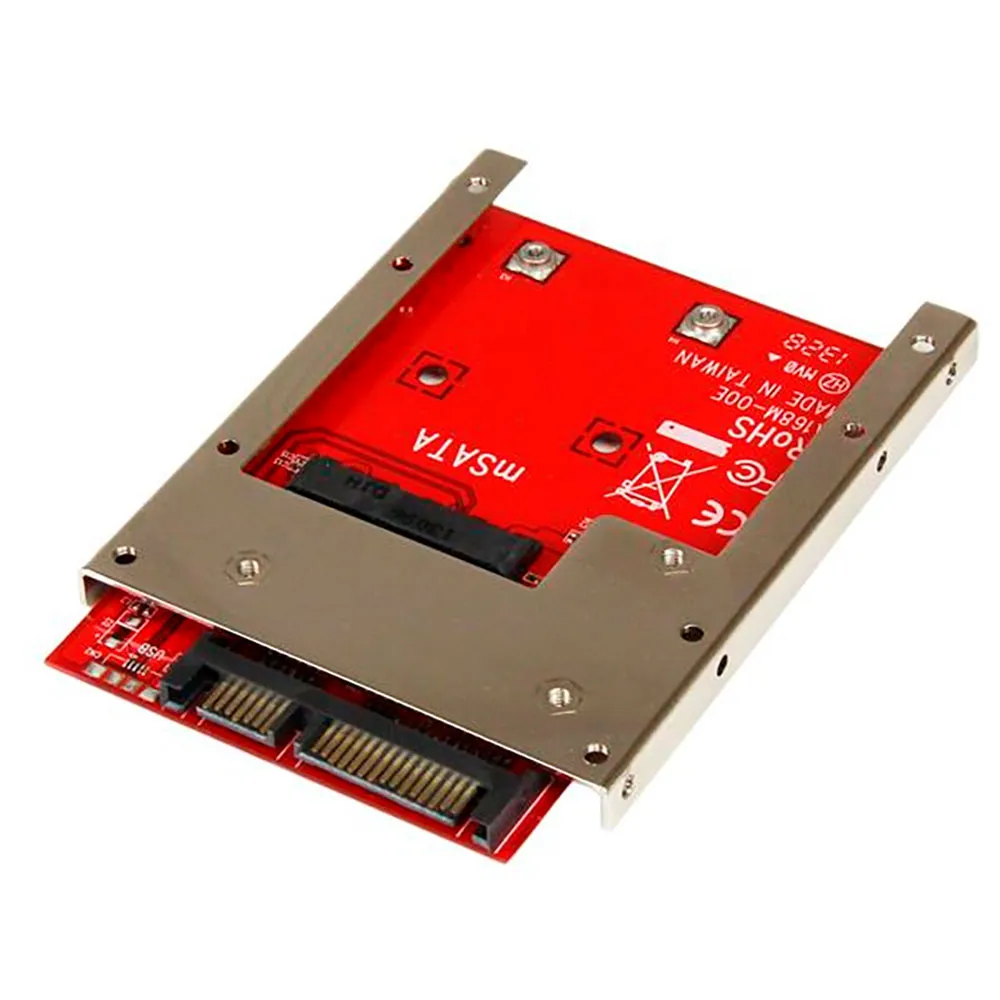

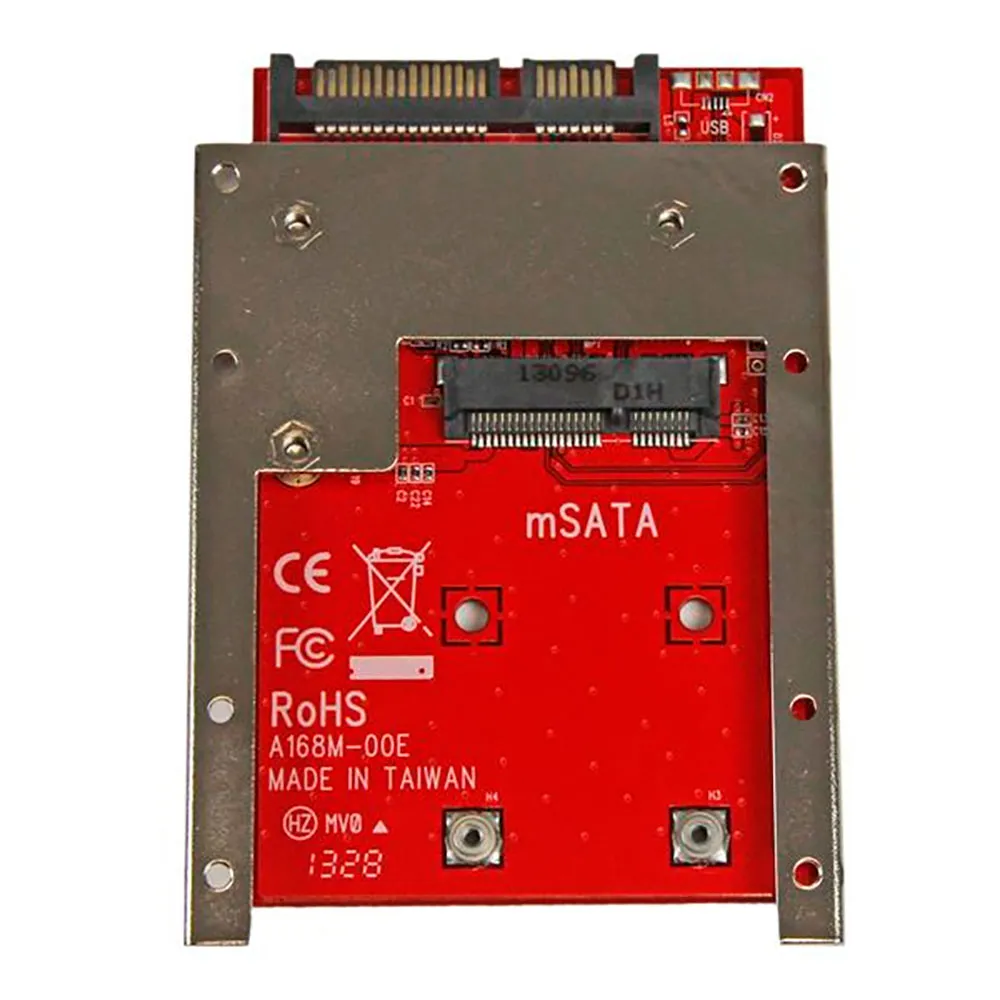

StarTech mSATA SSD to 2.5” SATA Adapter Converter - SAT32MSAT257

Unlock the high-speed potential of your mSATA solid-state drive in any standard 2.5” SATA drive bay with the StarTech.com mSATA to SATA Adapter. This innovative converter, model SAT32MSAT257, provides a powerful and versatile solution for integrating a high-performance, compact mSATA SSD into systems with traditional 2.5-inch SATA connections, such as laptops, desktops, or external enclosures. It´s the ideal choice for system builders, IT professionals, and tech enthusiasts looking to repurpose an mSATA drive or significantly upgrade their system´s storage speed and responsiveness without a complete overhaul.

Vastly increase system performance by adding the speed of an mSATA SSD in any 2.5 SATA application, with the SAT32MSAT257 mSATA to SATA adapter.

Utilize the full potential of your SATA III controller, with an mSATA SSD reducing your DATA transfer bottle neck with file transfer speeds up to 6 Gbps.

mSATA SSDs also save you money by reducing your power consumption over regular platter drives.

Help protect the health of your drive with an open frame design ensuring maximum heat dissipation.

Seamless Integration and Peak Performance

This adapter board allows you to harness the full capabilities of your hardware. By converting the mSATA interface to a standard SATA III 6 Gbps connection, you eliminate performance bottlenecks and experience drastically reduced boot times, faster application loading, and lightning-fast data transfers. The adapter is fully compliant with the 2.5-inch SATA form factor, including standard mounting points, ensuring a secure and hassle-free installation in any device that accepts a 2.5" SATA drive. It operates independently of the operating system, requiring no software or driver installation for a true plug-and-play experience on any platform, including Windows, macOS, and Linux.

Durable and Efficient Design

Engineered for reliability and longevity, the adapter features a protective open-frame steel bracket. This robust design not only secures the mSATA drive in place but also promotes maximum airflow and heat dissipation. By keeping your high-speed SSD running cool, the adapter helps to maintain optimal performance and extend the life of your drive, ensuring your investment is protected. Upgrade your system´s storage with confidence and experience a new level of efficiency and speed.

Main Features
* Supports full-length mSATA (Mini-SATA) Solid State Drives
* Standard 2.5" SATA Drive Housing and Mounting Holes
* SATA III Host Interface with 6 Gbps Bandwidth Support
* Protective Open-Frame Steel Bracket
* OS Independent for Universal Compatibility
* Plug-and-Play Installation
* Forward and Backward Compatibility with SATA II and SATA I

Technical Specifications
* Host Connector: 1 - SATA Data & Power Combo (7+15 pin)
* Drive Connector: 1 - mSATA (52 pin, Mini-SATA) Slot
* Interface: SATA
* Bus Type: SATA
* Drive Size: 2.5in
* Chipset ID: ASMedia - ASM1061
* Maximum Data Transfer Rate: 6 Gbps
* Type and Rate: SATA III (6 Gbps)
* Max Drive Capacity: Tested up to 1TB
* Material: Steel and Plastic
* Dimensions (LxWxH): 100 mm x 70 mm x 7 mm

Attributes: Adapters, Sata
