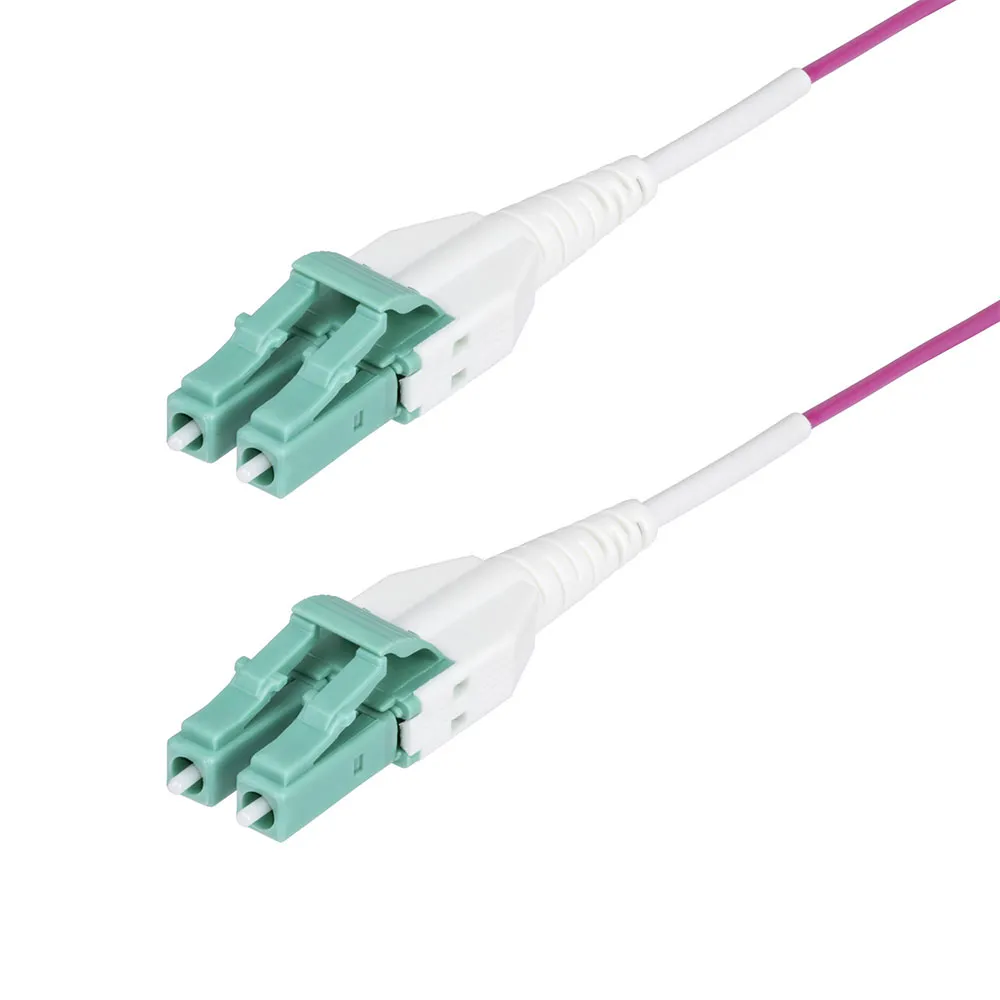

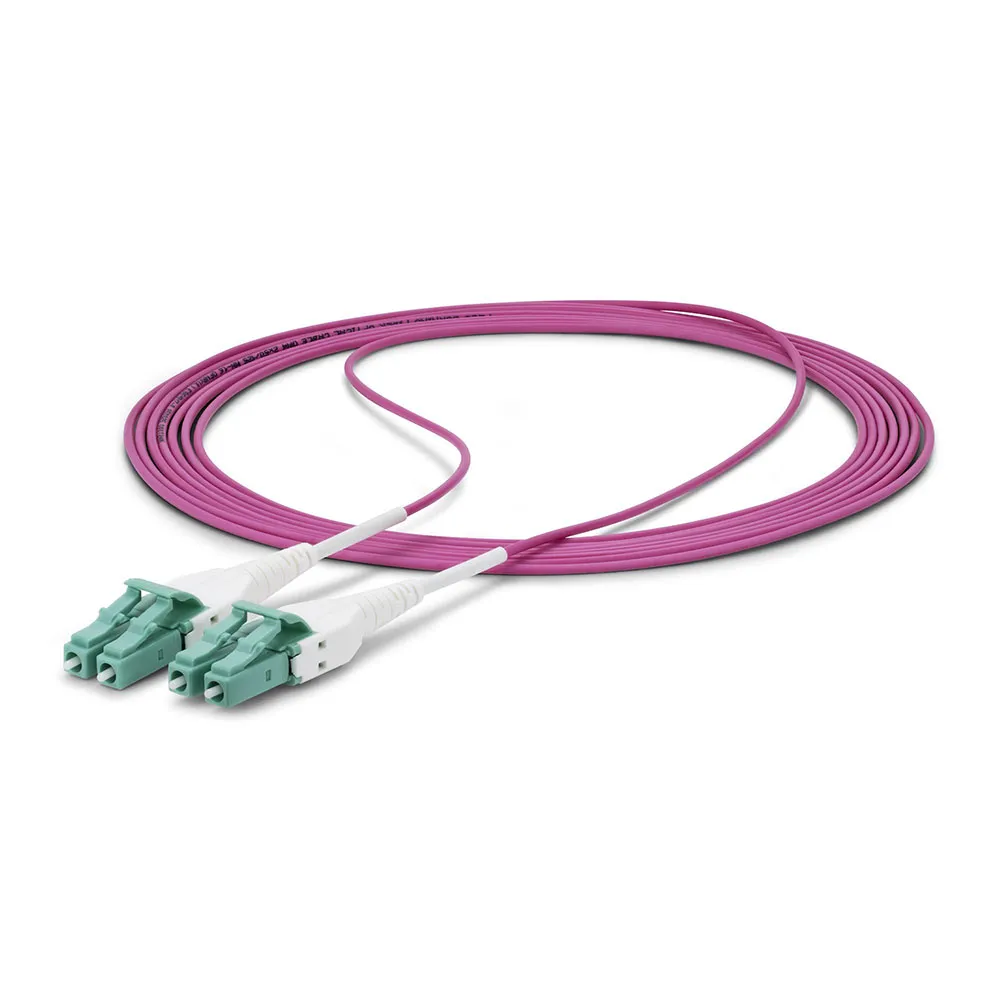

Startech OM4RLCLC1M fiber optic cable

StarTech.com 1m OM4 Multimode Fiber Optic Cable - LC to LC

Achieve high-speed, reliable network connections in demanding data centers and high-density server rooms with the StarTech.com OM4RLCLC1M 1m Fiber Optic Cable. This premium optical fiber patch cord is engineered to support extreme bandwidth requirements, making it the ideal choice for your 40G and 100G Ethernet network applications. Designed for superior performance and durability, this cable ensures your critical network infrastructure operates with maximum efficiency and minimal signal loss, future-proofing your setup for next-generation technologies.

Key Benefits:

Exceptional High-Speed Performance: Built with laser-optimized multimode fiber (LOMMF), this OM4 cable is specifically designed for use with 850nm Vertical-Cavity Surface-Emitting Laser (VCSEL) sources. It provides the necessary bandwidth to reliably support 40Gbps and 100Gbps connections up to 150 meters, offering a significant performance increase over standard OM3 fiber. This makes it perfect for backbone applications, high-performance computing, and connecting switches, servers, and storage area networks (SANs).

Innovative Space-Saving Design: The innovative Uniboot connector design is a game-changer for high-density environments. By housing two fibers within a single, slim jacket and connector boot, it reduces the overall cable bulk by up to 50% compared to traditional duplex cables. This streamlined profile improves airflow around equipment, simplifies cable management in crowded racks and panels, and makes installations and maintenance significantly easier. The integrated pull tab allows for effortless connection and disconnection, even in tightly packed spaces.

Unmatched Reliability and Safety: Constructed for long-term dependability, this cable features a Riser (OFNR) rated flame-retardant jacket, making it certified for safe installation in-wall, between floors, and in vertical cable shafts. Each cable is individually tested for insertion loss and return loss to ensure it meets stringent quality standards right out of the package. The bend-insensitive fiber core maintains signal integrity even when subjected to tight bends and routing challenges.

Main Features:

* OM4 Optical Fiber: Provides superior bandwidth and data transmission rates for high-performance networking, fully backward compatible with OM3 and existing 50/125µm fiber infrastructure.
* LC to LC UPC Connectors: Equipped with industry-standard, small form-factor LC connectors with an Ultra Physical Contact (UPC) polish, ensuring a secure, low-loss connection in high-density network switches and transceivers.
* Reversible Uniboot Connector: A single housing and boot for both fibers significantly reduces cable clutter. The connectors feature a unique tool-less polarity reversal mechanism, allowing for quick and easy A-B to A-A polarity changes in the field without any special equipment.
* Riser (OFNR) Rated Jacket: The low-smoke zero-halogen jacket is fire-retardant and safe for use in vertical runs and non-plenum spaces, complying with building and fire safety codes.
* Erica Violet Color: The standard color for OM4 fiber ensures immediate and easy identification within a complex cabling system, preventing connection errors.

Multimode OM4 LC to LC UPC fiber optic cable 1m - 50/125µm - 40G/100G - Erica violet - LOMMF/VCSE - Uniboot fiber cable - Riser OFNR rated.

Cable length: 1 m, cable type: OFNR, fiber optic type: OM4, connector 1: LC, connector 2: LC, core diameter: 50 µm, full duplex.
Insertion Loss: ≤ 0.25 dB
Wavelength: 850nm / 1300nm
Jacket Material: Low-Smoke Zero-Halogen (LSZH)
