Startech P4DD46A2 kvm console

This Dual-Monitor KVM Switch enables users to switch between four desktops that are USB-A and DisplayPort enabled. It allows for sharing of dual-4K 60Hz DisplayPort monitors, a keyboard and mouse, and two USB 5Gbps devices.


Features:

- Fast Switching: USB Emulation enables fast switching of a keyboard, video, and mouse between four DisplayPort/USB-A enabled desktops; USB Emulation ensures compatibility with combo keyboards/mice, as well as keyboards featuring additional function keys
- Dual 4k 60hz & Usb 5gbps: TAA Compliant DisplayPort 1.2 KVM Switch supports up to two 4K 60Hz DisplayPort monitors with two USB 3.2 Gen 1 (5Gbps) Hub Ports and two USB 2.0 HID Ports; Ideal for CAD/CAM, video editing, and content creation applications
- Multiple Switching Options: Universal KVM Switch can be controlled via push-buttons or hotkeys, with an audible buzzer providing confirmation; LEDs provide quick visual port selection status; Listen to audio from one computer, while controlling another
- Durable Design: A durable steel housing helps prevent Electro-Magnetic Interference (EMI) enhancing stability and reliability of the KVM; Sturdy construction makes it ideal for installation in a variety of environments; 8kV Air/6kV Contact ESD protection
- Our Advantage: Included connectivity tools for IT Pro´s and IT help-desk support teams with USB Event Monitoring for logging USB device connections with timestamps, and Windows Layout to restore windows locations upon switching hosts

Fast Switching with USB Emulation:
- USB Emulation technology enables faster switching of a keyboard, video, and mouse compared to traditional KVMs. USB Emulation also ensures compatibility with combination keyboards/mice as well as keyboards featuring additional function keys.

Dual-4K 60Hz Displays & USB 5Gbps Hub Ports:
- This TAA-Compliant KVM Switch supports dual-4K 60Hz DisplayPort monitors, making it ideal for working with high-resolution graphics or video. Additionally, it offers two USB 3.2 Gen 1 (5Gbps) Hub Ports for fast data transfer, and two USB 2.0 HID Ports for the keyboard and mouse. 8kV air and 6kV contact Electrostatic Discharge (ESD) protection.

Customizable Switching:
- This Universal KVM Switch provides various switching options, including hotkey or push-button switching. Hotkeys allow for independent switching of USB/Video and Audio, enabling audio playback from one computer while controlling another. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.


Specifications:

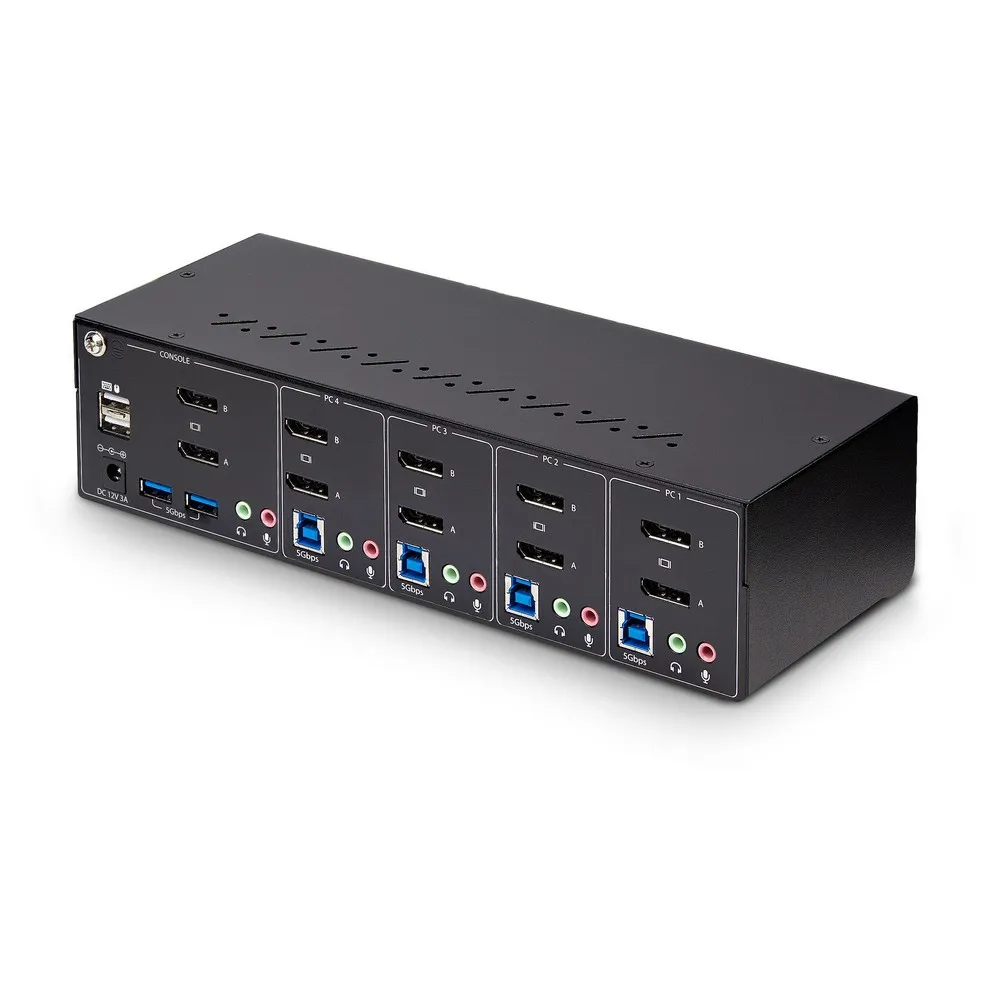

Connector(s):
Console Interface(s):
- 2 - DisplayPort
- 2 - USB Type-A (9 pin, 5 Gbps)
- 2 - USB 2.0 Type-A (4 pin, 480Mbps)
- 2 - 3.5mm Stereo Female 3 pos
- 1 - Barrel Power Connector (Size N, OD: 5.5, ID: 2.5)

Host Connectors:
- 8 - DisplayPort
- 4 - USB 3.2 USB Type-B (9 pin, Gen 1, 5 Gbps)
- 8 - 3.5mm Stereo Female 3 pos

Environmental:
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Storage Temperature: -20°C to 60°C (-4°F to 140°F)
- Humidity: 0% ~ 90% RH (non-condensing)

Hardware:
- Audio: Yes
- KVM Ports: 4
- PC Interface: USB 3.2 Gen 1 (5Gbps)
- PC Video Type: DisplayPort
- Number of Monitors Supported: 2

Indicators:
LED Indicators:
- 4 - PC LED: Solid Green when a host connection is detected. Blinking Green when a host connection is not detected
- 4 - Hub LED: Solid Red when the PC port is selected

Performance:
- Video Revision: DisplayPort 1.2
- Hot-Key Selection: Yes
- Maximum Data Transfer Rate: 5Gbps
- Maximum Cable Length: 7.5 m [24.6 ft]
- Maximum Digital Resolutions: 3840 x 2160 60Hz

Supported Resolutions:
- 3840x2160 @60Hz
- 2560x1440 @60Hz
- 1920x1200 @60Hz
- 1920x1080 @60Hz

Audio Specifications:
- DisplayPort - 2 Channel Audio
- Analog Stereo - 2 Channel Audio
- Auto Scan: 10, 20, 30, 40, 50, and 60 seconds
- Port Selection Support: Push Button and Hotkeys
- MTBF: 103,062 Hours

Physical Characteristics:
- Product Height: 6.6 cm [2.6 in]
- Product Length: 25.3 cm [10.0 in]
- Weight of Product: 1.0 kg [2.2 lb]
- Product Width: 10.0 cm [3.9 in]
- Material: Steel

Power:
- Power Source: AC Adapter Included
- Input Voltage: 100 - 240 AC
- Input Current: 1 A
- Output Voltage: 12V DC
- Output Current: 3 A
- Center Tip Polarity: Positive
- Plug Type: N
- Power Consumption (In Watts): 0.1 W

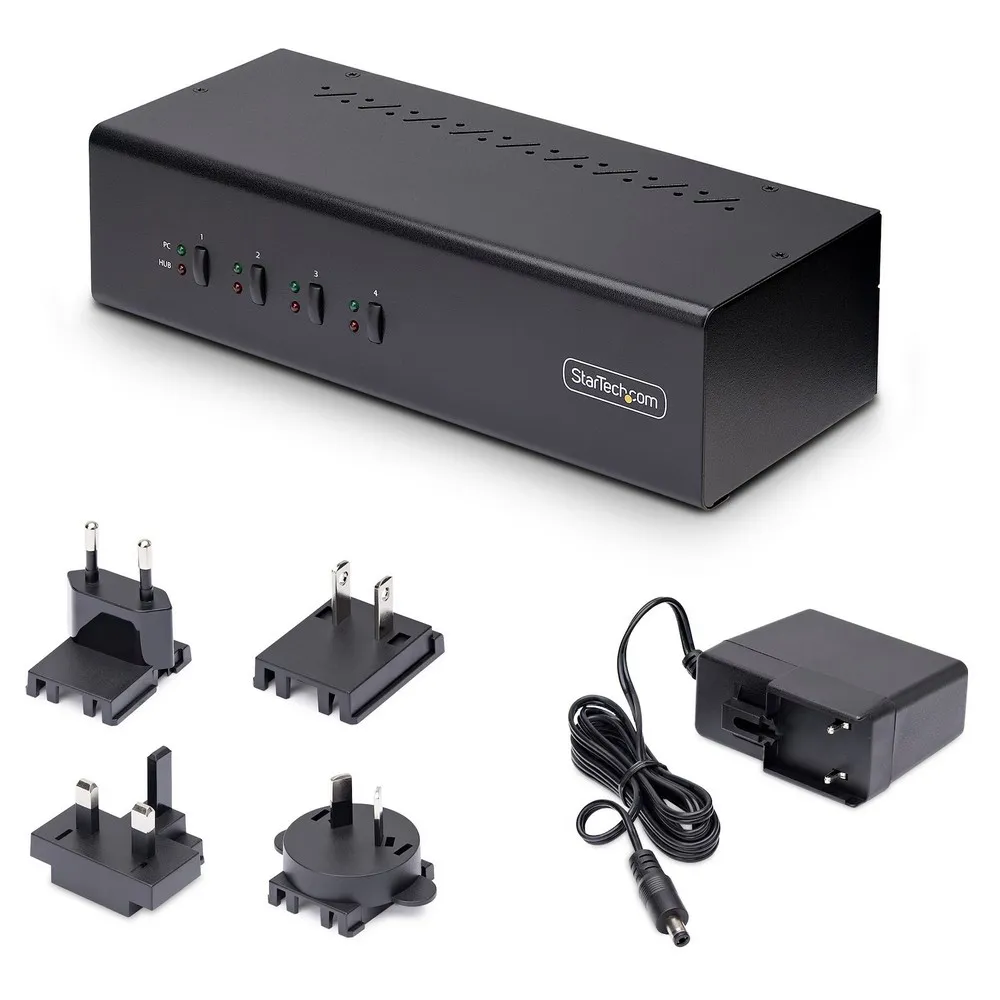

In the Box:
Included in Package:
- 1 - KVM Switch
- 1 - Universal Power Adapter (NA/JP, EU, UK, NZ)
