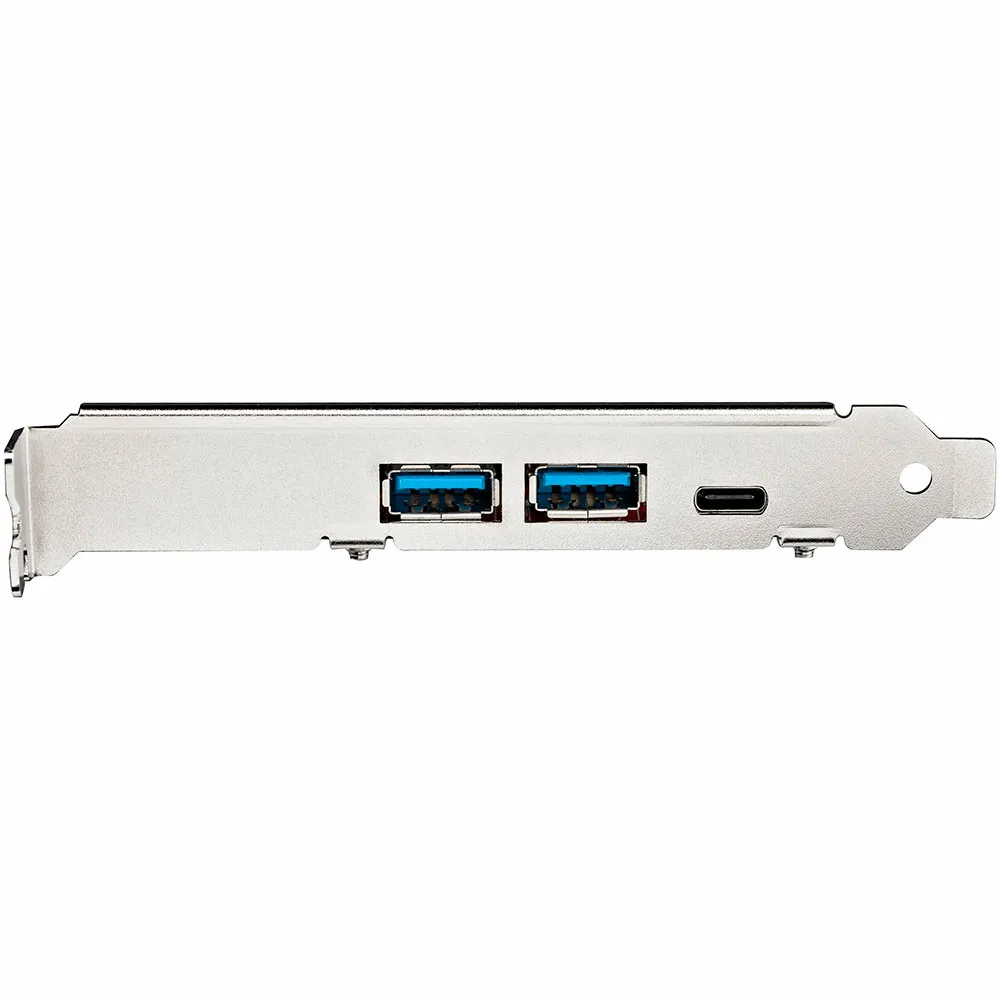

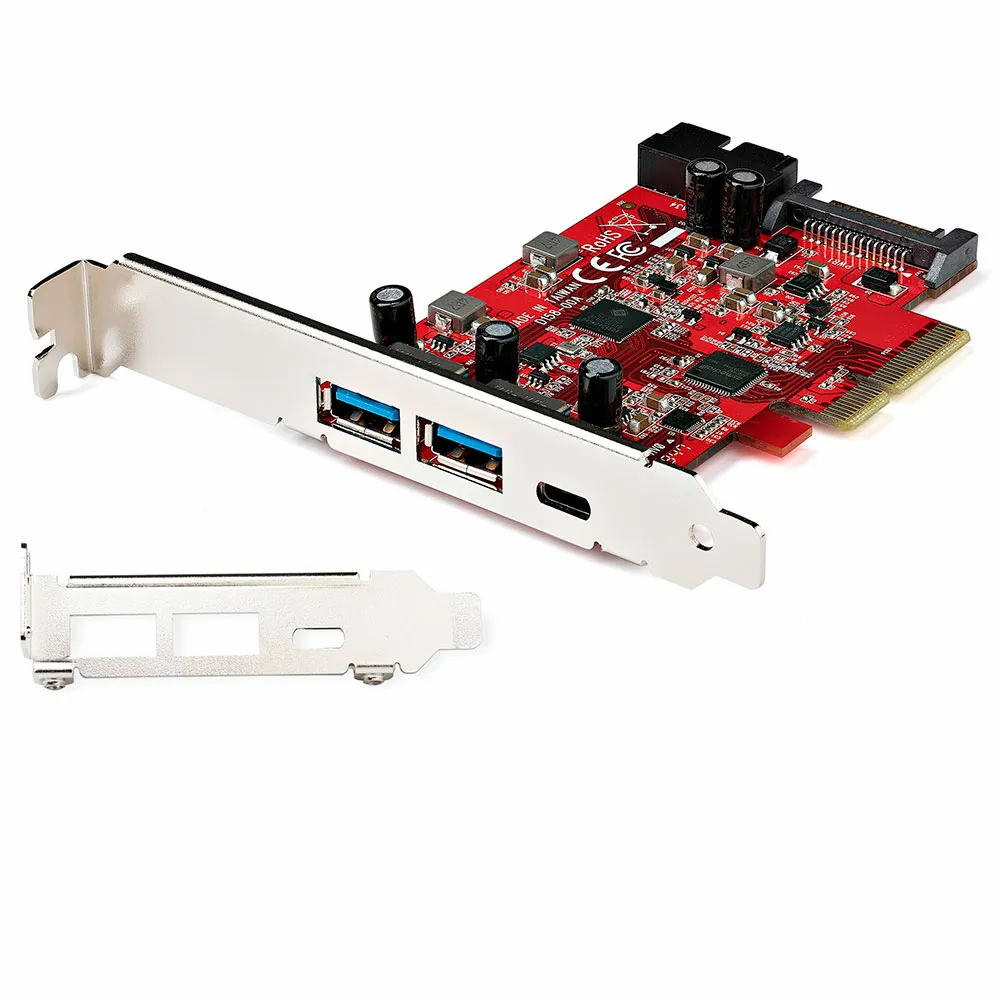

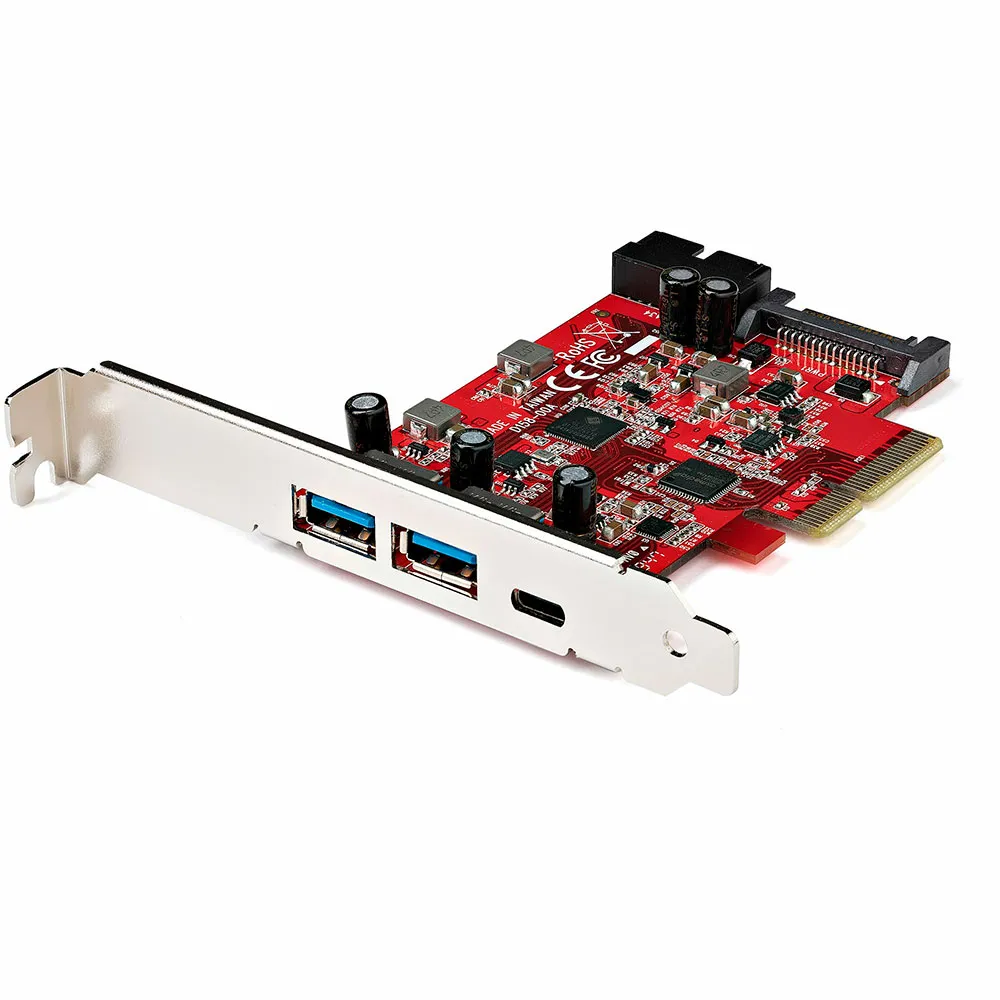

Startech PCIe USB 3.1 PCI-E Expansion Card

Features:

- High Performance: 5-Port Usb Pcie Card With Asmedia 3142 Ic; 10gbps Hub W/ 3 External Ports (2x Usb-A & 1x Usb-C) & Two Internal Ports Usb 5gbps (1x Internal Idc Header); Supports Up To Usb 3.2/3.1 Gen 2; Upgraded Version To Our Popular Card Pexusb312eic
- Transfer Speeds Up To 10gbps: Usb-A & Usb-C Pcie Card Adapter Supports Multiple Ins Maintaining Max Bandwidth With Mixed Speed Devices And Uasp Optimizing Usb Performance With External Storage Devices Like Ssds, Hdds, Nvme Drives; Works W/ Usb 3.1/3.0/2.0
- Optional Power: Usb Pcie Expansion Card With Sata Power Supplies Supplemental Power To The Usb Ports (When Motherboard Power Is Insufficient) Providing Up To 5v 3a/15w Via The Usb Type-C Port & 5v 0.9a/4.5w Via Each Usb Port
- Compatibility: Usb C Add-On Card Installs In Full Or Low-Profile Pcie 3.0 (X4 Slot) Desktop/Server (Full-Profile Bracket Installed, Low Profile Bracket Incl.); Lower Performance With Pci-E 2.0; Windows/Linux/Macos Auto Driver Install (Windows 8 & Up)


Specifications:

Ports & Interfaces:
- Host Interface: Pcie
- Output Interface: Usb 3.2 Gen 2 (3.1 Gen 2)
- Expansion Card Standard: Pcie 3.0
- Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity: 2
- Usb 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity: 1
- Internal Sata Ports Quantity: 1

Design:
- Internal: Yes
- Mean Time Between Failures (Mtbf): 1677495 H
- Chipset: Asmedia - Asm3142, Genesys Logic - Gl3590
- Data Transfer Rate (Max): 10 Gbit/S
- Uasp Support: Yes

Operational Conditions:
- Operating Temperature (T-T): 0 - 70 °C
- Storage Temperature (T-T): -20 - 80 °C
- Operating Relative Humidity (H-H): 15 - 90%

System Requirements:
- Windows Operating Systems Supportedwindows 10, Windows 10 Education, Windows 10 Education X64, Windows 10 Enterprise, Windows 10 Enterprise X64, Windows 10 Home, Windows 10 Home X64, Windows 10 Iot Enterprise, Windows 10 Pro, Windows 10 Pro X64, Windows 10 X64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise X64, Windows 7 Home Basic, Windows 7 Home Basic X64, Windows 7 Home Premium, Windows 7 Home Premium X64, Windows 7 Professional, Windows 7 Professional X64, Windows 7 Starter, Windows 7 Starter X64, Windows 7 Ultimate X64, Windows 7 X64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise X64, Windows 8 Pro, Windows 8 Pro X64, Windows 8 X64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise X64, Windows 8.1 Pro, Windows 8.1 Pro X64, Windows 8.1 X64
- Mac Operating Systems Supported: Mac Os X 10.13 High Sierra, Mac Os X 10.14 Mojave, Mac Os X 10.15 Catalina, Mac Os X 11.0 Big Sur
- Server Operating Systems Supported: Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2019

Weight & Dimensions:
- Width: 68.9 Mm
- Depth: 102 Mm
- Height: 14.4 Mm
- Weight: 60 G
