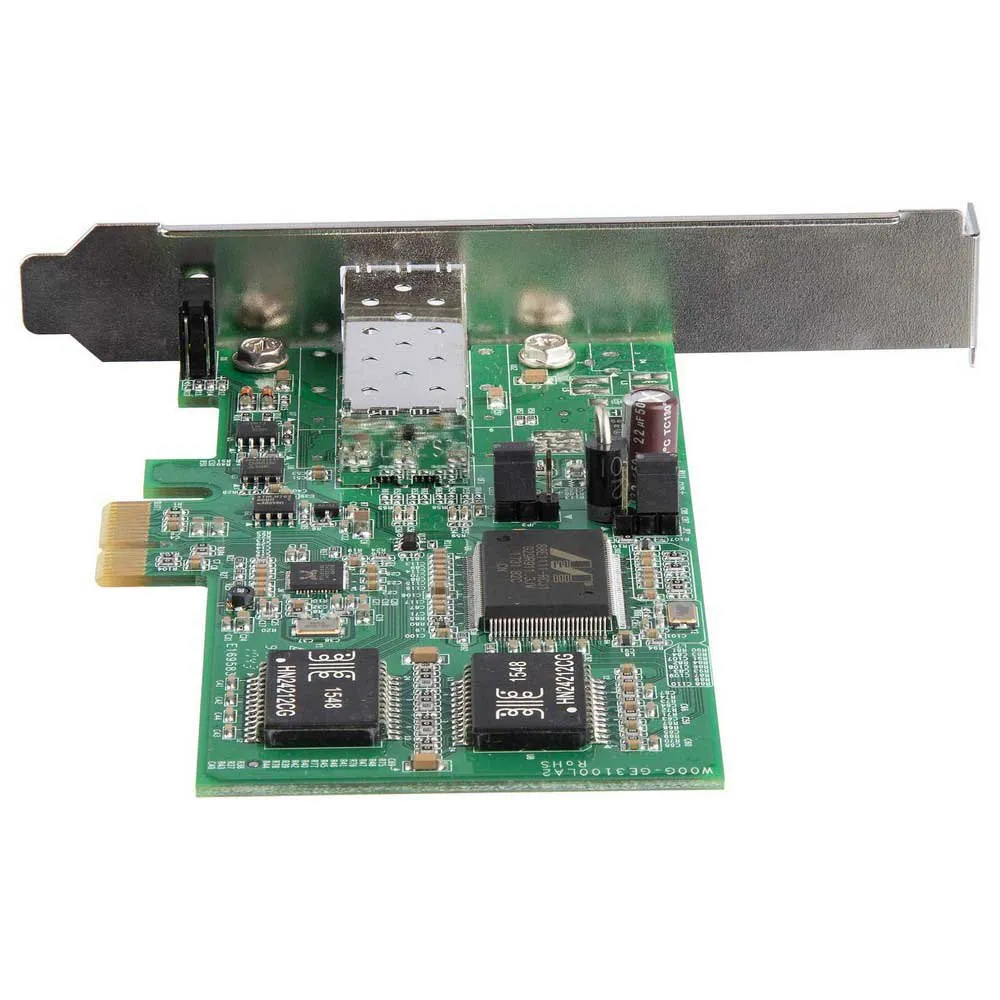

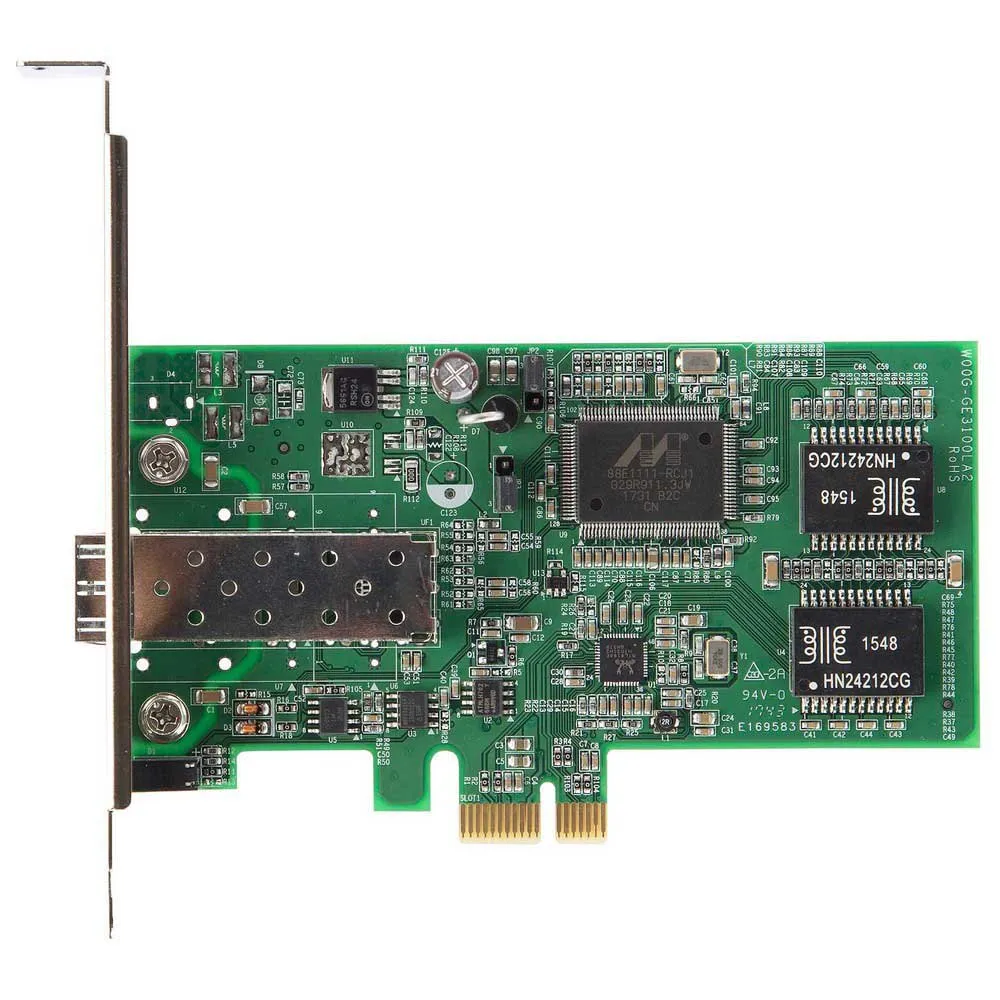

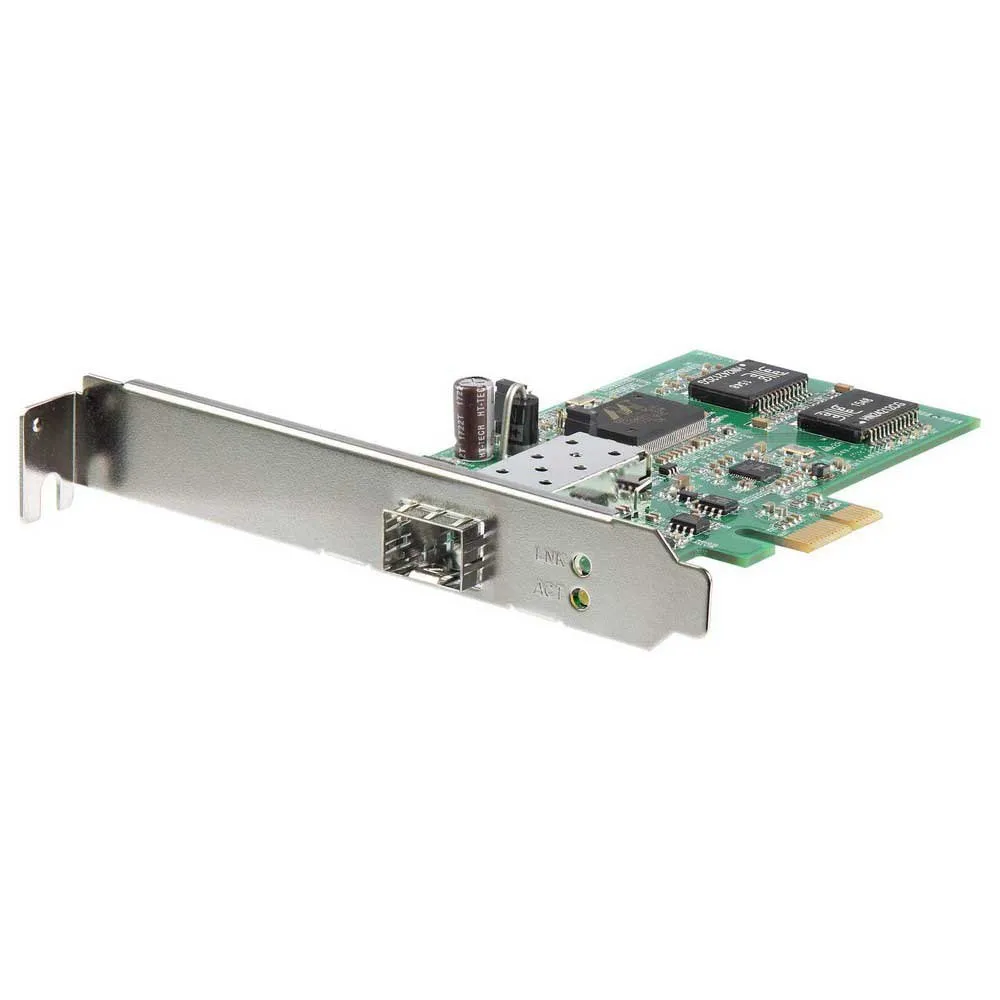

Startech PEX1000SFP2 PCIe Network Card

The PEX1000SFP2 PCI Express Gigabit Fiber Network Card lets you connect a PCI Express-based computer directly to a fiber optic network using the Gigabit SFP of your choice.

This Gigabit fiber card adapts to your network fiber connection and distance requirements to offer flexible configuration via an open SFP slot, and is compatible with most.

With broad SFP compatibility the fiber network card lets you use your preferred SFP, giving you more options to connect your computer directly to a fiber network.

With fiber connectivity, your network is not susceptible to electronic interference, often problematic with standard RJ45 copper networks, making this versatile fiber card ideal for secure network setups.

Plus, the card is equipped with a standard profile bracket and includes a low-profile/half-height bracket, perfect for installation in small form-factor computers or 1U server and rackmount applications.

Features:

- Compatible with most Gigabit SFP modules.

- Supports Full/Half-duplex Auto-Negotiation, Auto-MDI/MDIX.

- Includes low-profile/half-height installation bracket.

- Compliant with IEEE802.3z 1000Base-SX/LX, IEEE 802.1Q VLAN Tagging, IEEE 802.1P Layer 2 Priority Encoding, IEEE 802.3x full duplex flow control, RFC 1157 SNMP v1.

- Jumbo Frame Support.

- Supports PCI Message Signaled Interrupt (MSI).

- Preboot Execution Environment (PXE) 2.1.

Specifications:

Connector(s):

- 1.

- Connector Type(s):PCI Express x1.

- 1.

- External Ports:SFP Slot Environmental:

- Operating Temperature:

0°C to 45°C (32°F to 113°F).

- Storage Temperature:

-20°C to 70°C (-4°F to 158°F).

- Humidity:

5~95% RH (Non-Condensing) Hardware:

- Ports:

1.

- Interface:

Fiber Ethernet.

- Bus Type:

PCI Express.

- Card Type:

Standard Profile (LP bracket incl.).

- Industry Standards:

IEEE802.3z 1000BASE-SX/LX, IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding, IEEE 802.3x full duplex flow control, RFC 1157 SNMP v1.

- Chipset ID:

Realtek.

- RTL8168E Marvell.

- 88E1111B1.

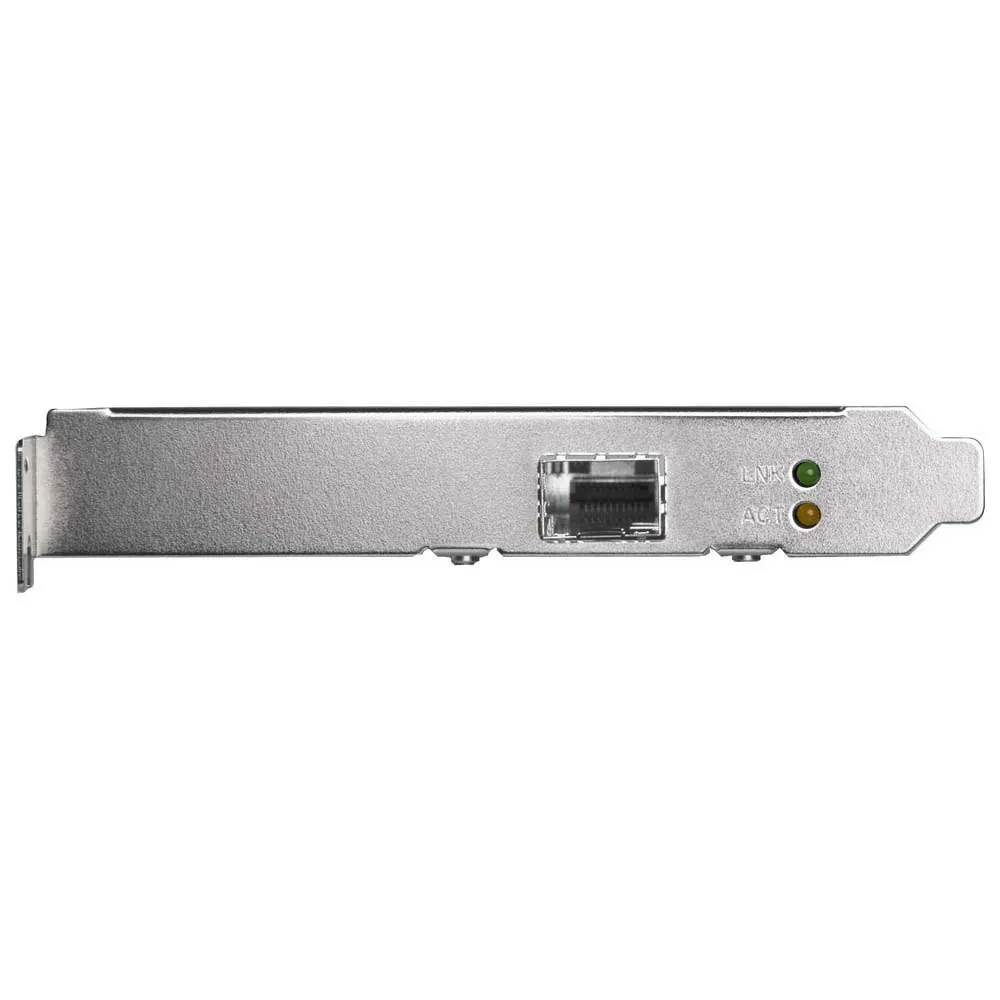

- Indicators:

1.

- LED Indicators.

- Link (Green).

- Activity (Yellow) Packaging Information:

- Package Height:

2.0 in [52 mm].

- Package Length:

8.5 in [21.7 cm].

- Package Width:

6.7 in [17.1 cm].

Performance:

- Maximum Data Transfer Rate:

2000 Mbps (2 Gbps).

- Full-Duplex.

- Buffer Size:

48 KB.

- Compatible Networks:

1000 Mbps (1 Gbps).

- Auto MDIX:

Yes.

- Full Duplex Support:

Yes.

- MTBF:

770,619 hours Physical Characteristics:

- Material:

Steel.

- Product Length:

5.0 in [12.8 cm].

- Product Width:

0.7 in [18 mm].

- Product Height:

4.6 in [11.8 cm].

- Weight of Product:

2.0 oz [57 g] Power:

- Power Consumption (In Watts):

3.2W Max Software:

- OS Compatibility.

- Windows® XP, Vista, 7, 8, 8.1, 10.

- Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016.

- Mac OS X® 10.5 to 10.9.

- Linux 2.4.x to 4.11.x LTS Versions only.

- Microsoft Hyper-V®.

- Special Notes / Requirements.

- System and Cable Requirements.

- Not compatible with 100Mbps SFP transceivers, Gigabit SFP transceiver required Note:

- Fiber data transfer speeds and distances are dependent on the SFP used (sold separately).

- This product is not compatible with Copper SFP modules What´s in the Box:

- 1.

- Included in Package.

- 1 Port PCI Express Gigabit SFP Network Card.

- Low-Profile Bracket.

- Driver CD.

- Instruction Manual.
