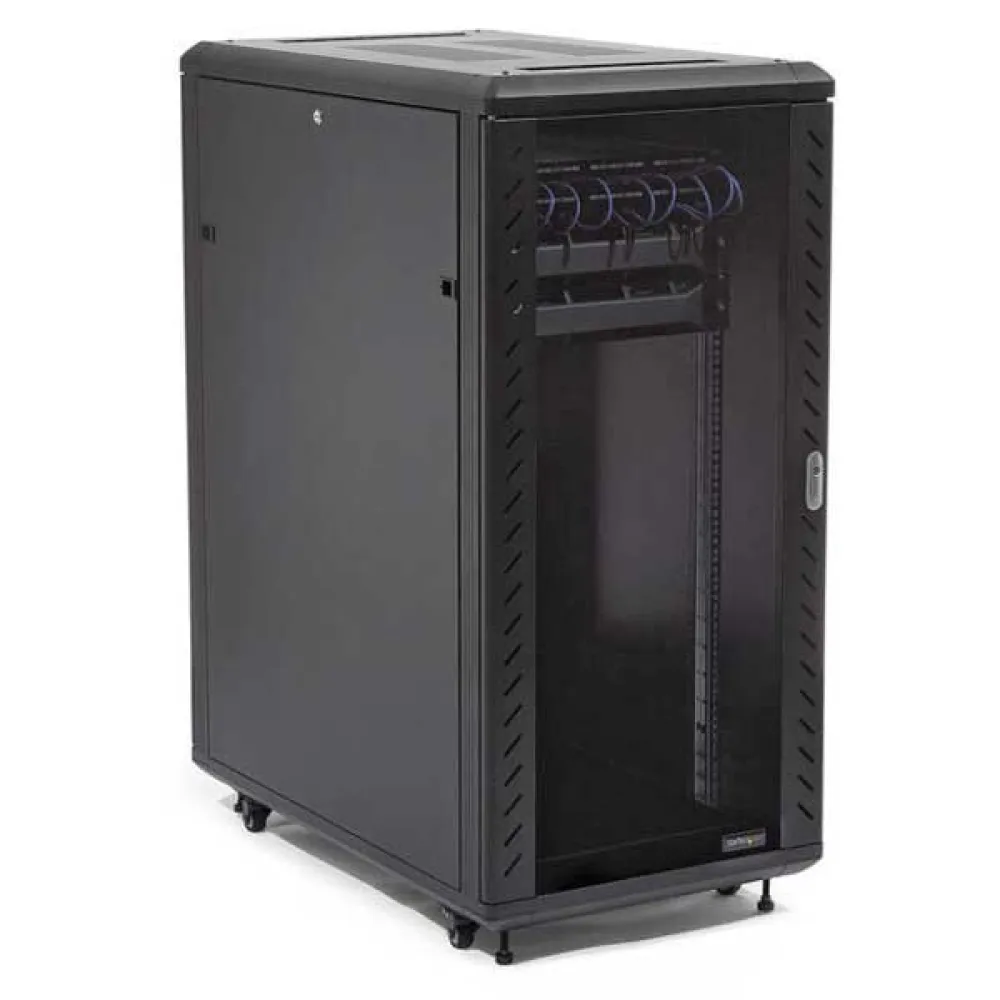

Startech RK3236BKF rack cabinet

This server rack provides 32U of storage space in a sleek secure cabinet for storing EIA-310 compliant 19´´ rackmount devices such as Dell, HP and IBM servers along with telecommunication and A/V equipment. The rack creates a robust storage solution supporting a total load capacity of 800 kg. (1763.7 lbs.).


Features:

Hassle-Free Equipment Installation:
- This rack has been engineered with different features that enable you to easily incorporate plenty of equipment.

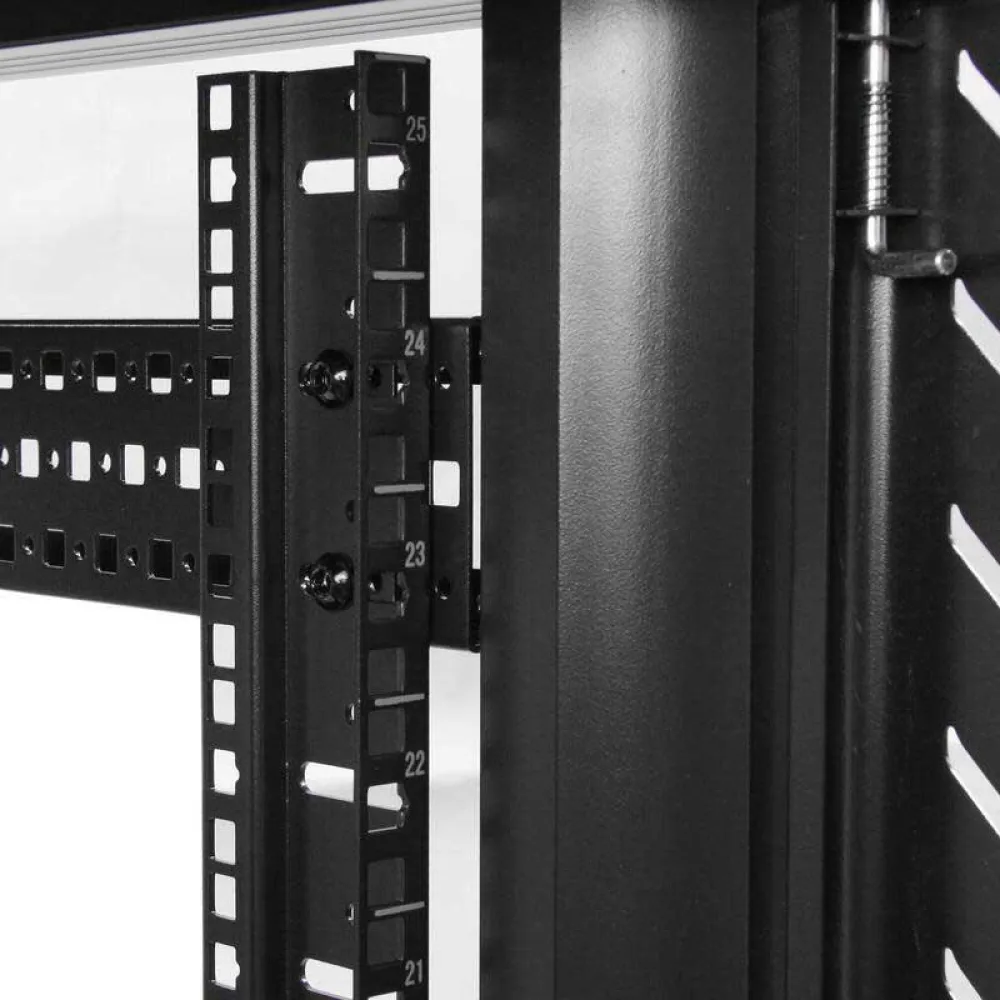

- With adjustable mounting rails you can easily change the rail depth to up to 32.7 in. (830 mm). These rails ensure the cabinet is widely compatible with your standard rackmountable equipment. The added depth also provides support for additional cable and power management behind your equipment.

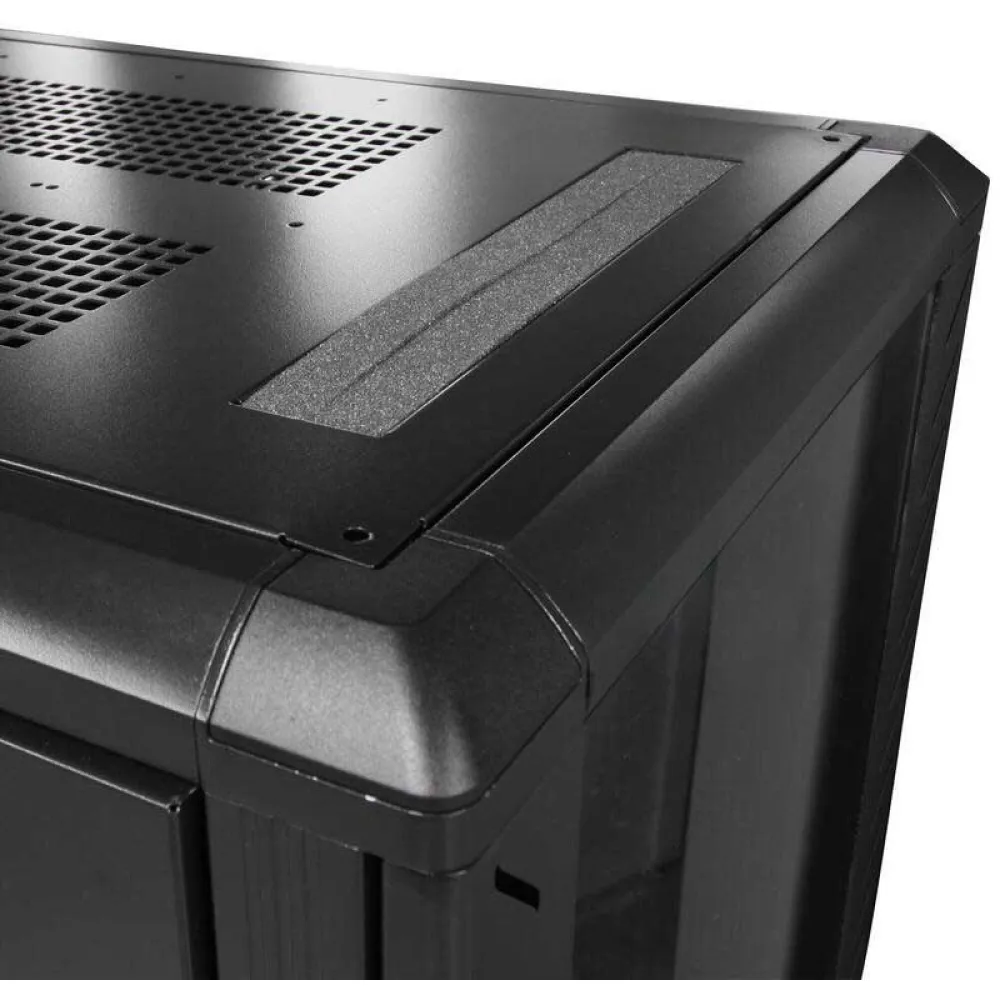

- The rack features brushed ports on the ceiling and floor panels that enable you to easily run cabling to the inside and outside of the cabinet, for discreet cable management. The floor and ceiling panels can also be removed enabling you to customize your setup, and the rack features grounding lugs that enable you to ground your equipment for added protection.

Protect & Secure Your Equipment:

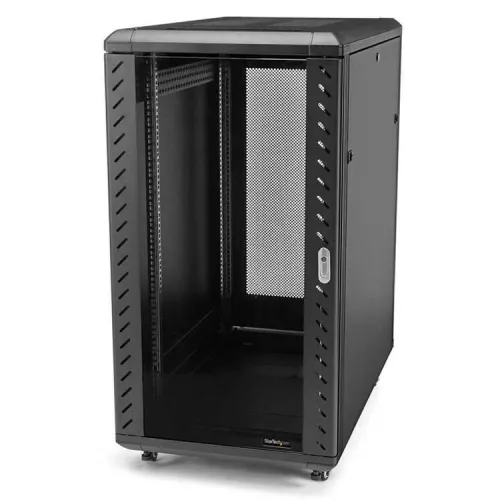

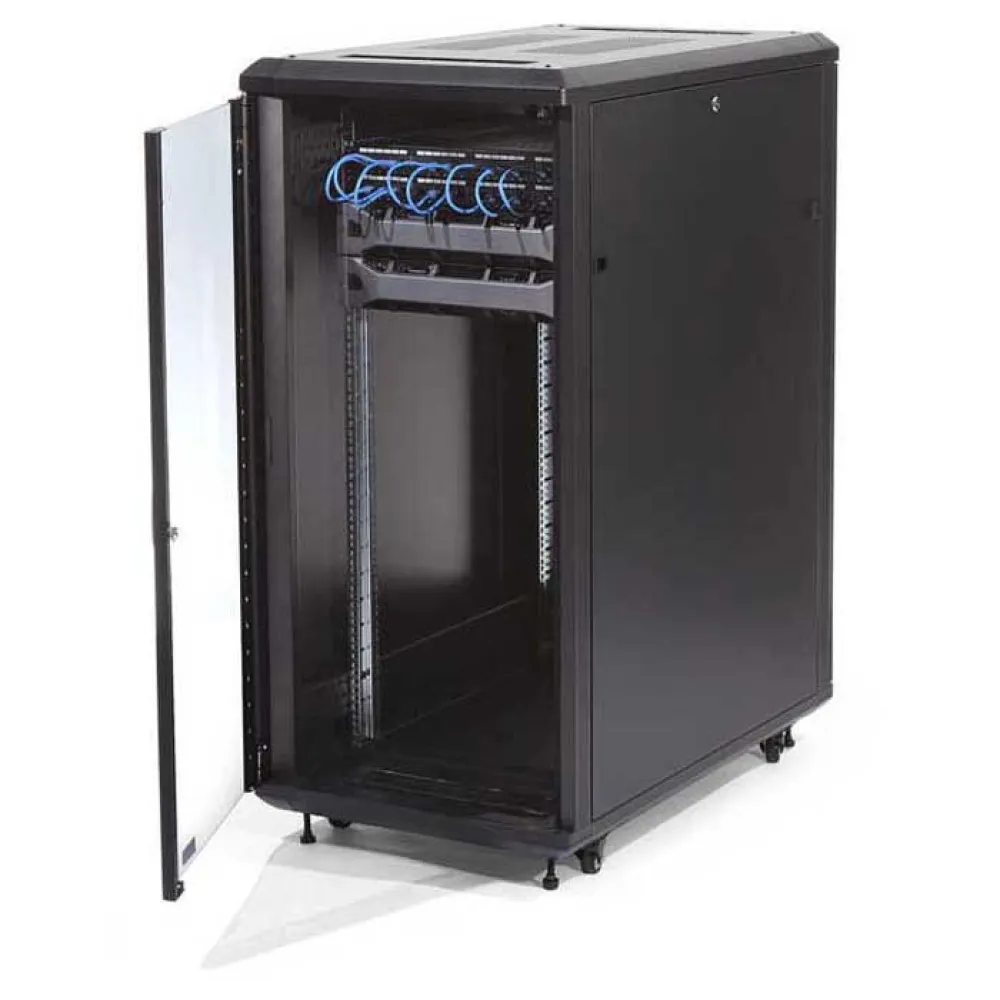

- To ensure you have full visibility of your equipment while securely locking it up, this rack has a stylish glass window on the front door. The glass door looks great in any server room, and gives you the freedom to clearly monitor equipment without the hassle of opening your rack.

- The rack also has removable side panels and doors with independent locks quick-release mechanisms that enable you to easily access your equipment while still keeping it secure.

Ships Flat-Packed:
- The cabinet comes in a flat packed box to reduce shipping volume, which significantly reduces your costs in shipping. Plus, because the rack is packaged efficiently, you can easily store the cabinet, for deployment at a later date.

Maximum Maneuverability:

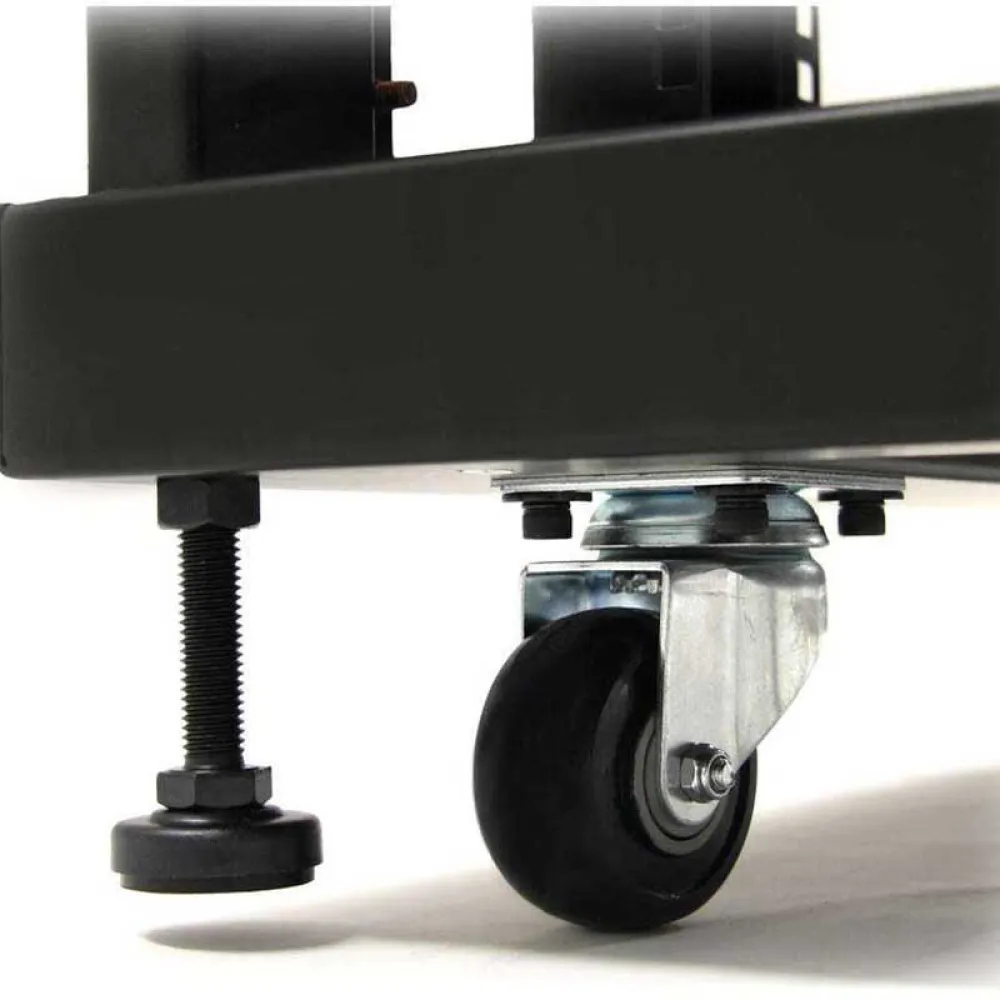

- The cabinet features casters ensuring hassle-free access to the rear mounted equipment, while providing ease of mobility around your office, studio or server room. Plus, the width and height of the rack fits through standard doorways, giving you the freedom to wheel your server rack into different rooms.

Ensure your equipment is running at an optimal temperature:
- The rear door on the rack is mesh, and the front glass door is vented, working together to increase airflow to provide passive cooling that´s cost effective and ensures your equipment runs at an optimal temperature.


Specifications:

Hardware:
- Special Features:
- Casters (Included)
- Easy Assembly
- Grounding Lug(s)
- Leveling Feet
- U-Markings

- Mounting Rail Profile: G-Shape
- Mounting Hole Types: Square (For Cage Nut)
- Industry Standards: EIA/ECA-310-E
- Rack Type: 4-Post
- U Height: 32U
- Frame Type: Enclosed Cabinet

Performance:
- Weight Capacity for Racks (Rolling): 150 kg [330,8 lb]
- Weight Capacity (Stationary with Leveling Feet): 800 kg [1764,0 lb]

Physical Characteristics:
- Front Door Features: Secure Key Lock with Reversible and Removable Front Door
- Side Panel Features: Secure Key Lock
- Rear Door Features: Secure Key Lock with Reversible and Removable Back Door
- Front Door Construction: Steel with Glass Window
- Side Panel Construction: Steel
- Rear Door Construction: Steel Mesh

Product Measurements:
- Product Height: 155,2 cm [61,1 in]
- Weight of Product: 101,0 kg [222,7 lb]
- Product Length: 1,0 m [3,3 ft]
- Product Width: 60,0 cm [23,6 in]
- Internal Width: 58 cm [22,8 in]
- Internal Depth: 99 cm [39,0 in]
- Maximum Mounting Depth: 83,8 cm [33,0 in]
- Minimum Mounting Depth: 14,4 cm [5,7 in]
- Product Height with Casters: 162 cm [63,8 in]

In the Box:
Included in Package:
- 1 - M6 Hex Key
- 2 - Side Panel Keys
- 2 - Front/Rear Keys
- 8 - M8 Washers
- 8 - M8 x 20mm Screws
- 40 - M6 Cage Nuts
- 2 - Door Hinge Pins
- 4 - Leveling Feet
- 40 - M6 Cup Washers
- 40 - M6 Cage Screws
- 6 - M5 x 12mm Screws
- 8 - M4 x 10mm Screws
- 4 - M6 x 12mm Screws
- 16 - M6 x 10mm Screws
- 1 - M8 Hex Key
- 1 - Bottom Panel
- 1 - Top Panel
- 2 - Side Panel Assembly
- 8 - Corner Caps
- 2 - Bottom Panels with Cable Management
- 2 - Casters with Brakes
- 2 - Casters
- 4 - Cross Members
- 1 - Rear Door Assembly
- 1 - Front Door Assembly
