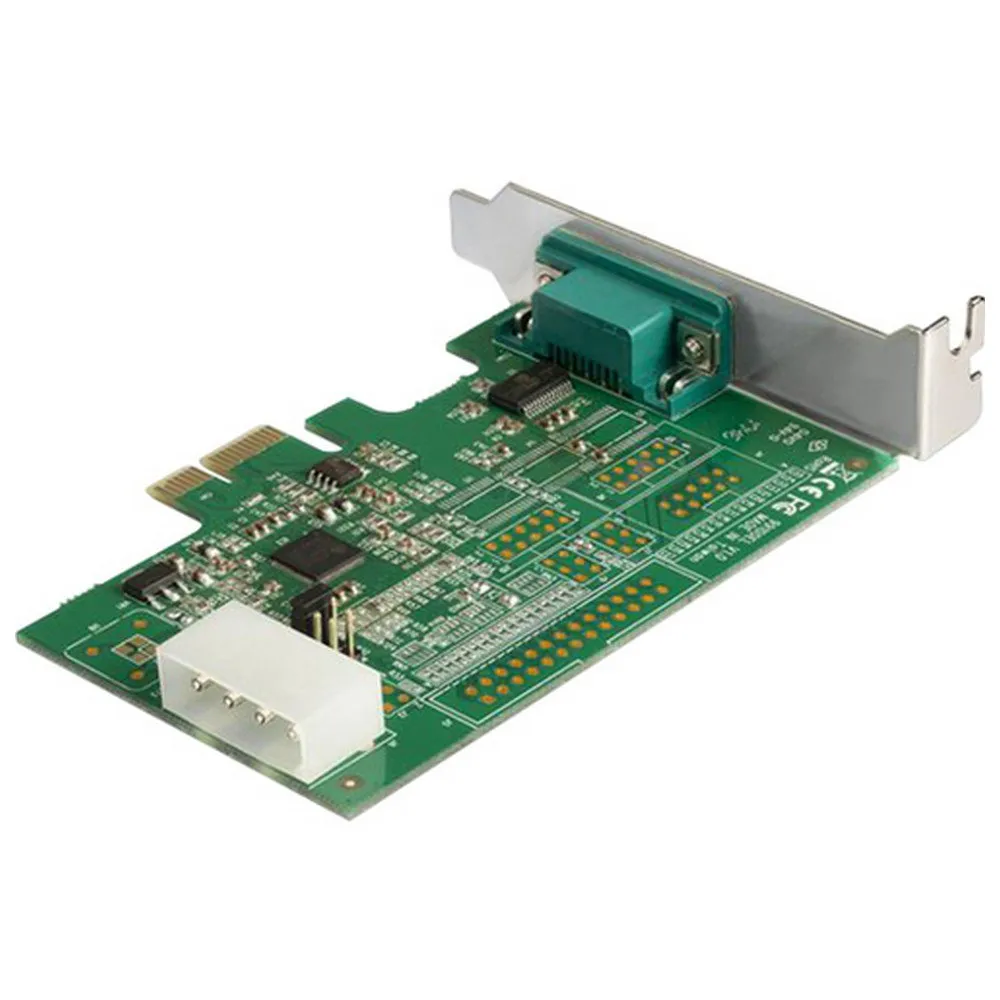

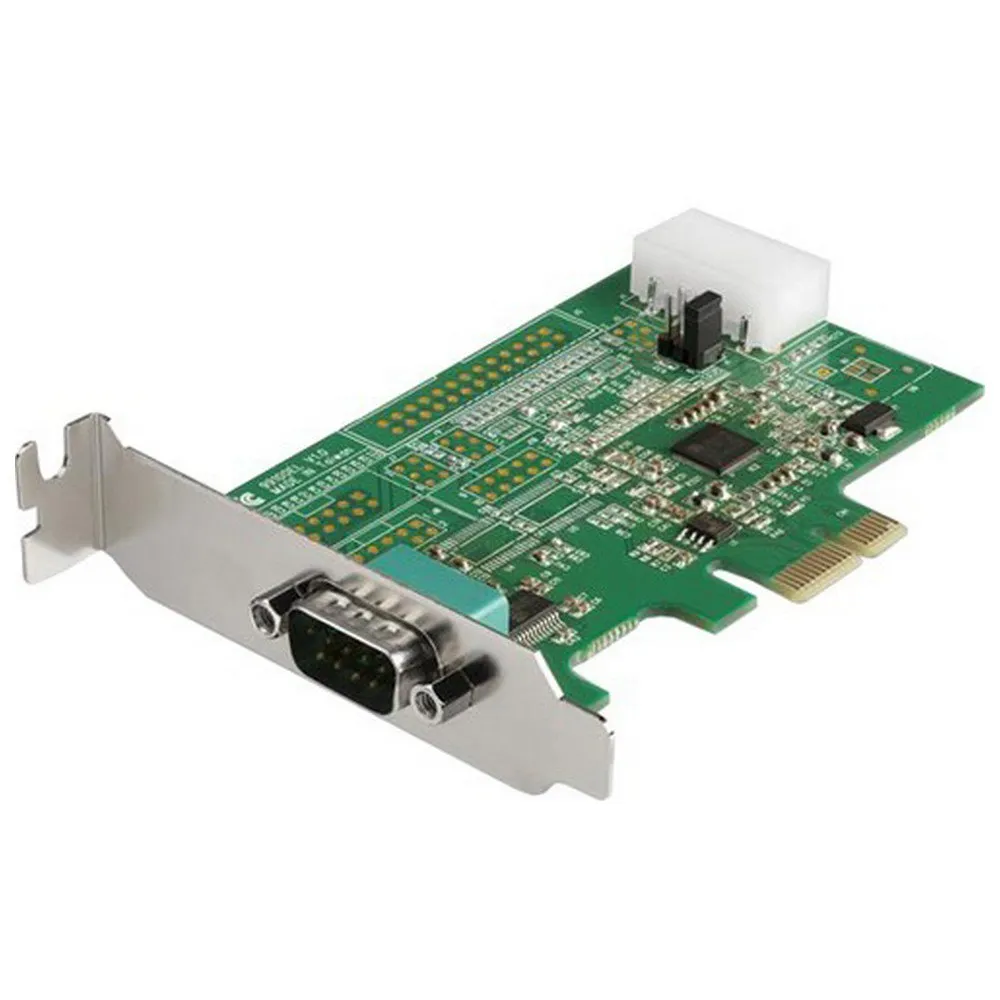

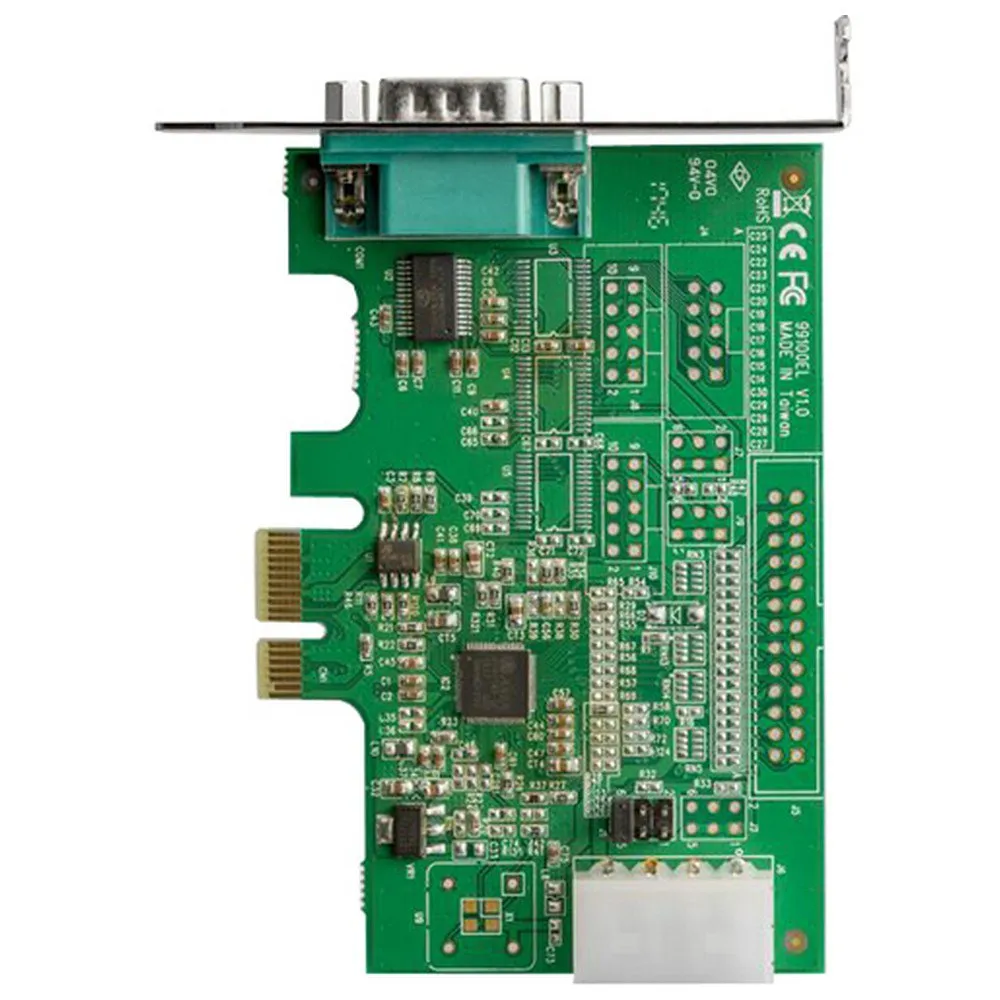

Startech RS232 PCIe PCI-E Expansion Card

Features:

- 1 port serial card: serial controller card w/ 16950 uart based on asix ax99100, allows 1x db9 port w/bi-directional rs232 speeds up to 921.6kbps per port, available 256 byte fifo buffer & 9th data bit_x000d_
- Optional configurable power: pci express rs232 serial adapter card provides choice of 12v, 5v, or none through pin 9 w/up to 2a total_x000d_

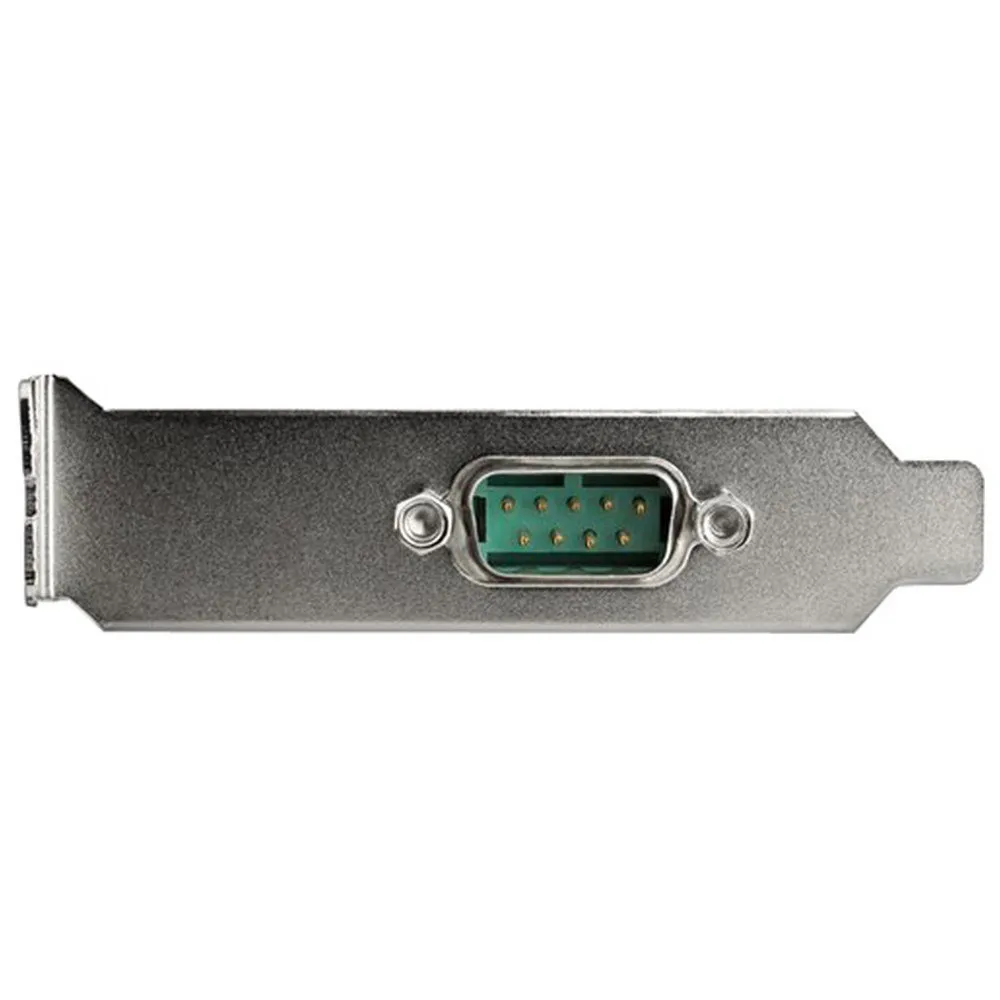

- Standard profile & low profile bracket: pcie serial card comes w/ a low profile bracket pre-installed & 1x full profile bracket is incl for versatile install; supports windows xp and up & linux_x000d_
- Versatile applications: for low/standard profile desktop/servers w/ uses in point of sale terminals, plcs, control/automation in factories, scientific sensors, medical equipment, scanner, oscilloscope_x000d_
- Startech.com advantage: it professionals choice for over 30 years; pci-e rs232 serial expansion card is backed for life by startech.com, incl. free 24/5 north america based multi-lingual tech support_x000d_
- _x000d_


Specifications:

- Ports & interfaces
- Host interface:PCIe
- Output interface:Serial
- Expansion card standardPCIe 1.1
- Serial ports quantity1
- Serial interface typeRS-232
- Peripheral (Molex) power connectors (4-pin)1
- Design
- Internal:Yes
- Product colourGreen
- Mean time between failures (MTBF)277385 h
- RoHS complianceYes
- CertificationCE, FCC, REACH, Microsoft WHQL
- Features
- ChipsetAsix AX99100
- Baud rate921.4 Kbit/s
- FIFO (First In, First Out)256 B
- Data bits5,6,7,8,9
- Stop bits1,1.5,2
- Flow control supportYes
- Parity bitEven, Mark, N, Odd, Space
- Flow Control typeN, RTS/CTS, XON/XOFF
- Operational conditions
- Operating temperature (T-T)0 - 70 °C
- Storage temperature (T-T)-20 - 80 °C
- Operational conditions
- Operating relative humidity (H-H)20 - 80%
- System requirements
- Windows operating systems supportedWindows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
- Linux operating systems supportedYes
- Server operating systems supportedWindows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016
- Weight & dimensions
- Width67 mm
- Depth98 mm
- Height150 mm
- Weight44 g
- Packaging data
- Quantity1
- Mounting brackets includedYes
- ManualYes
- Package width142 mm
- Package depth170 mm
- Package height30 mm
- Package weight112 g
- Logistics data
- Master (outer) case width36 cm
- Master (outer) case length68.5 cm
- Master (outer) case height31.5 cm
- Quantity per master (outer) case75 pc(s)
