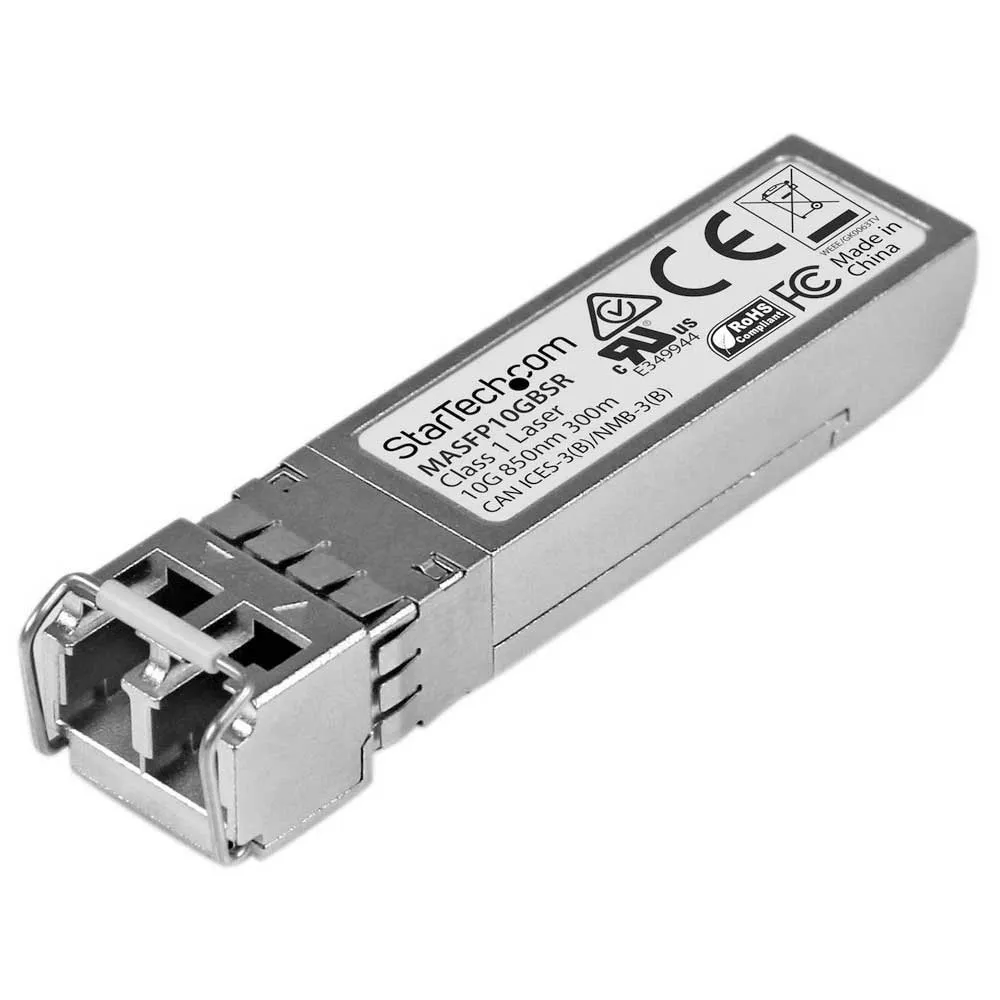

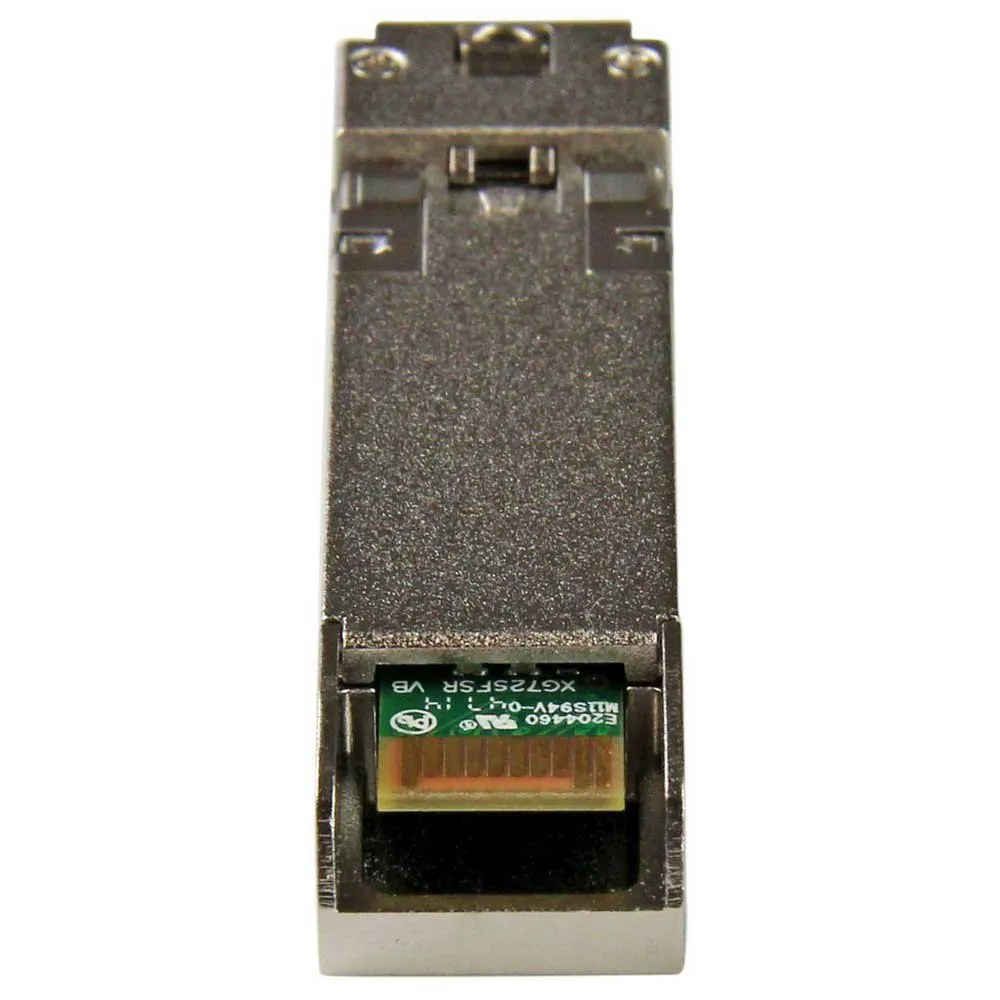

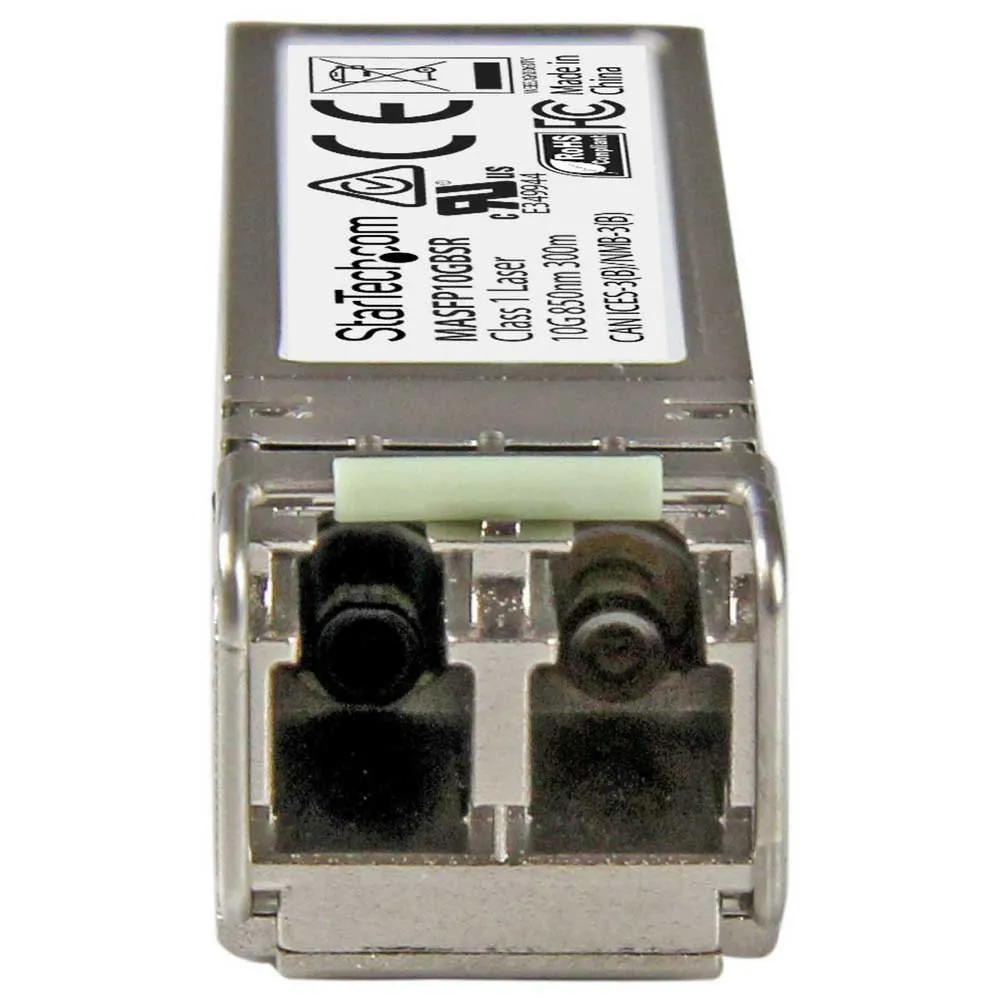

Startech SFP 10GBASE-SR LC Multimodo transceiver

The Masfp10gbsr Is A Cisco Meraki Ma-Sfp-10gb-Sr Compatible Fiber Transceiver Module That Has Been Designed, Programmed And Tested To Work With Cisco Meraki™ Brand Switches And Routers.

It Delivers Dependable 10gbe Connectivity Over Fiber Cable, For 10gbase-Sr Compliant Networks, With A Maximum Distance Of Up To 300 M (984 Ft).

Features:

- 100% Cisco Meraki Ma-Sfp-10gb-Sr Compatible:

Works With Cisco Meraki Switches Like Ms225, Mx400, Ms250, Ms350, Ms425 And Others.

- Technical Specs:

10gbase-Sr 10 Gbps Multi Mode (Mmf) Lc Connector 850nm Digital Diagnostic Monitoring (Ddm) Distances Up To 300m (984ft).

- Tested For Oem Host Compatibility:

Hot-Swappable In Cisco Routers And Switches.

Ddm Support Reports The Transceiver´s Status To Most Snmp Network Management Tools.

- Outstanding Support:

Backed By Startech.Com For The Life Of The Module Itself, Not Your Equipment.

Our Modules Won´t Void Your Oem Support And With Access To Our Tech Advisors 5/24.

- Works With Msa Compliant Switches:

Also Works With Switch Models From Ubiquiti, D-Link, Netgear, Supermicro, Tp-Link And More That Accept Uncoded Modules.

Specifications:

- Wavelength:

850nm.

- Maximum Data Transfer Rate:

10 Gbps.

- Type:

Multi Mode Fiber.

- Connection Type:

Lc Connector.

- Maximum Transfer Distance:

300 M (984 Ft).

- Mtbf:

1,967,709 Hours.

- Power Consumption:

Less Than 1.2 Watts.

- Digital Diagnostics Monitoring (Ddm):

Yes Connector(S):

- 1.

- Local Unit Connectors.

- Fiber Optic Lc Duplex Environmental:

- Operating Temperature:

0°C To 70°C (32°F To 158°F).

- Storage Temperature:

-40°C To 85°C (-40°F To 185°F).

- Humidity:

5~95% Rh Hardware:

- Compatible Brand:

Cisco Meraki.

- Wdm:

No.

- Industry Standards:

Ieee 802.3ae 10gbase-Sr Packaging Information:

- Package Height:

1.3 In [34.0 Mm].

- Package Length:

3.7 In [93.0 Mm].

- Shipping (Package) Weight:

1.7 Oz [47.0 G].

- Package Width:

4.6 In [11.7 Cm].

Performance:

- Maximum Data Transfer Rate:

10 Gbps.

- Max Transfer Distance:

300 M (984 Ft).

- Type:

Multi Mode.

- Wavelength:

850nm.

- Fiber Operating Mode:

Full-Duplex.

- Ddm:

Yes.

- Compatible Networks:

10 Gbps.

- Mtbf:

1,967,709 Hours.

- Power Consumption (In Watts):

< 1.2 W Physical Characteristics:

- Weight Of Product:

0.6 Oz [18.0 G].

- Product Length:

2.1 In [54.0 Mm].

- Product Width:

0.5 In [13.9 Mm].

- Product Height:

0.5 In [12.6 Mm] What´s In The Box:

- 1.

- Included In Package.

- Sfp+ Transceiver.
