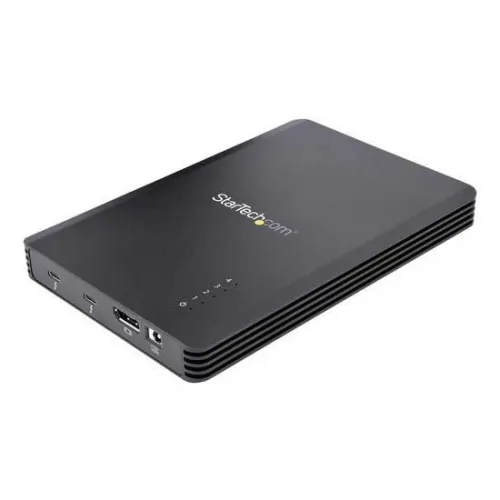

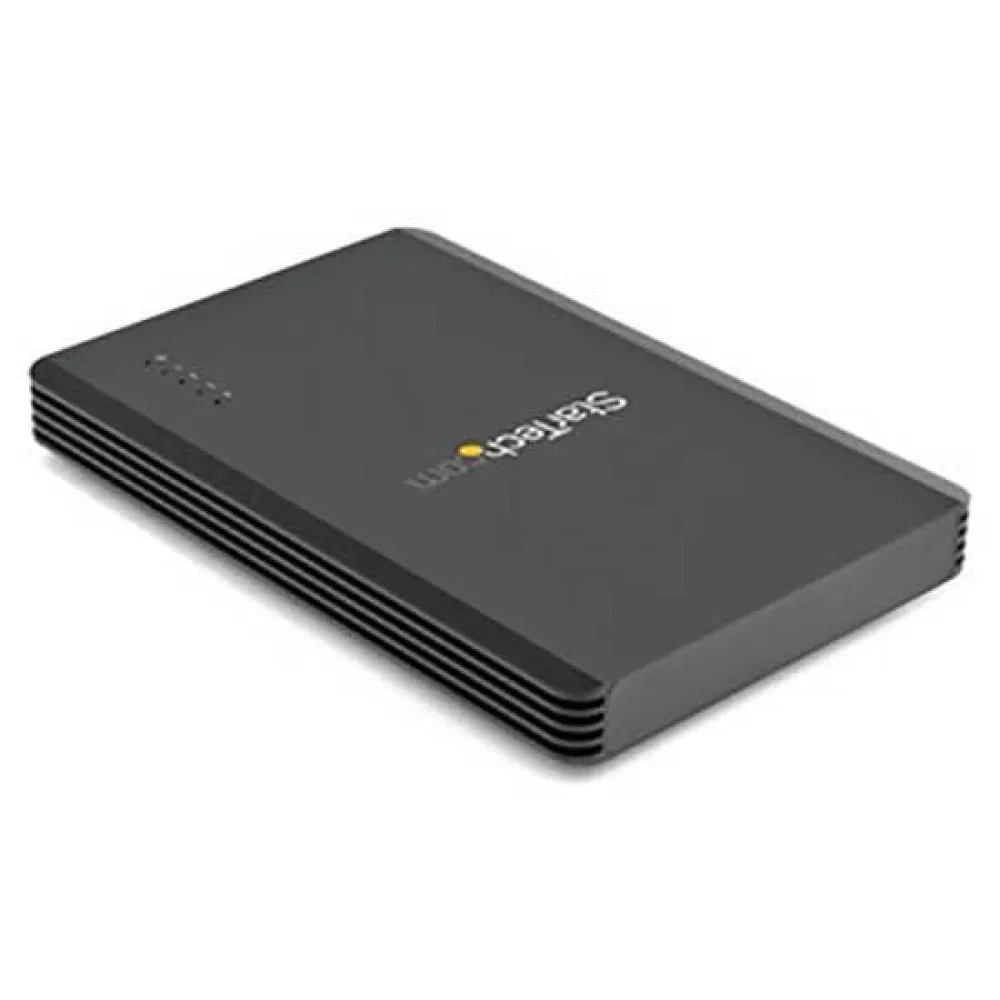

Startech Thunderbolt 3 SSD M.2 External Case

Features:

- High Performance M.2 Storage Via Thunderbolt 3:

Turn Up To 4 Pcie 80mm M.2 Ssds (M-Key) Into An External Tb3 Storage Solution.

Data Transfer Speeds Up To 40gbps.

Downstream Tb3 Port.

Displayport Video Output.

Vented Metal Enclosure W/Thermal Pads & Fan.

- Maximize Drive Speed:

Connect Up To Four M.2 Pcie Nvme And/Or Ahci Drives With An 8gbps Pcie Lane Dedicated To Each Ssd.

Supports Software Raid With Storage Management Systems Like Storage Spaces (Microsoft), Raid Assistant (Macos), Mdraid/Mdadm (Linux).

- Flexible Port Options:

Displayport Output To Connect To A Display With Resolutions Up To 4k 60hz.

Downstream Tb3 Port To Daisy Chain Additional Tb3 Devices Or A Compatible Tb3 Display (Up To 5k 60hz).

Connected Devices Share Bandwidth With Connected Ssds.

- Thunderbolt 3 Certified:

Works W/Tb3 & Tb4 Host Devices Like Macbook Pro 16/13/Air (Dual Displays On Mac W/Intel & M1 Pro/Max Processor.

Dual Display Not Supported On M1 Mac), Lenovo Thinkpad X1 Carbon/T Series, Dell Xps/Latitude/Precision & Hp Elitebook.

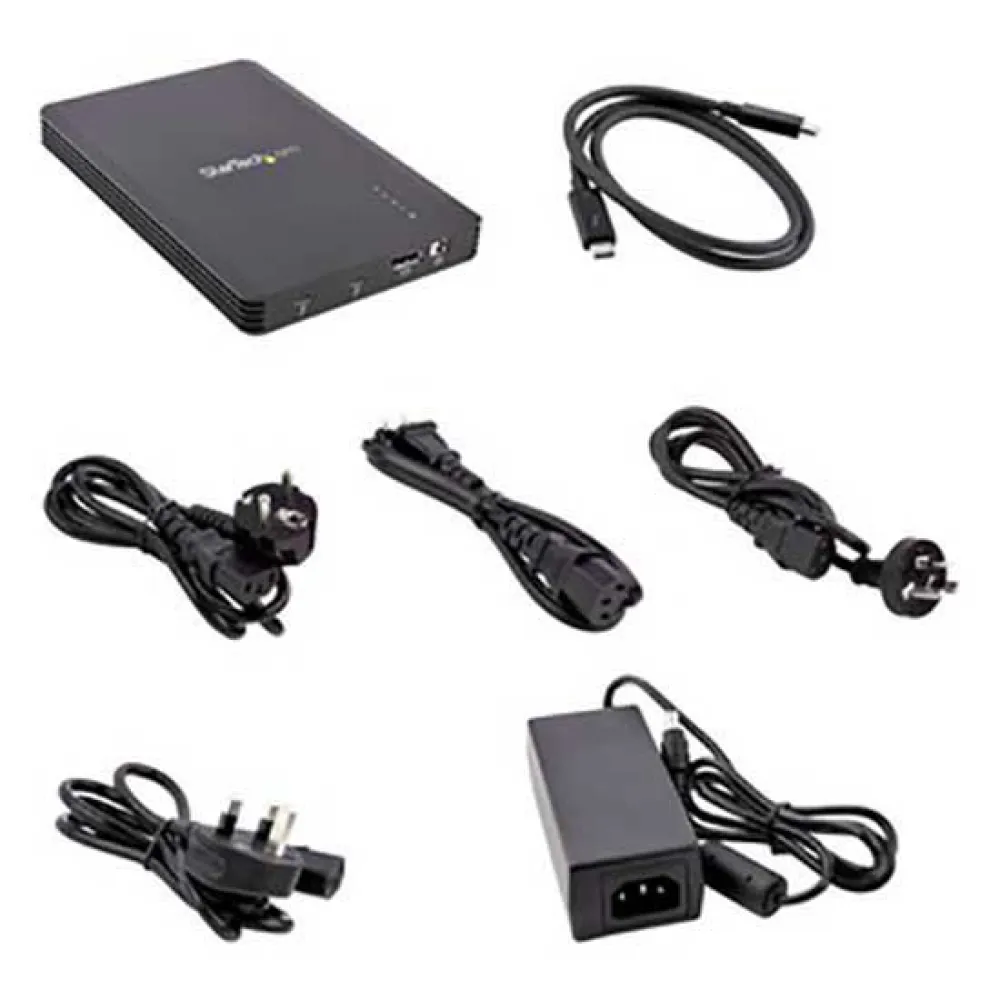

- Power Adapter & Thunderbolt 3 Cable Included:

Self Powered With An Included 72w Eps Power Supply That Powers The Enclosure, The Connected Drives And Provides 15w To Tb3 Port.

Includes 2.3 Ft (70cm) Tb3 Certified Passive Cable.

Not Compatible With Sata Ssd.

- This Thunderbolt™ 3 To 4x M.2 Pcie Ssd Enclosure Enables You To Turn Four M-Key Pci-Express Based M.2 Nvme Or Ahci Solid State Drives (Ssds) Into A High-Performance External Storage Solution.

- The Ssd Enclosure Is Self-Powered With An Included 72w Eps Power Supply That Powers The Enclosure, The Connected Drives, And Provides Up To 15w Of Power To Any Downstream Thunderbolt 3 Devices.

A 2.3 Ft.

(70 Cm) Thunderbolt 3 Certified Host Cable Is Also Included, To Connect The Enclosure To Your Computer.

High Performance M.2 Storage Via 40gbps Thunderbolt 3:

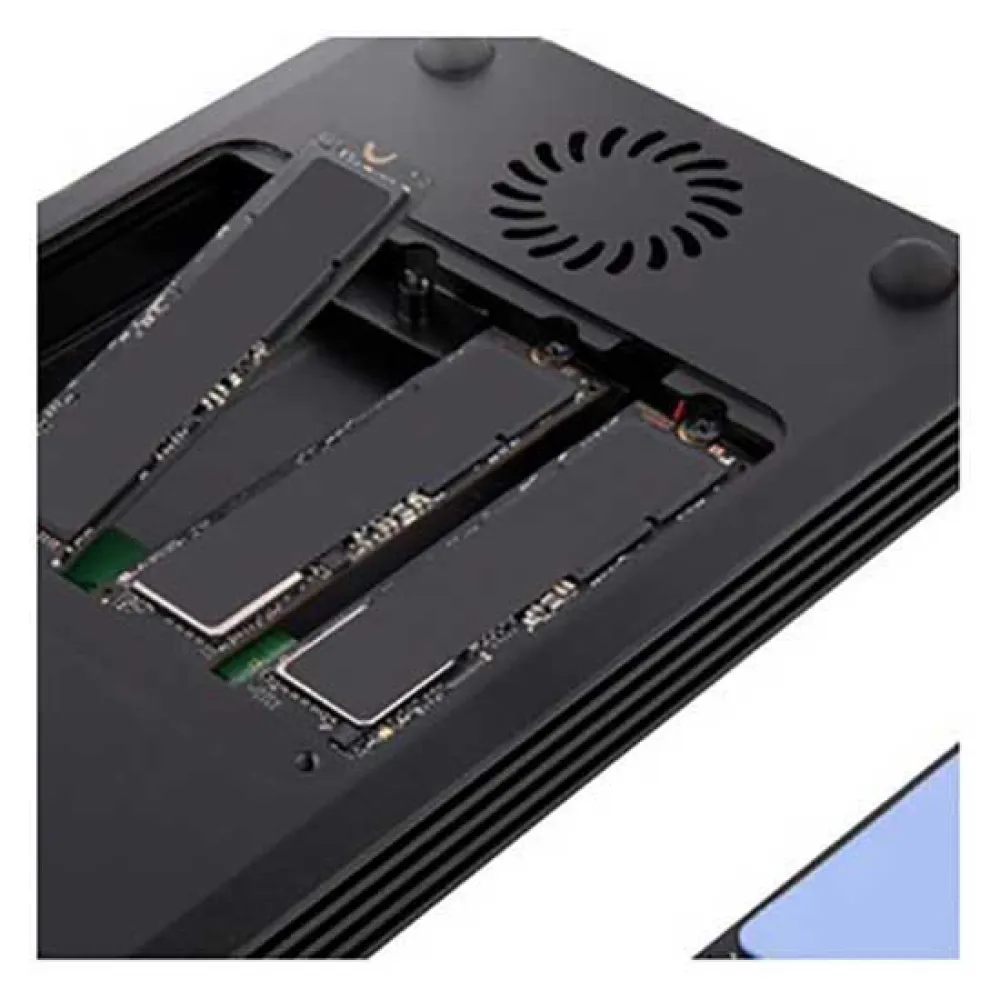

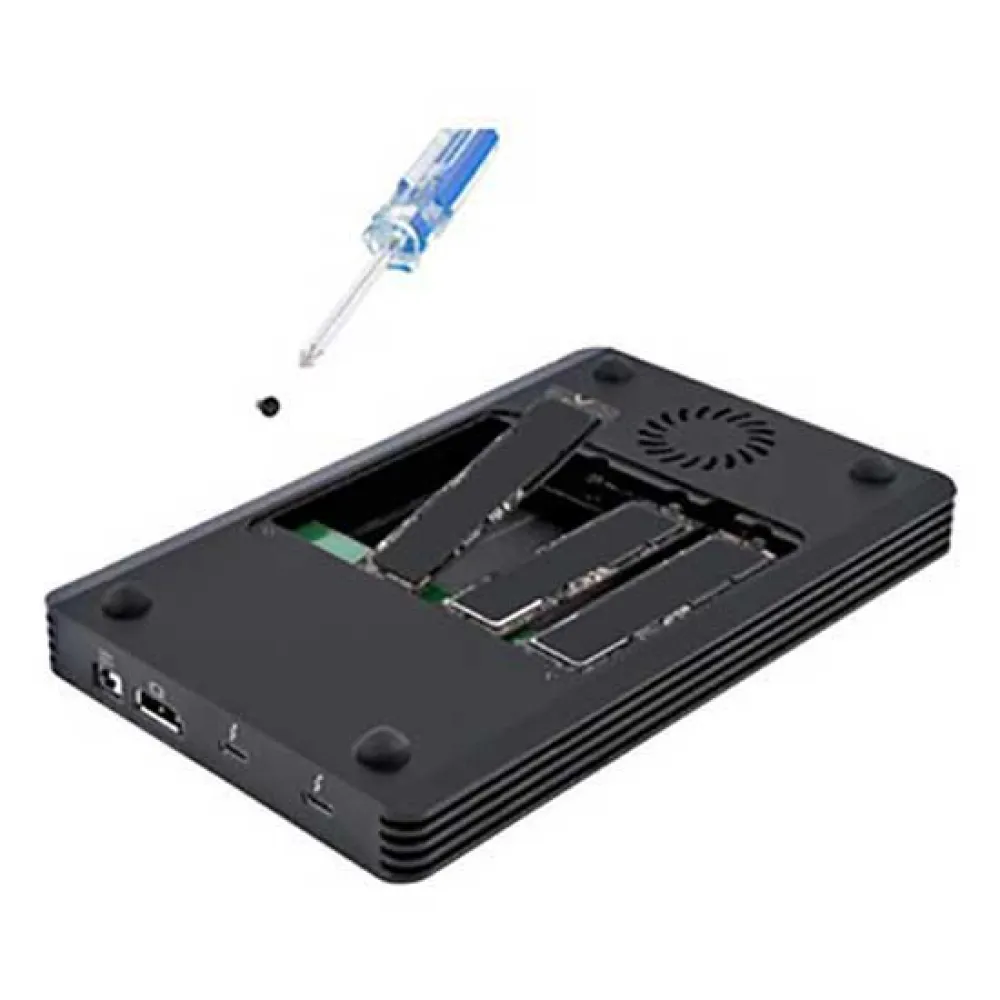

- The Enclosure Is Compatible With 80mm M.2 Pcie Based (M-Key) Single/Double-Sided Ssds.

Create An External Storage Solution That Utilizes The High-Performance Bandwidth Available To Your Thunderbolt 3 Port, Providing Combined Data Transfer Speeds Of Up To 40gbps For Up To Four Drives.

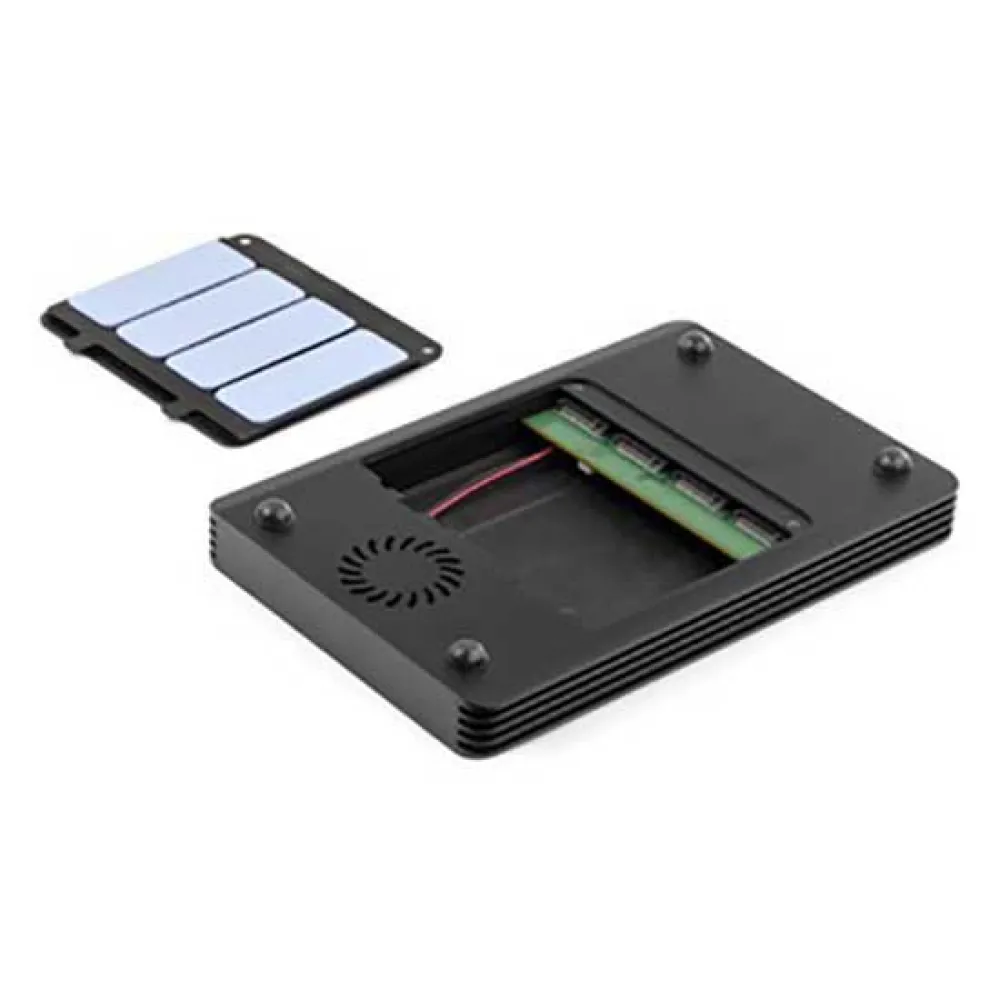

The Vented Metal Enclosure Features Thermal Pads And A Cooling Fan To Ensure Your Ssds Are Operating At Optimal Temperatures.

Dedicated 8gbps Throughput For Each Individual Drive:

- A Single 8 Gbps Pcie Lane Is Dedicated To Each Connected Drive.

This Ensures Consistent Read/Write Performance Across The Entire Enclosure, Regardless Of Individual Drive Activity.

The Enclosure Also Supports Software Raid With Storage Management Systems Like Storage Spaces (Microsoft), Raid Assistant (Macos), Or Mdraid/Mdadm (Linux).

The Support For Software Raid, Combined With Exceptional Drive Performance, Makes This The Ideal Enclosure For Creative Professionals Working With Large Files Such As High-Resolution Graphics, Video, And Cad Files.

Thunderbolt Certified:

- This Enclosure Is Thunderbolt Certified To Ensure An Optimal User Experience And Compatibility When Connected To A Thunderbolt 3 Host Device, Such As A Macbook Pro 16, 13, Air, Lenovo Thinkpad X1 Carbon / T Series, Dell Xps / Latitude / Precision Or Hp Elitebook.

The External Drive Enclosure Is Also Forward Compatible With Thunderbolt 4 Devices (At Thunderbolt 3 Performance).

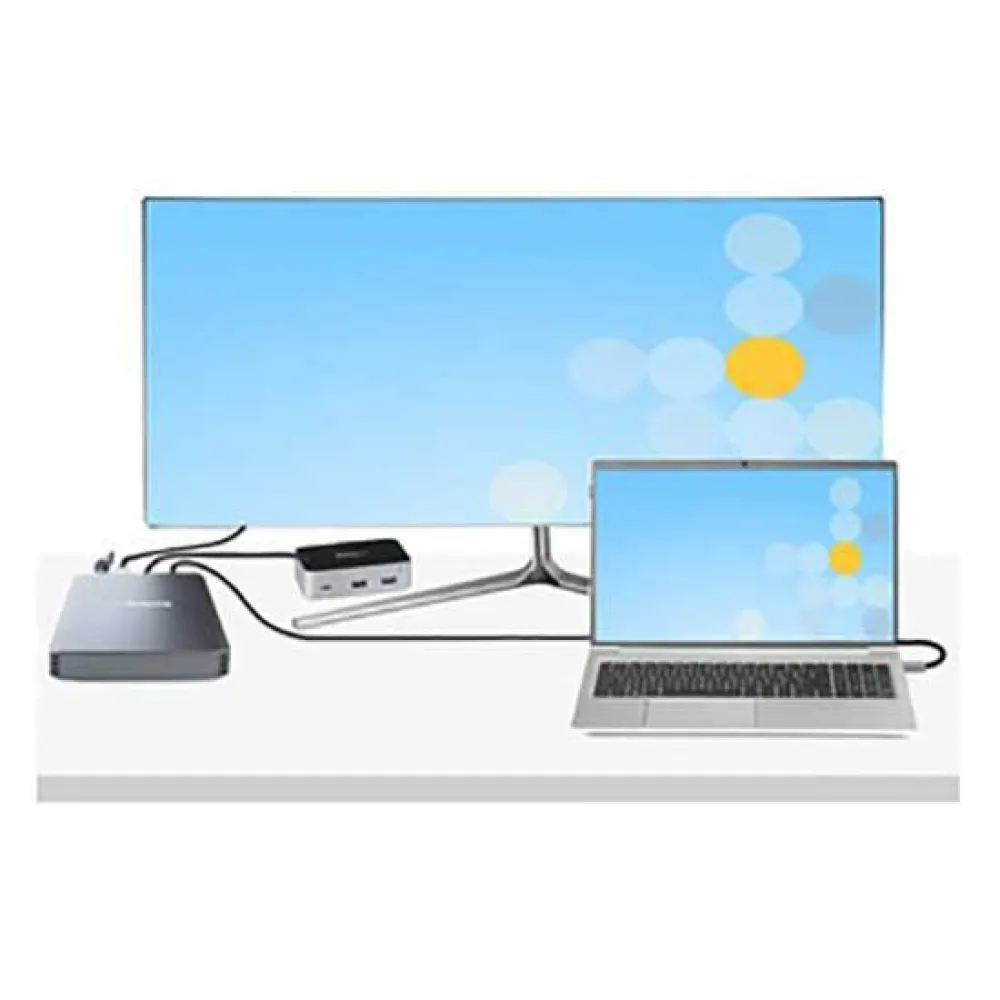

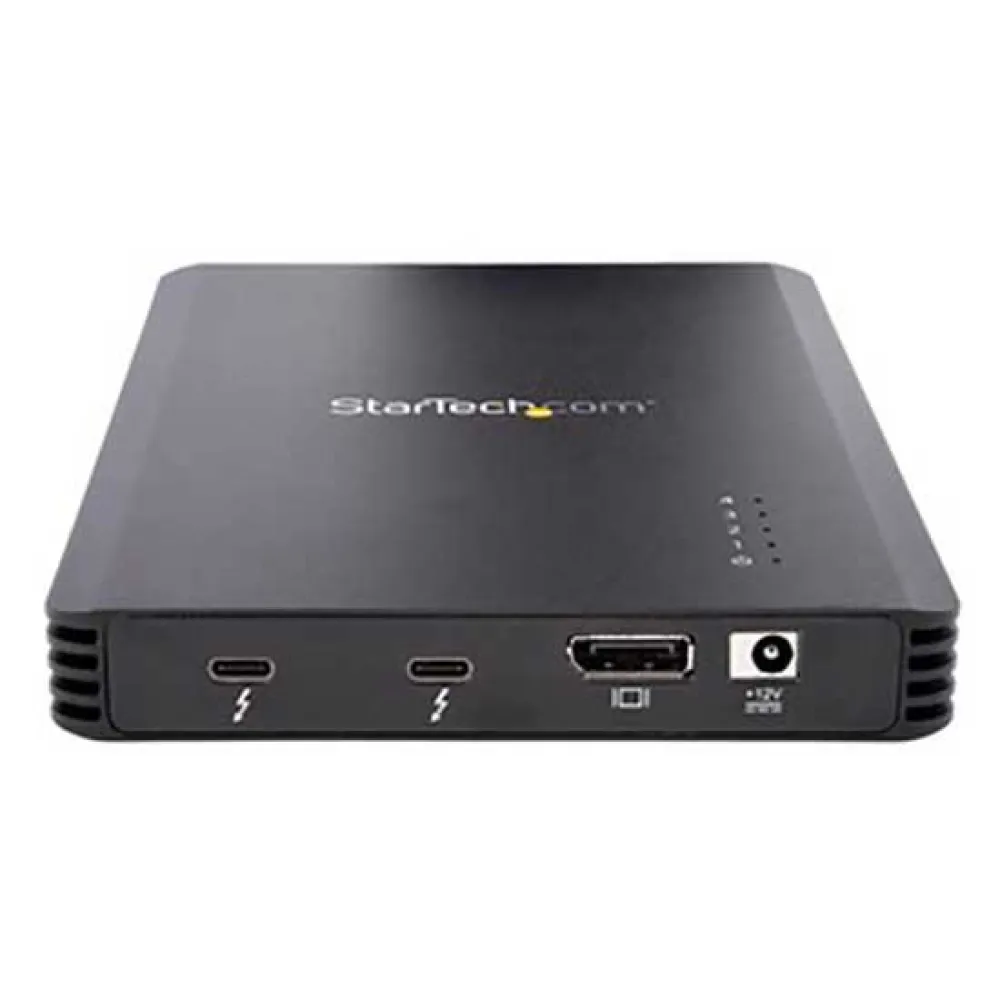

Additional Ports For Workspace Flexibility:

- The Enclosure Features A Displayport Output Port, Enabling You To Connect A Displayport Monitor To Your Computer Through The Thunderbolt 3 Enclosure, With Resolutions Up To 4k 60hz.

The Enclosure Also Features A Downstream Thunderbolt 3 Port For Daisy Chaining An Additional Tb3 Device Or Connect An Additional Tb3 Compatible Display (Up To 5k 60hz).

Specifications:

Connector(S):

- Drive Connectors:

4.

- M.2 (Pcie, M-Key, Ahci/Nvme, Ngff).

- Host Connectors:

1.

- Thunderbolt™ 3 Usb-C (24-Pin) (40gbps) Other Interface(S):

- 1.

- Thunderbolt™ 3 Usb-C (24-Pin) (40gbps).

- 1.

- 20 Pin Displayport Female Environmental:

- Operating Temperature:

5°C To 45°C (41°F To 113°F).

- Storage Temperature:

-20°C To 50°C (-4°F To 122°F).

- Humidity:

20% ~ 80% Rh Hardware:

- Fan(S):

Yes.

- Fans:

1.

- 40 Mm.

- Interface:

Thunderbolt 3.

- Bus Type:

Thunderbolt 3.

- Number Of Drives:

4.

- Drive Size:

80 Mm.

- M.2 Pcie Compatible Drive Types:

- M.2 (Pcie, Nvme, M-Key, Ngff).

- M.2 (Pcie, Ahci, M-Key, Ngff) Drive Installation:

Fixed.

- Supported Drive Height(S):

2280.

- Fan Bearing Type:

Sleeve Bearing Chipset Id:

- Intel.

- Jhl6540.

- Ti.

- Tps65983b Indicators:

- Led Indicators.

- 1.

- Power (Illuminates When Powered On).

- 4.

- Drive Activity (Flashes When Drive Activity Is Detected).

Performance:

- Noise Level:

34.5db 50cm.

- Maximum Data Transfer Rate:

40 Gbps.

- Type And Rate:

Thunderbolt 3.

- 40 Gbit/S.

- Trim Support:

Yes.

- 4kn Support:

Yes.

- S.M.A.R.T.

Support:

Yes.

- Type And Rate:

Nvme (Pcie X1 Gen 3.

8gbps).

- Mtbf:

50,000 Hours Physical Characteristics:

- Height:

2.0 Cm [0.8 In].

- Length:

12.0 Cm [4.7 In].

- Weight:

0.6 Kg [1.3 Lb].

- Width:

16.0 Cm [6.3 In].

- Material:

Metal Power:

- Power Source:

Ac Adapter Included.

- Input Voltage:

110 ~ 120 Ac.

- Input Current:

2 A.

- Output Voltage:

12v Dc.

- Output Current:

6 A.

- Center Tip Polarity:

Positive.

- Power Consumption (In Watts):

72.
