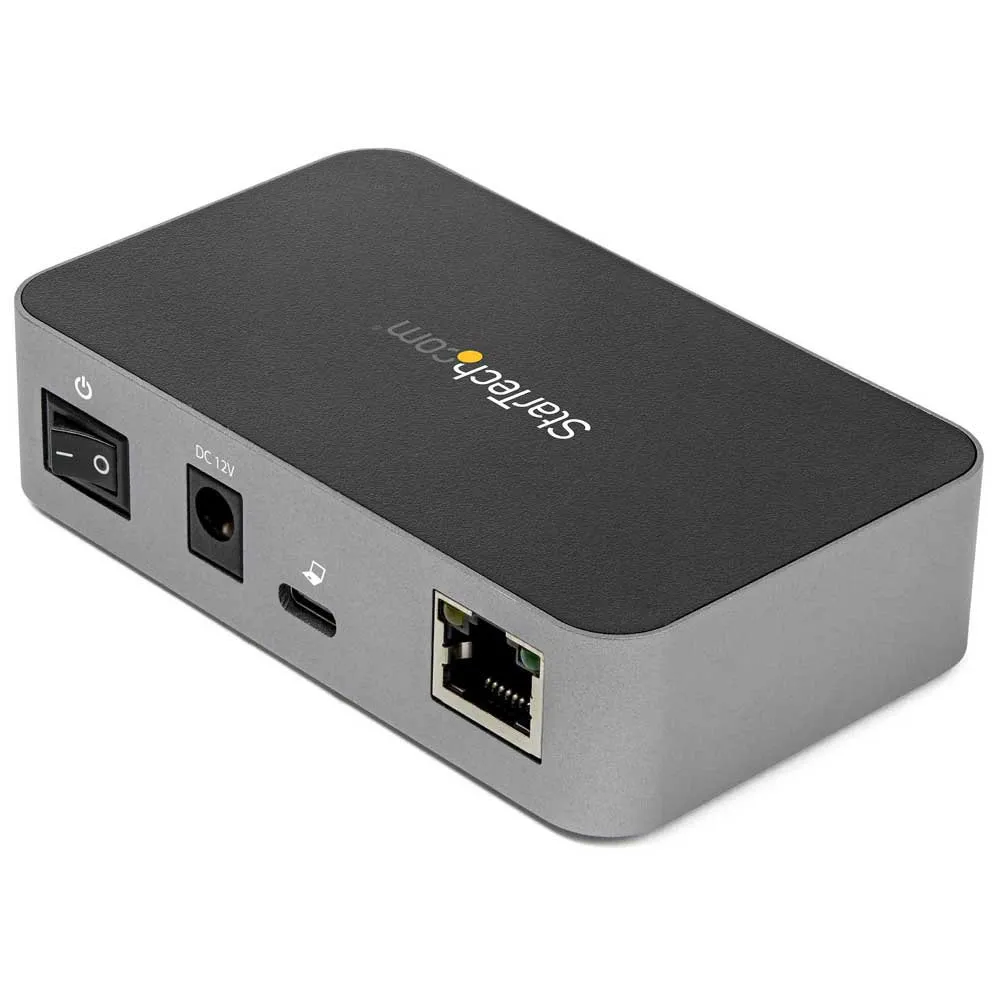

Startech USB C 3 Port docking station

Expand The Connectivity Of Your Usb-C Laptop With This New Generation Usb-C 3.1 Gen 2 Hub Offering 10gbps Supporting Greater Bus Bandwidth To Connected Devices And Faster Data Transfer Speeds. This Self-Powered 3-Port Usb-C Hub Plugs Into The Usb Type-C Or Thunderbolt 3 Port On Your Device, Adding One Lan Port, One Usb-C Port, And Two Usb-A Ports, So You Can Quickly Connect More Usb Devices.   Gigabit Network Access:

- For Faster And More Consistent Network Connections, The Usb 3.1 Gen 2 Hub´S Integrated Gigabit Ethernet Port Provides Wired Network Access That Is Fully Compatible With Ieee 802.3/U/Ab Standards.

The Gbe Port Also Supports Wake-On-Lan (Wol), So You Can Remotely Wake Your Computer Over Your Network.  Easy Setup & Installation:

- This Compact, Lightweight Usb-Type-C Hub Is A Convenient And Compact Addition To Your Laptop Setup. The Hub Is Self-Powered And Includes A Universal Power Adapter To Provide Better Support Of Usb Devices, Such As External Storage, That May Draw More Power.

The Usb-C Host Cable Is Detached And With An Extended Length Of 3.3´ (1 M), It Provides More Flexibility For Longer Reach Connection Requirements And Plug And Play Installation.  .

- For Added Flexibility And Security, The Mini Hub Features Mounting Holes To Work With Startech.Com Dock Mounts Such As Sspmsvesa Or Sspmsudwm.

Connect Usb-C & Usb-A Peripherals:

- With Ports For Both Usb-C And Usb-A Peripherals, This Hub Is Backwards Compatible Supporting Both Legacy And New Usb Devices.

It Features One Always-On Usb-A Fast Charge Port Which Supports Two Modes Of Operation:

Data Transfer And Charging When The Laptop Is Connected And On:

- Dedicated Or Hostless Charging Which Provides A Higher Charging Current, When The Host Is Off, On Standby, Or Disconnected You Can Connect Video Capture Devices, Portable Flash Drives, And External Hard Drives, With Fast Data Transfer Speeds Of Up To 10 Gbps. This 3 Port Usb Type-C Hub Enhances Your Productivity, Giving You The Connections You Need While You Work Or Travel.

The It Pro´S Choice Since 1985:

- Startech.Com Conducts Thorough Compatibility And Performance Testing On All Our Products To Ensure We Are Meeting Or Exceeding Industry Standards And Providing High-Quality Products To It Professionals.

Our Local Startech.Com Technical Advisors Have Broad Product Expertise And Work Directly With Our Startech.Com Engineers To Provide Support For Our Customers Both Pre And Post-Sales.

The Startech.Com Advantage:

- Usb Hub With Ethernet:

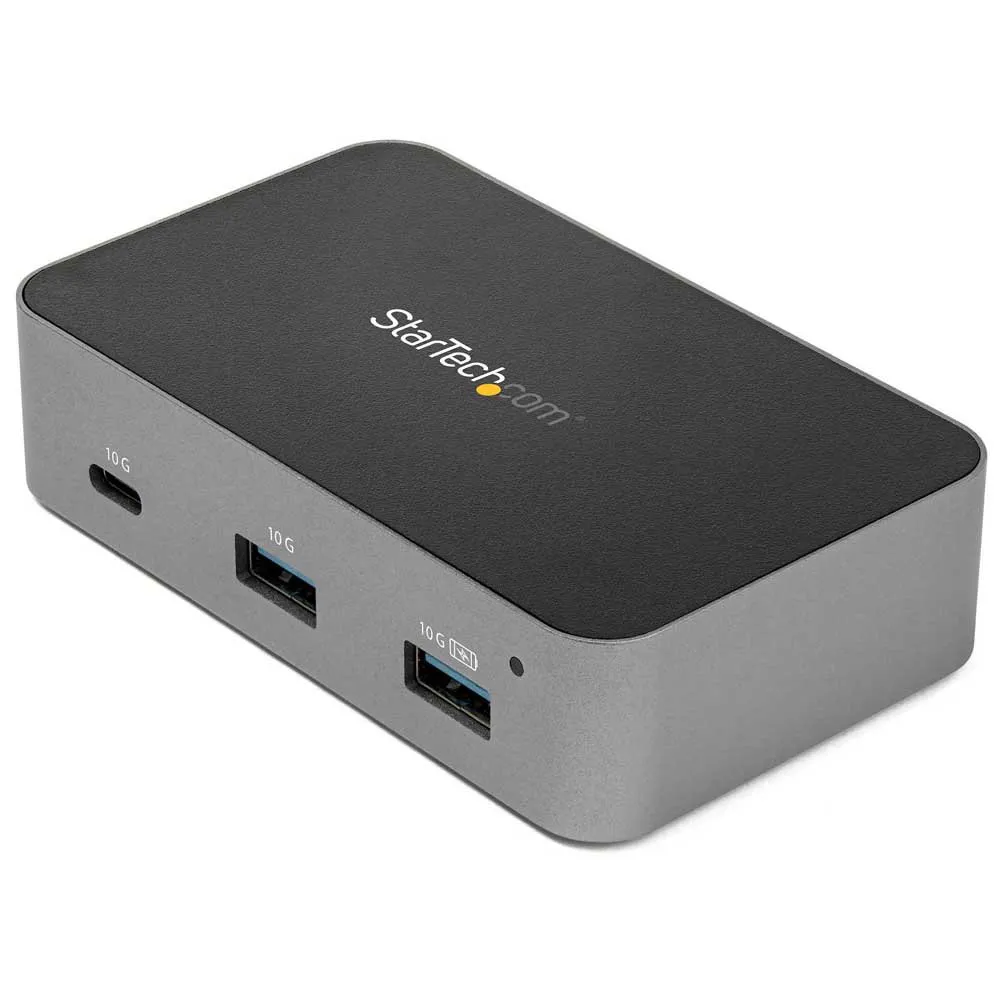

2x Usb-A & 1x Usb-C Ports Support Usb 3.1/3.2 Gen 2 10gbps Transfer Speeds With Usb-A Supporting Bc 1.2 For Fast Device Charging.

Built-In Gbe Port Lan Connectivity.

- Hard Wired Lan:

Desktop Usb C Hub With Built-In Gigabit Ethernet Port (Rj45), Wake-On-Lan, V-Lan Tagging & 9k Jumbo Frames For Secure Ethernet Connectivity, Ideal For Laptops/Tablets Without Lan Ports.

- Charge & Sync:

24w Power Supply Adapter Enables The Usb-A Port To Provide 1.5a Of Power To Data Synced Devices.

The Powered Usb Hub Even Charges Devices When A Host Pc Isn´T Connected W/ 2.4a Of Power.

Specifications:

Ports & Interfaces:

- Host Interface:

Usb 3.2 Gen 2 (3.1 Gen 2) Type-C.

- Hub Interfaces:

Rj-45, Usb 3.2 Gen 2 (3.1 Gen 2) Type-A, Usb 3.2 Gen 2 (3.1 Gen 2) Type-C.

- Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity:

2.

- Usb 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity:

1.

- Ports Quantity:

4.

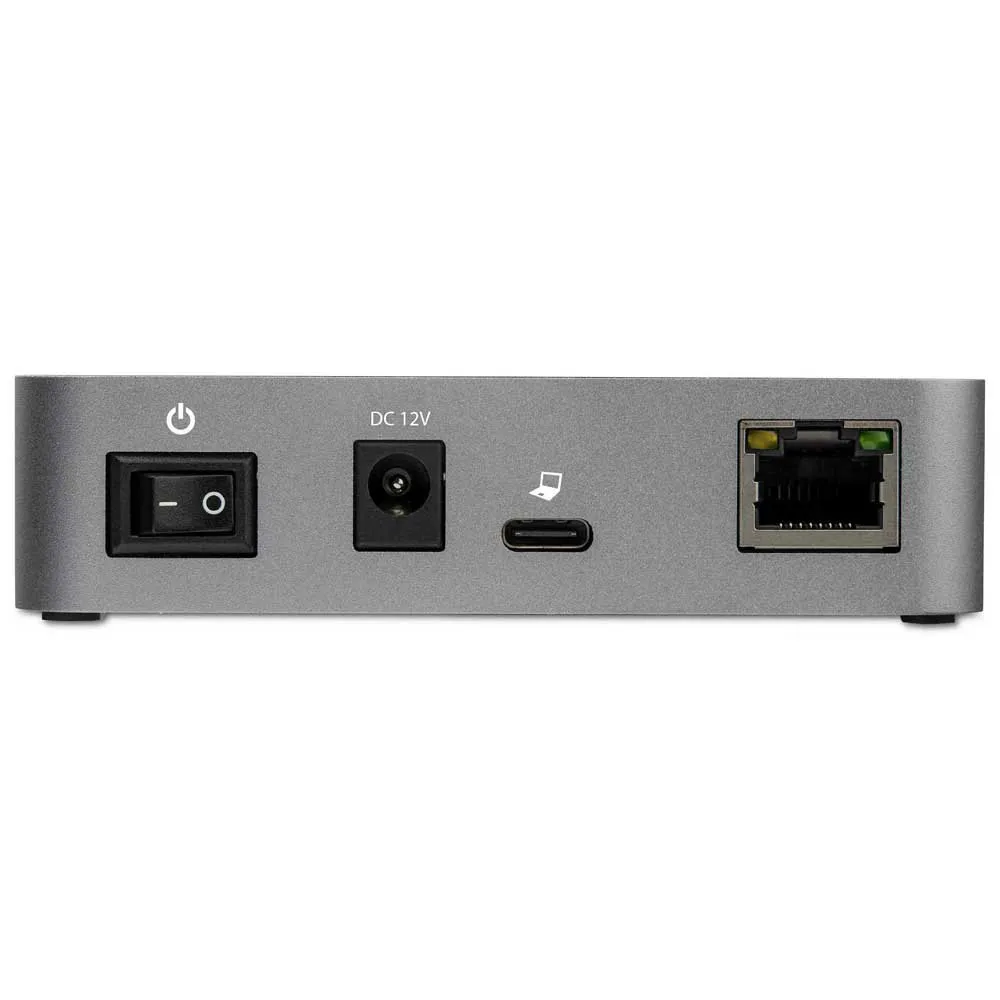

- Ethernet Lan (Rj-45) Ports:

1.

- Dc-In Jack:

Yes.

Features:

- Data Transfer Rate:

10000 Mbit/S.

- Housing Material:

Aluminium, Plastic.

- Led Indicators:

Link, Power.

- Cable Length:

1 M.

- Plug And Play:

Yes.

-.

Certification:

Ce, Fcc, Rohs, Reach Network:

- Ethernet Inter:

Face Typefast Ethernet, Gigabit Ethernet.

- Full Duplex:

Yes.

- Auto Mdi/Mdi-X:

Yes.

- Uasp Support:

Yes Power:

- Power Supply Type:

Ac.

- Power Consumption (Typical):

24 W.

- Input Voltage:

110.

- 240 V.

- Input Current:

0.8 A.

- Output Voltage:

12 V.

- Output Current:

2 A.

- Power Plug Type:

Type M System Requirements:

- Windows Operating Systems Supportedwindows 10,Windows 10 Education,Windows 10 Education X64,Windows 10 Enterprise,Windows 10 Enterprise X64,Windows 10 Home,Windows 10 Home X64,Windows 10 Iot Core,Windows 10 Pro,Windows 10 Pro X64,Windows 10 X64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise X64,Windows 7 Home Basic,Windows 7 Home Basic X64,Windows 7 Home Premium,Windows 7 Home Premium X64,Windows 7 Professional,Windows 7 Professional X64,Windows 7 Starter,Windows 7 Starter X64,Windows 7 Ultimate,Windows 7 Ultimate X64,Windows 7 X64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise X64,Windows 8 Pro,Windows 8 Pro X64,Windows 8 X64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise X64,Windows 8.1 Pro,Windows 8.1 Pro X64,Windows 8.1 X64.

- Mac Operating Systems Supportedmac Os X 10.10 Yosemite, Mac Os X 10.11 El Capitan, Mac Os X 10.12 Sierra, Mac Os X 10.13 High Sierra.

- Linux Operating Systems Supportedyes.

- Server Operating Systems Supportedwindows Server 2008 R2,Windows Server 2012,Windows Server 2012 X64.

- Other Operating Systems Supportedandroid, Chrome Weight & Dimensions:

- Width:

60 Mm.

- Depth:

100 Mm.

- Height:

25 Mm.

- Weight:

87 G Packaging Data:

- Quantity Per Pack:

1 Pc(S).

- Package Width:

213 Mm.

- Package Depth:

149 Mm.

- Package Height:

51 Mm.

- Package Weight:

500 G Packaging Content:

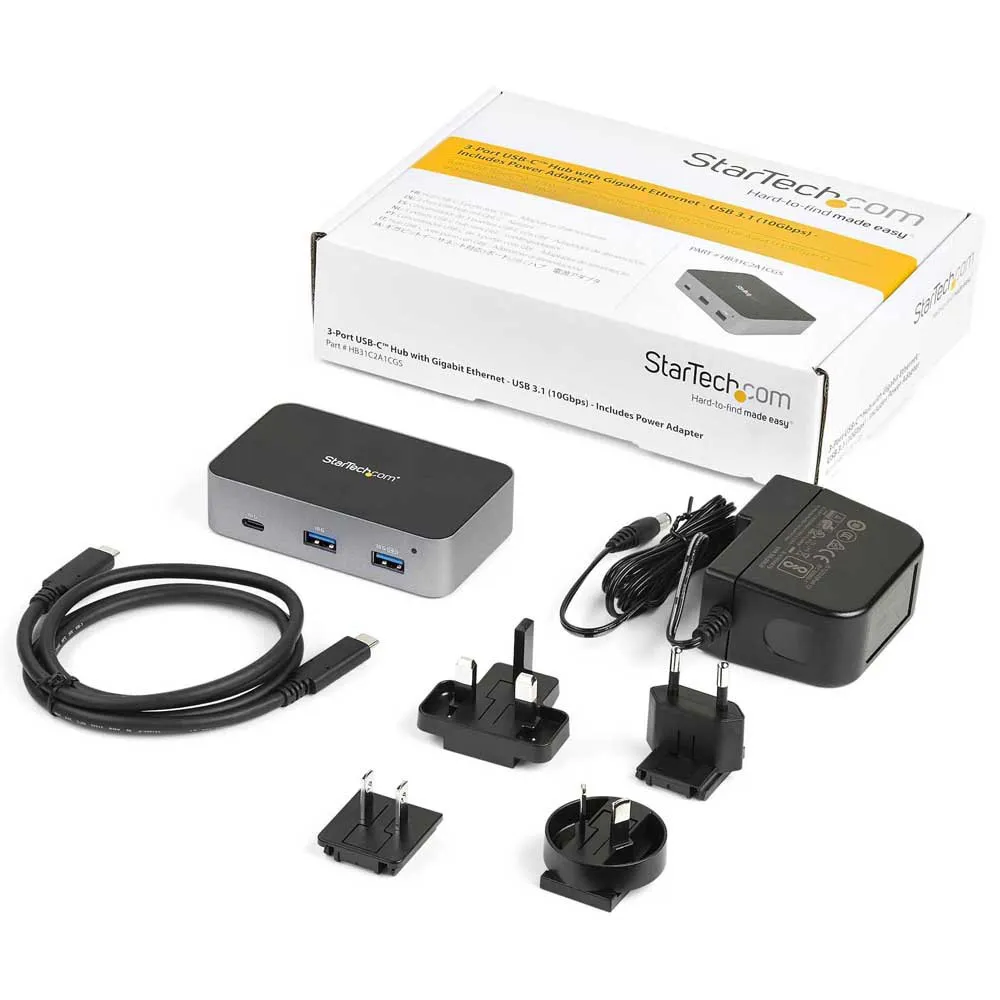

- Ac Adapter Included:

Yes.

- Included Power Plug Types:

Anz, Eu, Jp, Na, Uk.

- Cables Included:

Usb Type-C Operational Conditions:

- Operating Temperature (T-T):

0.

- 50 °C.

- Storage Temperature (T-T):

-20.

- 70 °C.

- Operating Relative Humidity (H-H):

0.

- 95% Logistics Data:

- Master (Outer) Case Width:

45 Cm.

- Master (Outer) Case Length:

32 Cm.

- Master (Outer) Case Height:

57 Cm.

- Quantity Per Master (Outer) Case:

40 Pc(S) Other.

Features:

- Chipsetrealtek.

- Rtl5428, Realtek.

- Rtl8153b.
