Startech USB to RS232 DB9/DB25 Serial adapter

STARTECH USB to RS232 DB9/DB25 Serial Adapter - ICUSB232DB25

Bridge the technology gap and unlock seamless communication between your modern computer and legacy serial devices with the StarTech.com USB to RS232 DB9/DB25 Serial Adapter. This professional-grade adapter is the ultimate solution for IT professionals and enthusiasts who need to connect serial peripherals to a laptop or desktop computer that lacks a native serial port. By converting a standard USB-A port into a reliable RS232 serial connection, this cable provides essential connectivity for a wide range of devices.

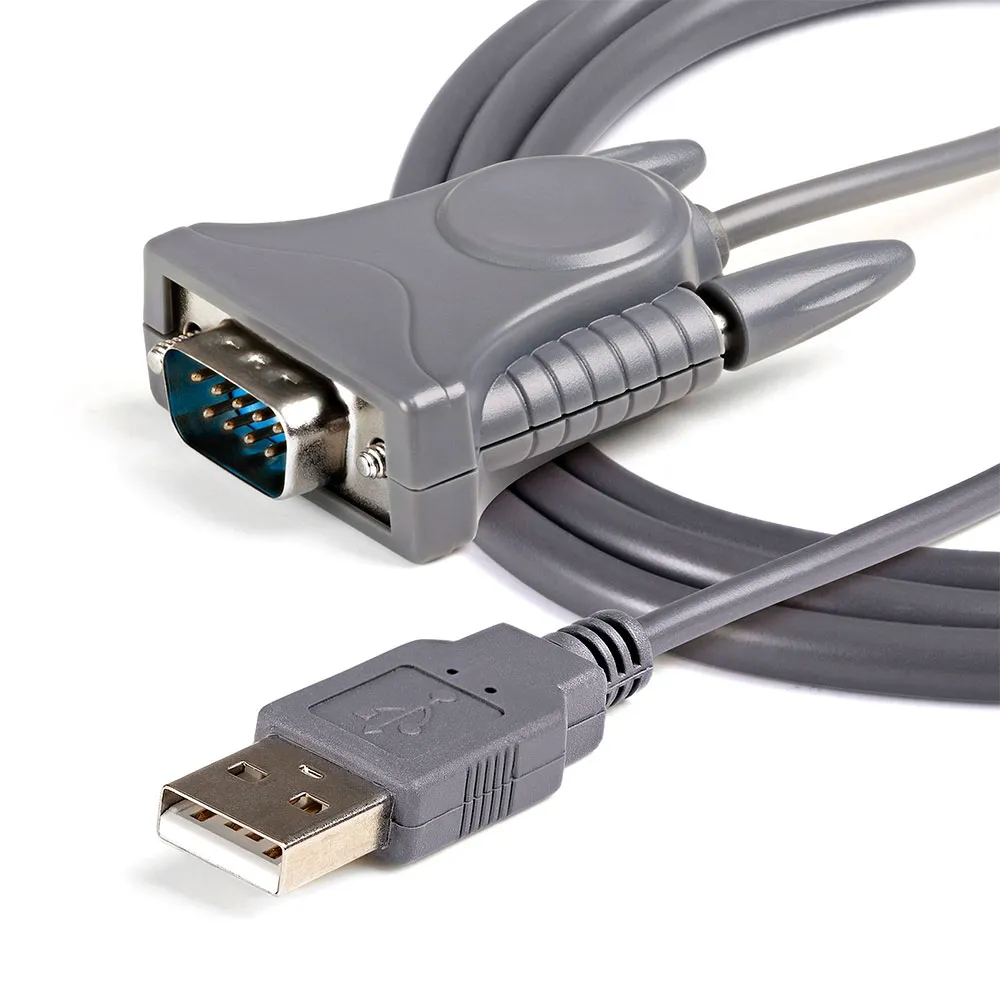

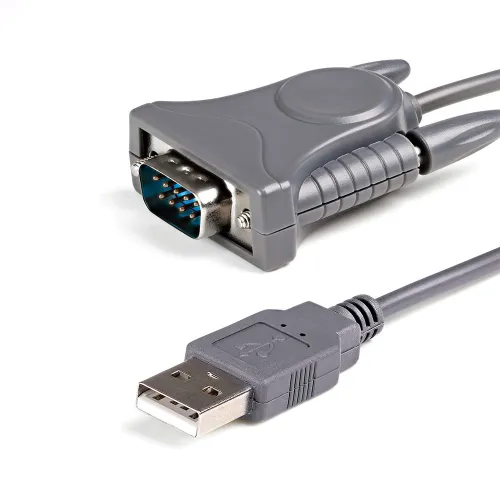

The ICUSB232DB25 USB to RS232 DB9/DB25 Serial Adapter Cable (M/M) lets you connect 9-pin (DB9) or 25-pin (DB25) RS232 serial devices to your laptop or desktop computer through a USB port, as though the computer offered an onboard serial port.

The integrated 3-foot (0.9 meter) cable allows it to be connected directly from the serial device to the computer without requiring additional cables.

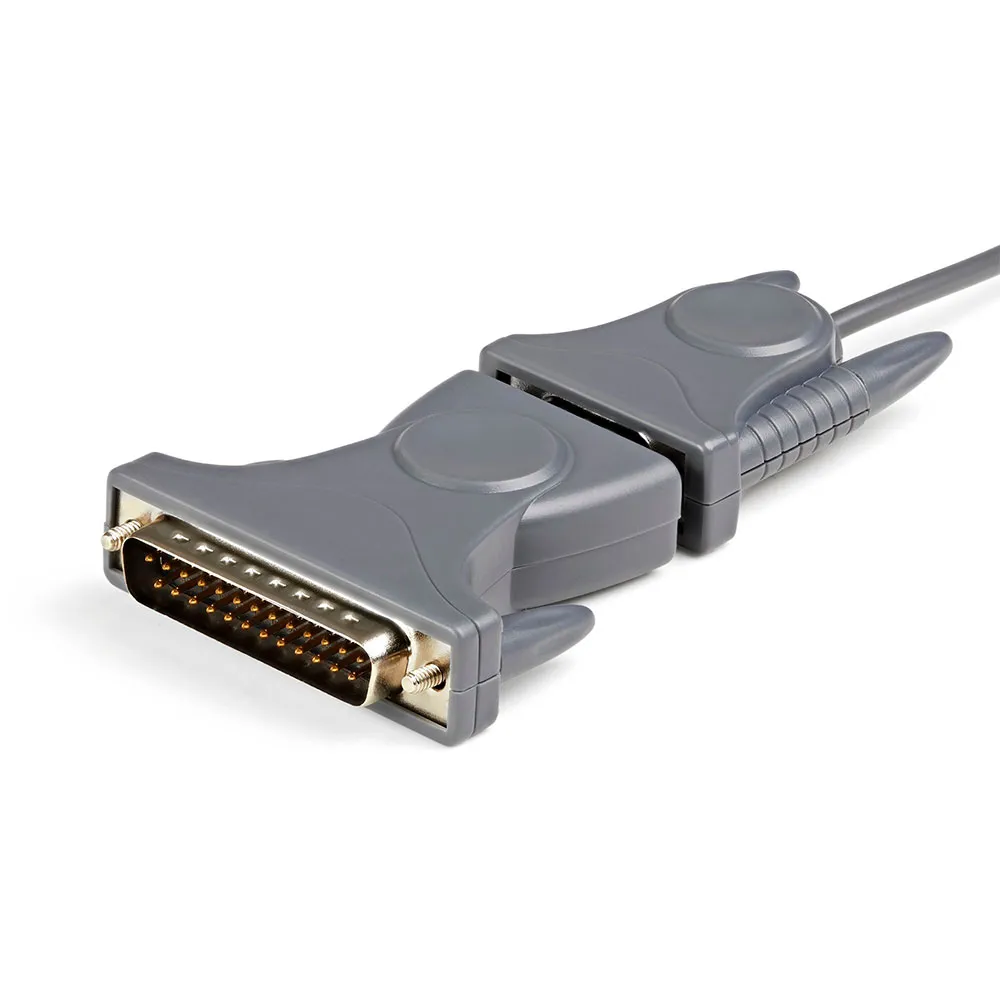

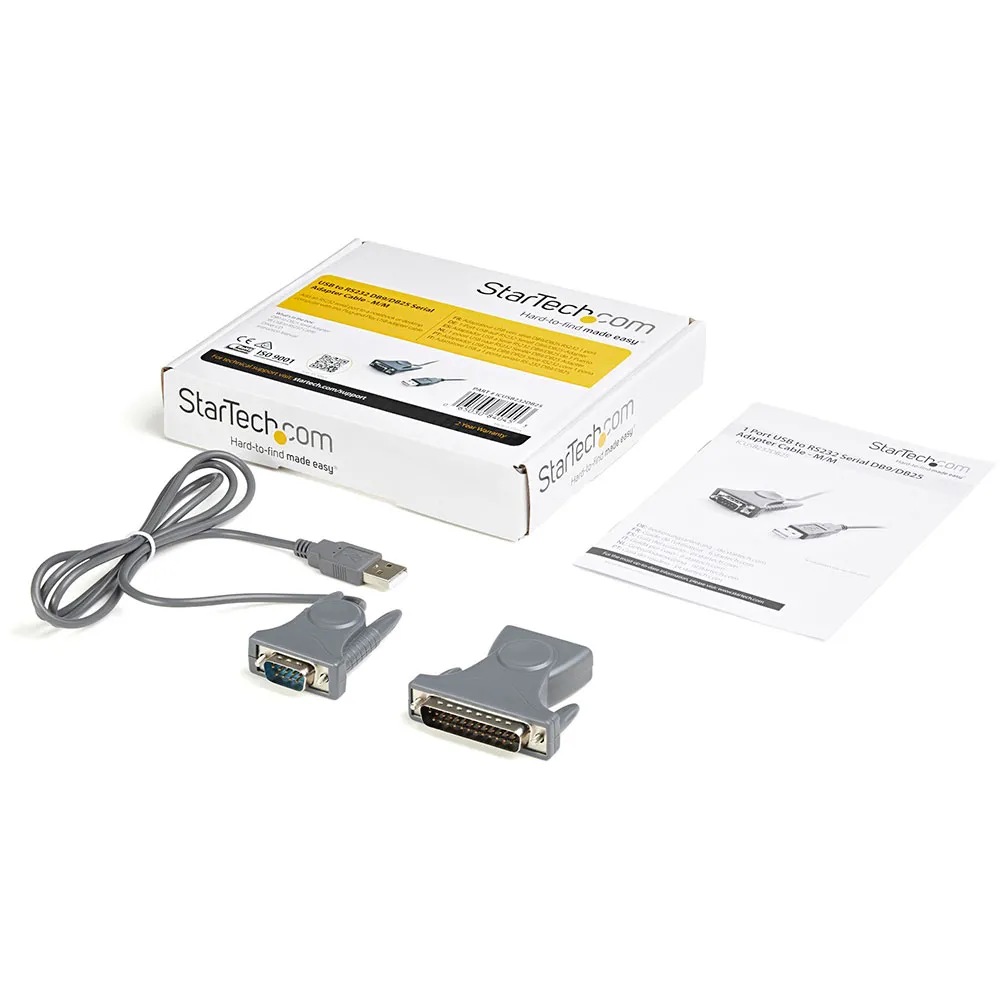

A cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals, this high quality USB/RS232 Serial Adapter cable ships with a DB-9 to DB-25 adapter for connection to varied serial equipment.

Key Benefits of the STARTECH Serial Adapter

This adapter is engineered for maximum convenience and compatibility. Its USB-powered design means no external power adapter is required, simplifying your workspace and making it perfect for portable applications. The plug-and-play installation, supported by broad operating system compatibility including Windows®, macOS, and Linux®, ensures a quick and effortless setup process. With support for high-speed data transfer rates, you can be confident in a stable and efficient connection for all your critical applications, from industrial automation to connecting point-of-sale equipment. The dual-format versatility, supporting both DB9 and DB25 connectors, makes this single adapter a comprehensive tool for virtually any RS232 serial task.

Main Features
* USB to Straight-Through RS232 Serial Communication
* Supports DB9 and DB25 Serial Connector Formats
* Integrated 3 ft (0.9m) Cable Length
* Plug-and-Play and Hot-Swap Compatible
* USB Bus-Powered Operation
* High-Speed Baud Rate Support
* Remote Wake-up and Power Management Support
* Broad Operating System Compatibility

Technical Specifications
* Product ID: ICUSB232DB25

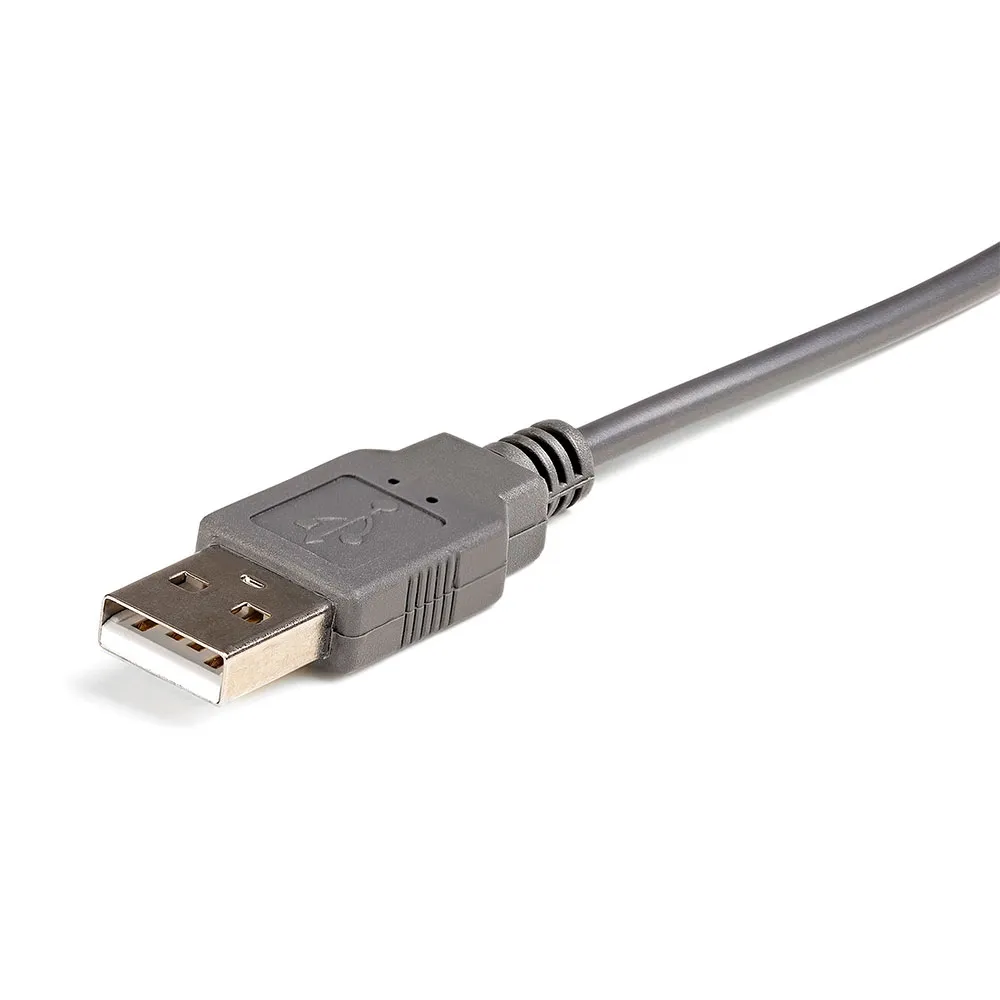

* Host Connector: 1x USB-A (4 pin) Male

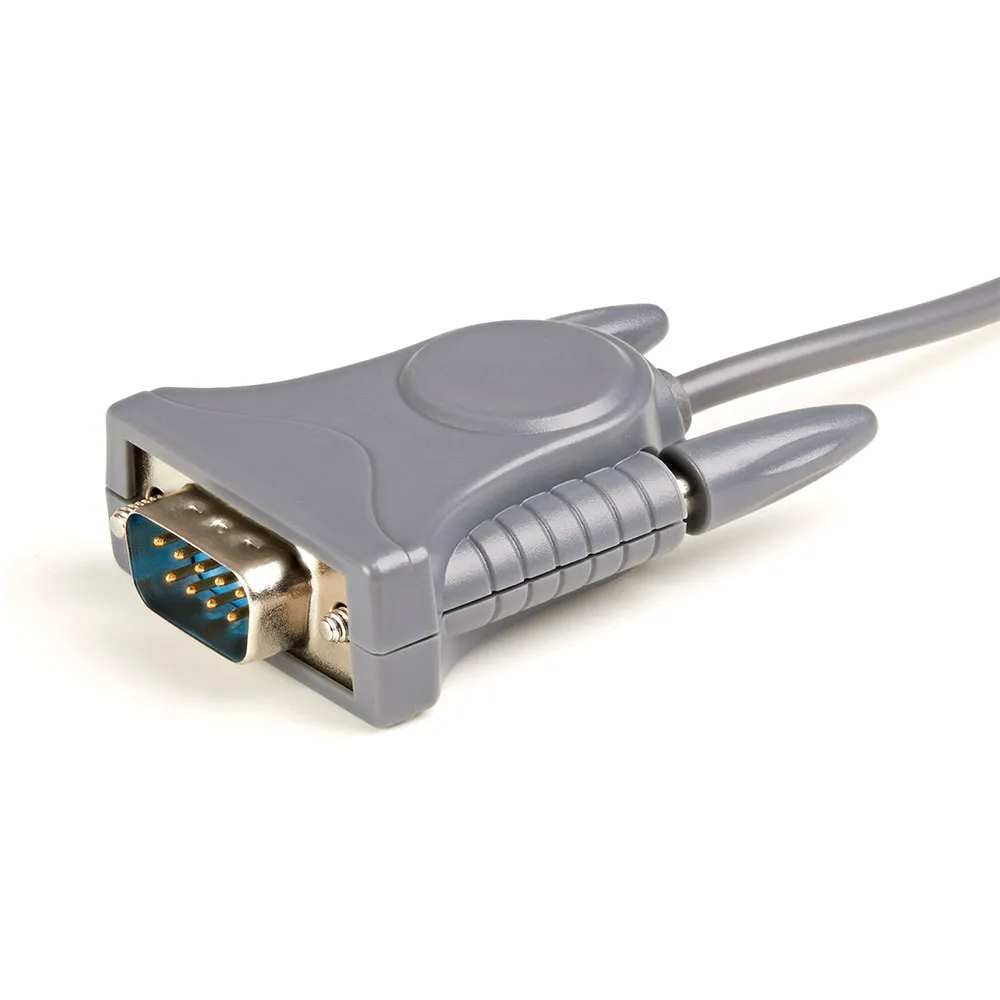

* Device Connectors: 1x DB-9 (9 pin, D-Sub) Male, 1x DB-25 (25 pin, D-Sub) Male
* Interface: Serial
* Port Style: Cable Adapter
* Chipset ID: Prolific - PL-2303
* Cable Length: 3 ft
* Max Baud Rate: 921.6 Kbps
* Data Bits: 7, 8
* FIFO: 512 Bytes
* Flow Control: None, Xon/Xoff, RTS/CTS
* Parity: None, Odd, Even, Mark, Space
* Stop Bits: 1, 1.5, 2
* Power Source: USB-Powered
* OS Compatibility: Windows® 7, 8, 8.1, 10, 11; Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019; macOS 10.11 to 10.15, 11.0, 12.0, 13.0; Linux 2.6.x to 5.x (LTS Versions only)
