Startech USB VGA KVM Console Extender over CAT5

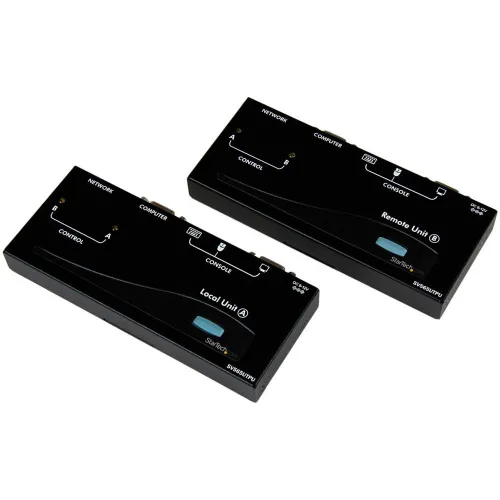

StarTech.com USB VGA KVM Console Extender over CAT5 - 500ft / 150m

Category: Components
Subcategory: Connectivity

Gain full remote control of your server or computer from up to 500 feet away with the STARTECH USB VGA KVM Console Extender. This professional-grade solution is engineered for reliability and performance, allowing you to bridge significant distances between your workstation and critical hardware using standard, cost-effective network cabling. Optimize your workspace, enhance security by centralizing hardware, and streamline your workflow without compromising on control or video quality. This extender is the ideal choice for data centers, industrial environments, test benches, and any application requiring long-distance console access.

The SV565UTPUEU USB VGA KVM Console Extender over CAT5 UTP (500 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 500 ft (150 m) away.

PC connection cables are included with this product for a ready out of the box solution.

You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.

Built for uncompromised visual clarity, this extender supports high-resolution video to ensure that your remote session is as sharp and responsive as a local connection. The robust, all-steel construction of both the local and remote units guarantees durability for long-term deployment in demanding settings. Simple to install and OS-independent, it integrates seamlessly into your existing infrastructure without the need for complex software or driver installation, providing a true plug-and-play experience for immediate productivity.

Main Features
* Extend USB keyboard, mouse, and VGA video signals over a single CAT5 or CAT6 UTP cable.
* Supports high-definition resolutions up to an impressive 1920x1200 for crystal-clear video quality.
* Intuitive hot-key commands and push-button controls for easy switching between local and remote hosts.
* Features built-in equalization (EQ) and gain control to fine-tune the video signal for optimal clarity at any distance.
* OS independent for universal compatibility with all major operating systems including Windows, macOS, and Linux.
* Durable steel enclosure provides excellent protection and heat dissipation for reliable operation.

Technical Specifications
* Attributes: Extenders, USB-A
* Maximum Transfer Distance: 500 ft / 150 m
* Maximum Analog Resolution: 1920x1200 @ 60Hz
* Supported Cabling: Cat5, Cat5e, Cat6 UTP Cable
* Local Unit Connectors: 1x VGA (15 pin, D-Sub) Input, 1x USB B (4 pin) Input, 1x RJ-45 Output
* Remote Unit Connectors: 2x USB A (4 pin) for Keyboard/Mouse, 1x VGA (15 pin, D-Sub) Output, 1x RJ-45 Input
* OS Compatibility: OS Independent; No drivers or software required
* Power Source: 2x Universal AC Adapters (NA/EU/UK/AU) Included
* Enclosure Type: Steel
* LED Indicators: Power, Link Status, Local/Remote Status
