Startech VDSL LAN EXTENDER EU RJ45 network cable

Extend a network up to 0.6 miles (1km) over single pair wire/phone line wire UTP.

Extend a network over VDSL2, using Cat5e (or better) UTP Cabling or Single-Pair (or better) Telephone Wire at distances up to 0.6mi (1km).

Extend Network Connectivity.

Extend a network over VDSL2 using UTP, CAT5e/6 or RJ11 cabling over distances up to 0.6mi (1km).

Speeds of up to 300 Mbps (aggregated) are available at shorter distances.

Supports VDSL2 35b/30a/17a and features ITU-T G.993.5 G.Vectoring and G.INP technologies.

Thoughtful Design.

The installation can be customized by using DIP switches.

Choose between Master or Remote mode, Symmetric or Asymmetric mode, G.INP or Interleave mode, and fine-tune SNR with High and Low options for optimal performance.

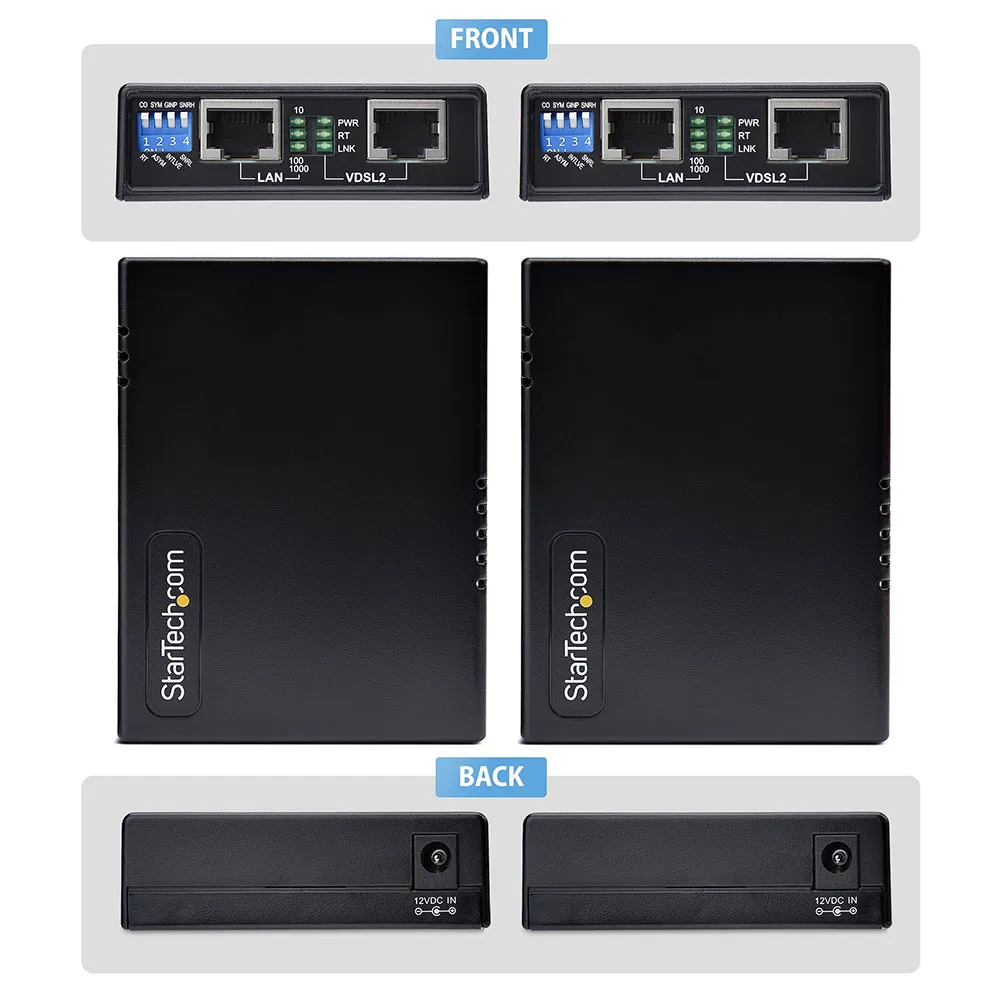

The Gigabit Ethernet Extender has LEDs that provide a visual indication of network status, including LAN speed, link status, power, and remote/master mode, allowing IT administrators to monitor and assess network connectivity.

Versatile Applications.

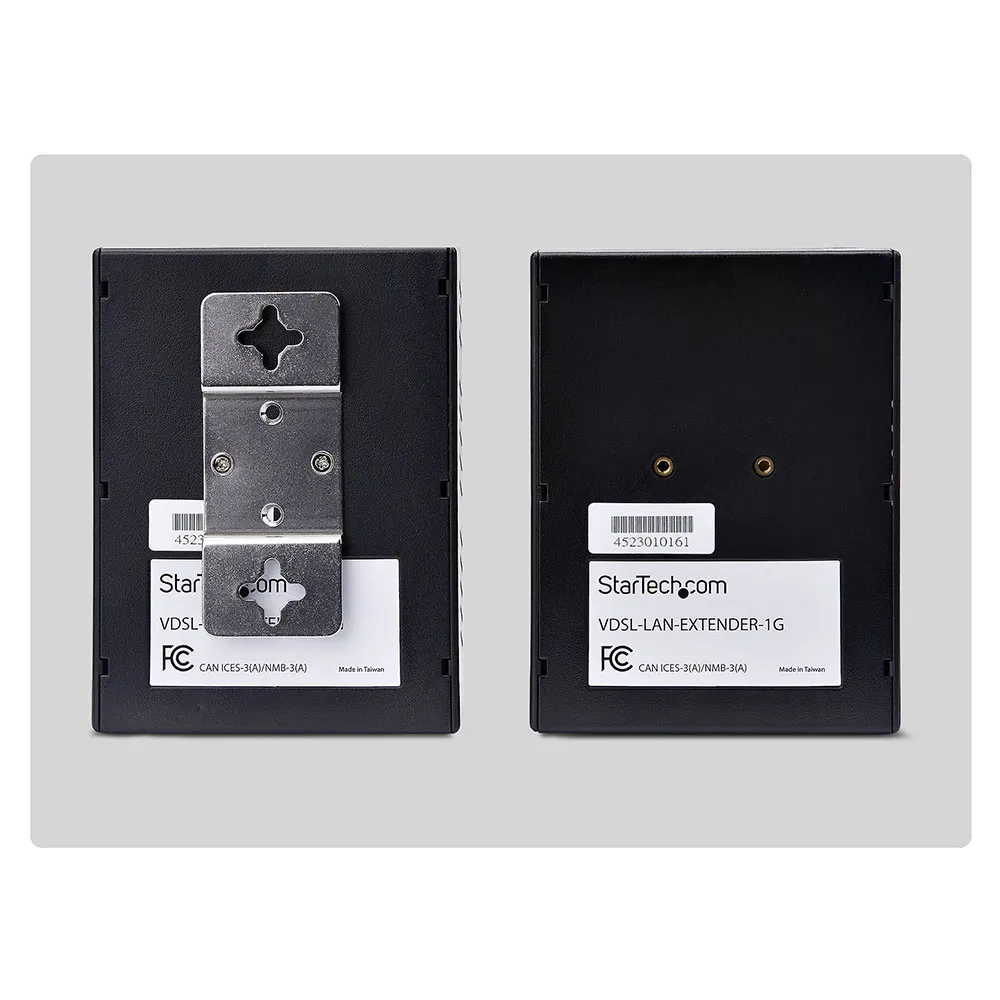

The Long-Range LAN Extender can be mounted on a wall, using the included hardware, or installed on a shelf or other surface.

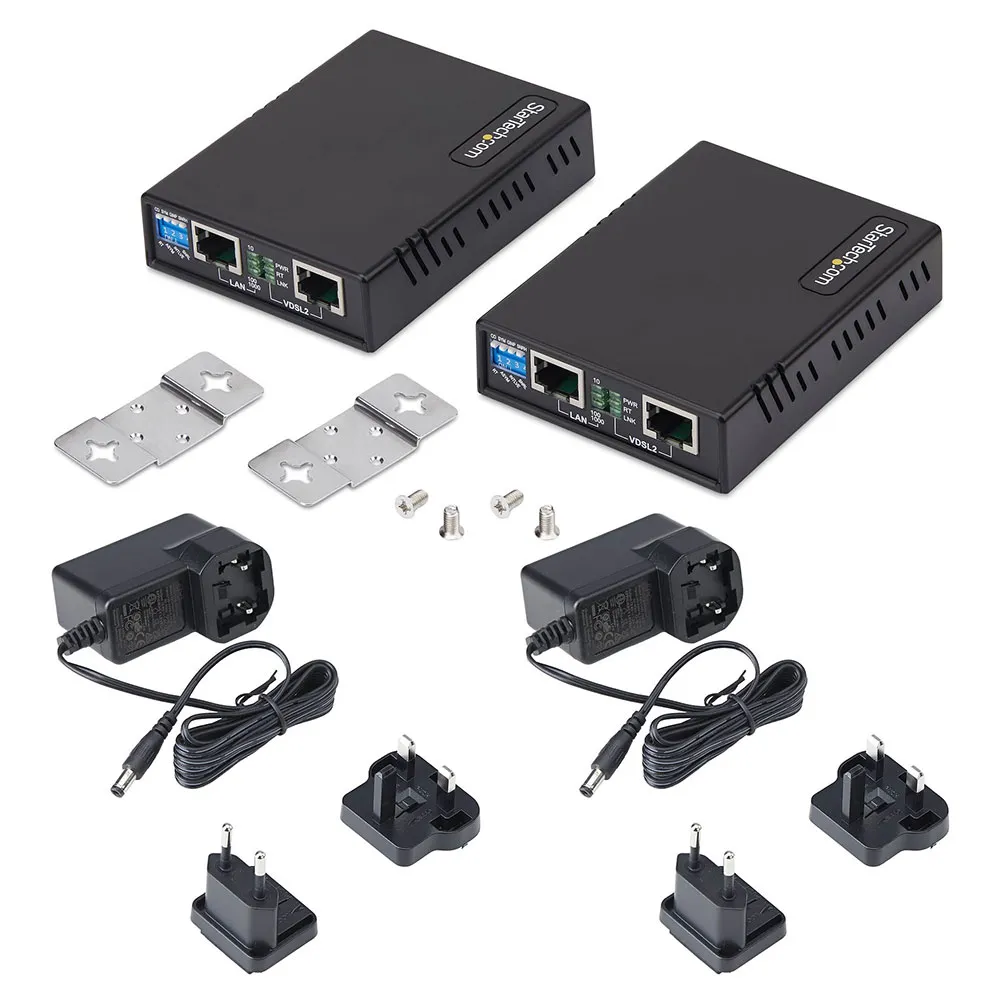

The kit includes two power adapters, one for each VDSL Extender.

The extender works with third-party VDSL2 IP DSLAMs in CPE (RT) mode and extends the network for applications such as remote office or branch locations or IP-based video solutions.

The 802.1Q VLAN tag transparency preserves VLAN-tagged traffic across the extension.StarTech.com VDSL2 Ethernet Extender Kit over Single Pair Wire, Up to 0.6mi (1km) Long Range LAN Repeater over Phone Line/CAT5e/CAT6, Up to 300Mbps, Replacement for 110VDSLEXTEU - TAA.

Type:Network transmitter & receiver,.

Maximum transfer distance:1000 m,.

Data transfer rate:300 Mbit/s.

Networking standards:IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3z.

Product colour:Black.

AC input voltage:100 - 240 V,.

Input current:0.5 A, Power consumption (typical):3.8 W.

Width:72 mm,.

Weight:110 gVDSL2.

EXTENDER:Extend a network over VDSL2, using UTP/single pair wire, CAT5e/6, or phone line cabling, Up to 0.6mi (1km), Up to 300Mbps (aggregated) at shorter distances, Supports VDSL2 35b/30a/17a, ITU-T G.993.5 G.Vectoring, and G.998.4 G.INP standards.

8 PROFILE CONFIGURATIONS:Customize the installation with DIP switch selectable settings, Choose between Master or Remote mode, Symmetric or Asymmetric mode, G.INP or Interleave mode, and fine-tune SNR with High and Low options for optimal performance.

INTUITIVE INDICATORS:Gigabit Ethernet Extender features four LEDs that provide a visual indication of network status, including LAN speed, link status, power, and remote/master mode, allowing IT administrators to monitor and assess network connectivity.

VERSATILE MOUNTING OPTIONS:TAA-compliant Long Range LAN Booster can be mounted on a wall using the included mounting hardware, or placed on a shelf or other surface, Includes two power adapters, one for each VDSL Extender unit.

APPLICATIONS:Works with third-party VDSL2 IP DSLAMs in CPE (RT) mode, Extends a network to remote areas, supporting applications such as video surveillance/digital signage, 802.1Q VLAN tag transparency preserves VLAN-tagged traffic across the extension
