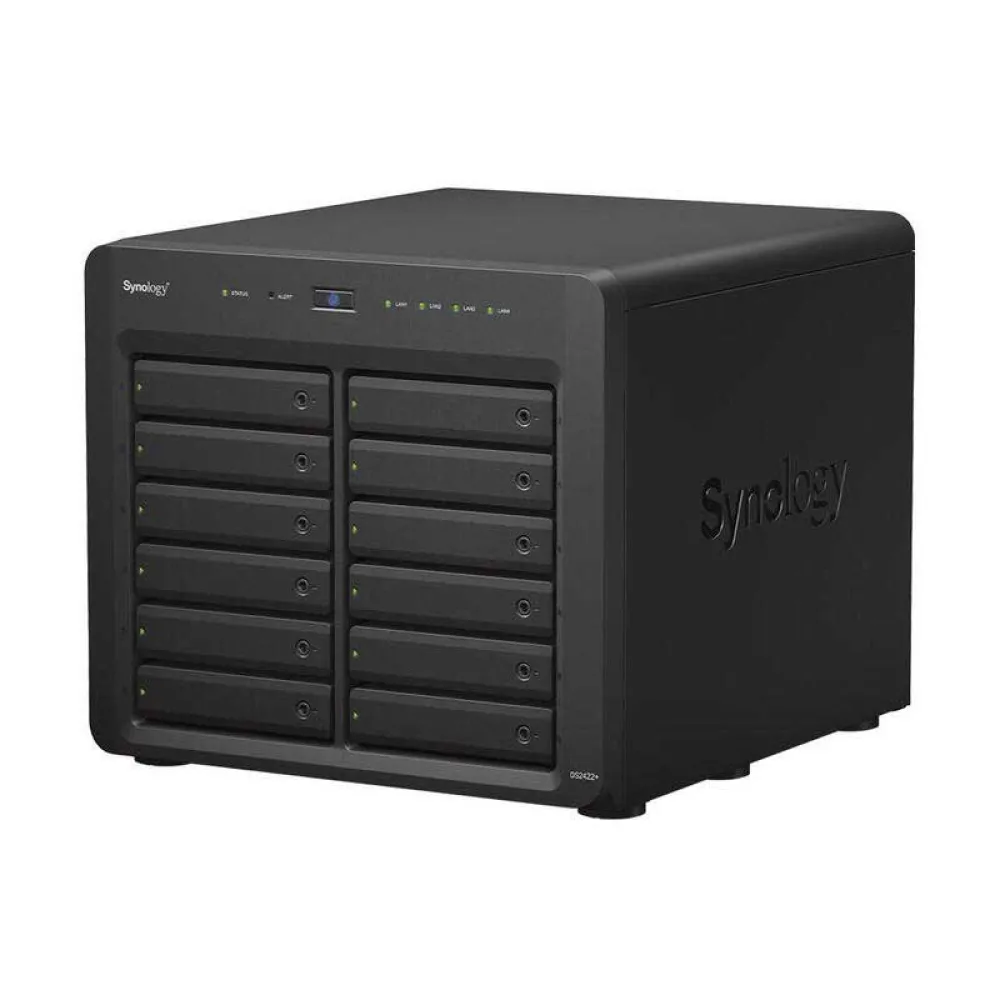

Synology DS2422 Plus NAS

Flexible large-scale storage for small and medium-sized businesses.

Built for high-performance mass storage:

- The 12-bay Synology DiskStation DS2422+ is a capable choice for small and medium businesses with large storage, file sharing, and data protection requirements in a multi-user environment.

It comes with powerful storage management, file syncing, surveillance, and backup software, and is suitable for editing high-quality video and as VM storage.

CPU:

- AMD Ryzen™ Quad-core 2.2 GHz Throughput:

- 2,201/1,383 MB/s sequential read read/write throughput1 Expandability:

- Easily add 10/25GbE and NVMe SSD cache Scalability:

- Expand to 24 bays with one DX1222 expansion unit Faster.

Performance:

- Comfortably run demanding applications and processes with multiple users on the DS2422+ while still enjoying a smooth and fast experience.

See the improvements that help make your business productive.1 Rise to the challenge:

- Prepare your DS2422+ for heavy workloads or upgrade flexibly as your business continues to grow.

Use add-in cards to add bandwidth, fast SSD cache, or both.2 Maximize bandwidth:

- Handle heavier input/output and serve more users with dual-port Synology 10 or 25GbE network interface cards.

Boost storage.

Performance:

- Accelerate HDD arrays with an M.2 NVMe SSD adapter card and SNV3000 series SSDs, or install SAT5200 SATA SSDs in drive bays to increase performance with SSD cache.3 Do both with one card:

- Add both 10GbE connectivity and M.2 NVMe SSD slots for SSD cache with a single combination NIC and adapter card.

Consolidate backups to your NAS:

Active Backup Suite:

- Securely back up Windows clients and servers, Microsoft 365 and Google Workspace accounts, file servers, and VMware® and Hyper-V® virtual machines with the Active Backup Suite.Leverage built-in deduplication technology to reduce backup sizes and multi-versioning to allow flexible restoration.

Implement a 3-2-1 backup strategy:

- Combine local and remote backup strategies to achieve fully redundant protection of your IT infrastructure using Synology and third-party solutions.

Active Backup Suite:

- Securely back up Windows clients and servers, Microsoft 365 and Google Workspace accounts, file servers, and VMware® and Hyper-V® virtual machines with the Active Backup Suite.Leverage built-in deduplication technology to reduce backup sizes and multi-versioning to allow flexible restoration.

Learn more Implement a 3-2-1 backup strategy:

- Combine local and remote backup strategies to achieve fully redundant protection of your IT infrastructure using Synology and third-party solutions.

Learn more Hyper Backup:

- Back up files, iSCSI LUNs, installed applications, and system configurations to destinations including Synology C2 Storage, public cloud platforms, USB devices, file servers, local folders, or other Synology NAS.

Set and forget backup tasks with regular schedules, enhance security with fine-grained user permissions and encryption, keep backup sizes small with built-in deduplication,4 and restore data flexibly with multi-versioning.

Snapshot Replication:

- Snapshot Replication enables flexible point-in-time snapshots of shared folders and virtual machines with an RPO as low as 5 minutes and recovery within seconds.

Ready for remote work:

- Empower your workforce to collaborate, share files, and communicate from anywhere.

Synology Drive:

- Access and collaborate on team documents via web portal, desktop clients, and mobile apps with powerful cross-site sync and file management.

Synology Office:

- Collaborate in real time on documents, spreadsheets, and slides for greater synergy and productivity.

Synology Chat:

- Instantly message colleagues and organize conversations to achieve clear and cohesive communication.

Certified virtual machine storage:

- DSM streamlines provisioning for and management of virtual machines with full certification for VMware® vSphere™, Microsoft® Hyper-V®, Citrix® XenServer™, and OpenStack virtualization environments.

- Synology Storage Console for VMware® or Windows platforms lets you manage storage directly from your hypervisor.

VMware® VAAI integration and Windows ODX help offload storage operations and speed up data transfer, and a Kubernetes CSI driver lets you provision and manage volumes directly from the K8s CLI.

Data Protection:

- Keep your business safe from data loss and minimize service downtime.

User Management:

- Manage user accounts and devices throughout your business with powerful directory services.

Security:

- Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions.

File Management:

- Manage, sync, and share files from multiple devices through a centralized platform.

System Administration:

- Manage the health of your deployments and centrally administer updates with ease.

Security:

- Secure data with comprehensive built-in security tools to protect your devices against evolving threats.

Get extra protection with Extended Warranty Plus:

- Extend the standard 3-year hardware warranty2 of your DS2422+ with 2 more years of Synology-certified support and premium services that help you recover faster in the event of disaster.3 DiskStation® DS2422+:

- Status indicator.

- Alert indicator.

- Power button.

- LAN indicator.

- Drive status indicator.

- Drive tray.

- Drive tray lock.

- Power port.

- System fan.

- PCIe expansion slot.

- Reset button.

- Reset button.

- Console port.

- Expansion port.

- 1GbE RJ-45 port.

Specifications:

Hardware.

Specifications:

CPU:

- CPU Model:

AMD Ryzen V1500B.

- CPU Quantity:

1.

- CPU Architecture:

64-bit.

- CPU Frequency:

4-core 2.2 GHz.

- Hardware Encryption Engine (AES-NI):

Yes Memory:

- System Memory:

4 GB DDR4 ECC SODIMM.

- Memory Module Pre-installed:

4 GB (4 GB x 1).

- Total Memory Slots:

2.

- Maximum Memory Capacity:

32 GB (16 GB x 2) Storage:

- Drive Bays:

12.

- Maximum Drive Bays with Expansion Unit:

24 (DX1222 x 1) Compatible Drive Type (See all supported drives):

- 3.5´´ SATA HDD.

- 2.5´´ SATA HDD.

- 2.5´´ SATA SSD.

- Hot Swappable Drive:

Yes External Ports:

- RJ-45 1GbE LAN Port:

4 (with Link Aggregation / Failover support).

- USB 3.2 Gen 1 Port:

2.

- Expansion Port:

1 PCIe:

- PCIe Expansion:

1 x Gen3 x8 slot (x4 link).

- File System Internal Drives:

- Btrfs.

- EXT4 External Drives:

- Btrfs.

- EXT4.

- EXT3.

- FAT.

- NTFS.

- HFS+.

- exFAT Appearance:

- Size (Height x Width x Depth):

270 mm x 300 mm x 340 mm.

- Weight:

9.5 kg.

- Others:

System Fan:

120 mm x 120 mm x 2 pcs Fan Speed Mode:

Yes Full-Speed Mode.

- Cool Mode.

- Quiet Mode.

- Easy Replacement System Fan:

Yes.

- Power Recovery:

Yes.

- Noise Level:

25 dB(A).

- Scheduled Power On / Off:

Yes.

- Wake on LAN / WAN:

Yes.

- Power Supply Unit / Adapter:

550 W.

- AC Input Power Voltage:

100V to 240V AC.

- Power Frequency:

50/60 Hz, Single Phase.

- Power Consumption:

73.11 W (Access).

- 32.12 W (HDD Hibernation).

- British Thermal Unit:

249.63 BTU/hr (Access).

- 109.67 BTU/hr (HDD Hibernation) Temperature:

- Operating Temperature:

0°C to 40°C (32°F to 104°F).

- Storage Temperature:

-20°C to 60°C (-5°F to 140°F).

- Relative Humidity:

5% to 95% RH.

Certification:

- FCC.

- CE.

- BSMI.

- VCCI.

- RCM.

- UKCA.

- EAC.

- CCC.

- KC.

- UL Environment:

- RoHS Compliant Packaging Content:

- Main Unit X 1.

- Accessory Pack X 1.

- AC Power Cord X 1.

- RJ-45 LAN Cable X 2.

- Quick Installation Guide X 1 Optional Accessories:

- DDR4 ECC SODIMM:

D4ES02-4G/D4ES02-8G/D4ES01-16G.

- Expansion Units:

DX1222.

- 3.5´´ SATA HDD:

HAT5300.

- 2.5´´ SATA SSD:

SAT5210.

- M.2 SSD & 10GbE Combo Adapter Card:

E10M20-T1.

- M.2 SSD Adapter Card:

M2D20.

- 25GbE Network Interface Card:

E25G21-F2.

- 10GbE Network Interface Card:

E10G21-F2/E10G18-T2/E10G18-T1.

- VisualStation:

VS360HD.

- Surveillance Device License Pack Software.

Specifications:

Storage Management:

- Maximum Single Volume Size:

108 TB.

- Maximum Internal Volume Number:

64.

- SSD Read / Write Cache (White Paper):

Yes.

- SSD TRIM:

Yes Supported RAID Type:

- Synology Hybrid RAID.

- Basic.

- JBOD.

- RAID 0.

- RAID 1.

- RAID 5.

- RAID 6.

- RAID 10 RAID Migration:

- Basic to RAID 1.

- Basic to RAID 5.

- RAID 1 to RAID 5.

- RAID 5 to RAID 6 Volume Expansion with Larger HDDs:

- Synology Hybrid RAID.

- RAID 1.

- RAID 5.

- RAID 6.

- RAID 10 Volume Expansion by Adding a HDD:

Yes Synology Hybrid RAID:

- JBOD.

- RAID 5.

- RAID 6.

- Global Hot Spare Supported RAID Type:

Yes Synology Hybrid RAID:

- RAID 1.

- RAID 5.

- RAID 6.

- RAID 10 File Services:

- File Protocol:

SMB/AFP/NFS/FTP/WebDAV.

- Maximum Concurrent SMB/AFP/FTP Connections:

1,000.

- Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion):

2,000.

- Windows Access Control List (ACL) Integration:

Yes.

- NFS Kerberos Authentication:

Yes Account & Shared Folder:

- Maximum Local User Accounts:

2,048.

- Maximum Local Groups:

256.

- Maximum Shared Folder:

512.

- Maximum Shared Folder Sync Tasks:

16 Hybrid Share:

- Hybrid Share Folder Number:

10 High Availability:

- Synology High Availability:

Log Center:

- Syslog Events per Second:

1,000 Virtualization:

- VMware vSphere with VAAI:

Yes.

- Windows Server 2016:

Yes.

- Windows Server 2019:

Yes.

- Citrix Ready:

Yes.

- OpenStack:

Yes General.

Specifications:

- Networking Protocols:

SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV Supported Browsers:

- Google Chrome.

- Firefox.

- Microsoft Edge.

- Safari.

- Supported Language:

English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文.
