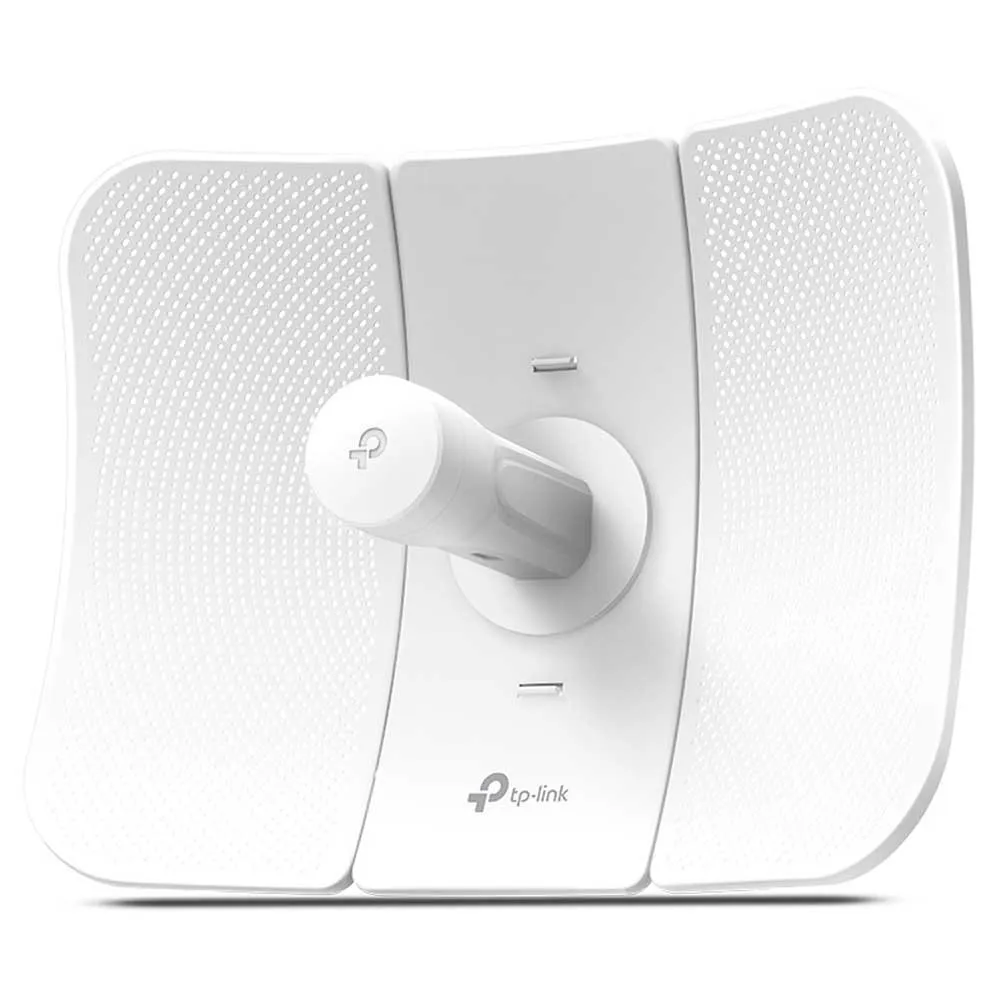

Tp-link CPE 867M CPE710 antenna

With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE710 provides excellent beam directivity, improved latency, and noise immunity.

Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications.

Compact and Lightweight Packaging Small and lightweight boxes benefit shipping, logistics, and retail.

Pharos Control - Centralized Management System CPE710 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC.

Functions include device discovery, status monitoring, firmware upgrading, and network maintenance.

An intuitive web-based interface- PharOS.

- provides an alternative management method and allows professionals to access more detailed configurations.

Specifications:

- 2.4 GHz:

No.

- 5 GHz:

Yes.

- Maximum data transfer rate:

867 Mbit/s.

- Ethernet LAN data rates:

10,100,1000 Mbit/s.

- Frequency band:

5.15.

- 5.85 GHz.

- Networking standards:

IEEE 802.11a,IEEE 802.11ac,IEEE 802.11n.

- Channel bandwidth:

80 MHz.

- Automatic channel selection:

Yes.

- MIMO:

Yes.

- Wireless isolation:

Yes.

- Dynamic Frequency Selection (DFS):

Yes.

- Transmitting power:

27 dBmW Security:

- Security algorithms:

HTTPS,SNMP,SSH,WPA,WPA2,WPA2-AES,WPA2-PSK,WPA2-TKIP.

- MAC address filtering:

Yes.

- Service Set Identifier (SSID).

Features:

Multiple SSIDs, SSID broadcast, SSID broadcast on/off.

- IGMP snooping:

Yes.

- Auto Wireless Distribution System (WDS):

Yes Protocols:

- Universal Plug and Play (UPnP):

Yes Management.

Features:

- Web-based management:

Yes.

- Syslog:

Yes Ports & interfaces:

- Ethernet LAN (RJ-45) ports:

1 Power:

- Power over Ethernet (PoE):

Yes.

- Input voltage:

100.

- 240 V.

- Input frequency:

50/60 Hz.

- Output voltage:

24 V.

- Output current:

0.6 A Design:

- Placement:

Pole.

- Housing material:

Plastic.

- International Protection (IP) code:

IP65.

- Reset button:

Yes.

- LED indicators:

Power.

-.

Certification:

CE, FCC, RoHS, IC Antenna:

- Antenna gain level (max):

23 dBi.

Performance:

- Built-in processor:

Yes.

- Processor frequency:

750 MHz.

- Flash memory:

16 MB.

- Internal memory:

128 MB.

- Compatible operating systems:

Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX, Linux Operational conditions:

- Operating relative humidity (H-H):

10.

- 90%.

- Operating temperature (T-T):

-40.

- 70 °C.

- Storage temperature (T-T):

-40.

- 70 °C.

- Storage relative humidity (H-H):

5.

- 95% Weight & dimensions:

- Width:

366 mm.

- Depth:

280 mm.

- Height:

207 mm Packaging data:

- PoE adapter included:

Yes.

- Cables included:

AC.

- Quick start guide:

Yes.

- Package type:

Box.
